Product Description
Product Details
Manufacturer: Allen-Bradley
Model/Part Number: 1715-A2A

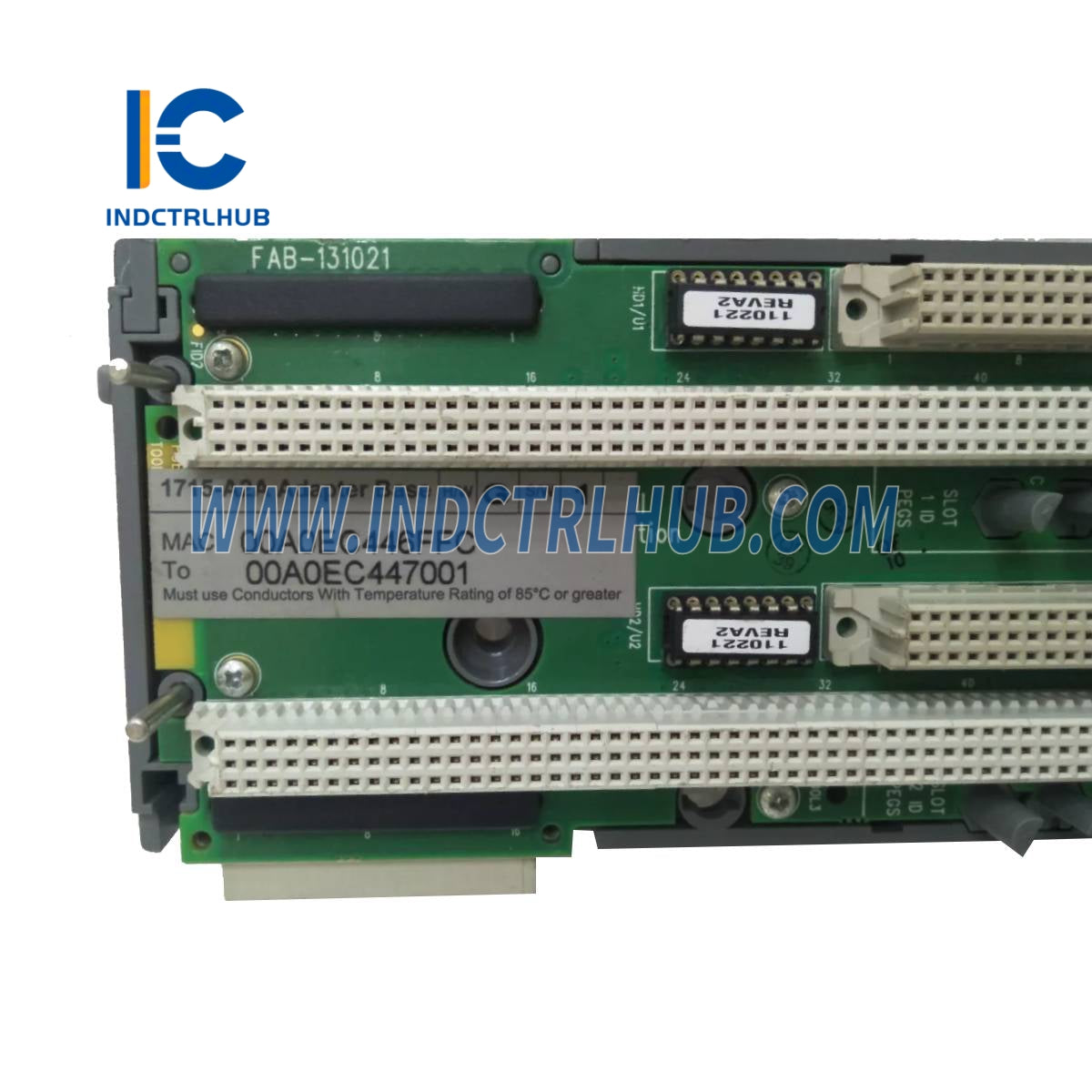

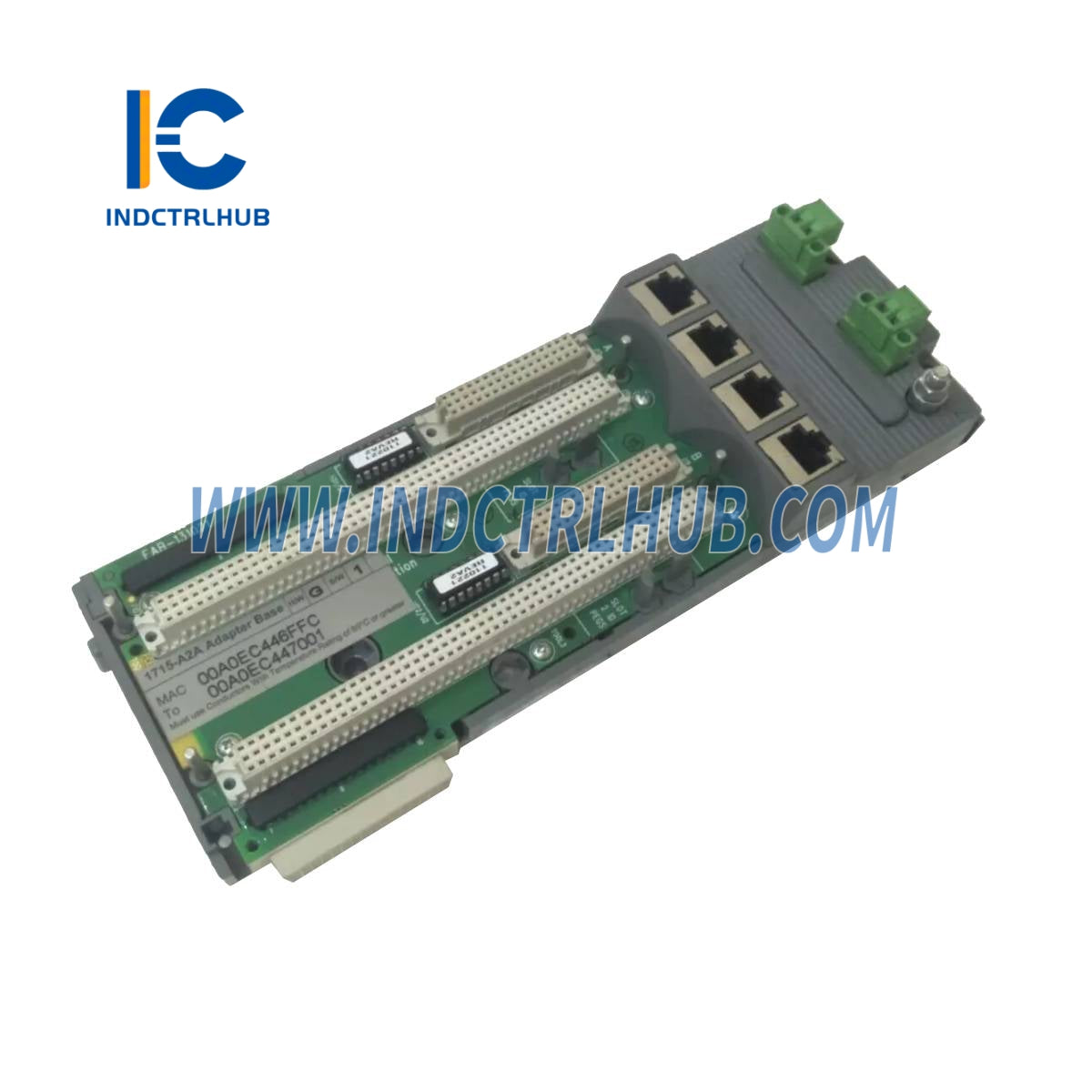

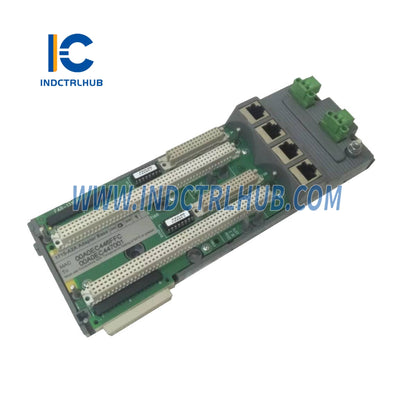

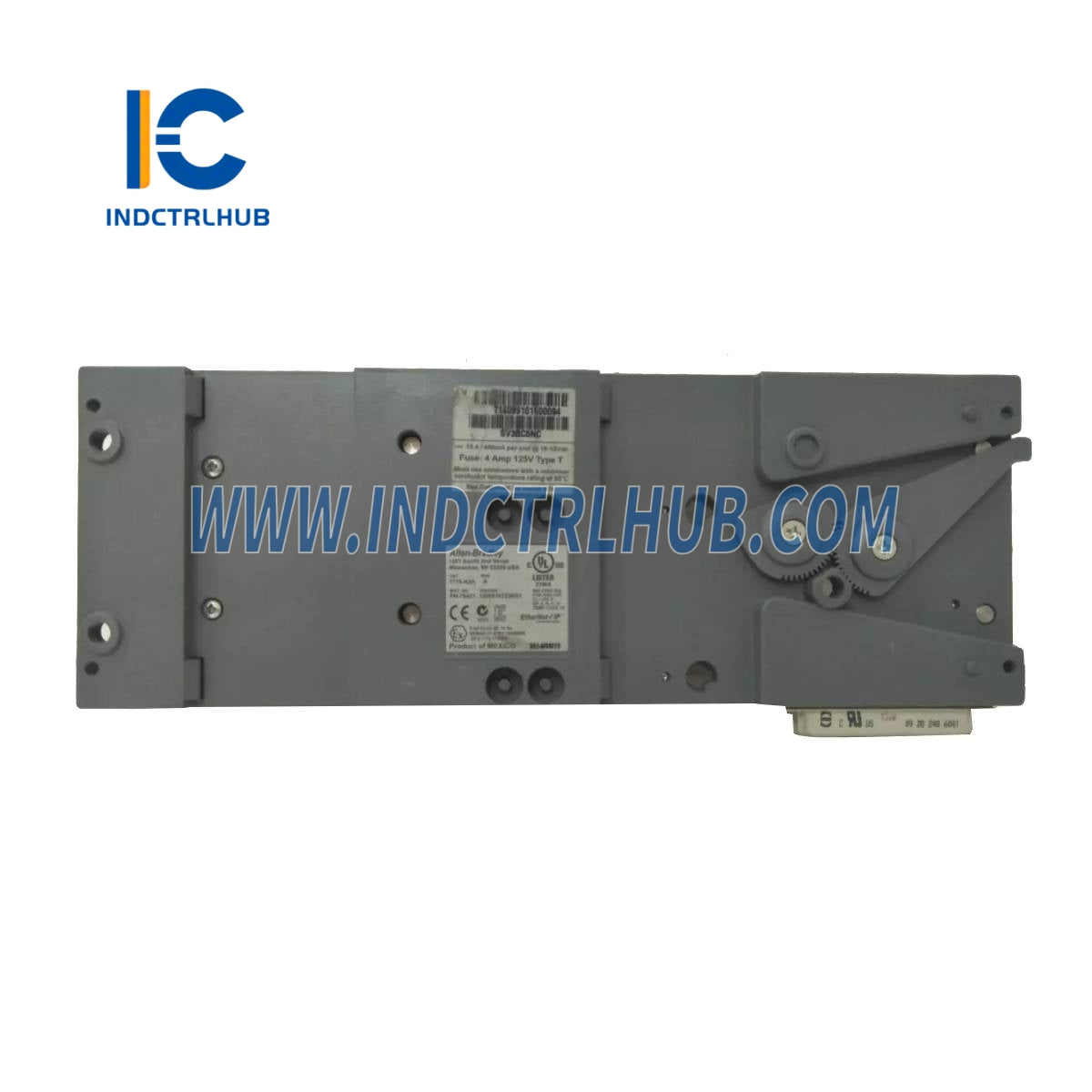

Description: 1715 2-Slot Adapter Base Unit
Technical Specifications
General Information
|
Attribute |
Specification |
|---|---|
|
Modules Supported (Max.) |
24 per adapter pair |
|
Base Unit Model |
1715-A2A (2-slot adapter base unit) |
|
Weight (Approx.) |
283 g (9.98 oz) |
Power Specifications
|
Parameter |
Specification |
|---|---|
|
Operating Voltage Range |
18…32V DC |
|
1715-A2A Input Power |
10.4 A total max / 400 mA max per slot |
|
Fault-Tolerant Application Power |
Less than 3.2 A |
|
Power Dissipation |
8 W max, per adapter |
|
Fuse Type |
4 A, 125V, Type T |
Isolation Voltage
|
Parameter |
Specification |
|---|---|
|
Ethernet Ports to Backplane and DC Power Ports |
50V (continuous), basic insulation type |
|
Isolation Type Test |
500V AC for 60s |
|
Other Isolation Notes |
No isolation between individual Ethernet ports or between DC power ports |
Wiring Specifications
|
Parameter |
Specification |
|---|---|
|
Wiring Category |
2 - on power ports, 2 - on communication ports |
|
1715-A2A DC Power Connections |
Single 2.5 mm² (12 AWG) solid or stranded copper wire, rated at 85°C (185°F) or greater, 7 mm (9/32 in.) strip length |
|
1715-A2A Ground Connection |
4 mm² (10 AWG) min |
|
1715-A2A Ethernet Connections |
Shielded RJ45 connector (IEC60603-7), 2-pair or 4-pair shielded Category 5e (TIA 568-B.1) or shielded Category 5 cable (ISO/IEC 24702) |
Environmental Ratings
|
Parameter |
Specification |
|---|---|
|
North American Temperature Code |
T4 |
|
IEC Temperature Code |
T4 |
|
Enclosure Type Rating |
None (open-style) |
