Product Description
Product Overview

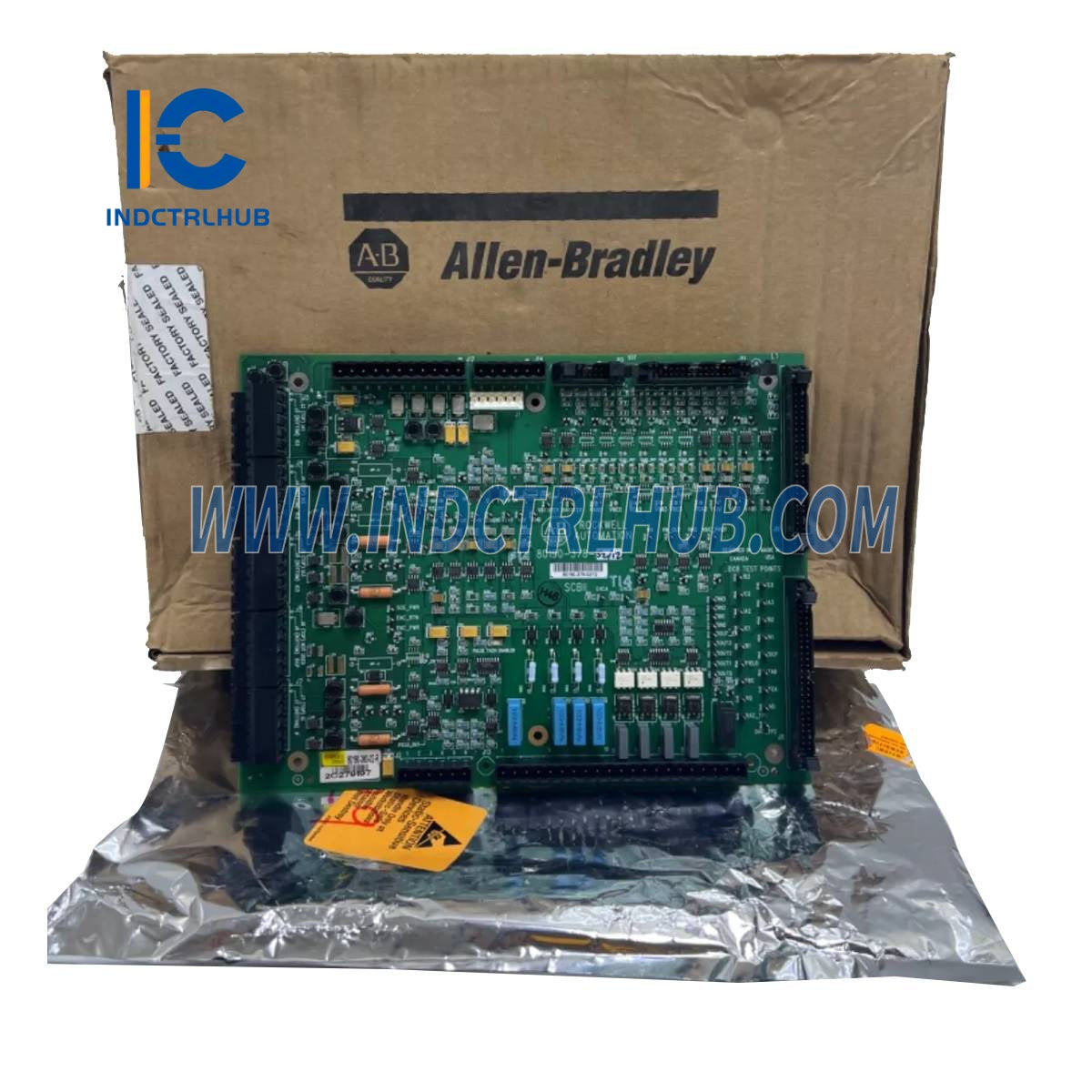

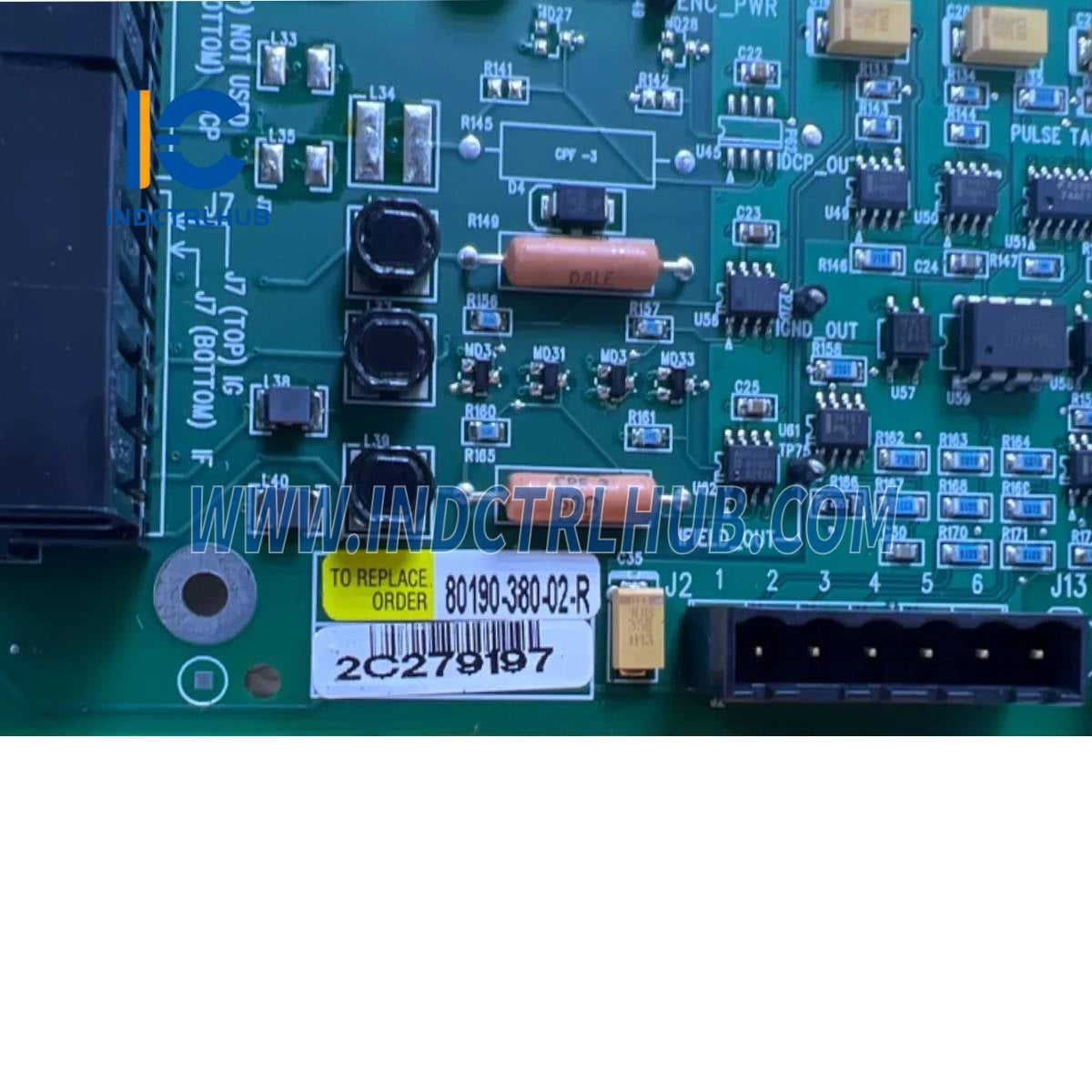

The Allen-Bradley 80190-380-02-R is an Analog Input Board designed for industrial automation applications, typically used within Rockwell Automation systems such as the PowerFlex series or PLC setups. Manufactured by Allen-Bradley (a Rockwell Automation brand), this module serves as a packaged customer-specific analog input board (often labeled "PKGD CUSTR AIB"), converting analog signals from field devices (e.g., sensors) into digital data for processing by the control system. It is engineered for precision and reliability in harsh environments like manufacturing, process control, and industrial machinery. The “80190-380-02-R” is the specific part number, with the “-R” suffix likely indicating a revision or conformal coating for enhanced durability.
Technical Specifications
The 80190-380-02-R has the following specifications based on supplier data and inferred characteristics from similar Allen-Bradley components:
| Item | Specification |
|---|---|
| Model/Part Number | 80190-380-02-R |
| Manufacturer | Allen-Bradley (Rockwell Automation) |
| Description | Analog Input Board (Packaged Customer AIB) |
| Series | PowerFlex Compatible |
| Power Supply | 24 V DC (via backplane, typical) |
| Input Channels | 8 (assumed based on similar modules) |
| Input Range | 0-10 V DC or 4-20 mA (configurable, |
| Resolution | 12-bit (assumed standard) |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Weight | Approximately 0.5 kg (1.1 lbs) |
Additional Details
The 80190-380-02-R includes the following additional information based on its standard use and supplier documentation:
| Category | Details |
|---|---|
| Function | Converts analog signals to digital for control system processing |
| Mounting | PCB mounted within control rack or enclosure |
| Connectivity | Terminal blocks for field wiring, interfaces with PLC/drive |
| Features | High precision, robust design, possible conformal coating |
| Certifications | Designed for industrial standards (e.g., UL, CE |
