Product Description
Product Overview

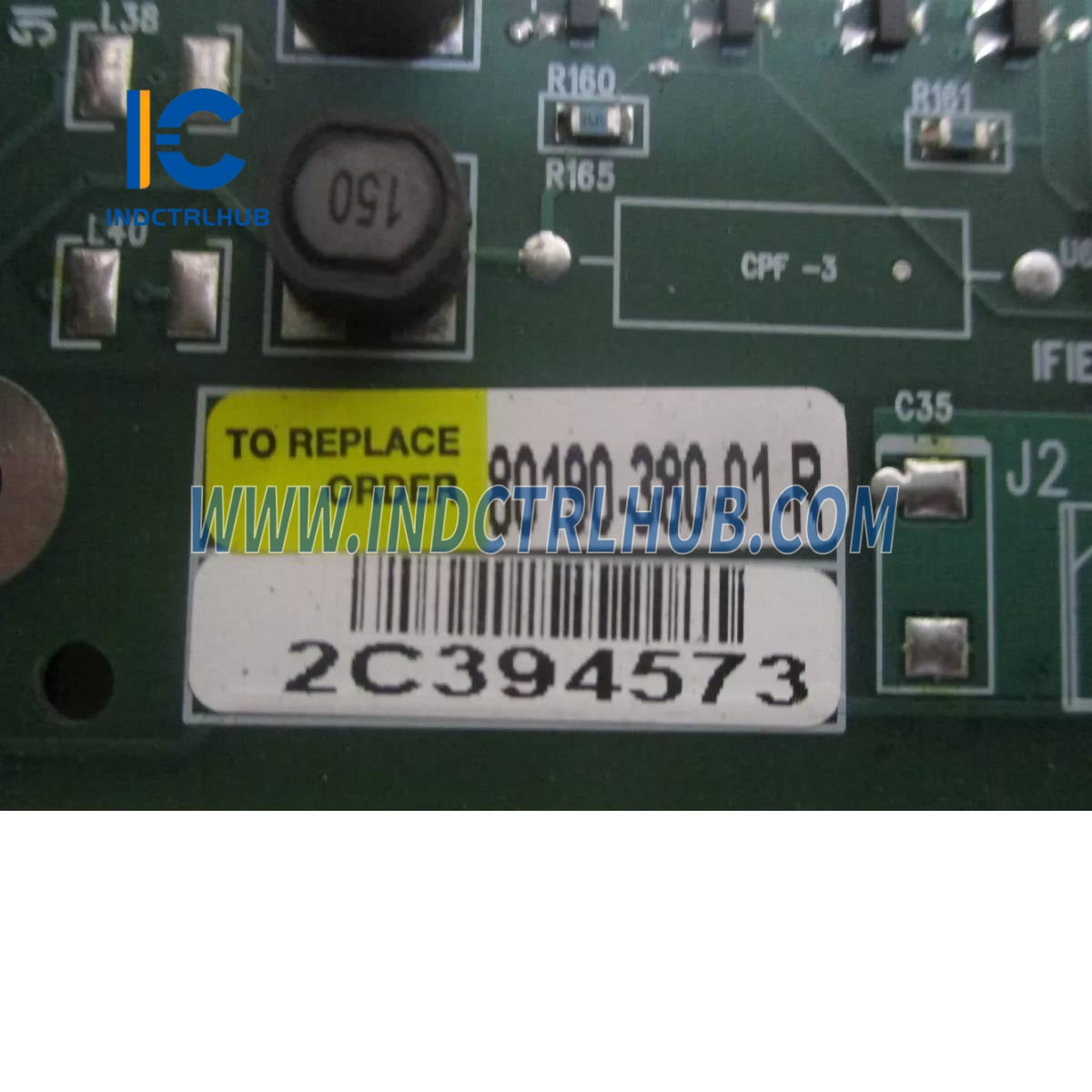

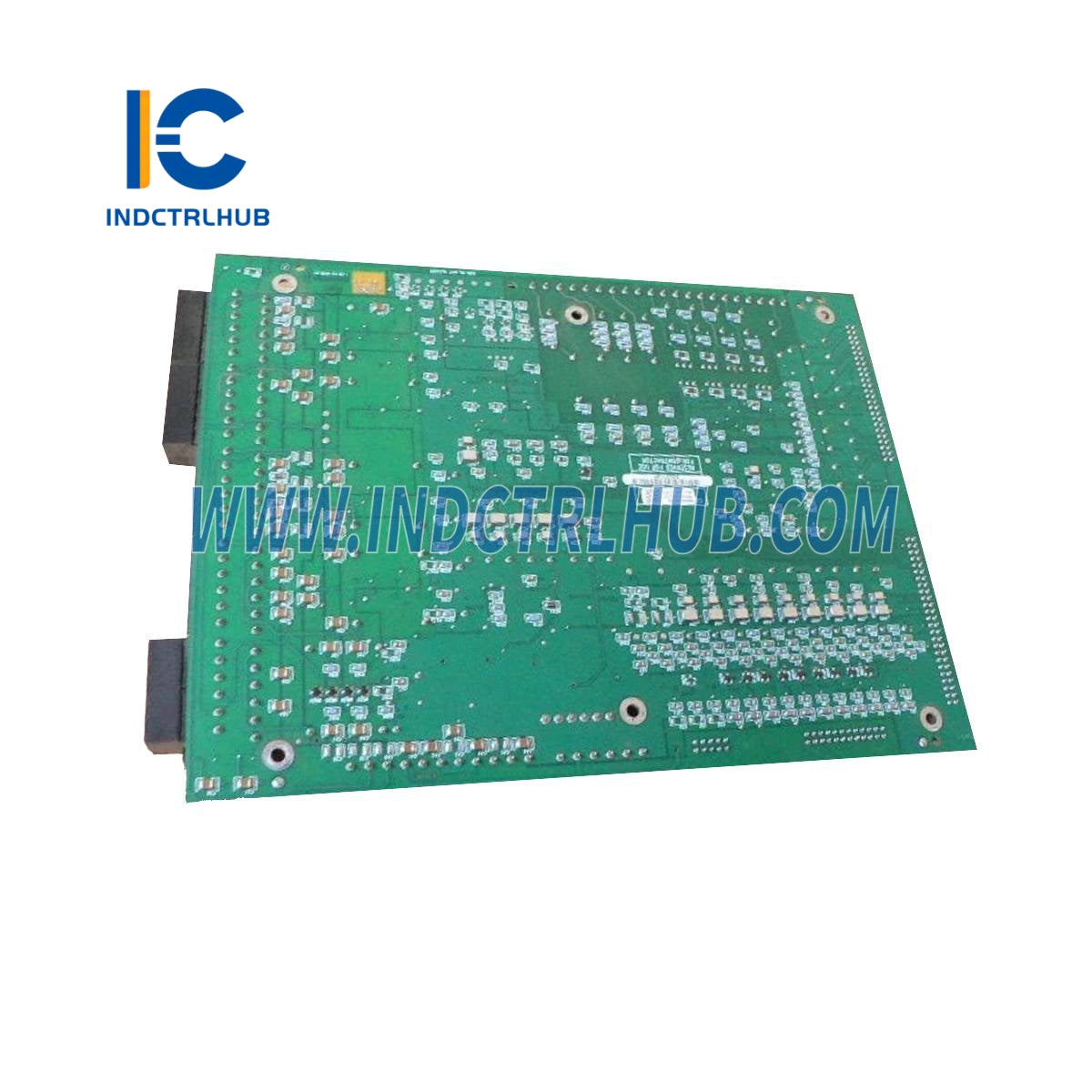

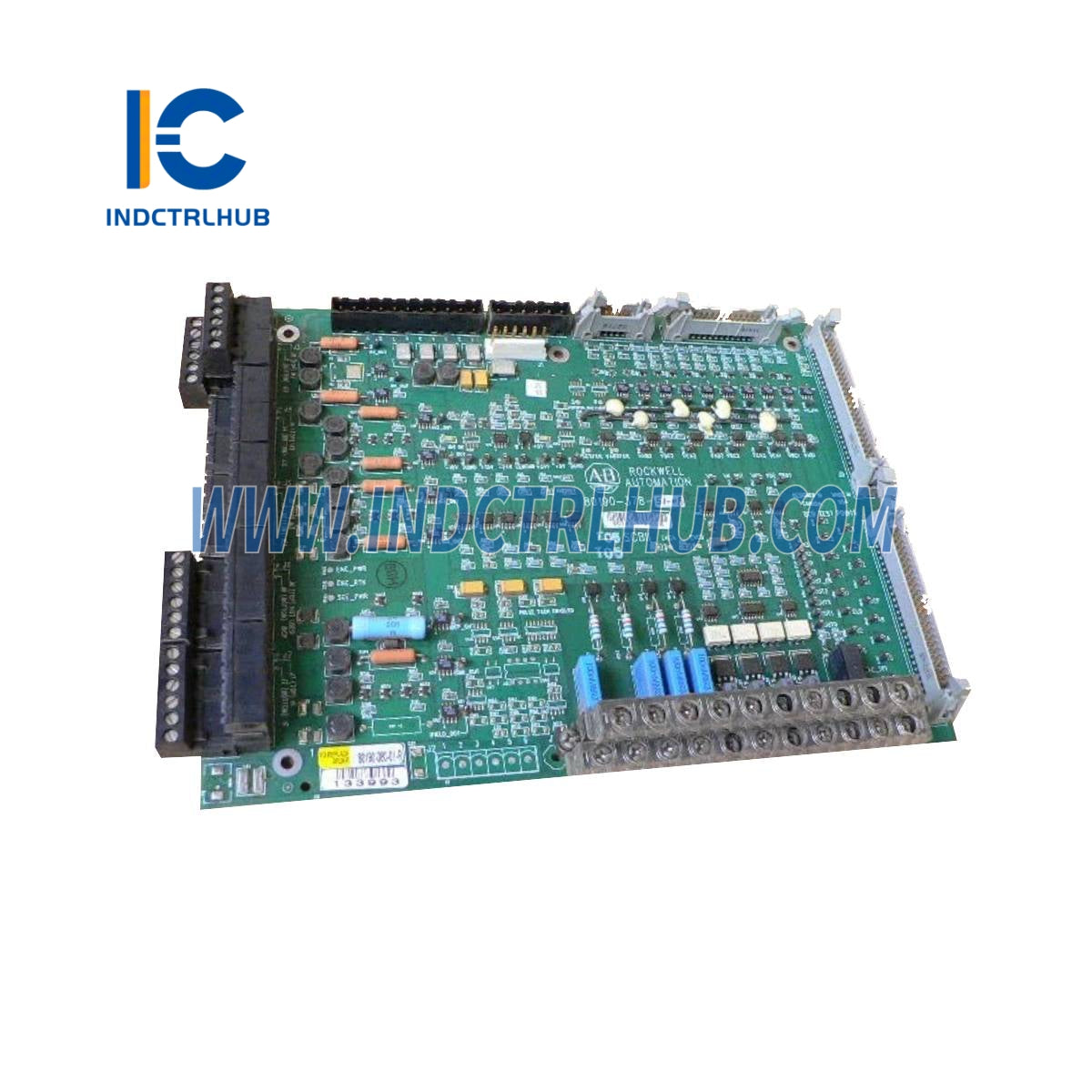

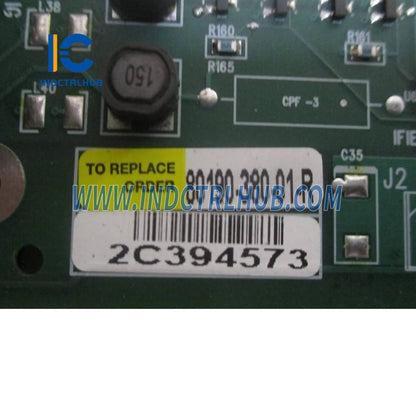

The Allen-Bradley 80190-380-01-R is a Rectifier Board designed for industrial automation applications, typically used within Rockwell Automation systems such as the PowerFlex series or other PLC and drive-related setups. Manufactured by Allen-Bradley (a Rockwell Automation brand), this module functions as a packaged customer-specific rectifier board (often labeled "PKGD CUSTR SCB"), converting AC input to DC output to power control system components. It is engineered for reliability in demanding environments like manufacturing, process control, and industrial machinery. The “-R” suffix likely indicates a revision or conformal coating for enhanced durability.
Technical Specifications
The 80190-380-01-R has the following specifications based on supplier data and inferred characteristics from similar Allen-Bradley components:
| Item | Specification |
|---|---|
| Model/Part Number | 80190-380-01-R |
| Manufacturer | Allen-Bradley (Rockwell Automation) |
| Description | Rectifier Board (Packaged Customer SCB) |
| Series | PLC/Add-On I/O Modules |
| Input Voltage | 120 V AC or 240 V AC |
| Input Current | 2.5 A |
| Output Voltage | 0-10 V DC |
| Output Current | 10 mA |
| Accuracy | ±0.5% |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Weight | Approximately 0.5 kg (1.1 lbs) |
Additional Details
The 80190-380-01-R includes the following additional information based on its standard use and supplier documentation:
| Category | Details |
|---|---|
| Function | Converts AC input to DC output for control systems |
| Mounting | PCB mounted within control rack or enclosure |
| Connectivity | Interfaces with PLC or drive systems |
| Features | High accuracy, robust design, possible conformal coating |
| Certifications | Designed for industrial standards (e.g., UL, CE |
