Product Description
Product Overview

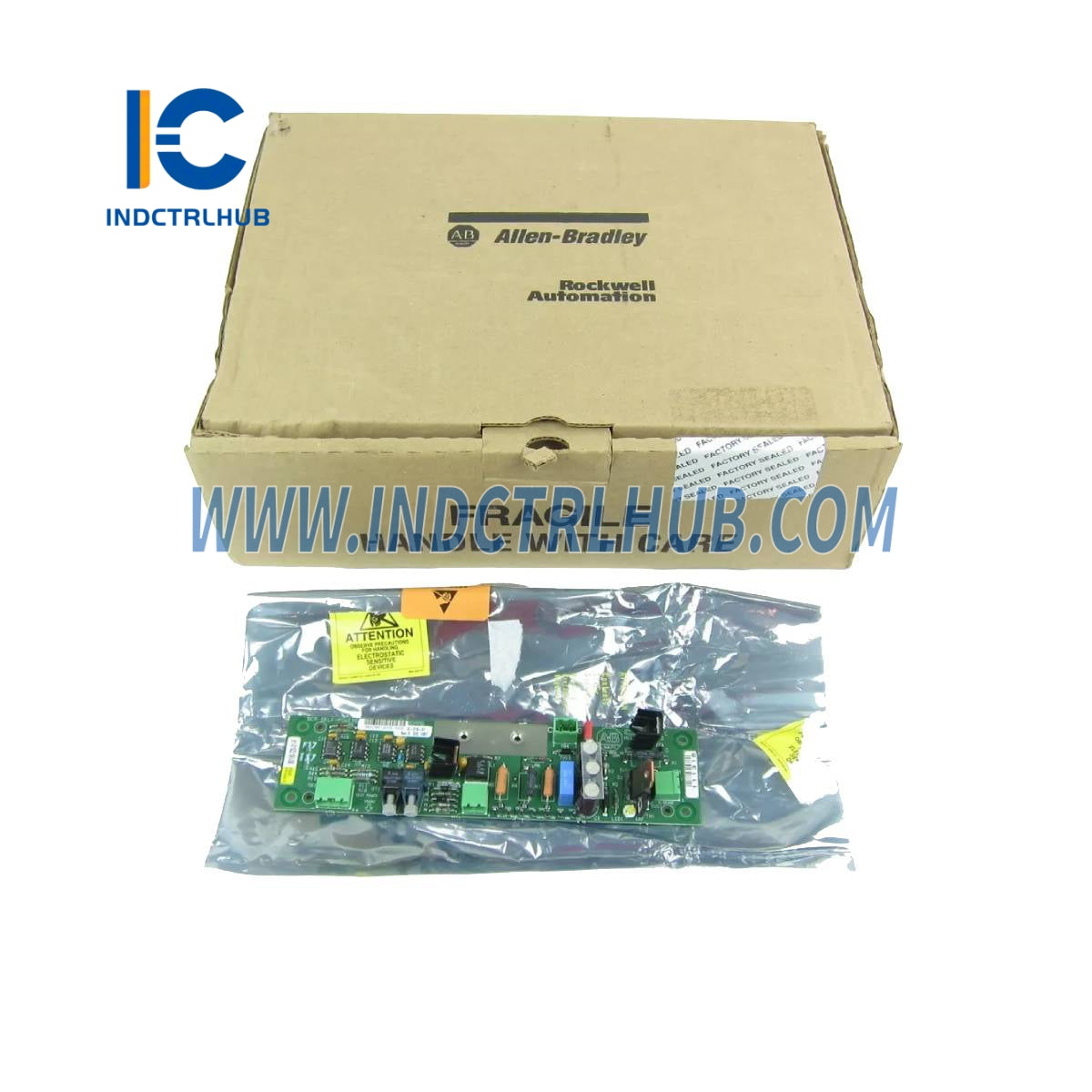

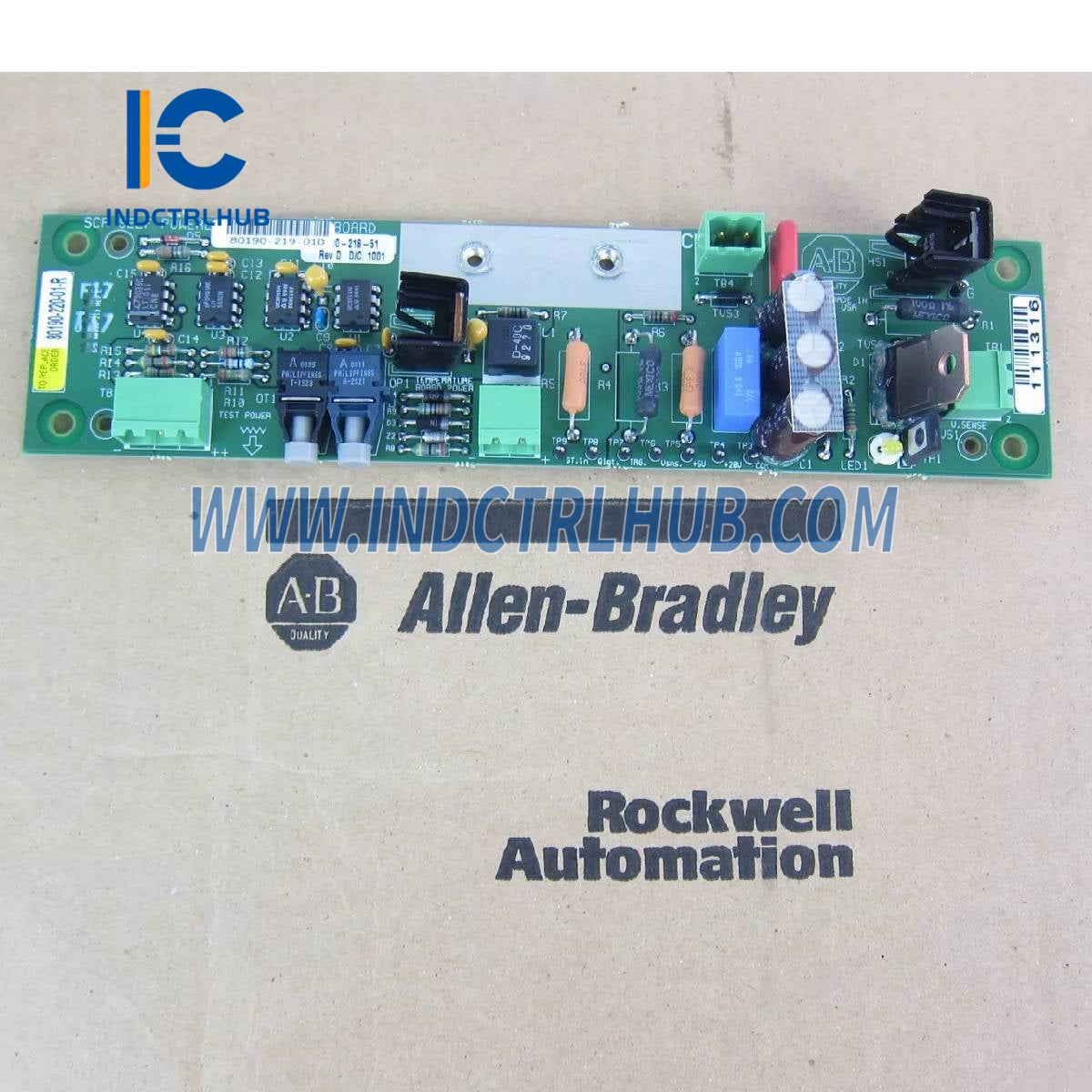

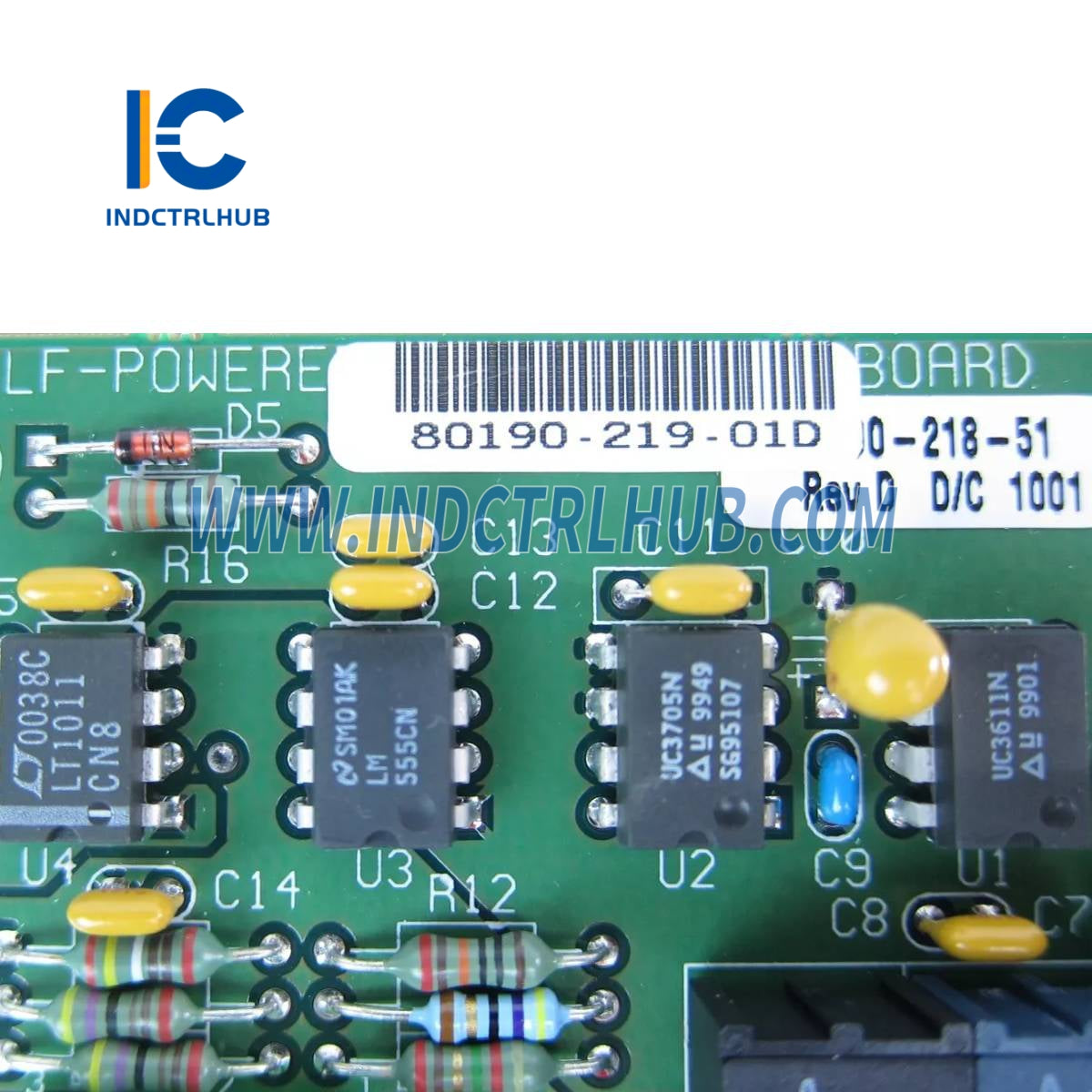

The Allen-Bradley 80190-220-01-R is a Driver Board designed for industrial automation applications, typically used within Rockwell Automation systems such as variable frequency drives (VFDs) or motor control systems. Manufactured by Allen-Bradley (a Rockwell Automation brand), this module regulates AC motor speed and direction, serving as a critical component in a VFD setup. It is engineered for reliability and performance in diverse sectors like industrial automation, HVAC, and pumping systems. The “80190-220-01-R” is the specific part number, often described as a “PKGD CUSTOMER OIB” (Packaged Customer Operator Interface Board), with the “-R” suffix possibly indicating a revision or conformal coating for enhanced durability.
Technical Specifications
The 80190-220-01-R has the following specifications based on supplier data and inferred characteristics from similar Allen-Bradley components:
| Item | Specification |
|---|---|
| Model/Part Number | 80190-220-01-R |
| Manufacturer | Allen-Bradley (Rockwell Automation) |
| Description | Driver Board (Variable Frequency Drive Component) |
| Series | VFD Compatible |
| Input Voltage | 200-240 V AC or 380-480 V AC (typical VFD range) |
| Output Voltage | Variable, matches motor requirements |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Weight | Approximately 0.5 kg (1.1 lbs) |
Additional Details
The 80190-220-01-R includes the following additional information based on its standard use and supplier documentation:
| Category | Details |
|---|---|
| Function | Regulates AC motor speed and direction in VFD systems |
| Mounting | PCB mounted within VFD enclosure |
| Connectivity | Interfaces with VFD controller and motor circuits |
| Features | High reliability, compact design, possible conformal coating |
| Certifications | Designed for industrial standards (e.g., UL, CE |
