Product Description
Product Overview

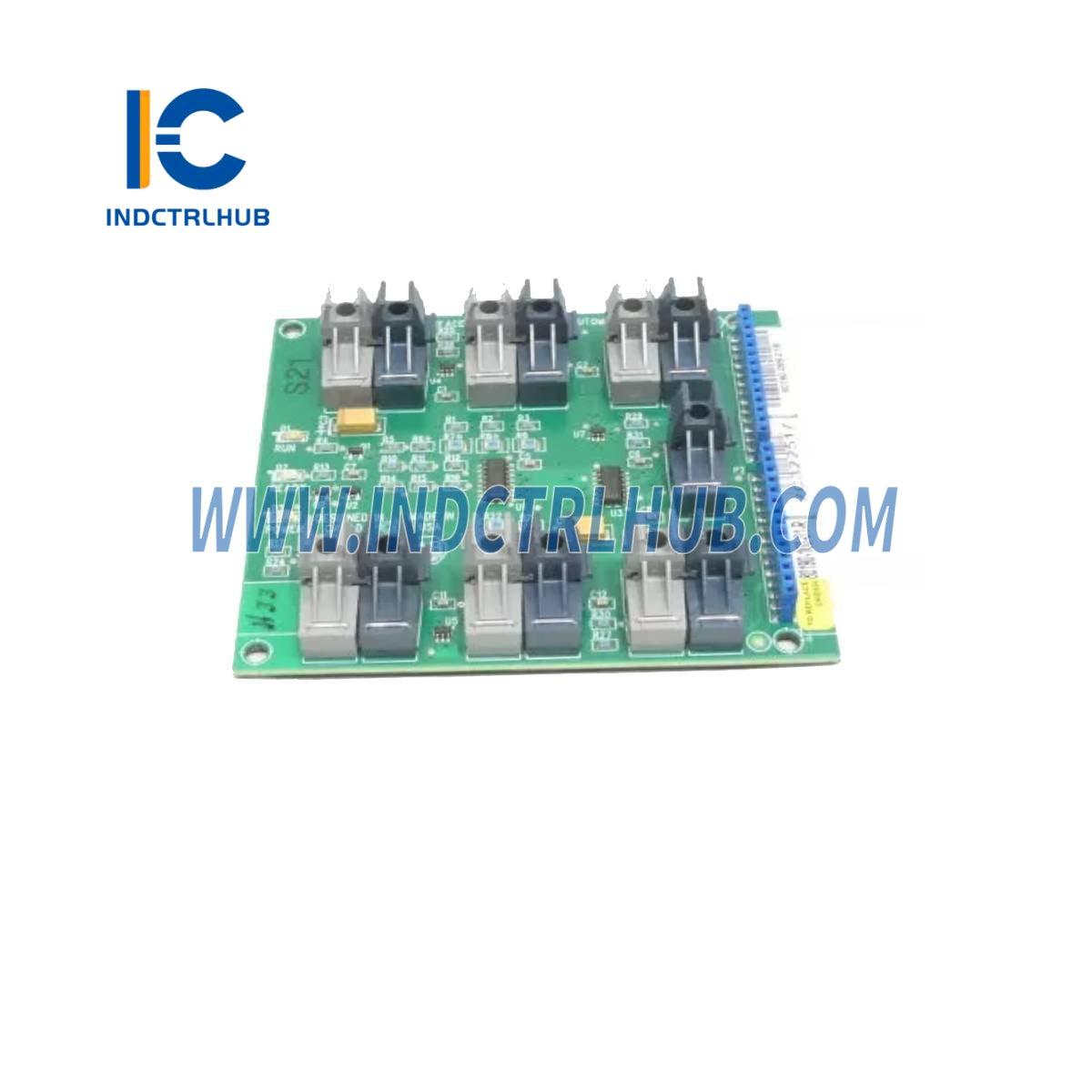

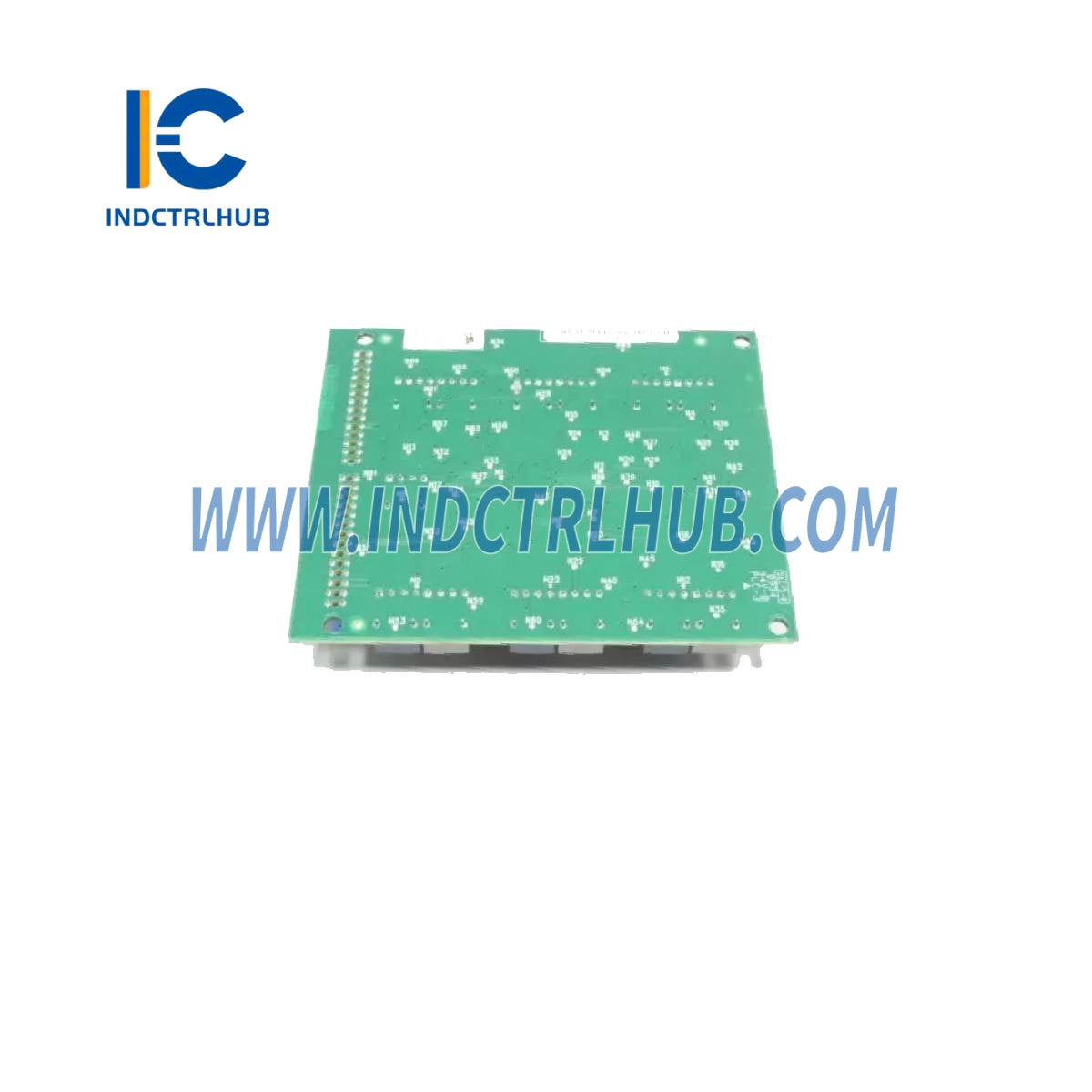

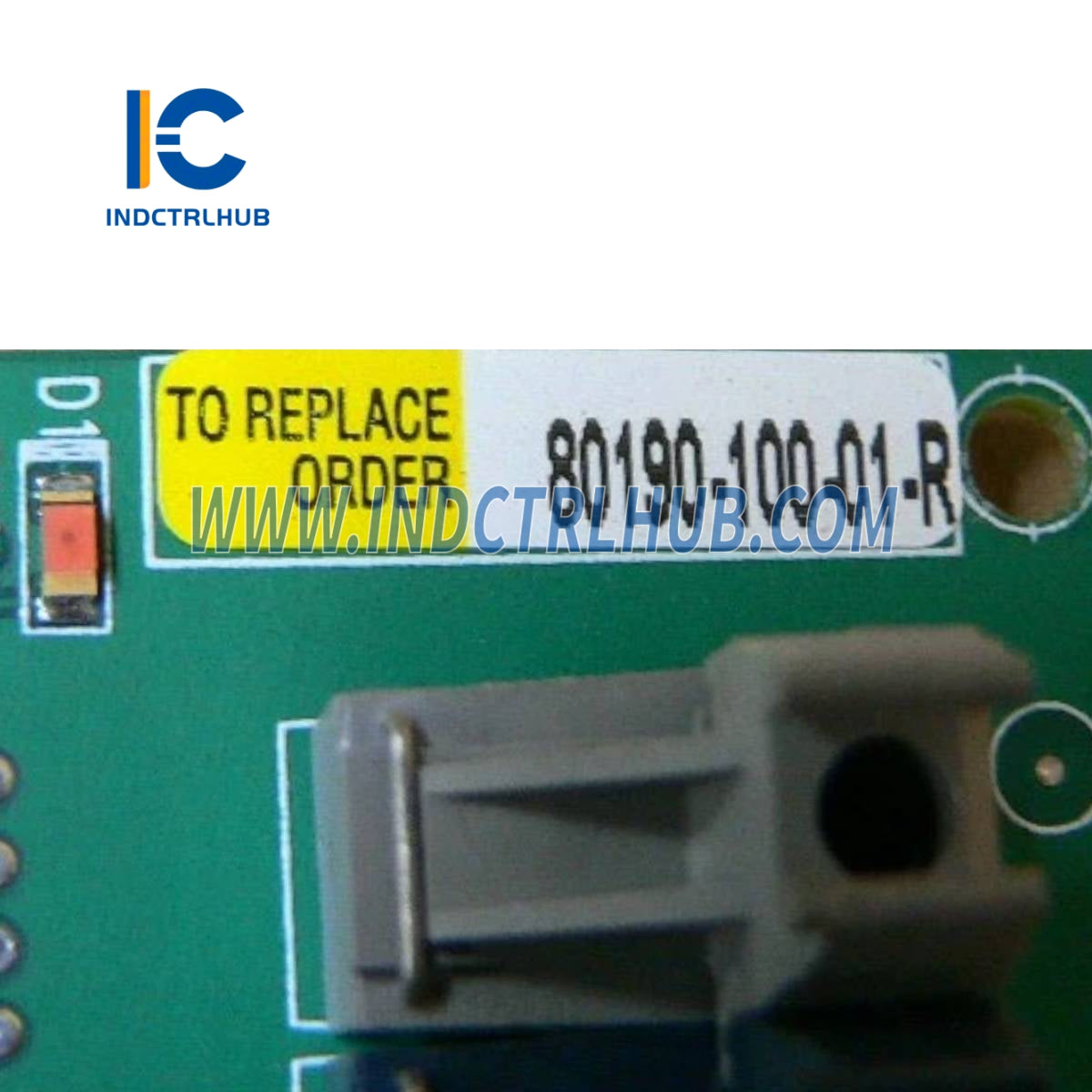

The Allen-Bradley 80190-100-01-R is a Fiber Optic Board designed for industrial automation applications, typically used within Rockwell Automation systems such as the PowerFlex 7000 medium voltage drives. Manufactured by Allen-Bradley (a Rockwell Automation brand), this module facilitates high-speed, noise-immune communication via fiber optic links between control system components. It is engineered for reliability in harsh industrial environments like manufacturing, power generation, and process control, where electromagnetic interference (EMI) resistance is critical. The “80190-100-01-R” is the specific part number, with the “-R” suffix often indicating a revision or conformal coating for enhanced durability.
Technical Specifications
The 80190-100-01-R has the following specifications based on supplier data and inferred characteristics from similar Allen-Bradley components:
| Item | Specification |
|---|---|
| Model/Part Number | 80190-100-01-R |
| Manufacturer | Allen-Bradley (Rockwell Automation) |
| Description | Fiber Optic Board |
| Series | PowerFlex 7000 Compatible |
| Power Supply | 5 V DC or 24 V DC (via backplane, |
| Communication Interface | Fiber optic transceivers |
| Data Rate | Up to 10 Mbps (typical for fiber optic boards) |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Weight | Approximately 0.5 kg (1.1 lbs) |
Additional Details
The 80190-100-01-R includes the following additional information based on its standard use and supplier documentation:
| Category | Details |
|---|---|
| Function | Enables fiber optic communication for control systems |
| Mounting | Open style, mountable in control rack |
| Connectivity | Fiber optic ports for signal transmission |
| Features | EMI resistance, high-speed data transfer, conformal coating (if -R variant) |
| Certifications | Designed for industrial standards (e.g., UL, CE |
