Product Description
Product Overview

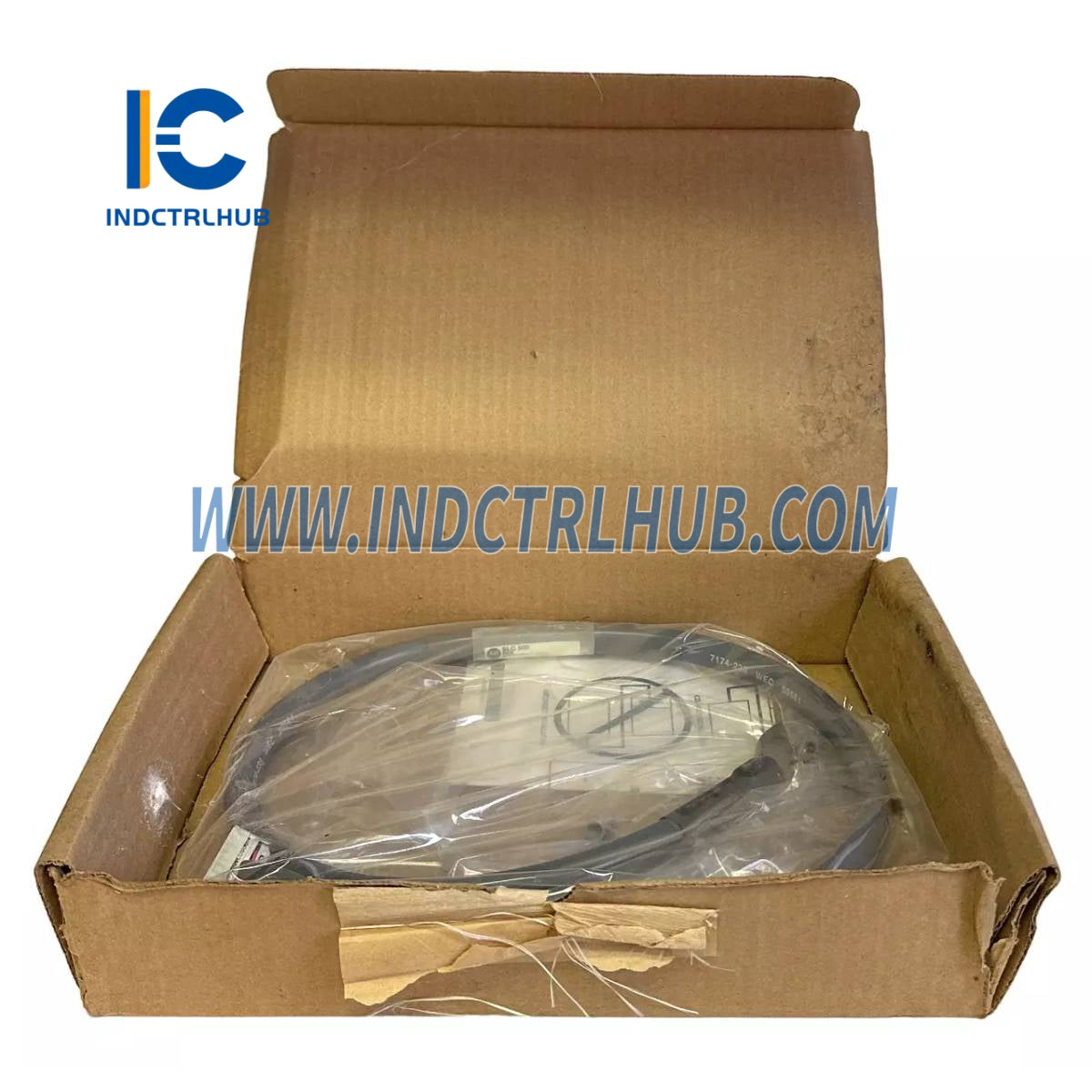

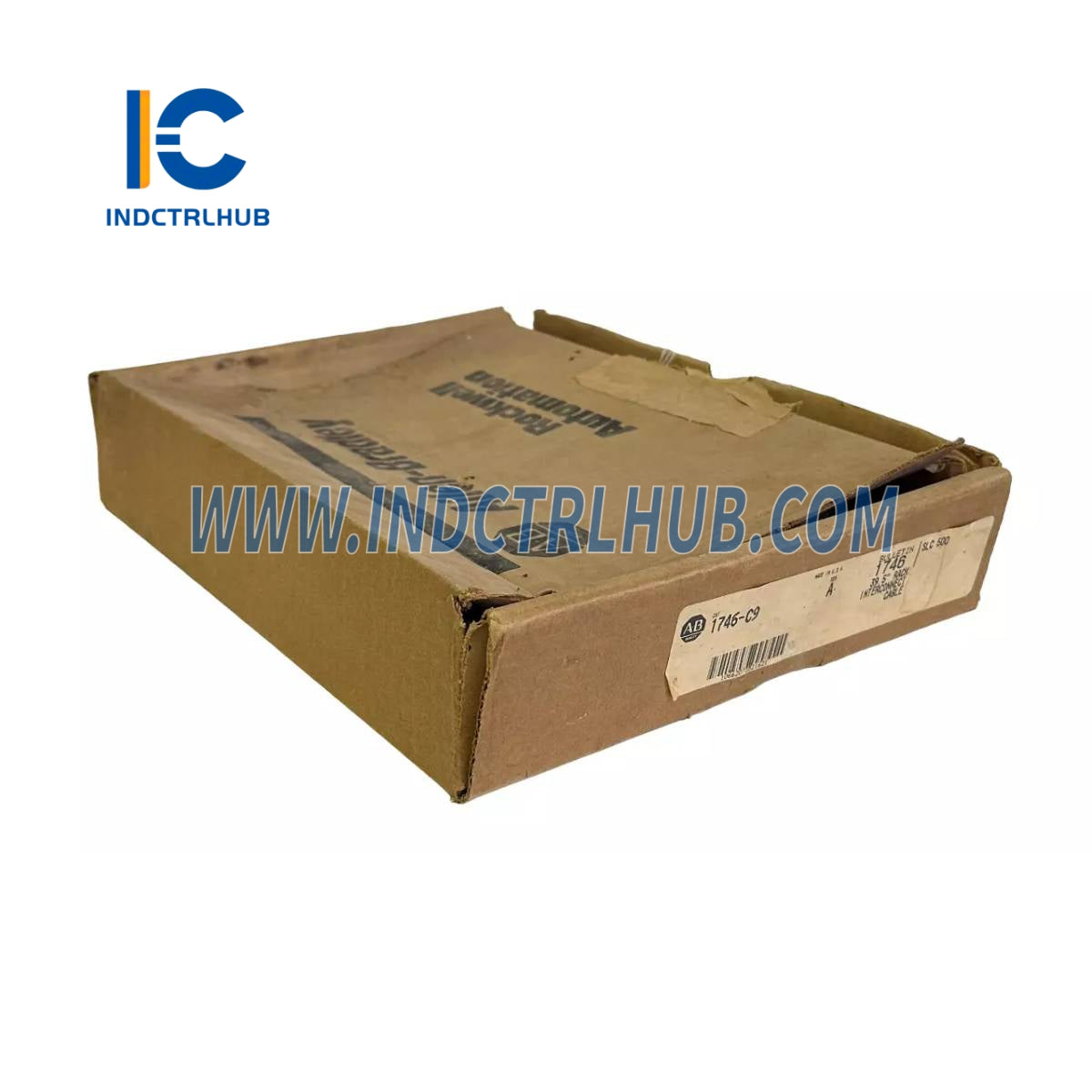

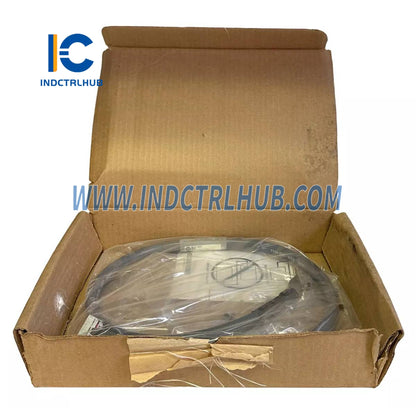

The Allen-Bradley 1746-C9/A is an SLC 500 Chassis Interconnect Cable designed for industrial automation applications within Rockwell Automation systems. Manufactured by Allen-Bradley (a Rockwell Automation brand), this ribbon cable connects multiple SLC 500 chassis to extend the backplane, facilitating communication between modular hardware components. It is built for durability and ease of use in environments such as manufacturing plants, process industries, and industrial machinery. The “/A” denotes Series A, the initial revision of this cable, which is 36 inches (0.91 meters) long and designed for specific chassis compatibility.
Technical Specifications
The 1746-C9/A has the following specifications based on supplier data from Rockwell Automation and industry sources:
| Item | Specification |
|---|---|
| Model/Part Number | 1746-C9/A |
| Manufacturer | Allen-Bradley (Rockwell Automation) |
| Description | SLC 500 Chassis Interconnect Cable |
| Series | SLC 500, Series A |
| Length | 36 inches (0.91 meters) |
| Connector Type | Ribbon cable with keyed connectors |
| Operating Temperature | -0°C to 60°C (32°F to 140°F) |
| Weight | 0.045 kg (0.1 lbs) |
Additional Details
The 1746-C9/A includes the following additional information based on supplier documentation:
| Category | Details |
|---|---|
| Function | Extends the backplane between SLC 500 chassis |
| Compatibility | 1746-A4, 1746-A7, 1746-A10, 1746-A13 chassis |
| Construction | Flexible ribbon with rigid shrink-wrap at connectors for strain relief |
| Features | Keyed connectors (one inside, one outside) to prevent incorrect installation |
| Certifications | CE, cULus |
