Product Description
Product Details
Manufacturer: Allen-Bradley
Model/Part Number: 1785-CHBM/A

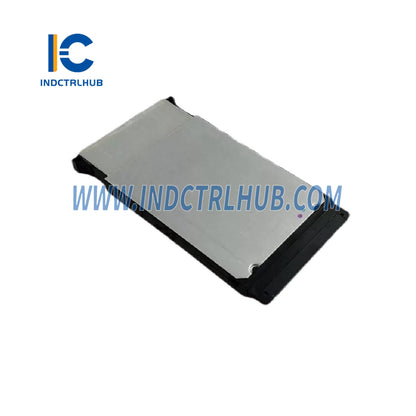

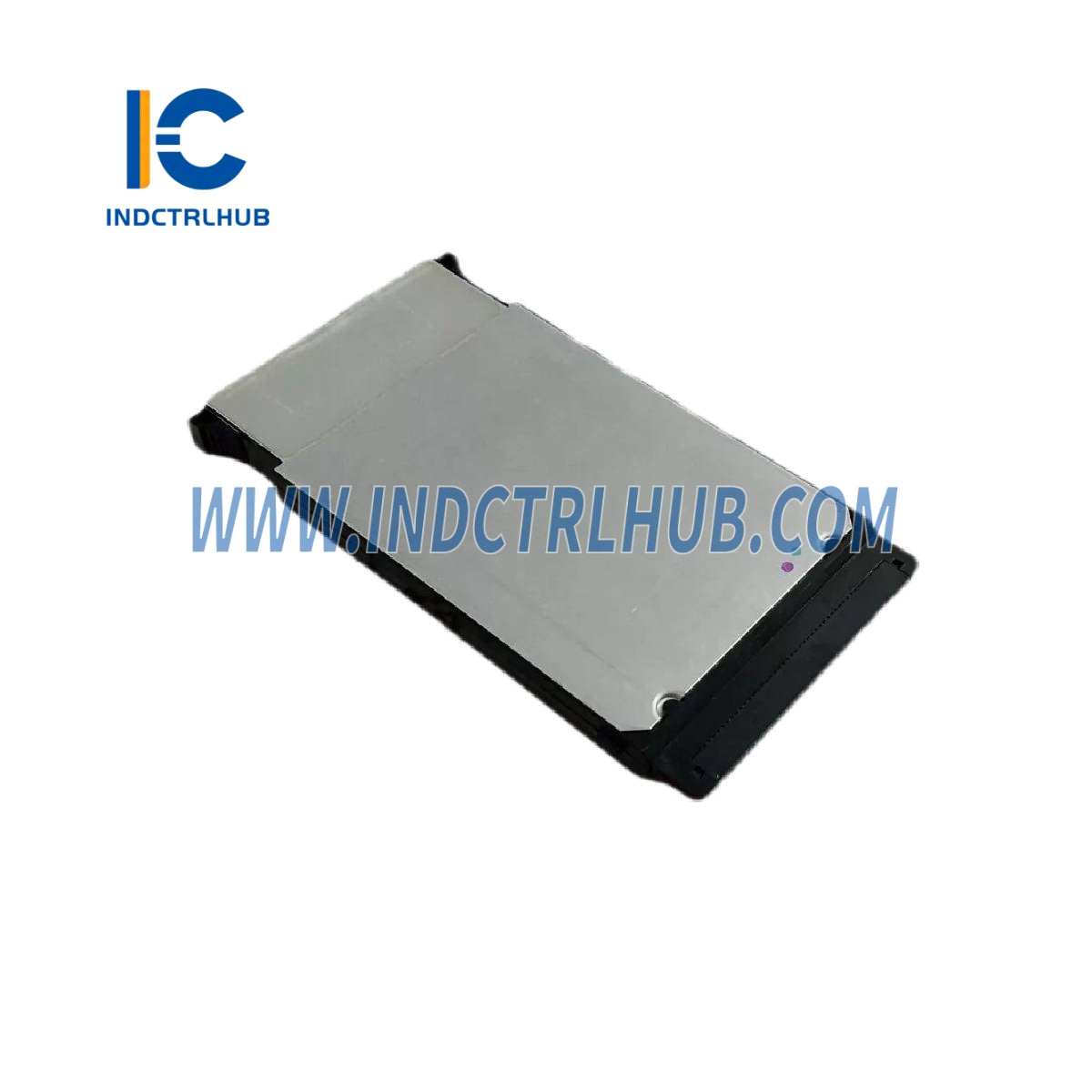

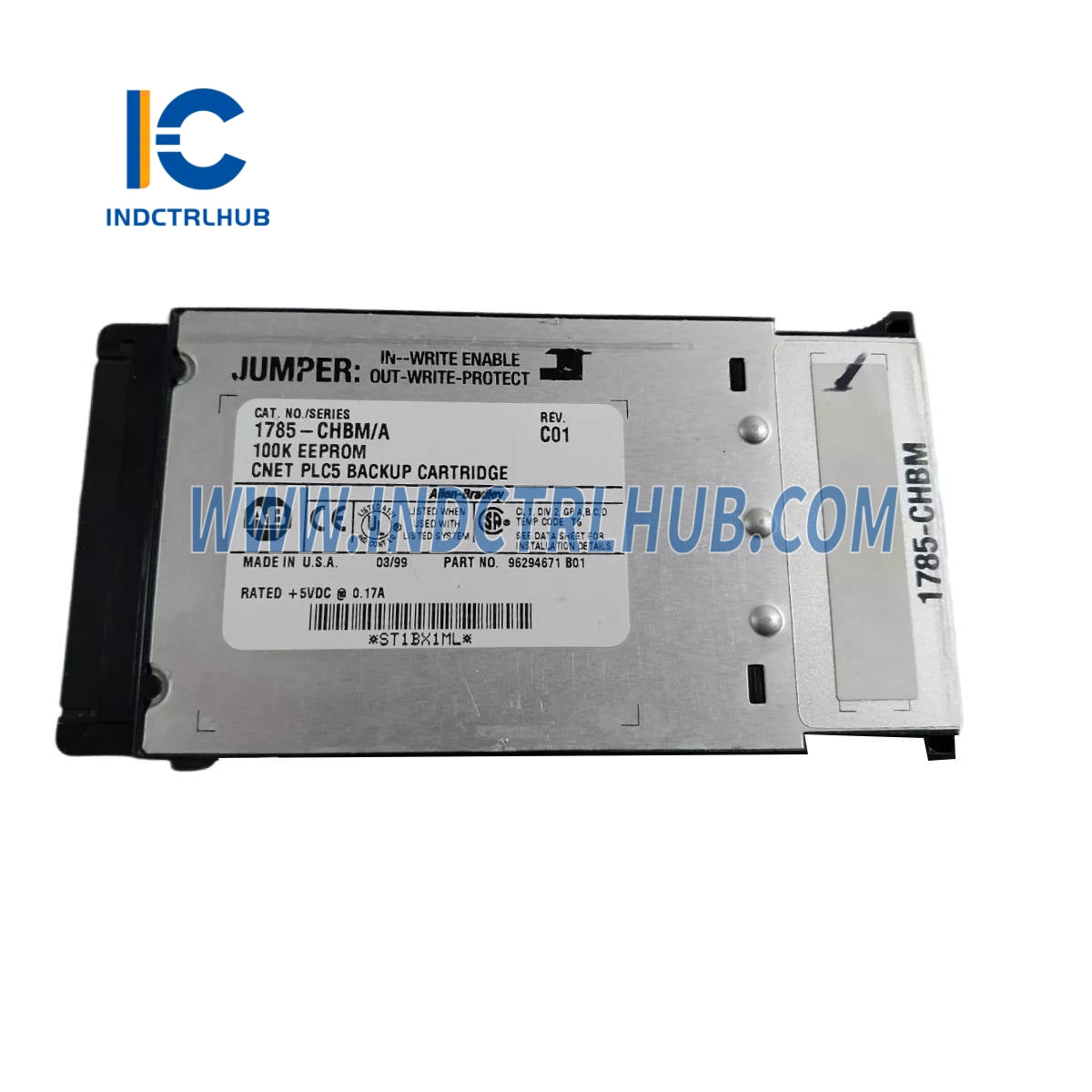

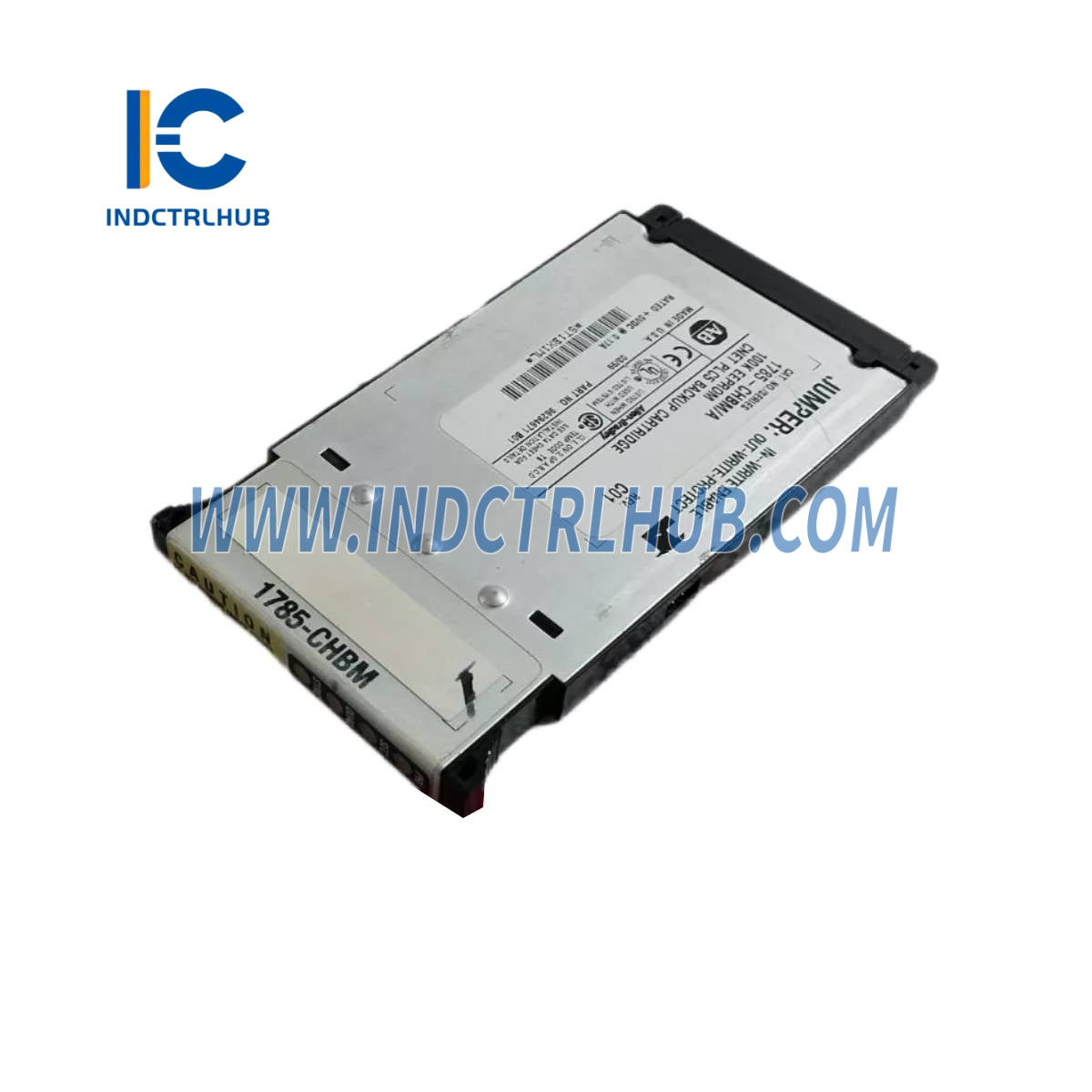

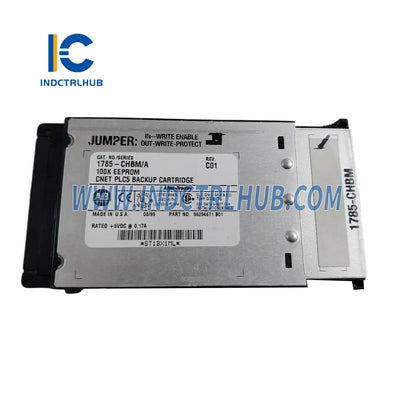

Description: ControlNet PLC-5 Hot Backup System
Specifications
|
Attribute |
Value |
|---|---|
|
Memory Capacity |
100K words |
|
Memory Type |
Nonvolatile |
|
Write Protection |
Enabled by removing the jumper |
|
Operating Temperature |
0 to 60°C (32 to 140°F) |
|
Storage Temperature |
-40 to 85°C (-40 to 185°F) |
|
Relative Humidity |
5 to 95% (non-condensing) |
|
Vibration Resistance |
2g @ 10–500Hz |
|
Shock Resistance |
Operating: 30g Non-operating: 50g |
|
Emissions Compliance |
CISPR 11: Group 1, Class A (with appropriate enclosure) |
|
Radiated RF Immunity |
10V/m with 1kHz sine-wave 80% AM from 30MHz to 1000MHz |
|
Processor Compatibility |
1785-L20C15, -L40C15, -L80C5 |
|
Weight |
2.5 oz (7.88g) |
|
Certifications |
UL Listed Industrial Control Equipment CSA Certified Process Control Equipment CSA Certified for Class I, Division 2 Hazardous Locations CE (European EMC Directive) C-Tick (Australian Radiocommunications Act) |
