Product Description
__ General Information
|
Manufacturer |
Allen-Bradley |
|---|---|
|
Model/Part Number |

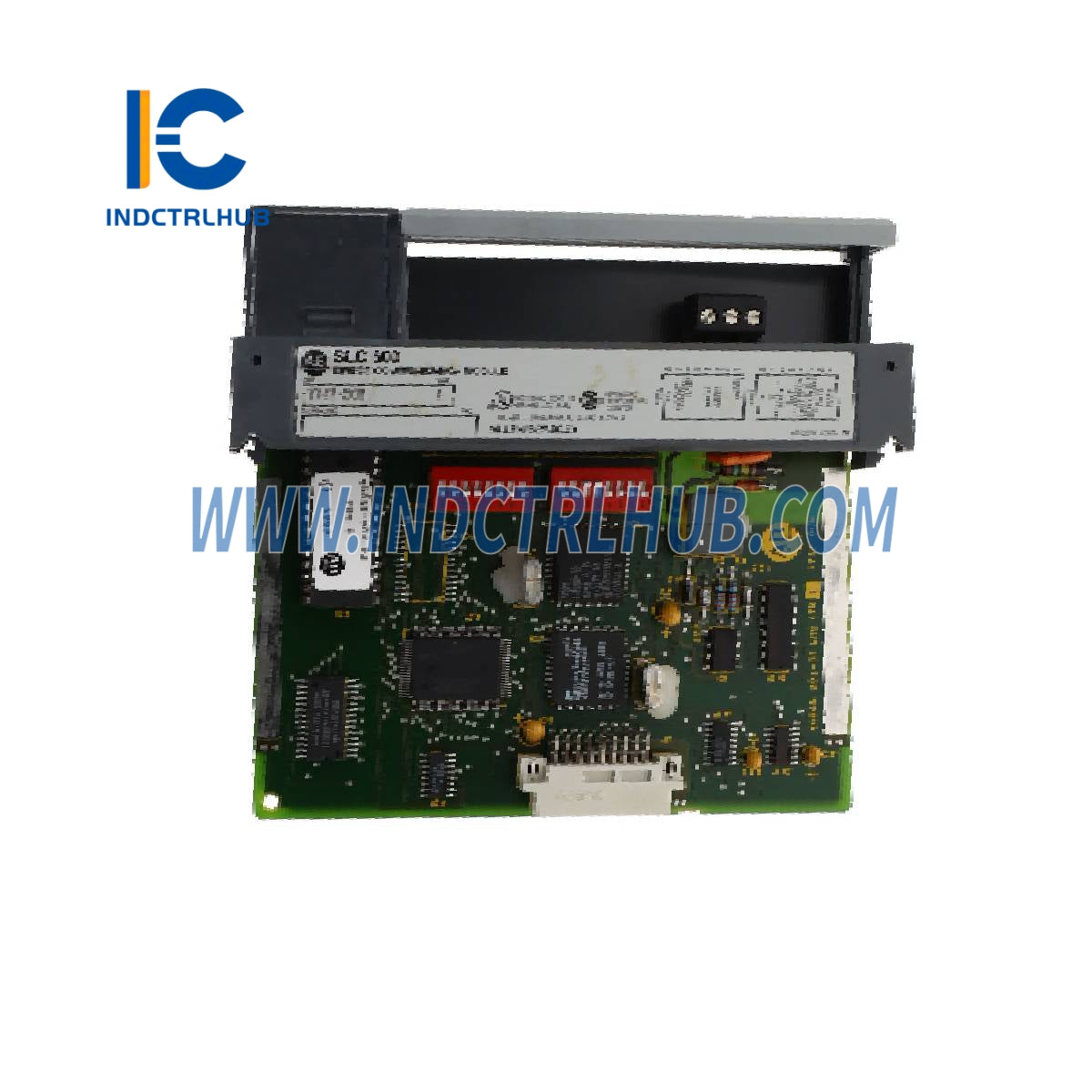

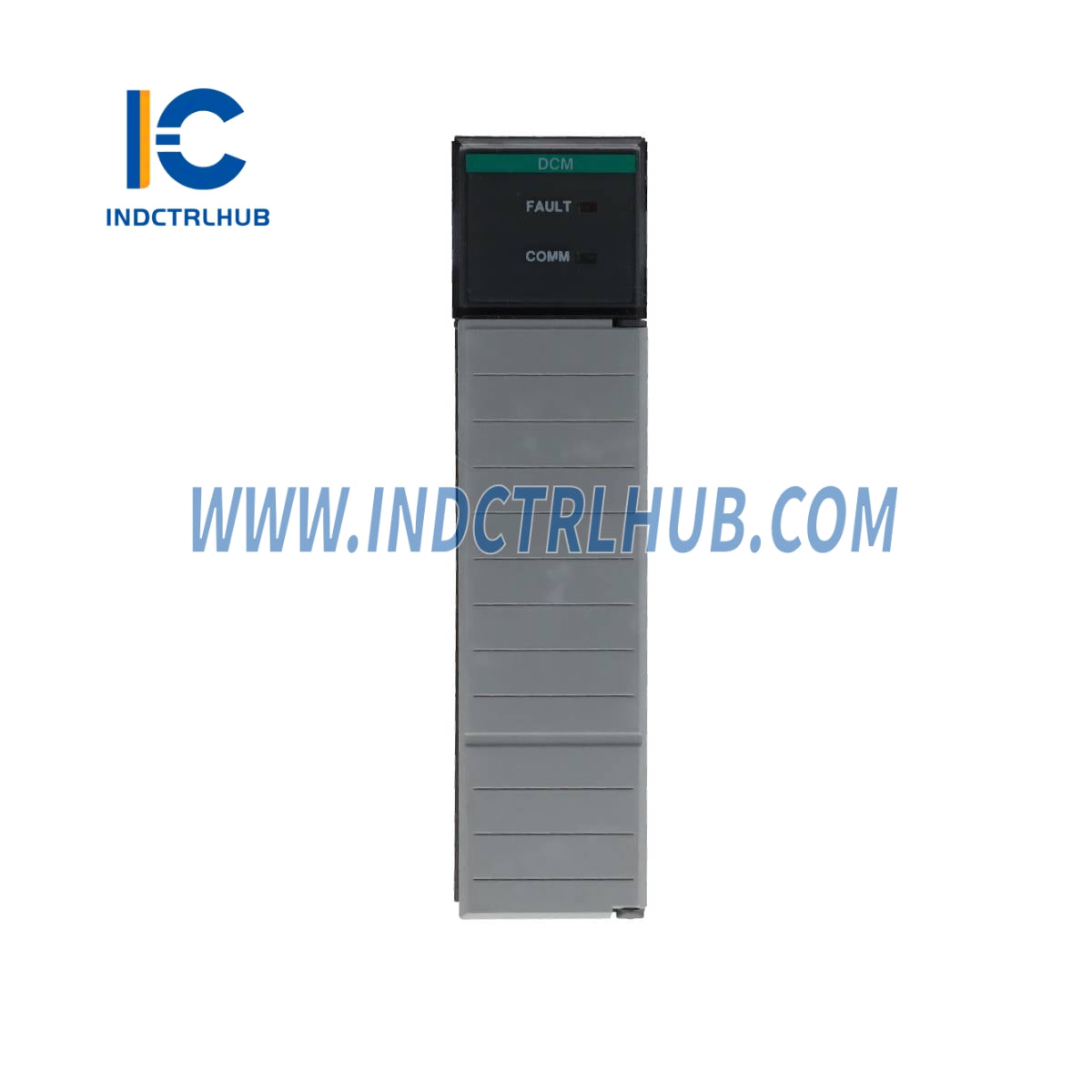

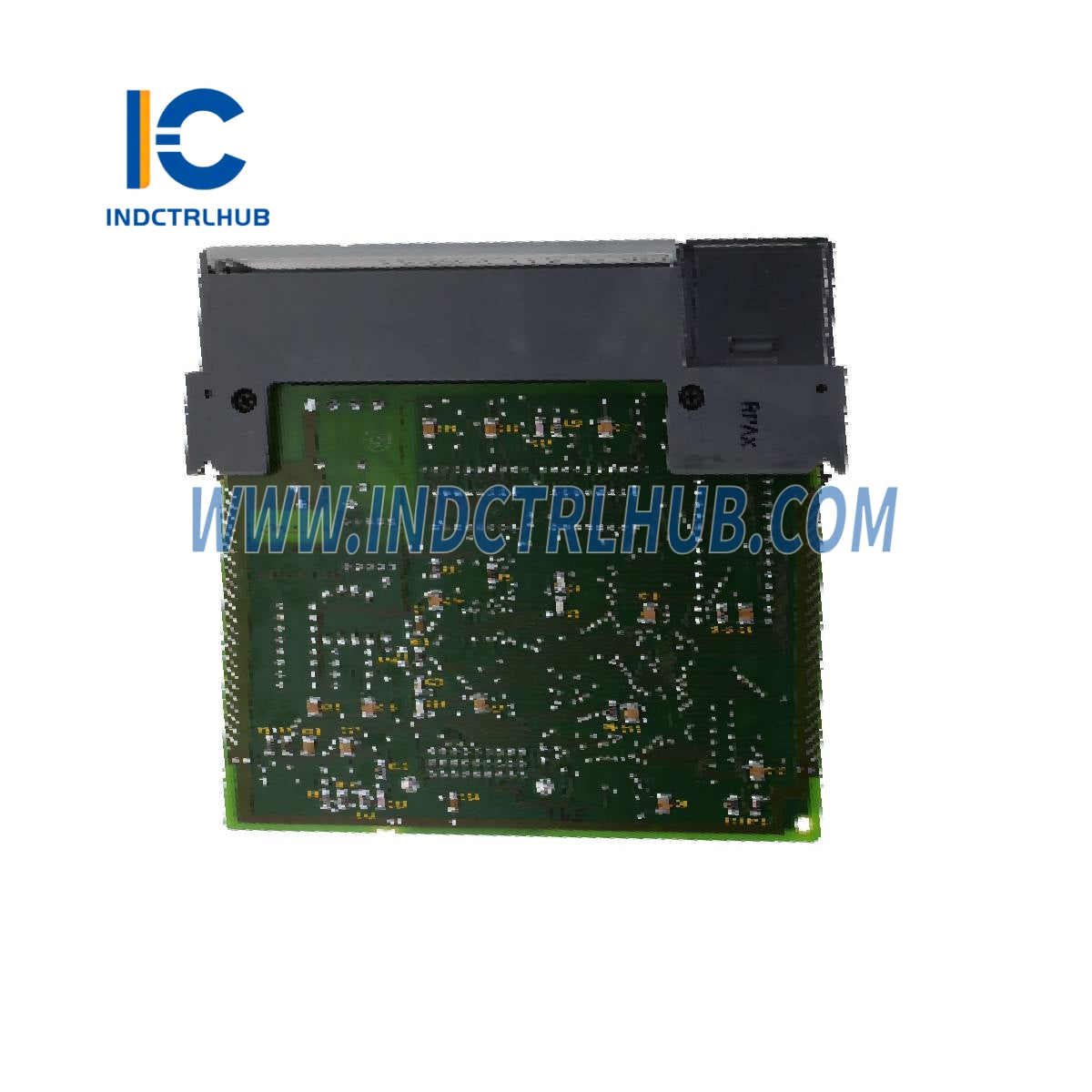

1747-DCM |
|
Description |
SLC 500 Direct Communication Module |
|
Product Series |
SLC 500 |
_
__ Specifications
Operating Specifications
|
Specification |
Description |
|---|---|
|
Backplane Current Consumption |
360 mA at 5V |
|
Operating Temperature |
0°C to 60°C (32°F to 140°F) |
|
Storage Temperature |
-40°C to +85°C (-40°F to +185°F) |
|
Humidity |
5% to 95% non-condensing |
_
Agency Certification
|
Certification |
Description |
|---|---|
|
CSA Certified |
Yes |
|
CSA Class I, Division 2 |
Groups A, B, C, D certified |
|
UL Listed |
Yes |
|
CE Marked |
Yes (for all applicable directives) |
_
Baud Rate, Maximum Cable Distance, and Terminating Resistor Size
|
Baud Rate |
Maximum Cable Distance |
Terminating Resistor Size |
|---|---|---|
|
57.6K baud |
10,000 feet (3048 meters) |
150Ω 1/2 Watt |
|
115.2K baud |
5,000 feet (1524 meters) |
150Ω 1/2 Watt |
|
230.4K baud |
2,500 feet (762 meters) |
82Ω 1/2 Watt |
_
