Product Description
🔹 General Information
|
Manufacturer |
Allen-Bradley |
|---|---|
|
Model/Part Number |
1734-OE2V |
|
Description |

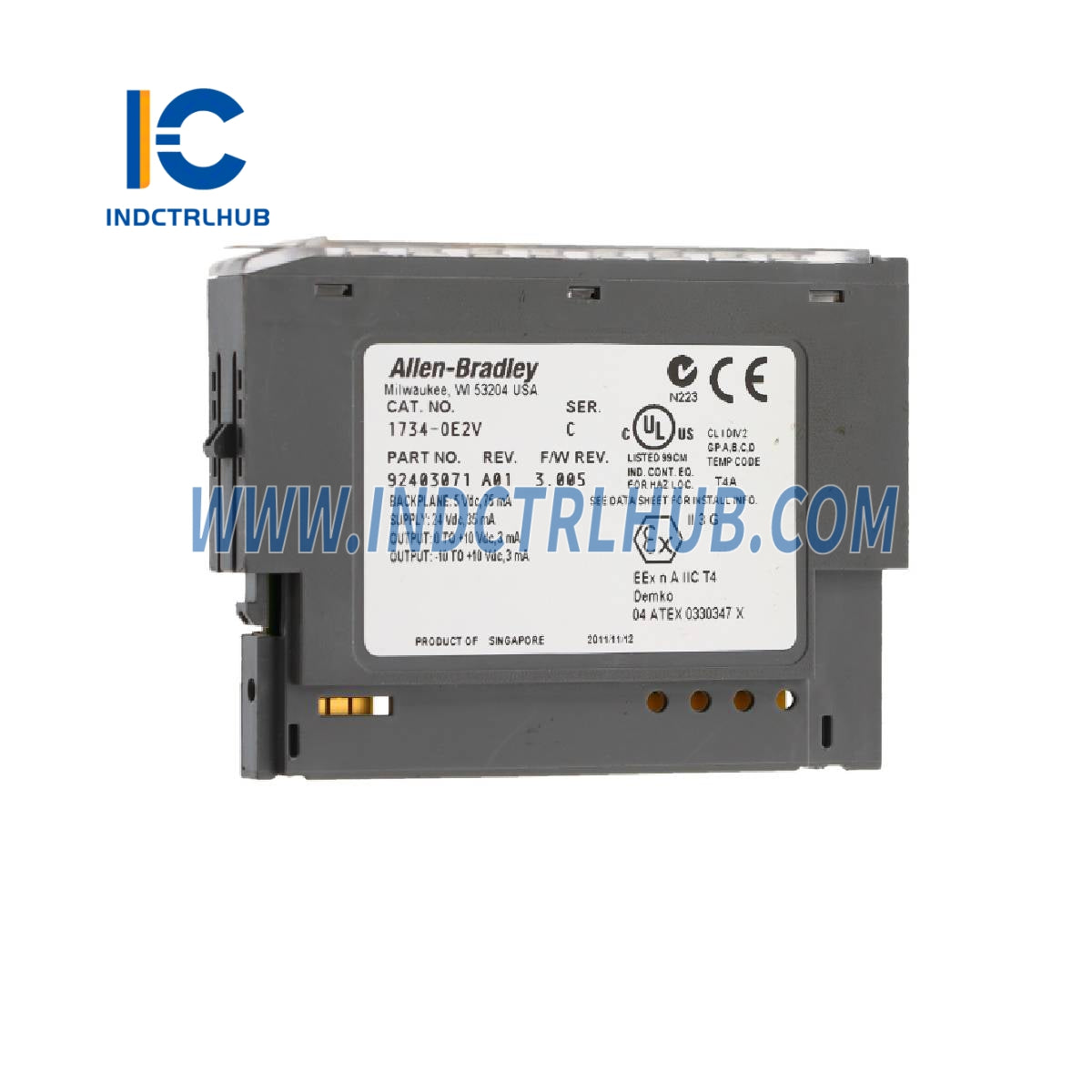

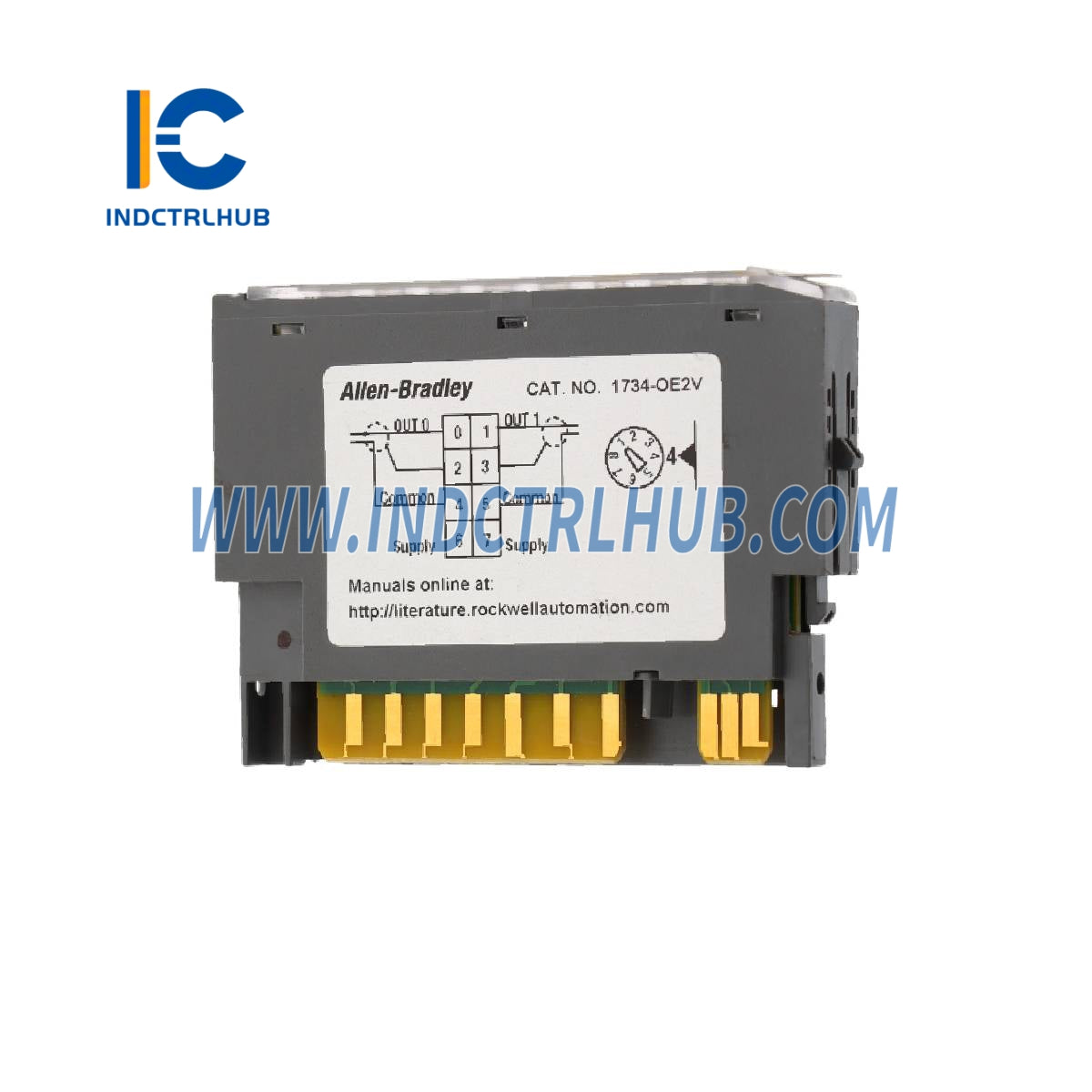

POINT I/O 2-Channel Analog Output Voltage Module |
🔹 General Specifications
|
Attribute |
Value |
|---|---|
|
Terminal Base |
1734-TB, 1734-TBS, 1734-TB3, 1734-TB3S, 1734-TOP, or 1734-TOPS wiring base assembly |
|
Terminal Base Screw Torque |
0.6 N•m (7 lb•in) |
|

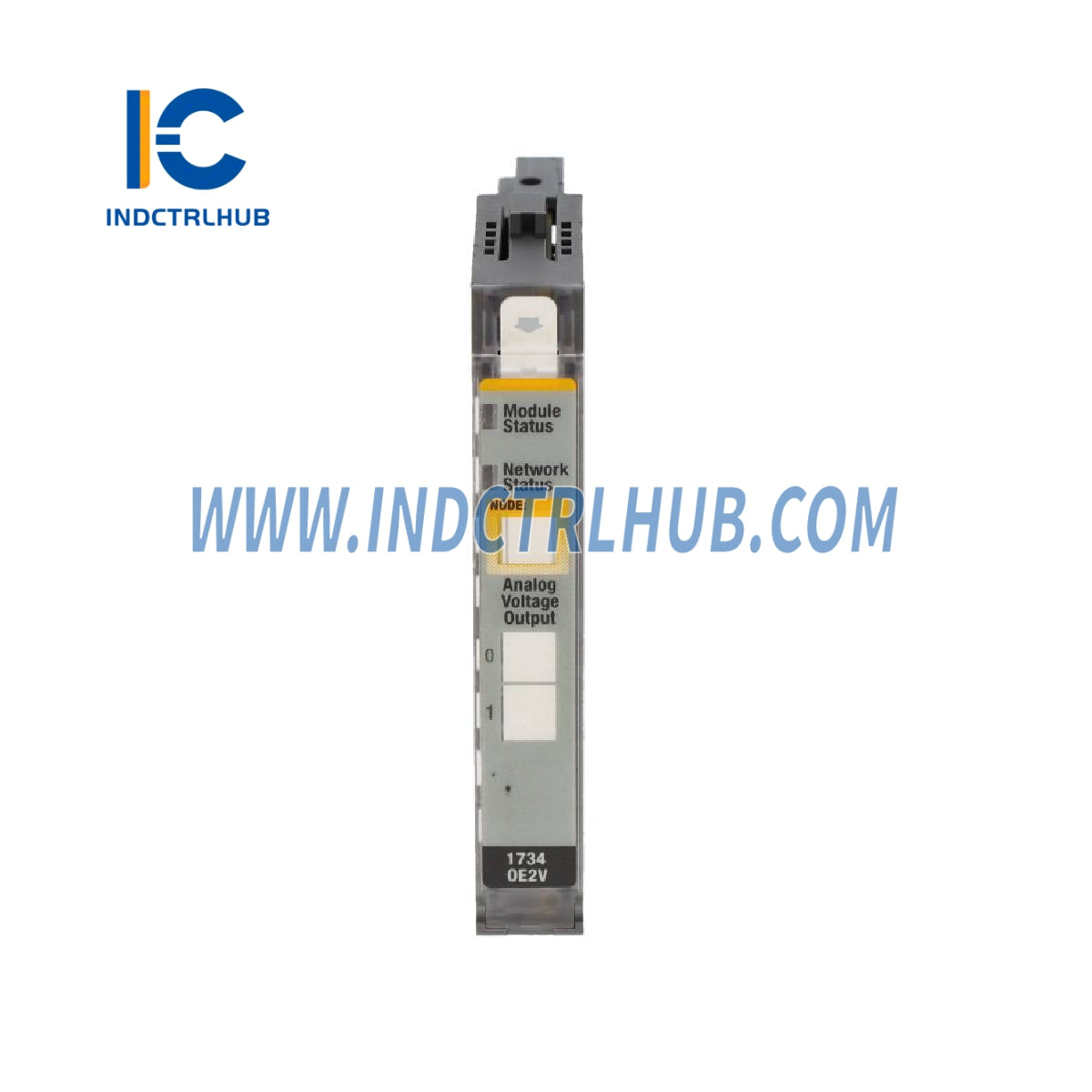

Indicators (Logic Side) |
1 green/red – Module status, 1 green/red – Network status, 2 green/red – Output status |
|
Keyswitch Position |
4 |
|
POINTBus™ Current (Max @ 5V DC) |
75 mA |
|
Power Dissipation (Max) |
1.0 W |
|
Thermal Dissipation (Max) |
3.4 BTU/hr |
|
Isolation Voltage (Continuous) |
50V Continuous, Tested to withstand 2200V DC for 60 s (No isolation between individual channels) |
|
External DC Power - Supply Voltage (Nom.) |
24V DC |
|
External DC Power - Voltage Range |
10…28.8V DC |
|
External DC Power - Supply Current |
35 mA @ 24V DC (including outputs @ 3 mA) |
|
Dimensions (HxWxD), Approx. |
56 x 12 x 75.5 mm (2.21 x 0.47 x 2.97 in.) |
|
Weight, Approx. |
36 g (1.27 oz) |
|
Wire Category |
1 - on signal ports |
|
Wire Size |
0.25…2.5 mm² (22…14 AWG) solid or stranded copper wire rated at 75 °C (167 °F) or greater, 1.2 mm (3/64 in.) insulation max |
|
Enclosure Type Rating |
None (open-style) |
|
North American Temp Code |
T4, T4A |
|
UKEX/ATEX Temp Code |
T4 |
|
IECEx Temp Code |
T4 |
