Product Description
Product Details

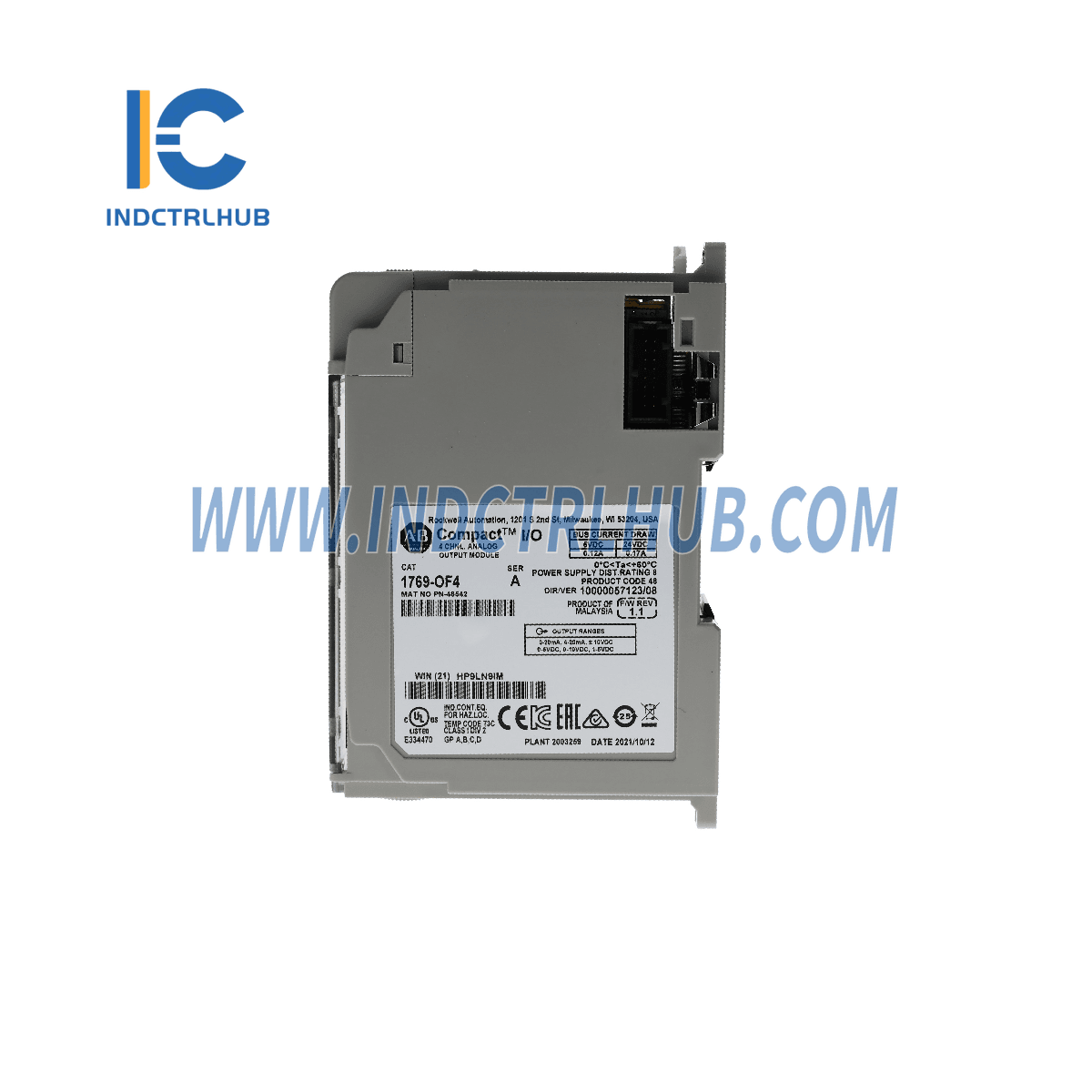

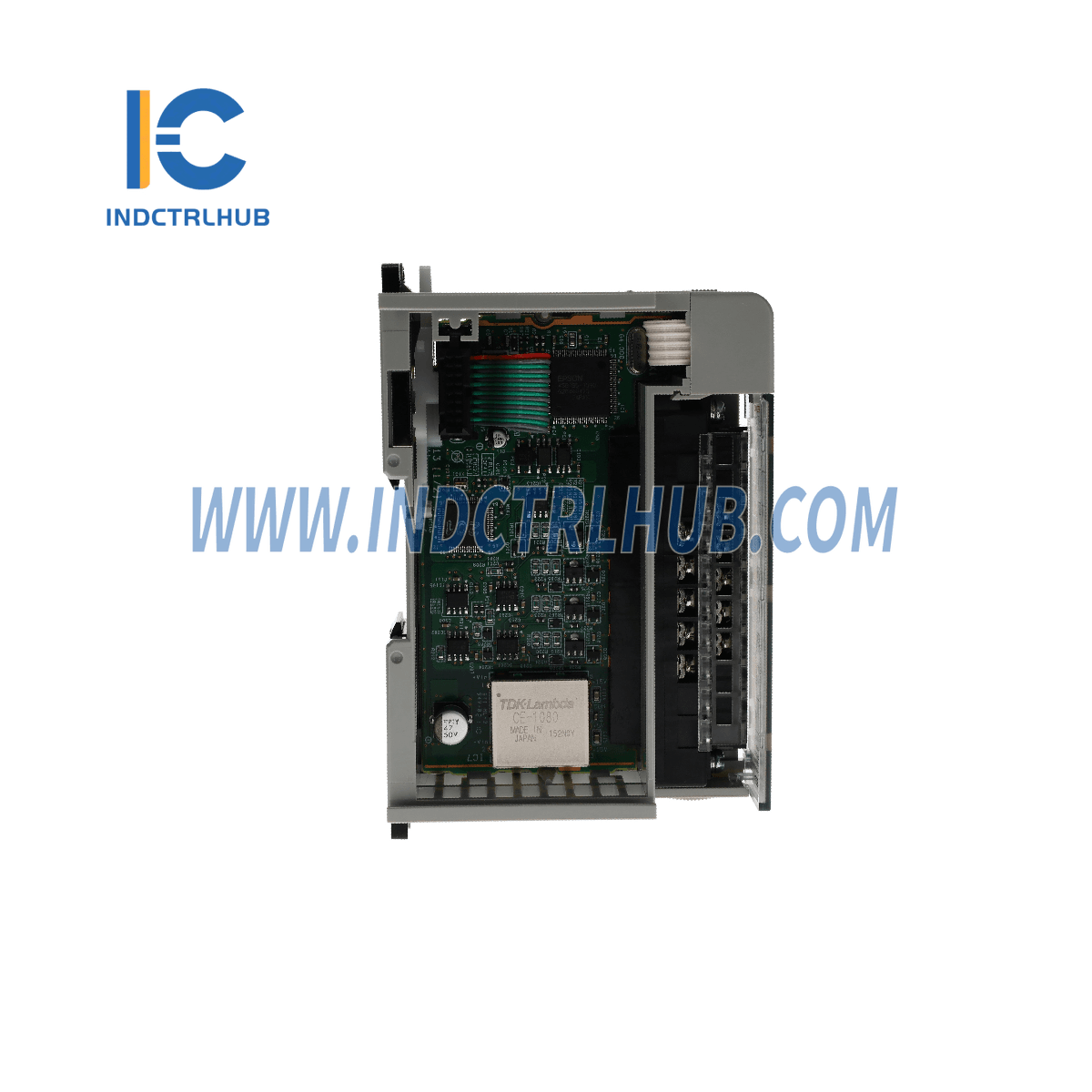

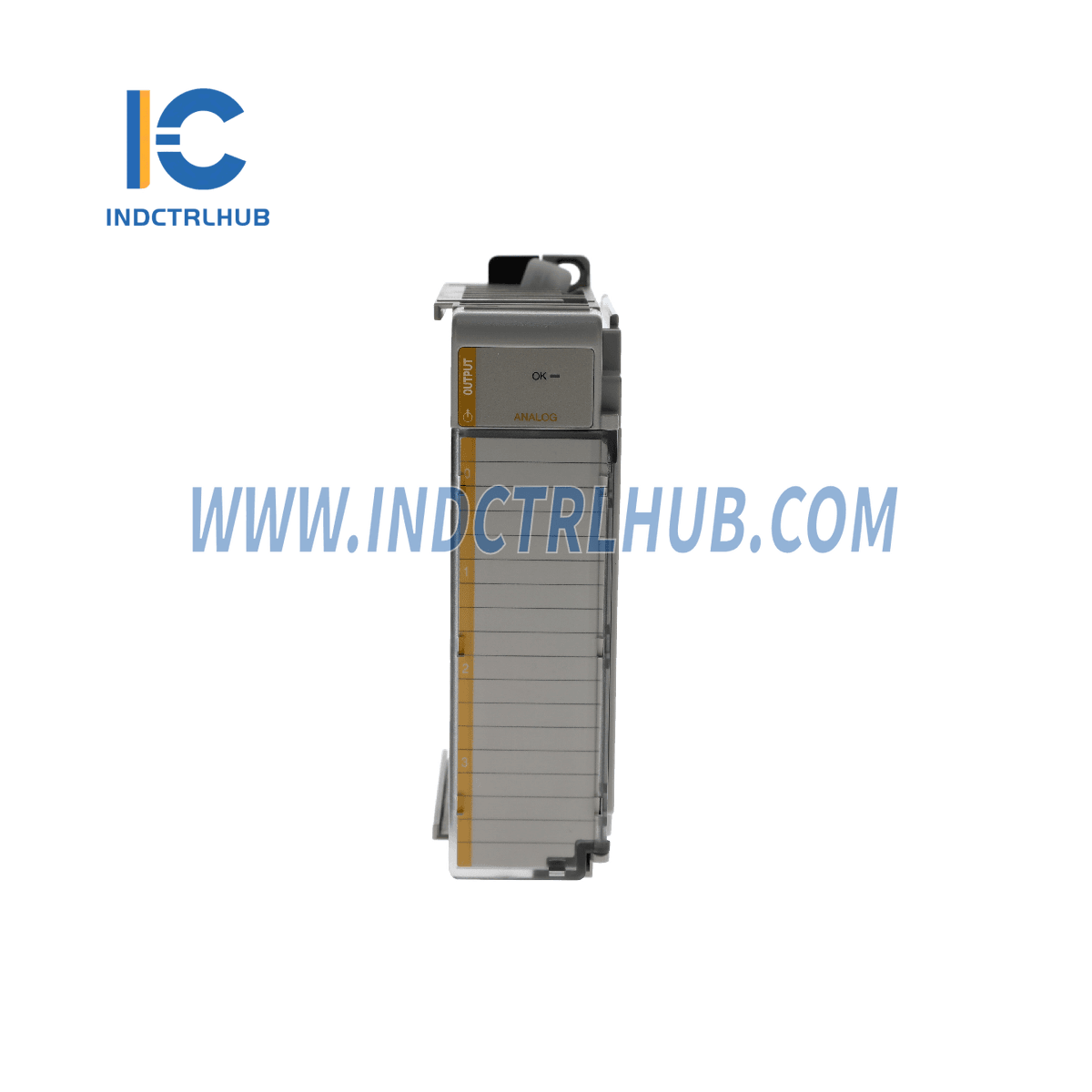

- Manufacturer: Allen-Bradley
- Model/Part Number: 1769-OF4
- Model Type: CompactLogix 4 Pt A/O C and V Module (Analog Output Module)
General Specifications
| Attribute | Value |
|---|---|
| Dimensions (HxWxD) | 118 x 35 x 87 mm (4.65 x 1.38 x 3.43 in) |
| Height including mounting tabs | 138 mm (5.43 in) |
| Approximate Shipping Weight | 280 g (0.61 lb) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Operating Temperature | 0°C to +60°C (32°F to +140°F) |
| Operating Humidity | 5% to 95% non-condensing |
| Operating Altitude | 2000 m (6561 ft) |
| Vibration (Operating) | 10-500 Hz, 5G, 0.030 in. peak-to-peak |
| Shock (Operating) | 30 G, 11 ms (panel mounted) / 20 G, 11 ms (DIN rail mounted) |
| Shock (Non-operating) | 40 G (panel mounted) / 30 G (DIN rail mounted) |
| Bus Current Draw (max) | 120 mA at 5V DC, 170 mA at 24V DC |
| Heat Dissipation | 2.86 Watts (total with all points energized) |
| Module OK Indicator | On: Module has power, has passed diagnostics, and is communicating |
| System Power Supply Distance Rating | Max. 8 modules from system power supply |
| Recommended Cable | Belden 8761 (shielded) |
| ESD Immunity (IEC61000-4-2) | 4 kV contact, 8 kV air, 4 kV indirect |
| Radiated Immunity (IEC61000-4-3) | 10 V/m, 80-1000 MHz, 80% amplitude modulation |
| Fast Transient Burst (IEC61000-4-4) | 2 kV, 5 kHz |
| Surge Immunity (IEC61000-4-5) | 1 kV galvanic gun |
| Conducted Immunity (IEC61000-4-6) | 10V, 0.15-80 MHz |
| Vendor I.D. Code | 1 |
| Product Type Code | 10 |
| Product Code | 48 |
| Input Words | 5 |
| Output Words | 5 |
| Configuration Words | 32 |
Certifications
- C-UL certified (under CSA C22.2 No. 142)
- UL 508 listed
- CE compliant for all applicable directives
- Hazardous Environment Class: Class I, Division 2, Hazardous Location, Groups A, B, C, D (UL 1604, C-UL under CSA C22.2 No. 213)
- Radiated and Conducted Emissions: EN50011 Class A
Output Specifications
| Attribute | Value |
|---|---|
| Analog Normal Operating Ranges | 0-20 mA, 4-20 mA, ±10V DC, 0-10V DC, 0-5V DC, 1-5V DC |
| Full Scale Analog Ranges | 0-21 mA, 3.2-21 mA, ±10.5V DC, -0.5-10.5V DC, -0.5-5.25V DC, 0.5-5.25V DC |
| Number of Outputs | Four single-ended, voltage or current |
| Digital Resolution | 15 bits plus sign (unipolar and bipolar) |
| Conversion Rate (All Channels) | Max. Interrupts not enabled: 2.5 ms, Interrupts enabled: 3.8 ms |
| Step Response to 63% | 2.9 ms |
| Resistive Load | Current: 0-600 Ω (includes wire resistance), Voltage: 1 KΩ or greater |
| Max. Inductive Load | 0.1 mH (current loads), 1.0 µF (voltage loads) |
| Field Calibration | None required |
| Overall Accuracy | 0.5% full scale at 25°C (77°F) |
