Product Description
Product Details
|
Category |
Details |
|---|---|
|
Manufacturer |
Allen-Bradley (Rockwell Automation) |
|
Model/Part Number |
2711P-T9W22D8S |
|
Description |

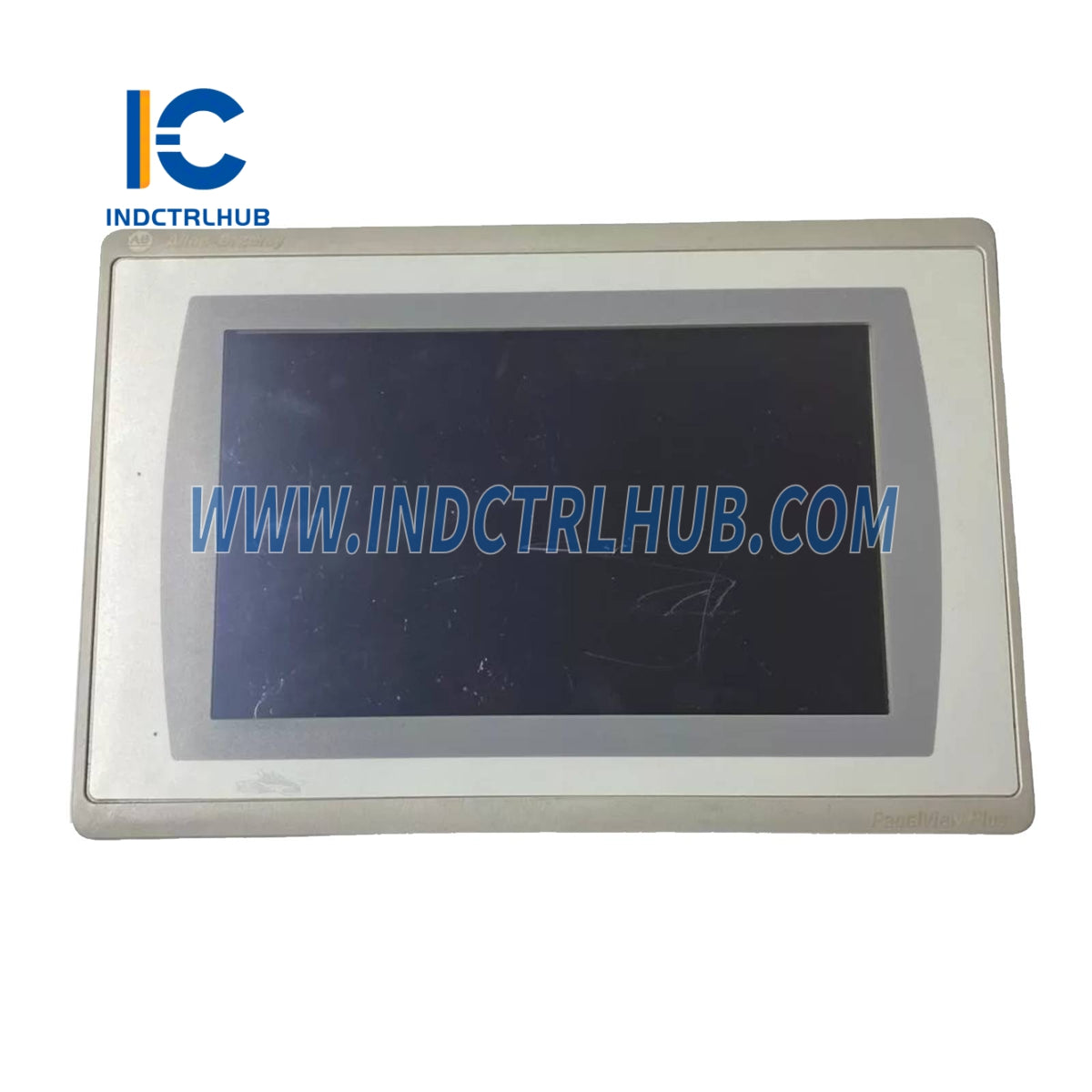

PanelView Plus 7 Standard, 9_ widescreen touch terminal with dual Ethernet |
_
_
Display & Input Specifications
|
Attribute |
Details |
|---|---|
|
Display Type |
Color TFT LCD |
|
Display Size |
9 in. (widescreen) |
|
Viewing Area |
196 x 118 mm |
|
Resolution |
800 x 480 WVGA, 18-bit color graphics |
|
Aspect Ratio |
5:3 |
|
Brightness (typical) |
300 nits |
|
Backlight Life |
50,000 hours (minimum at 40°C) |
|
Touchscreen Type |
Analog resistive |
|
Touch Actuation Rating |
1 million presses |
|
Operating Force |
100 grams |
_
_
System Features
|
Attribute |
Details |
|---|---|
|
Battery (RTC Backup) |
CR2032 lithium coin cell (2711P-RY2032); 4-year life at 25°C; ±2 min/month accuracy |
|
System Memory |
512 MB RAM / 512 MB internal storage |
|
User Storage |
80 MB non-volatile application storage |
|
SD Card Slot |
1 slot; supports 1 GB to 32 GB SD/SDHC (1784-SD1/SD2/SDHC8/SDHC32) |
|

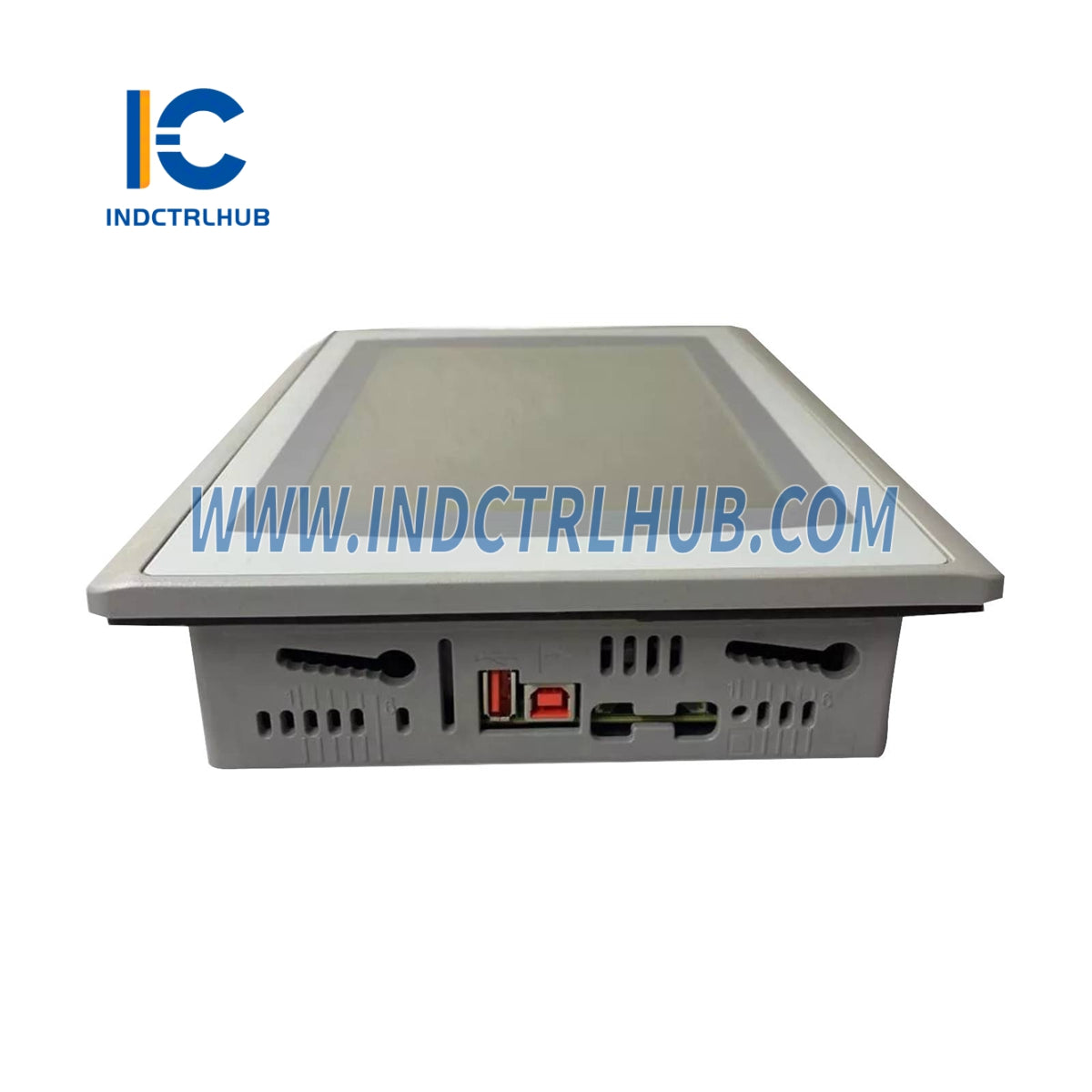

USB Ports |
1x USB 2.0 Host (Type A), 1x USB 1.0 Device (Type B) |
|
Ethernet Ports |
2x 10/100Base-T, Auto MDI/MDI-X, with star, linear, DLR support (IEEE 1588 compatible) |
|
Operating System |
Windows CE with FTP, VNC, ActiveX, PDF reader, third-party device support |
|
Firmware Compatibility |
PanelView Plus 7 Standard Series D, version 13.x or later |
|
Software Support |
FactoryTalk View Studio ME v8.0+, FactoryTalk ViewPoint v2.6+ |
_
_
Electrical Specifications
|
Attribute |
Details |
|---|---|
|
Input Voltage (DC) |
24V DC nominal (range: 18_30V DC), non-isolated |
|
Power Consumption |
Max 50 W (2.1 A @ 24V DC) |
|
Recommended Power Supply |
2711P-RSACDIN (DIN-rail mount, 85_265V AC input) |
_
_
Mechanical Specifications
|
Attribute |
Details |
|---|---|
|
Weight |
Approx. 1.29 kg (2.84 lbs) |
|
Dimensions (HxWxD) |
190 x 280 x 56.5 mm (7.48 x 11.02 x 2.22 in.) |
|
Panel Cutout (HxW) |
162 x 252 mm (6.38 x 9.92 in.) |
