Product Description
～Product Details

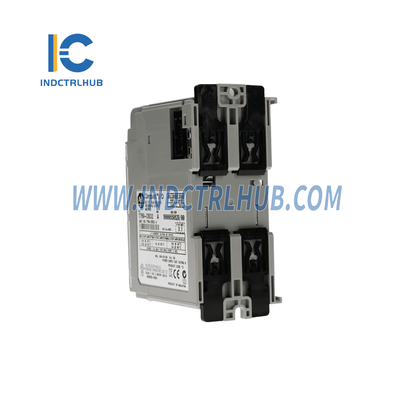

- Manufacturer: Allen-Bradley
- Model/Part Number: 1769-OB32
- Model Type: CompactLogix 32 Pt 24VDC D/O Module
General Specifications
| Attribute | Specification |
|---|---|
| Dimensions | 118 mm (height) x 87 mm (depth) x 52.5 mm (width) |
| Height including mounting tabs: 138 mm | |
| 4.65 in. (height) x 3.43 in (depth) x 2.07 in (width) | |
| Height including mounting tabs: 5.43 in. | |
| Approximate Shipping Weight | 450g (0.992 lbs.) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Operating Temperature | 0°C to +60°C (32°F to +140°F) |
| Operating Humidity | 5% to 95% non-condensing |
| Operating Altitude | 2000 meters (6561 feet) |
| Vibration | Operating: 10 to 500 Hz, 5G, 0.030 inches max peak-to-peak |
| Relay Operation: 2G | |
| Shock | Operating: 30G (panel mounted), 20G (DIN rail mounted) |
| Relay Operation: 7.5G (panel mounted), 5G (DIN rail mounted) | |
| Non-Operating: 40G (panel mounted), 30G (DIN rail mounted) | |
| Agency Certifications | • C-UL certified (under CSA C22.2 No. 142) |
| • UL 508 listed | |
| • CE and C-Tick compliant for applicable directives | |
| Hazardous Environment Class | Class I, Division 2, Hazardous Location, Groups A, B, C, D (UL 1604, C-UL under CSA C22.2 No. 213) |
| Radiated and Conducted Emissions | EN50081-2 Class A |
Electrical / EMC Testing
| Test Type | Specification |
|---|---|
| ESD Immunity (IEC61000-4-2) | 4kV contact, 8 kV air, 4 kV indirect |
| Radiated Immunity (IEC61000-4-3) | 10 V/m, 80 to 1000 MHz, 80% amplitude modulation, +900 MHz keyed carrier |
| Fast Transient Burst (IEC61000-4-4) | 2 kV, 5 kHz |
| Surge Immunity (IEC61000-4-5) | 2 kV common mode, 1 kV differential mode |
| Conducted Immunity (IEC61000-4-6) | 10V, 0.15 to 80 MHz |
