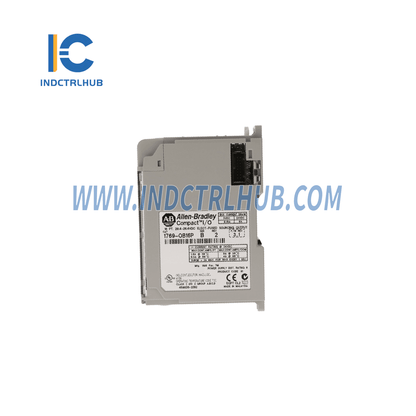

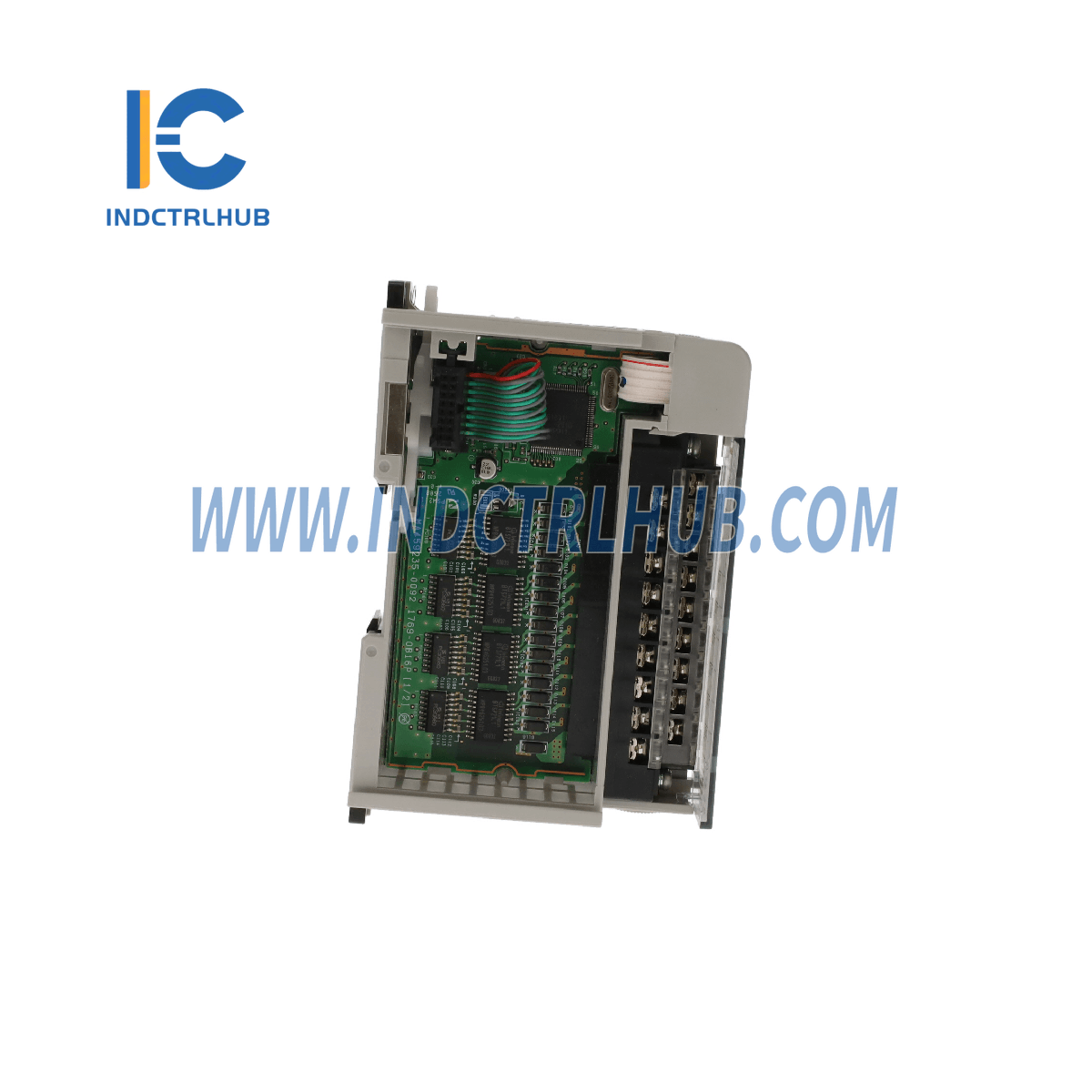

Allen-Bradley 1769-OB16P CompactLogix 16 Pt 24VDC Prot D/O Module

Product Details

• Manufacturer: Allen-Bradley
• Model/Part Number: 1769-OB16P
• Model Type: CompactLogix 16 Pt 24VDC Protected Digital Output Module

Key Features

• Output Points: 16 digital outputs, with 1 group of 16 points.
• Voltage Category: 24V DC source.
• Operating Voltage Range: 20.4V to 26.4V DC.
• Output Delay:
  • Turn-on delay: 1.0 ms
  • Turn-off delay: 2.0 ms
• Current Draw:
  • At 5.1V: 160 mA.
  • Maximum current per output point:
    • 0.5 A at 60°C (140°F).
    • 1.0 A at 30°C (86°F).
  • Maximum current per module:
    • 4.0 A at 60°C (140°F).
    • 8.0 A at 30°C (86°F).
• Surge Current: 2.0 A for 10 ms, repeatable every 1 second.
• Off-State Leakage Current: Max of 1.0 mA at 26.4V DC.
• On-State Voltage Drop: Max of 0.5V DC.
• Isolation Voltage: 1200V AC or 1697V DC for 1 second (output point to bus).
• Weight: Approx. 255 g (0.56 lb).
• Mounting: Suitable for DIN rail or panel mount.

Environmental and Operational Specifications

• Storage Temperature Range: -40°C to +85°C (-40°F to +185°F).
• Operating Temperature Range: 0°C to +60°C (32°F to +140°F).
• Relative Humidity: 5% to 95% non-condensing.

Dimensions

• Height (without mounting tabs): 118 mm (4.65 in.)
• Width: 35 mm (1.38 in.)
• Depth: 87 mm (3.43 in.)
• Height with mounting tabs: 138 mm (5.43 in.).

Power Supply Compatibility

• 1769-PA2, 1769-PB2, 1769-PA4, 1769-PB4.
• Power Supply Distance Rating: 8 modules (module cannot be more than 8 slots away from the power supply).
