Product Description
Product Details
- Manufacturer: Allen-Bradley

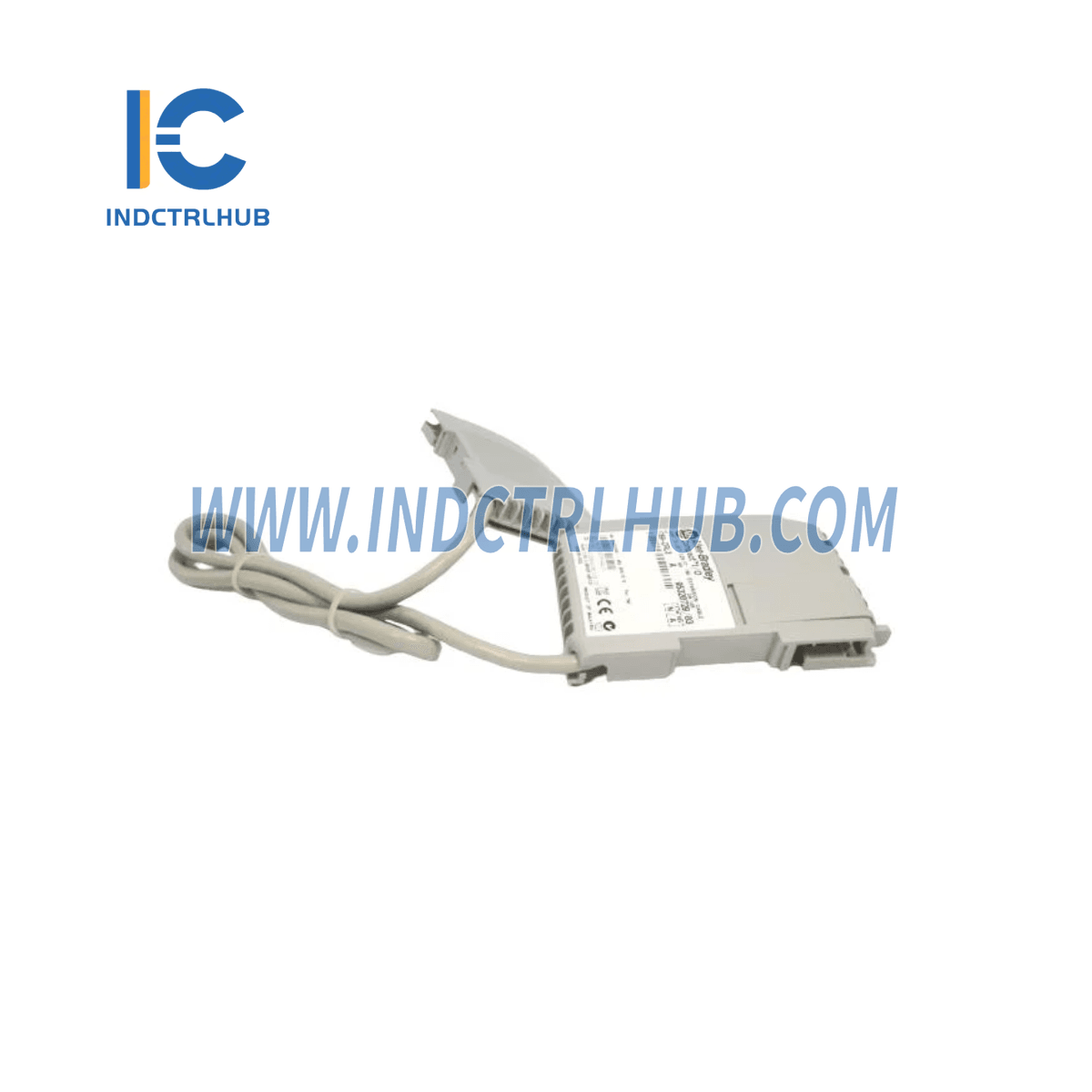

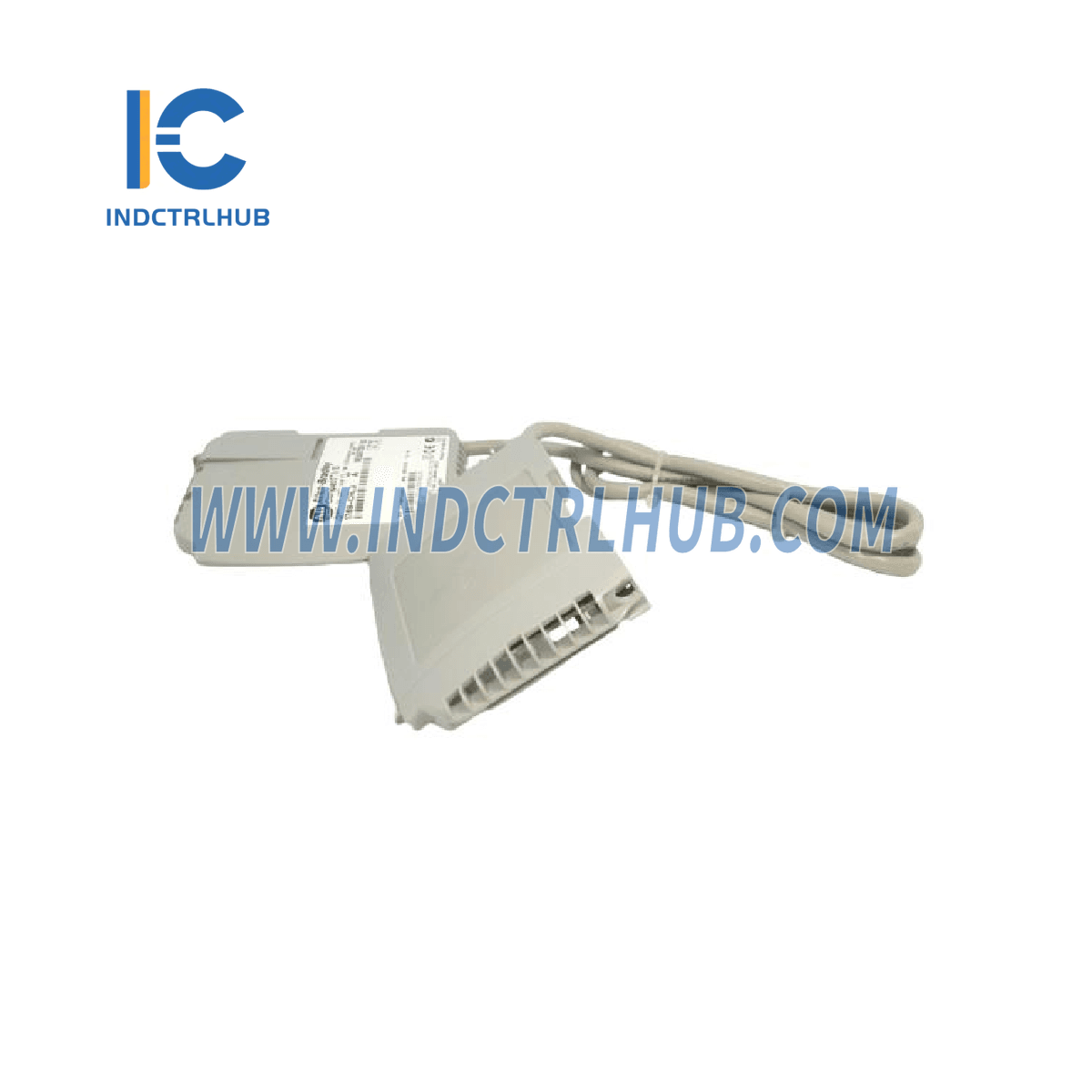

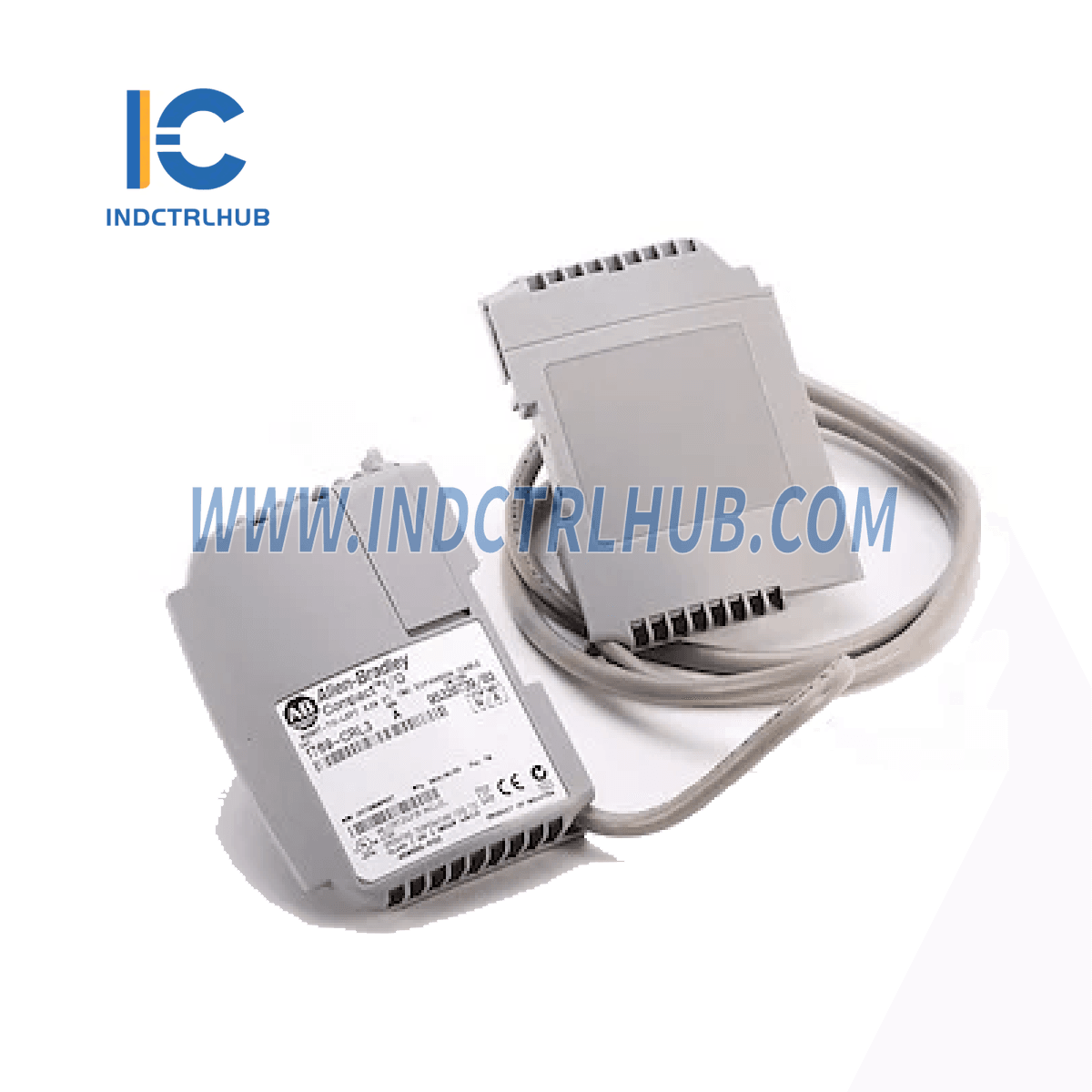

- Model/Part Number: 1769-CRL3
- Model Type: CMPLX 1 m Right to Left Bus Expansion Cable
Overview
The 1769-CRLx, -CRRx, and -CRLx cables extend the 1769 bus communication lines.
- A maximum of two cables can be used in a 1769 system, allowing for three groups or banks of I/O modules.
- Each bank requires its own power supply.
Cable Types and Lengths:
- 1769-CRL3: Right bank-to-left bank expansion, 3.28 ft. (1 m)
Specifications
| Specification | Value |
|---|---|
| Approximate Shipping Weight | 350 g (0.77 lbs) for 3-foot cables |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Operating Temperature | 0°C to +60°C (32°F to +140°F) |
| Operating Humidity | 5% to 95% non-condensing |
| Operating Altitude | 2000 meters (6561 feet) |
| Vibration | Operating: 10 to 500 Hz, 5G, 0.030 in max peak-to-peak |
| Relay Operation: 2G | |
| Shock | Operating: 30G panel mounted (20G DIN rail mounted) |
| Relay Operation: 7.5G panel mounted (5G DIN rail mounted) | |
| Non-Operating: 40G panel mounted (30G DIN rail mounted) | |
| Agency Certification | C-UL certified (under CSA C22.2 No. 142) |
| UL 508 listed | |
| CE compliant for all applicable directives | |
| Hazardous Environment Class | Class I, Division 2, Hazardous Location, Groups A, B, C, D (UL 1604, C-UL under CSA C22.2 No. 213) |
