Product Description

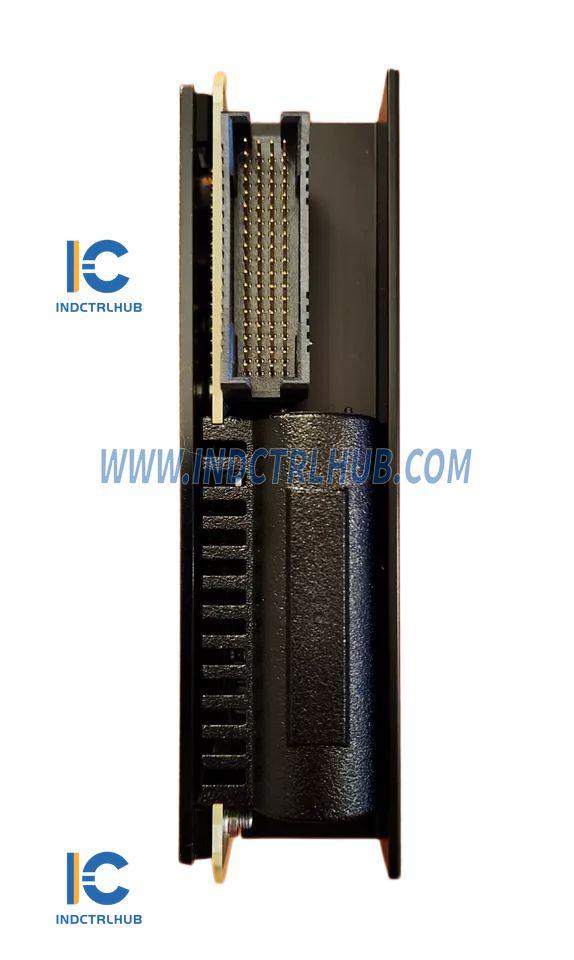

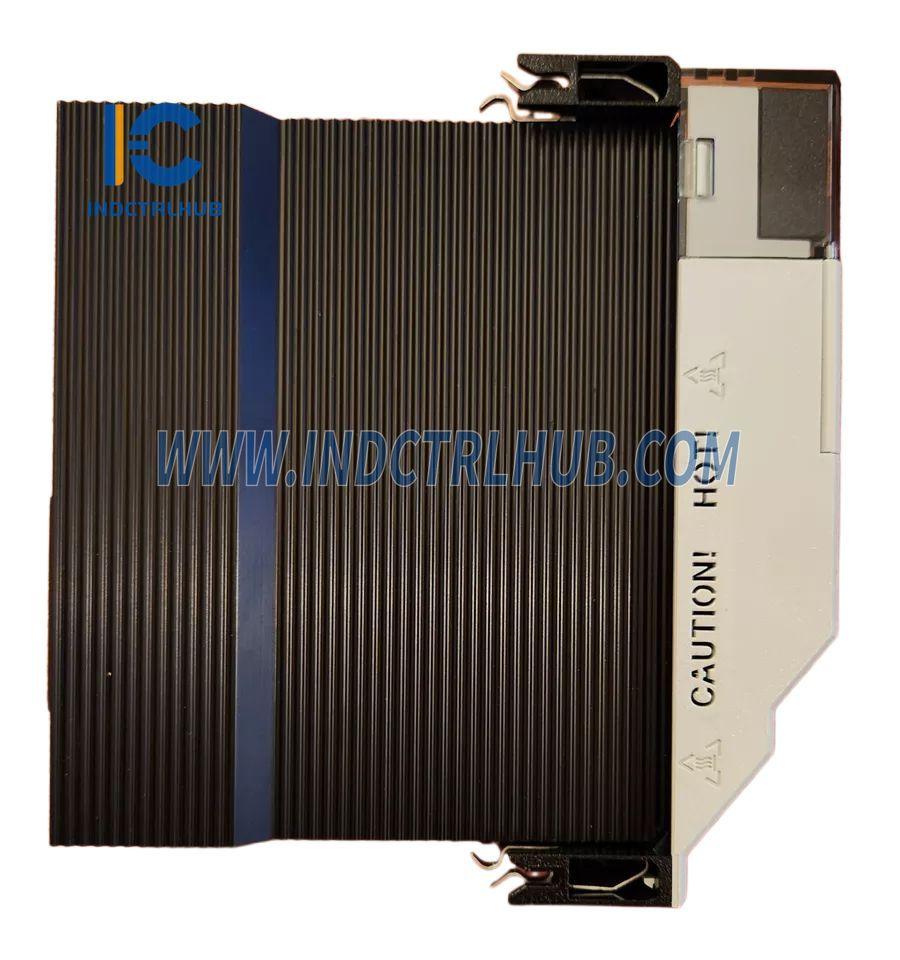

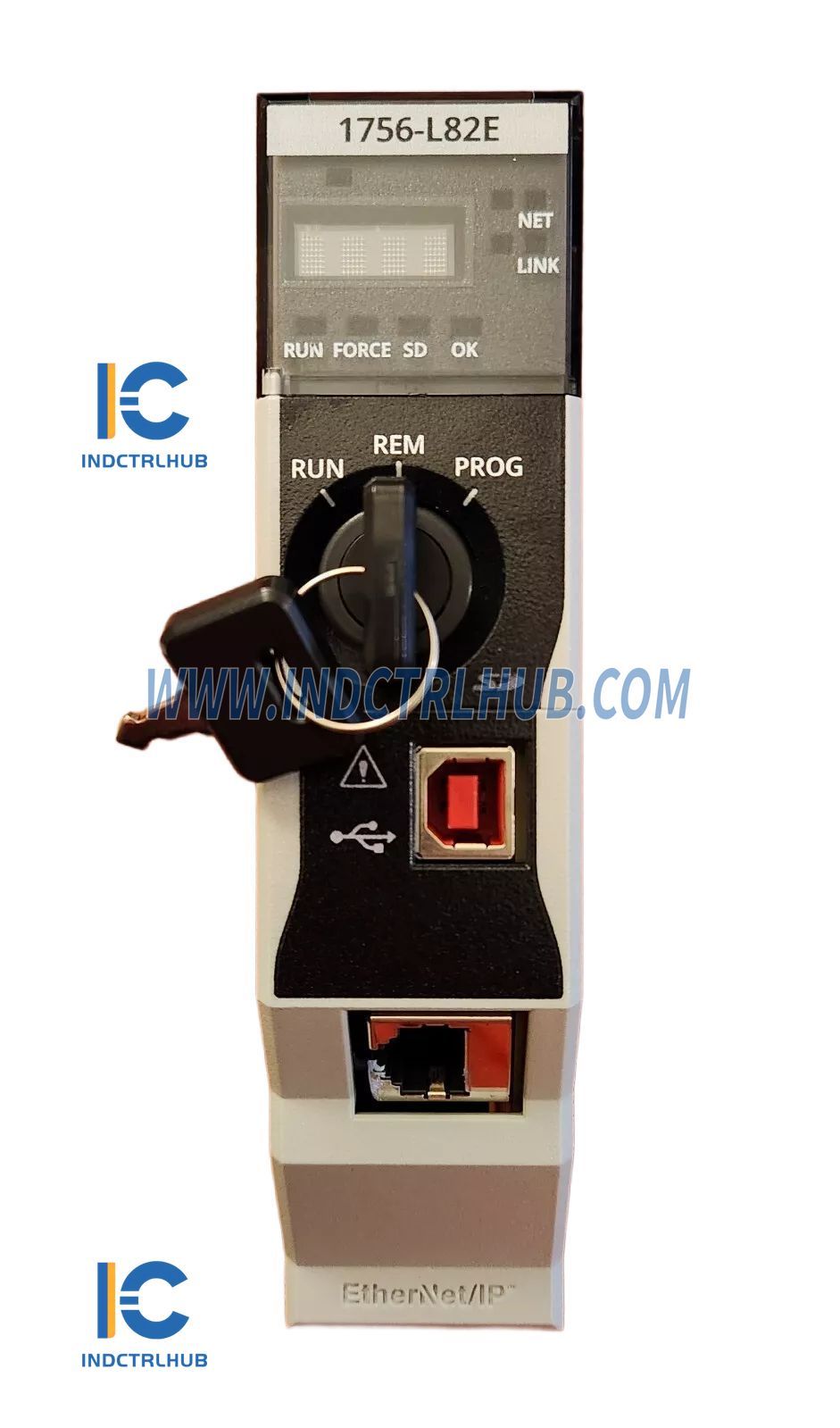

Allen-Bradley 1756-L82E ControlLogix 5580 Controller
Overview
The 1756-L82E is a high-performance processor module designed for use in ControlLogix 5580 Controllers, ideal for complex control systems. It supports large I/O configurations and high-speed processing, making it suitable for demanding industrial applications.
Key Specifications
| Attribute |
Details |
| User Memory |
20 MB |
| Digital I/O |
Max 128,000 |
| Analog I/O |
Max 4,000 |
| Total I/O |
Max 128,000 |
| Non-Volatile Memory |
2 GB Secure Digital Card (pre-installed) |
| Energy Storage Module |
Embedded, non-removable, 80,000 power cycles |
| Power Dissipation |
6.2 W |
| Thermal Dissipation |
21.2 BTU/hr |
| Weight |
0.394 kg (0.868 lb) |
| Slot Width |
1 |
| Power Supply Compatibility |
1756-PA50, 1756-PA72, 1756-PB50, 1756-PB72, 1756-PA75, 1756-PB75 |
Environmental Specifications
| Attribute |
Details |
| Operating Temperature |
-25°C to +70°C (-13°F to +158°F) |
| Non-operating Temperature |
-40°C to +85°C (-40°F to +185°F) |
| Humidity |
5-95% non-condensing |
| Vibration/Shock |
2 g @ 10-500 Hz, 30 g (operating and non-operating) |
| Corrosive Atmosphere |
Yes, Severity Level G3 |
Compliance and Immunity
| Attribute |
Details |
| ESD Immunity |
6 kV contact, 8 kV air discharges |
| Radiated RF Immunity |
10V/m from 80…2000 MHz |
| Surge Immunity |
±2 kV on Ethernet ports |
| Certification |
UL, CE, ATEX, IECEx, RCM, KC, UKEx |
Power Supply Compatibility
| Power Supply Type |
Model |
| Standard Power Supply |
1756-PA50, 1756-PA72, 1756-PB50, 1756-PB72, 1756-PA75, 1756-PB75 |
