Product Description

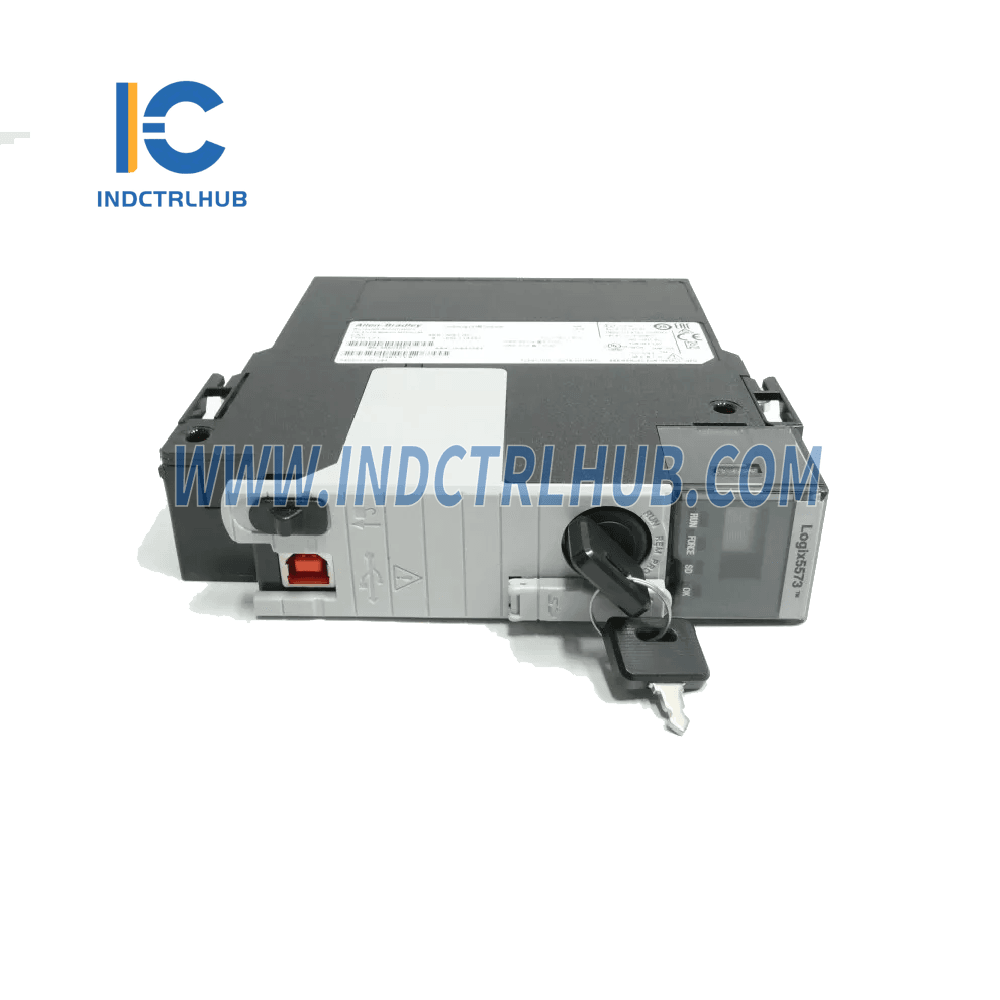

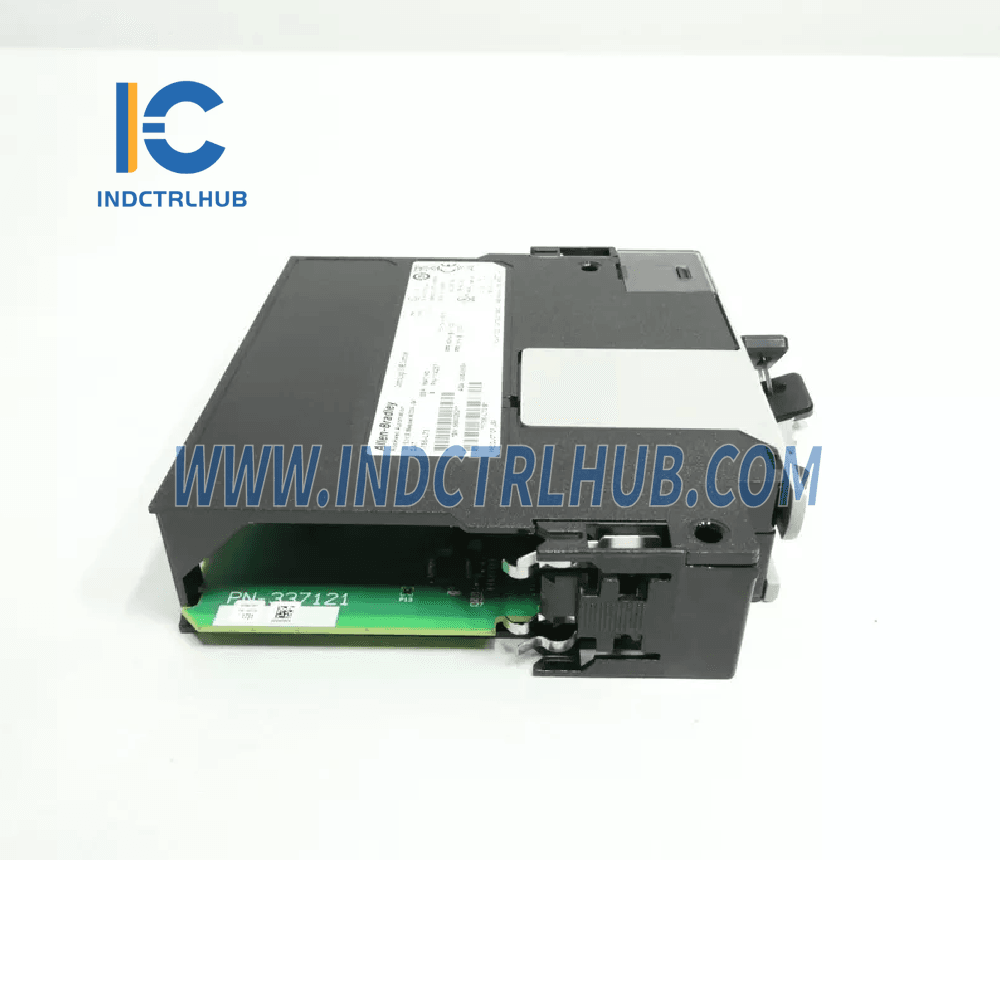

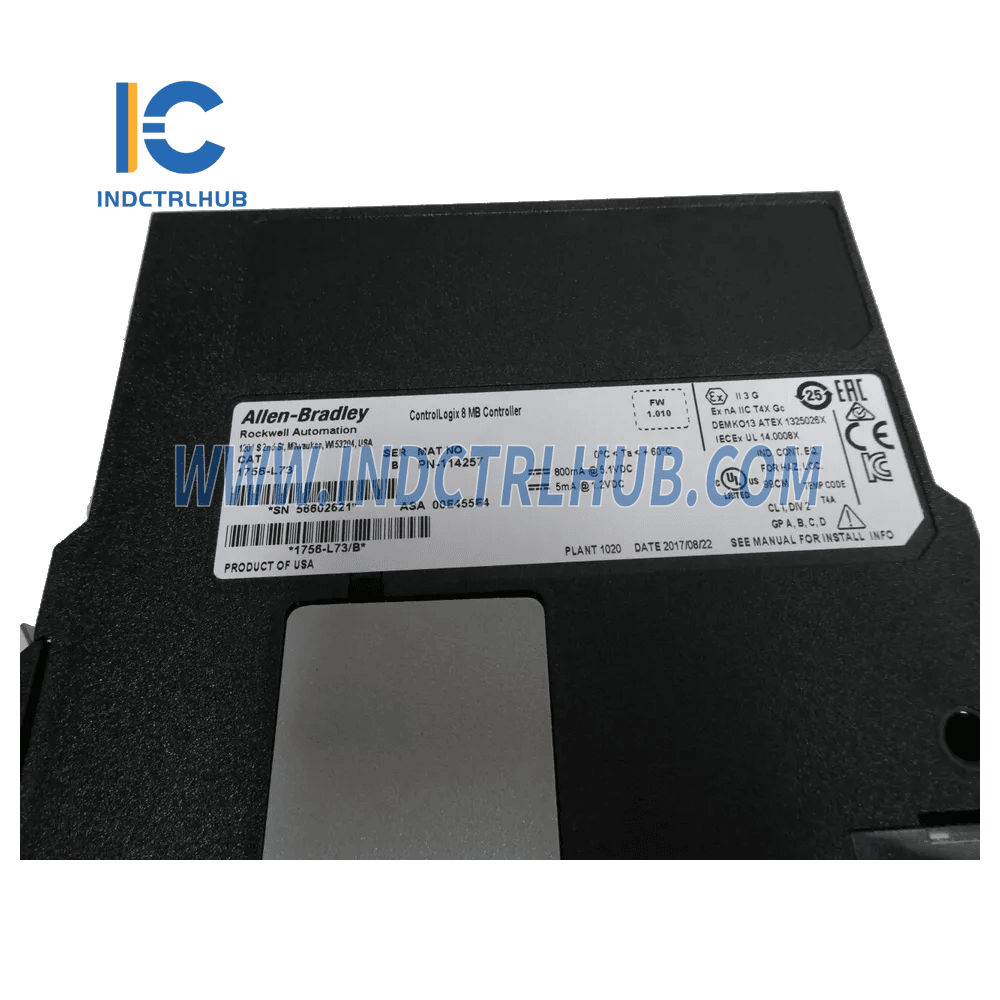

Allen-Bradley ControlLogix-XT 5580 Controllers
Manufacturer: Allen-Bradley
Model/Part Number: 1756-L73
Description: ControlLogix and GuardLogix Controllers
General Specifications:
| Attribute |
Specification |
| Embedded Network Port |
False |
| Memory |
8 MB User Memory, 0.98 MB I/O |
| Non-Volatile Memory Option |
Secure Digital (SD) |
| Power Supply |
5 mA @ 1.2V DC, 800 mA @ 5.1V DC |
| Weight |
Approx. 0.25 kg (0.55 lb) |
| Slot Width |
1 |
| Module Location |
Chassis-based, any slot |
| Chassis Compatibility |
1756-A4, 1756-A4K, 1756-A7, 1756-A7K, 1756-A10, 1756-A10K, 1756-A13, 1756-A13K, 1756-A17, 1756-A17K |
| Power Supply Compatibility |
Standard: 1756-PA50, 1756-PA72, 1756-PA72K, 1756-PB50, 1756-PB72, 1756-PB72K, 1756-PB75, 1756-PB75K, 1756-PH75 |
| Power Supply Compatibility (Redundant) |
Redundant: 1756-PA75R, 1756-PA75RK, 1756-PB75R, 1756-PB75RK, 1756-PSCA2, 1756-PSCA2K |
| USB Port |
Yes (USB 2.0, Full Speed, 12 Mbps), temporary local programming only, not intended for permanent connection |
Technical Specifications:
| Attribute |
Specification |
| User Memory |
8 MB |
| I/O Memory |
0.98 MB |
| Optional Non-Volatile Memory Storage |
1 GB (1784-SD1 included), 2 GB (1784-SD2 available) |
| Digital I/O Max |
128,000 |
| Analog I/O Max |
4,000 |
| Total I/O Max |
128,000 |
| Energy Storage Module Options |
- 1756-ESMCAP, 1756-ESMCAPK (removable, ships installed) |
|
- 1756-ESMNSE, 1756-ESMNSEK (removable, no residual WallClockTime power backup) |
|
- 1756-ESMNRM, 1756-ESMNRMK (non-removable, secures controller) |
| Current Draw @ 1.2V DC |
5 mA |
| Current Draw @ 5.1V DC |
800 mA |
| Power Dissipation |
2.5 W |
| Thermal Dissipation |
8.5 BTU/hr |
| Isolation Voltage |
30V (continuous), basic insulation type, USB port-to-system |
| Compliance |
Compliant with IEC/UL 61010-1 |
Environmental Specifications:
| Attribute |
Specification |
| Operating Temperature |
0°C to +60°C (32°F to +140°F), derating above 60°C |
| Non-Operating Temperature |
-40°C to +85°C (-40°F to +185°F) |
| Relative Humidity |
5% to 95% (non-condensing) |
| Conformal Coating |
No |
| Vibration (Operating) |
IEC 60068-2-6: 2 g @ 10–500 Hz |
| Shock (Operating) |
IEC 60068-2-27: 30 g (Unpackaged) |
| Shock (Non-Operating) |
IEC 60068-2-27: 50 g (45 g with SD card installed) |
| Electromagnetic Emissions |
IEC 61000-6-4 |
| ESD Immunity |
IEC 61000-4-2: 6 kV contact, 8 kV air |
| Radiated RF Immunity |
IEC 61000-4-3: 10V/m from 80–2000 MHz, 3V/m from 2000–2700 MHz |
| Conducted RF Immunity |
IEC 61000-4-6: Not applicable (USB is a temporary port) |
Certifications & Compliance:
-
IEC/UL 61010-1: Meets safety standards for industrial equipment.
-
IEC 60068-2-6, IEC 60068-2-27: Vibration and shock standards for robust performance in harsh industrial environments.
-
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-6: Immunity to electromagnetic interference (EMI) ensuring stable operation in electrically noisy environments.
