Product Description
🔹 General Information
|
Manufacturer |
Allen-Bradley |
|---|---|
|
Model/Part Number |
1715-IB16D/A |
|
Description |

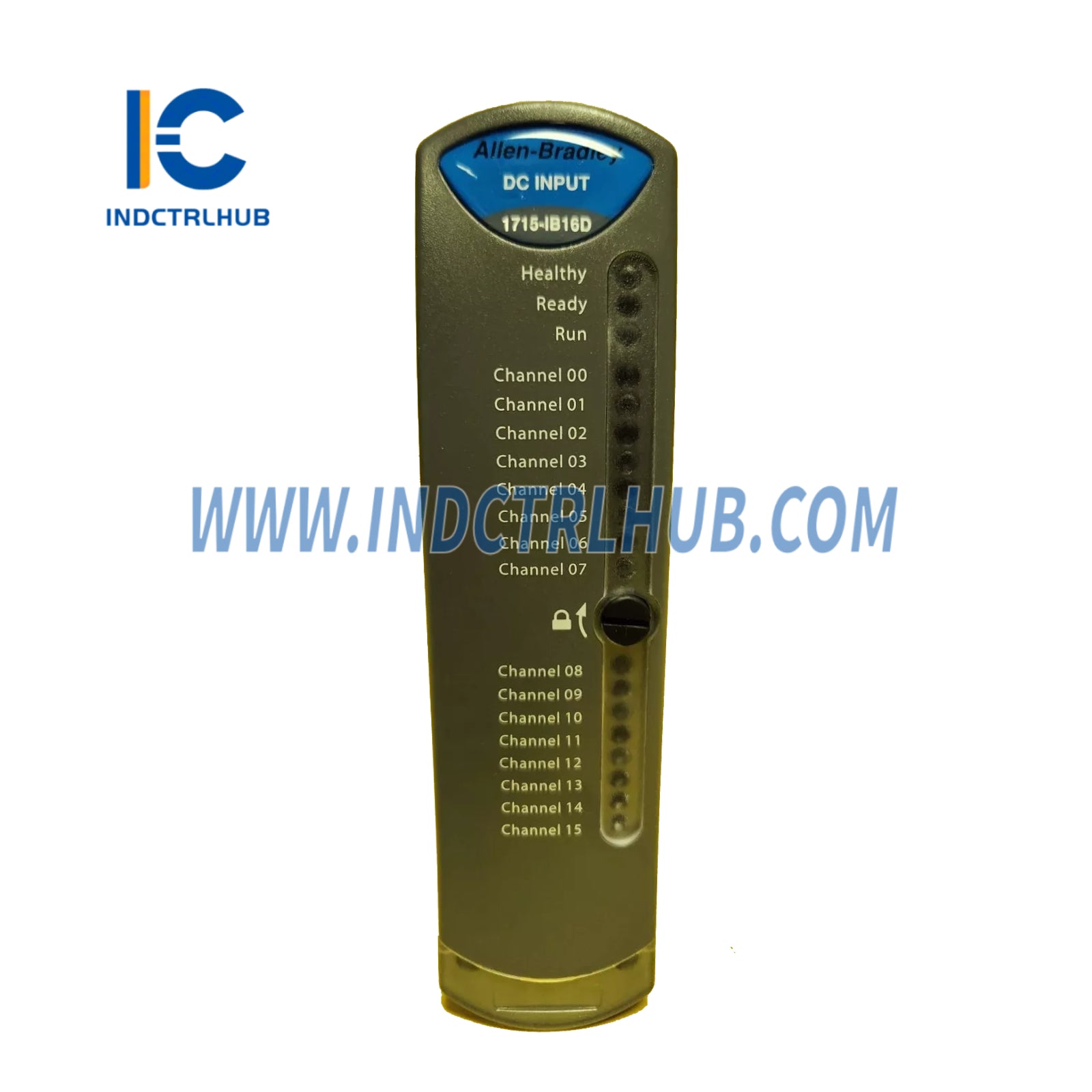

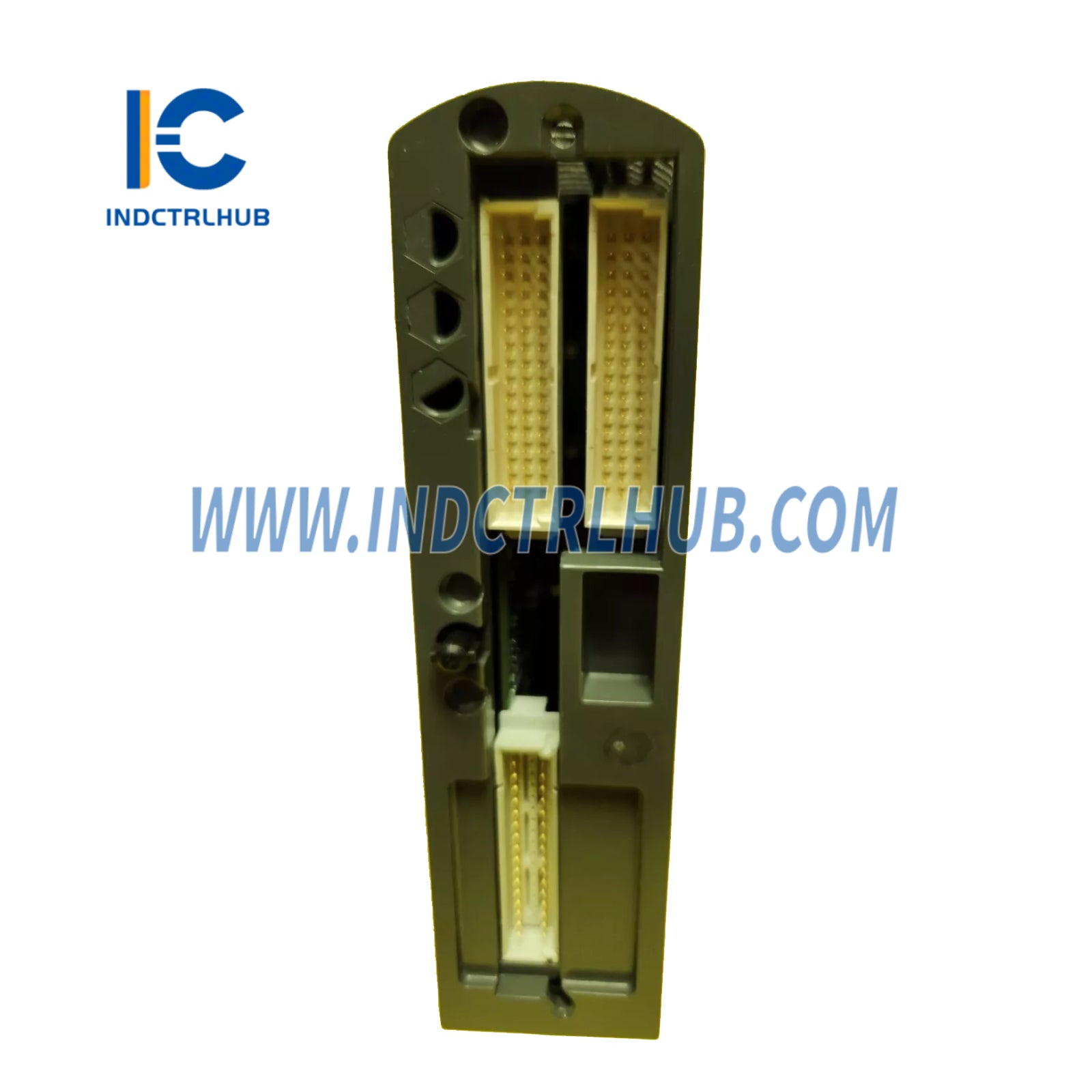

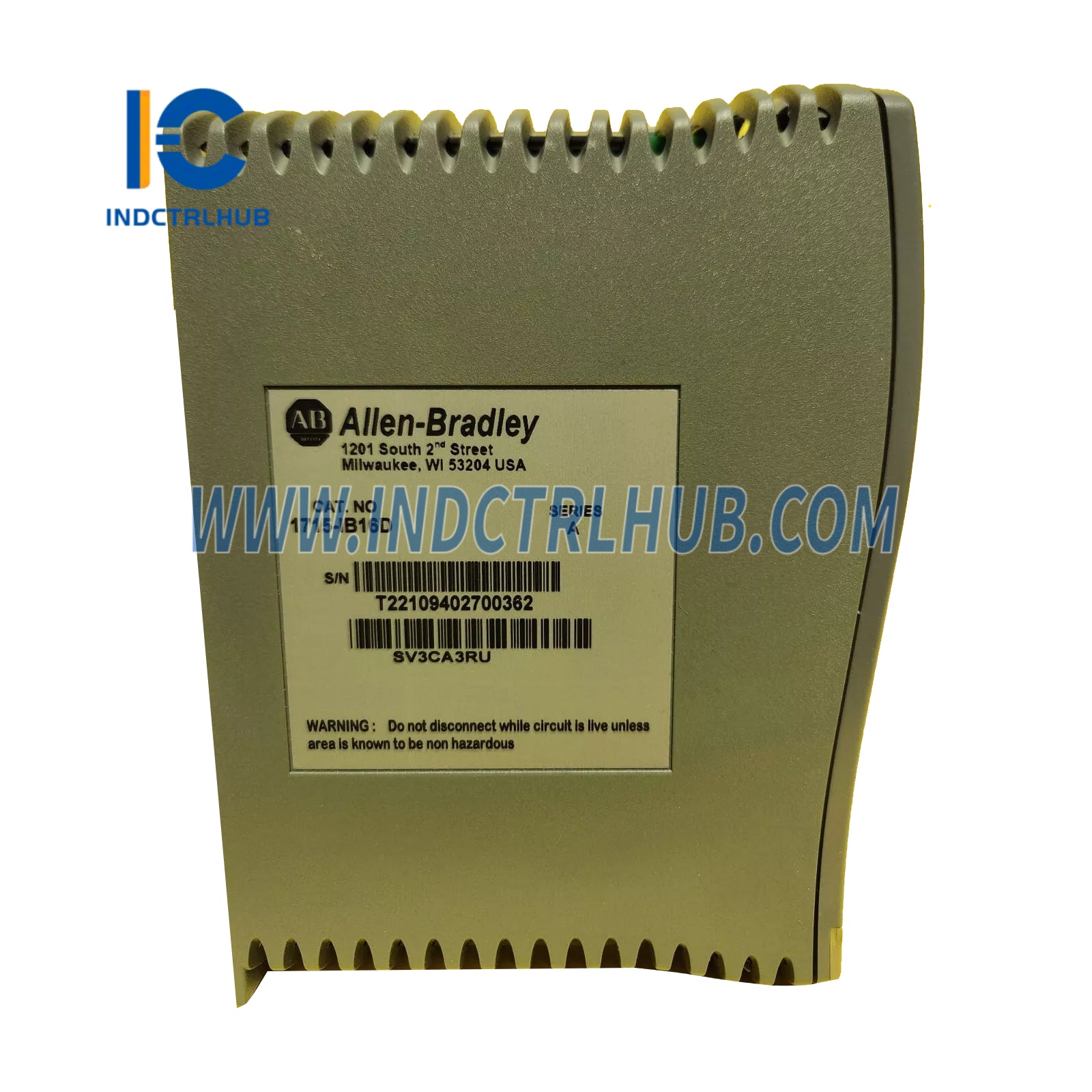

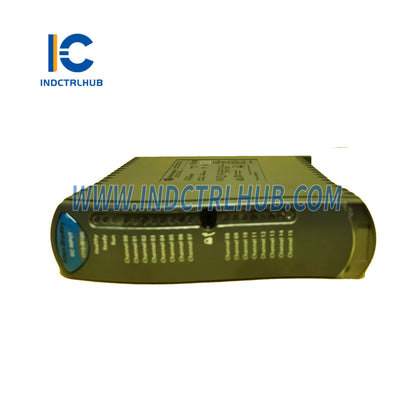

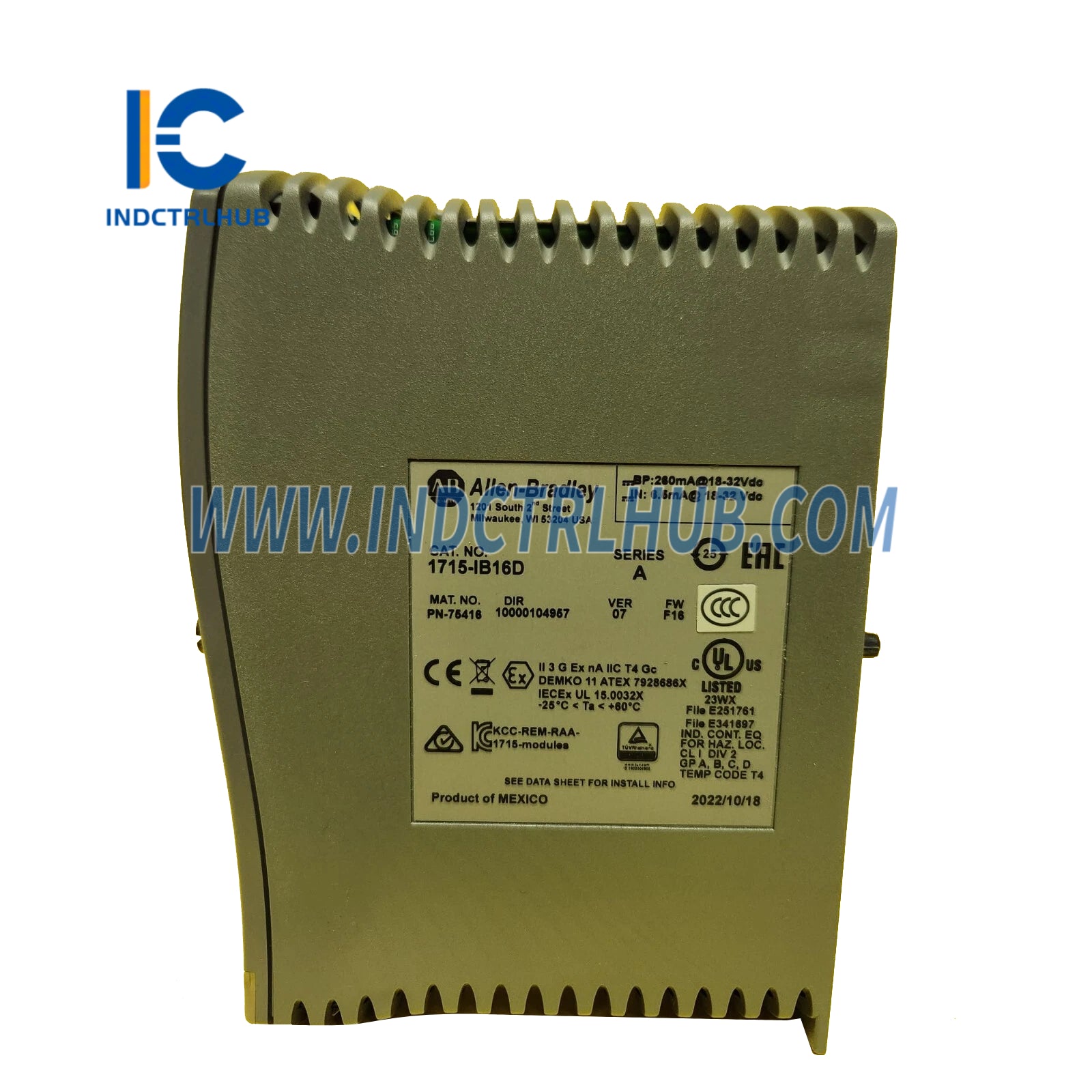

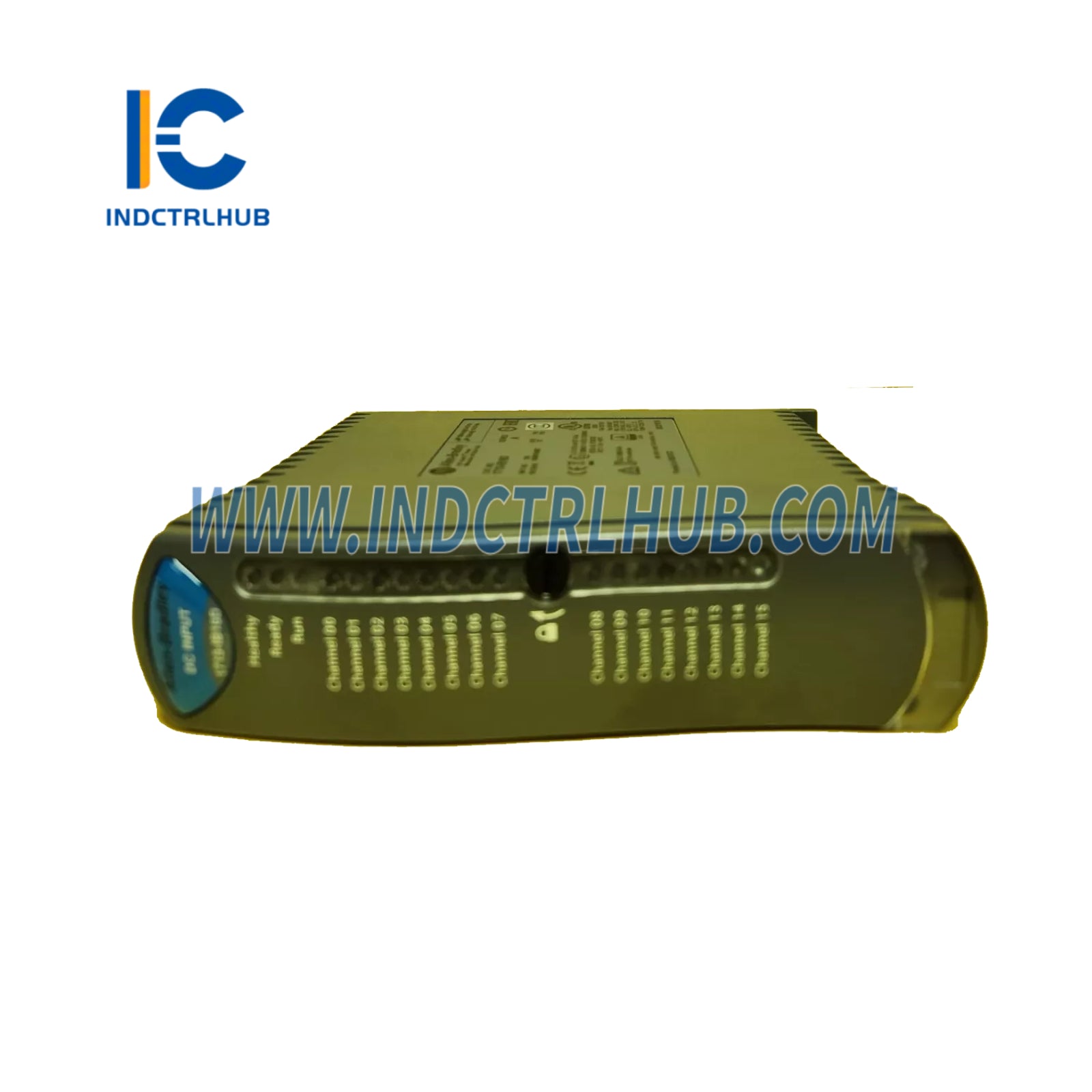

1715-IB16D Digital Input Module with 1715-A3IO Module Base and 1715-TASIB16D, 1715-TADIB16D Termination Assemblies |
🔹 Technical Specifications
|
Attribute |
Value |
|---|---|
|
Operating Voltage Range |
18-32V DC |
|
Power Requirements |
- 1715-IB16D backplane: 260mA @ 18-32V DC - 1715-TASIB16D, 1715-TADIB16D: 6.5mA per channel @ 0-32V DC |
|
Slew Rate (Max) |
3600V/s |
|
Translation Rate (Max) |
1/(Application scan time + 10ms) Hz |
|
Power Dissipation |
- System: 4.0W max - Field loop: 0.2W per field loop max |
|
Isolation Voltage |
- 50V (continuous), basic insulation type - I/O ports to backplane - No isolation between individual I/O ports with 1715-TASIB16D - 50V isolation between individual ports with 1715-TADIB16D - Type tested at 500V AC for 60s |
|
Fuse Type |
50mA, 125V, Type T |
🔹 Mechanical Specifications
|
Attribute |
Value |
|---|---|
|
Weight |
- 1715-IB16D: 360g (12.70 oz) - I/O base unit: 133g (5 oz) - Termination assembly: 133g (5 oz) / 260g (10 oz) |
|
Dimensions (H x W x D) |
166 x 42 x 118 mm (6.5 x 1.625 x 4.625 in.) |
|
Wire Size |
0.33-1.5 mm² (22-16 AWG) solid or stranded copper wire, rated at 85°C (185°F) or greater |
|
Wiring Category |
2 - on signal ports |
🔹 Environmental Specifications
|
Attribute |
Value |
|---|---|
|
Temperature Rating |
- North American: T4 - IEC: T4 |
|
Enclosure Type |
None (Open-style) |
