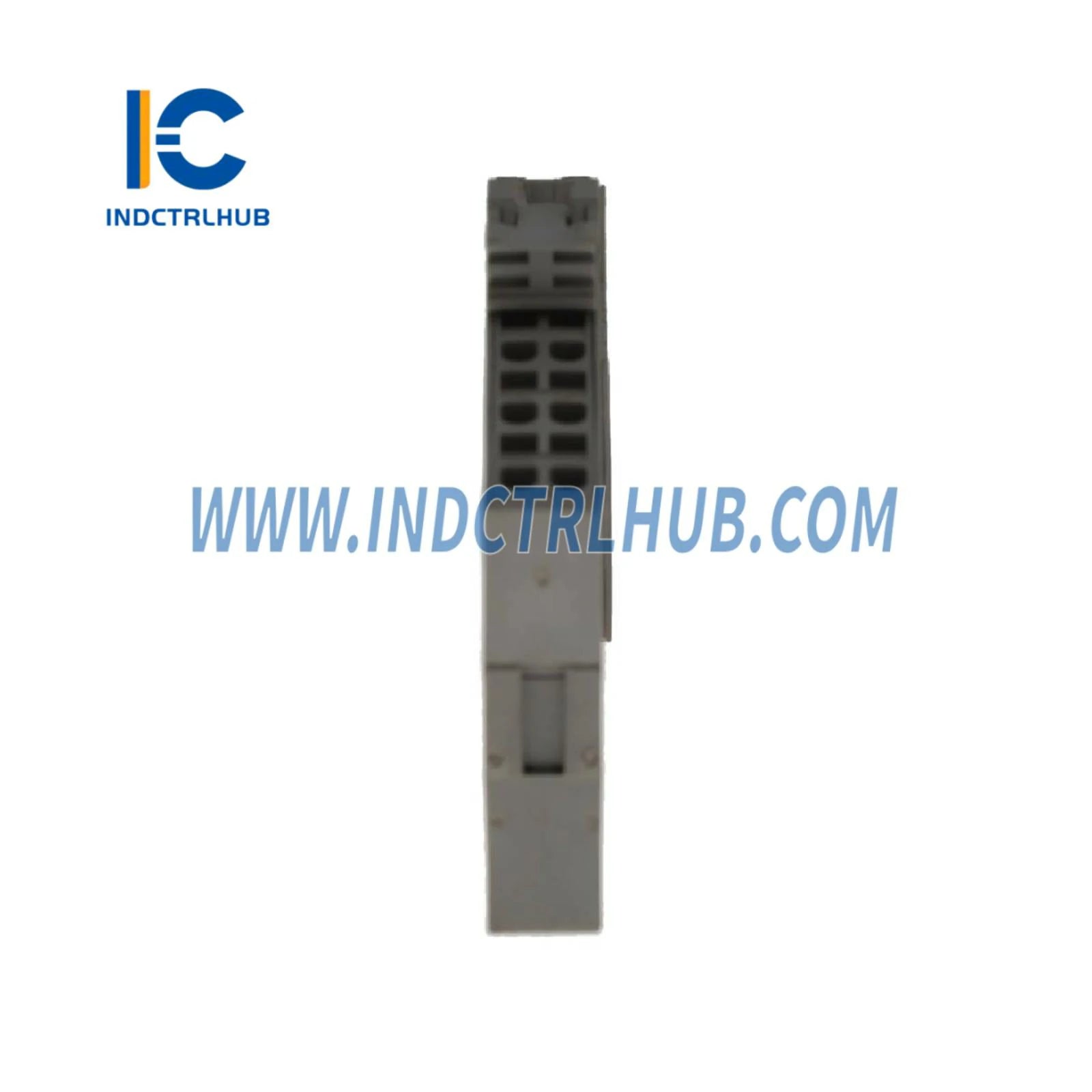

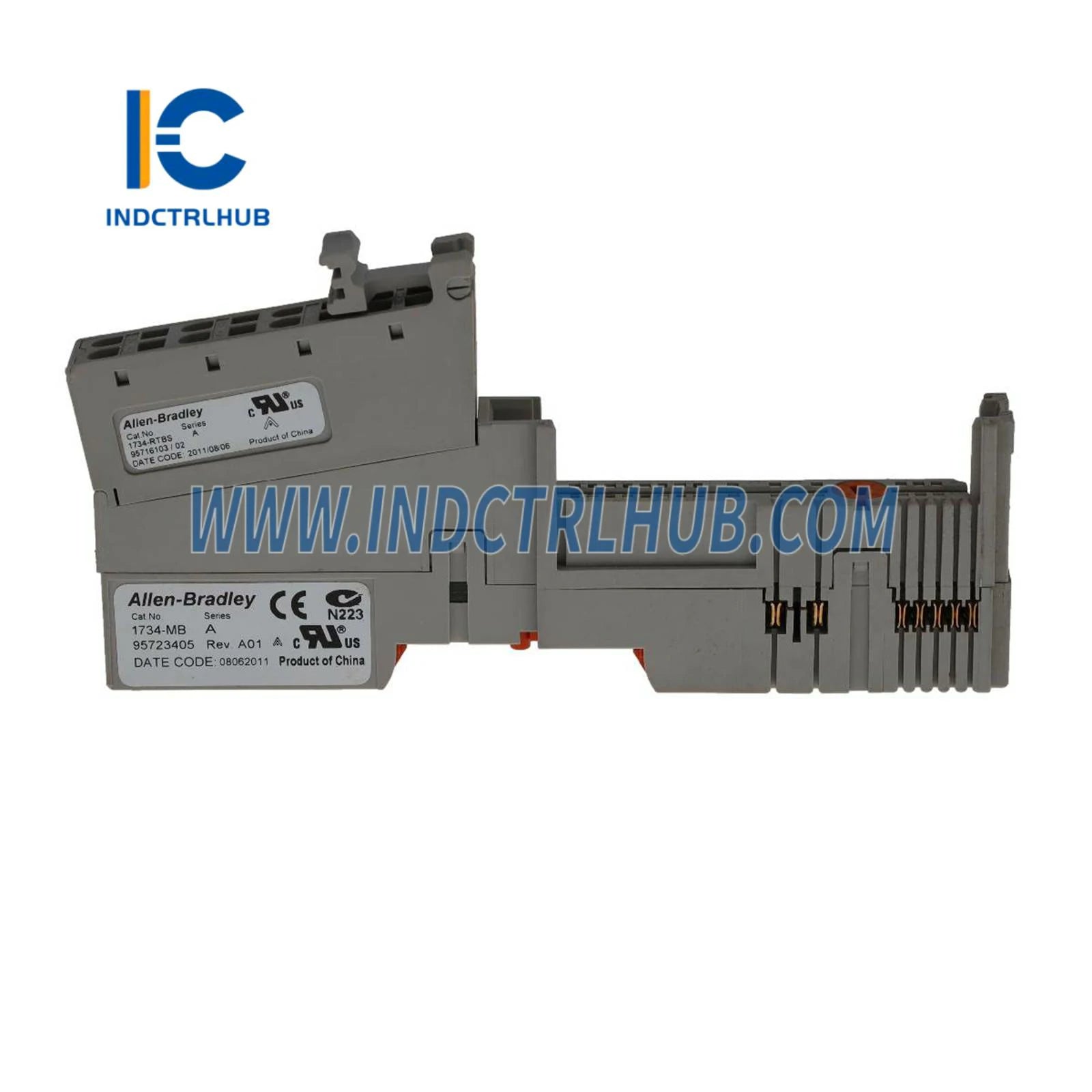

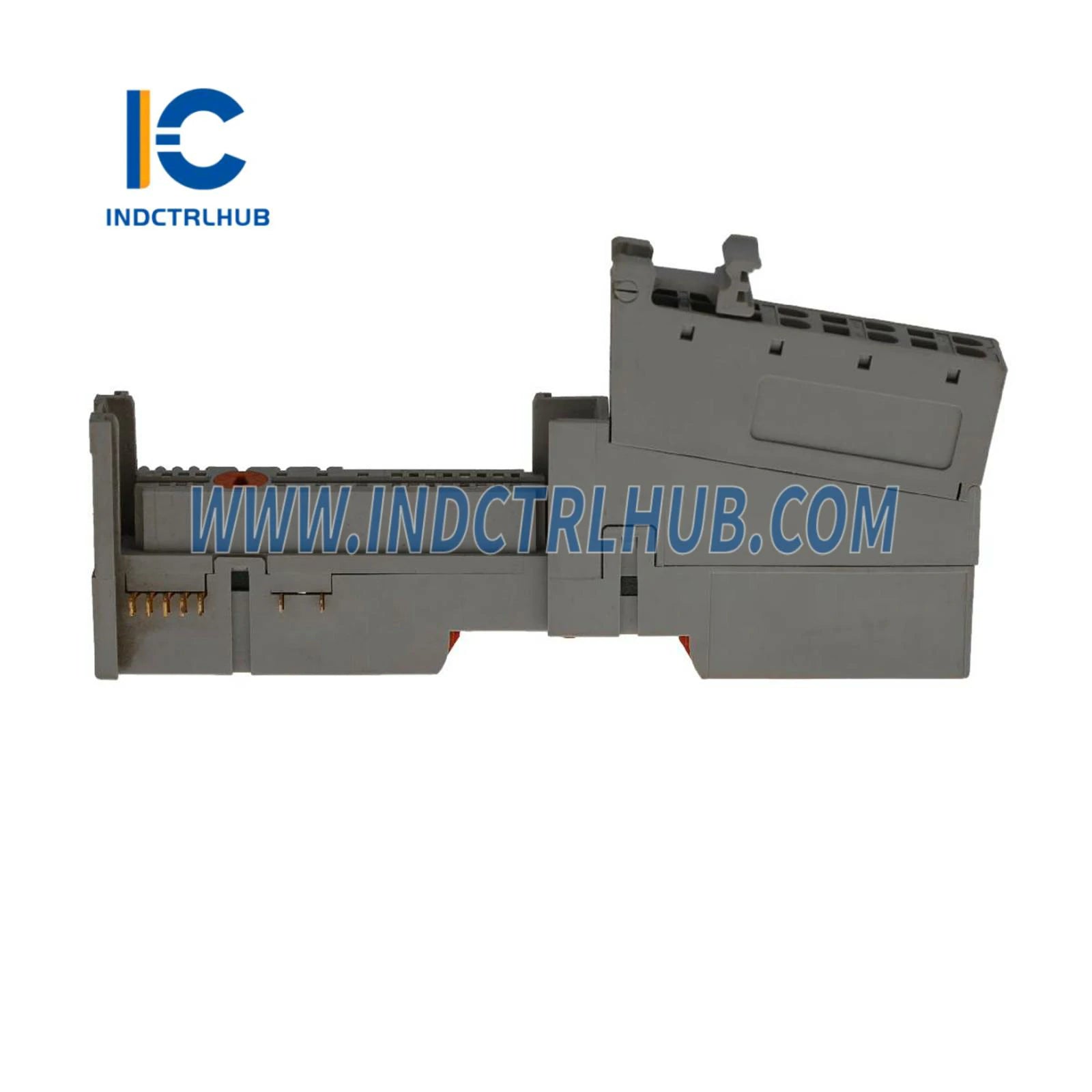

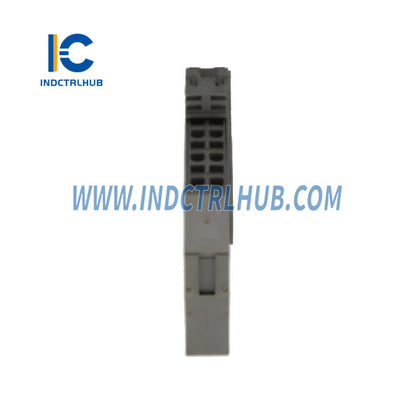

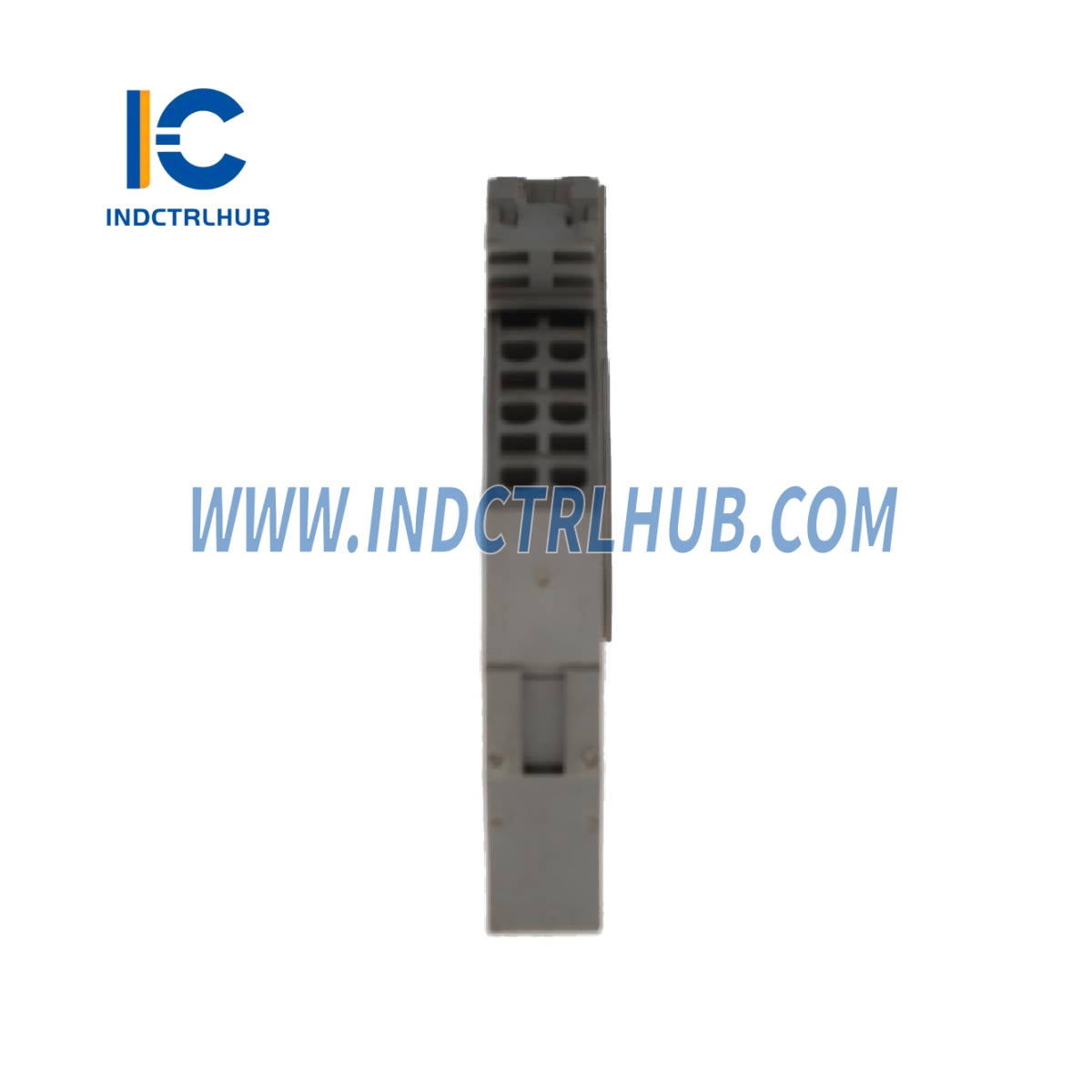

ALLEN BRADLEY 1734-TBS POINT I/O Terminal Base

Model/Part Number

1734-TBS

Description

POINT I/O Terminal Base

Field Power Bus Supply Voltage (Max)

28.8V DC, 120/240V AC

Field Power Bus Supply Current (Max)

10 A

Signal Terminal Voltage

28.8V DC, 120V/240V AC

Signal Terminal Current

2 A

Enclosure Type Rating

None (open-style)

Terminal Base Screw Torque

0.8 N•m (7 lb•in)

Wire Size Without End Ferrule

0.25…2.5 mm² (22…14 AWG) solid or stranded shielded copper wire rated at 75°C (167°F) or greater, 1.2 mm (3/64 in.) insulation max

Wire Size With End Ferrule

0.75 mm² (18 AWG)

Operating Temperature

-20 to +55°C (-4 to +131°F)

Surrounding Air Temperature (Max)

55°C (131°F)

Non-Operating Temperature

-40 to +85°C (-40 to +185°F)

Relative Humidity

5…95% non-condensing (IEC 60068-2-30)

Vibration

5 g @ 10…500 Hz (IEC 60068-2-6)

Shock (Operating)

30 g (IEC 60068-2-27)

Shock (Non-Operating)

50 g (IEC 60068-2-27)

Emissions

IEC 61000-6-4

ESD Immunity

IEC 61000-4-2: 6 kV contact discharges, 8 kV air discharges

Radiated RF Immunity

IEC 61000-4-3: 10V/m with various frequency ranges

EFT/B Immunity

IEC 61000-4-4: ±2 kV at 5 kHz on power and signal ports

Surge Transient Immunity

IEC 61000-4-5: ±1 kV line-line (DM) and ±2 kV line-earth (CM) on signal ports

Conducted RF Immunity

IEC 61000-4-6: 10V rms with 1 kHz sine wave 80% AM from 150 kHz…80 MHz
