Product Description
🔹 General Information
|
Manufacturer |
Allen-Bradley |
|---|---|
|
Model/Part Number |
1747-L541/C |
|
Description |

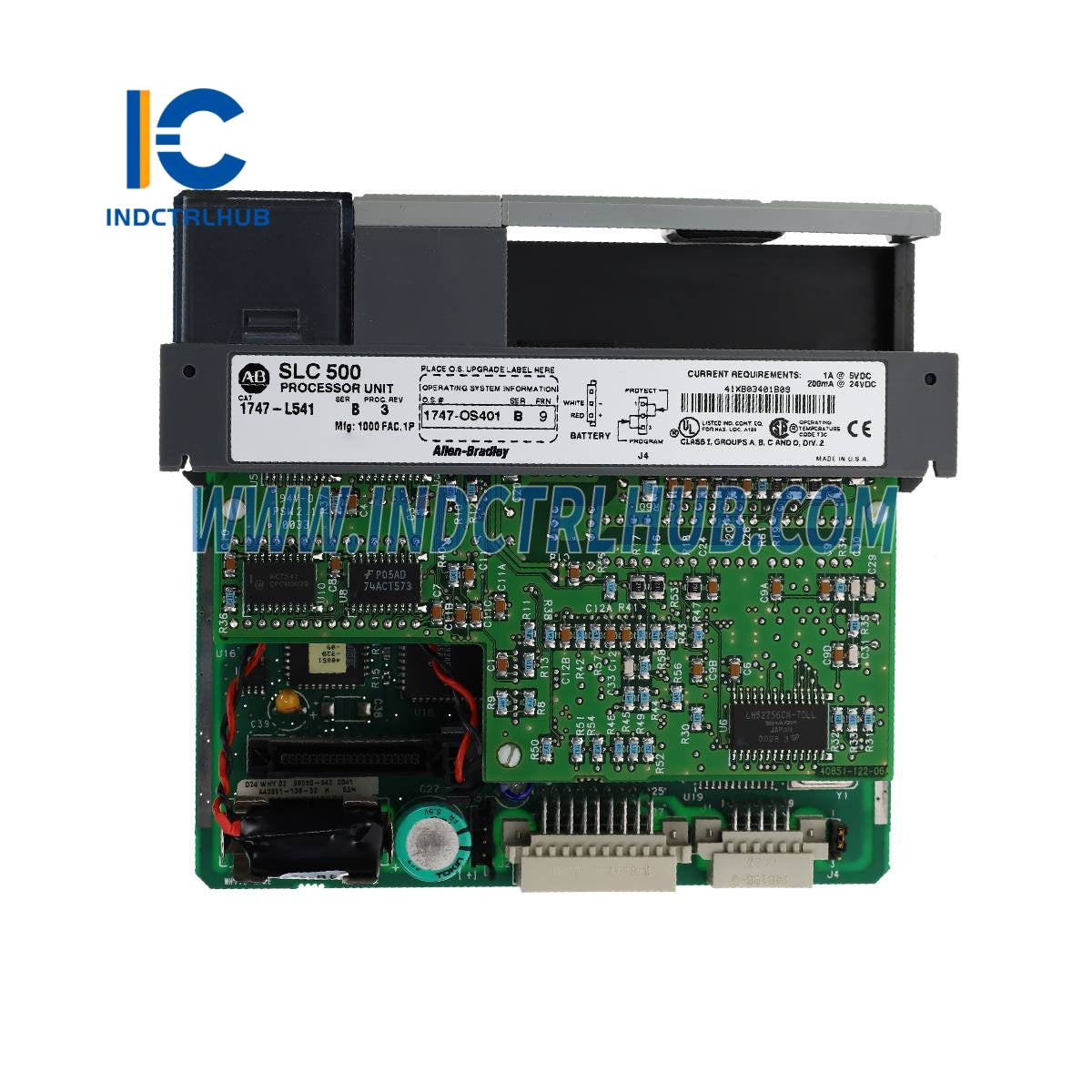

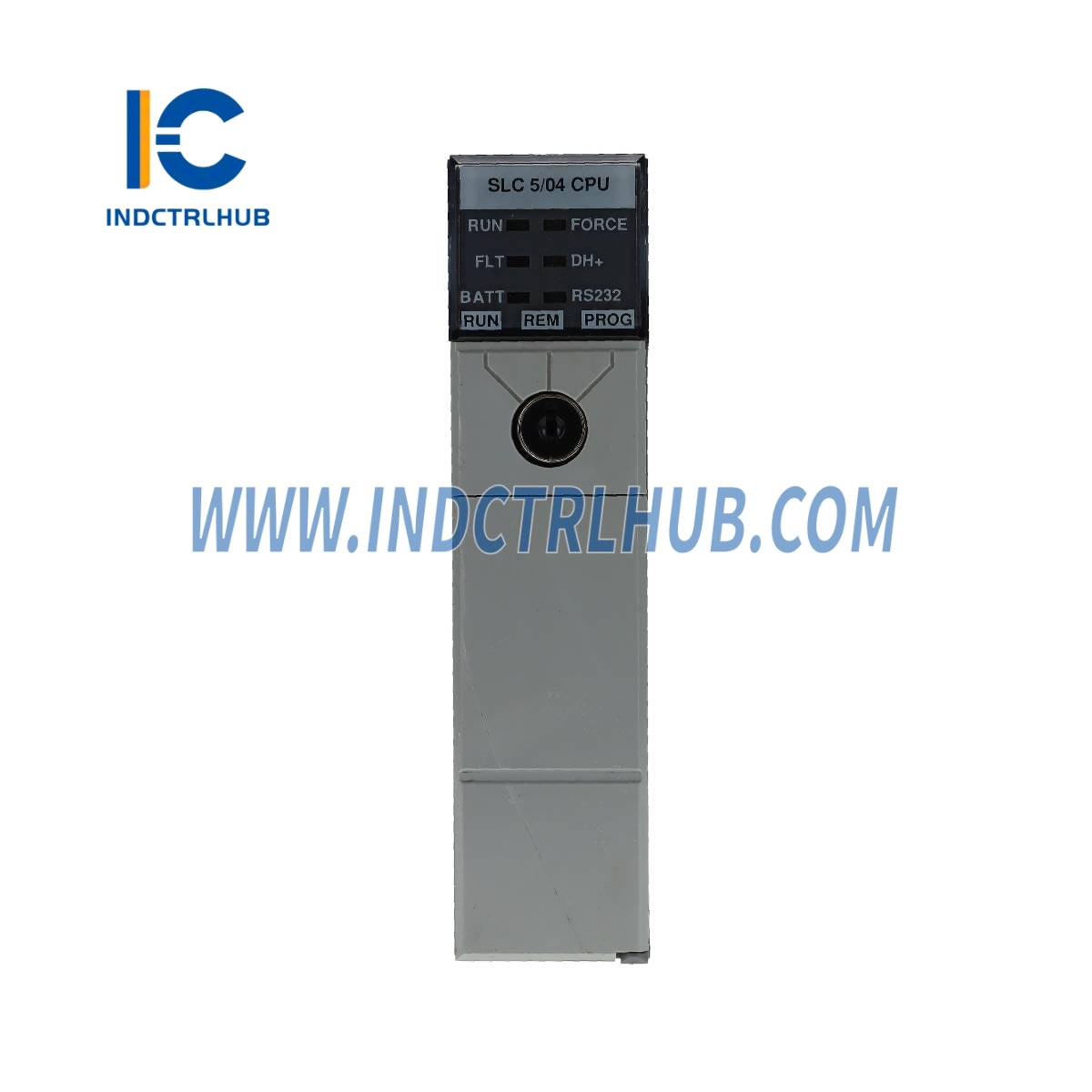

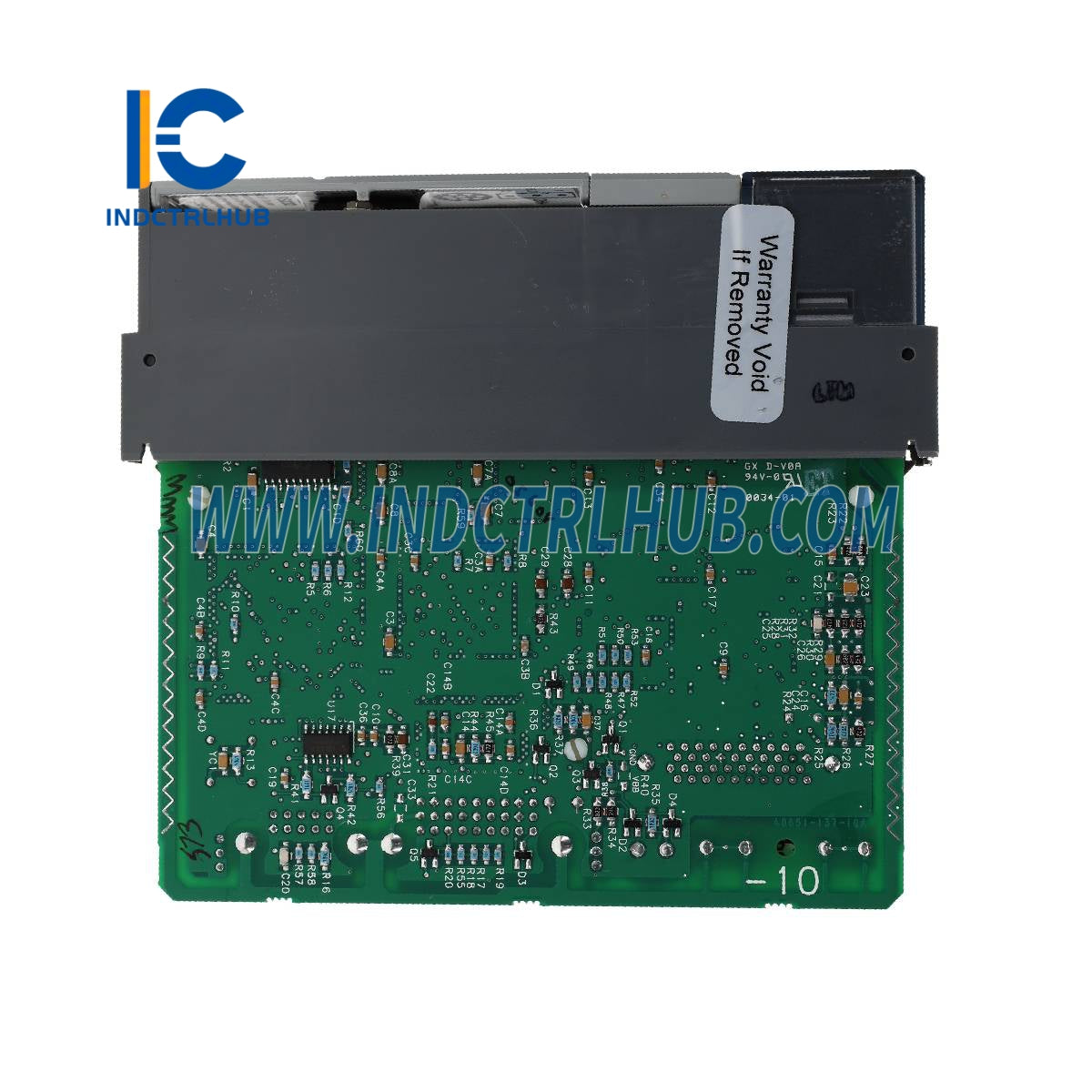

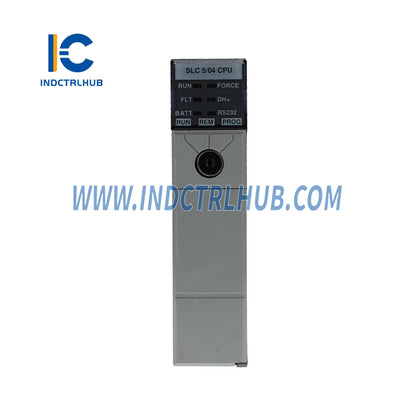

SLC 5/04 Processor for SLC 500 Modular Controller System |
🔹 Specifications
Processor & Memory
|
Processor Model |
Memory (words) |
|---|---|
|
SLC 5/04 (L541) |
16K |
I/O & System Capacity
|
Specification |
Value |
|---|---|
|
Maximum I/O Capacity |
4096 discrete inputs / 4096 discrete outputs |
|
Local System Maximum |
3 chassis / 30 slots |
Performance & Programming
|
Attribute |
Value |
|---|---|
|
Programming Instructions |
107 |
|
Typical Scan Time |
0.9 ms/K ladder logic |
|
Bit Execution (XIC) |
0.37 µs |
|
Programming Software |
RSLogix 500 |
Power Supply Requirements
|
Voltage |
Power Consumption |
|---|---|
|
5V DC |
1.0 A (SLC 5/04) |
|
24V DC |
0 mA (SLC 5/04) (Older models before April 2002: 200 mA) |
|
Power Loss Program Hold-up Time |
20 ms - 3 s (depends on power supply loading) |
Environmental Specifications
|
Specification |
Value |
|---|---|
|
Operating Temperature |
0 to 60°C (32 to 140°F) |
|
Storage Temperature |
-40 to 85°C (-40 to 185°F) |
|
Humidity |
5% to 95% non-condensing |
|
Noise Immunity |
NEMA Standard ICS 2-230 |
Electrical & Mechanical Characteristics
|
Specification |
Value |
|---|---|
|
Vibration Resistance |
0.015 in. peak-to-peak at 5-57 Hz 2.5 g at 57-2000 Hz |
|
Shock Resistance (Operating) |
30 g |
Certifications & Compliance
|
Certification |
Compliance |
|---|---|
|
UL Listed |
Industrial Control Equipment |
|
C-UL Listed |
Industrial Control Equipment for use in Canada |
|
Hazardous Locations |
Class I, Division 2, Groups A, B, C, D |
|
CE Compliance |
For all applicable directives |
|
C-Tick Marked |
For all applicable acts |
