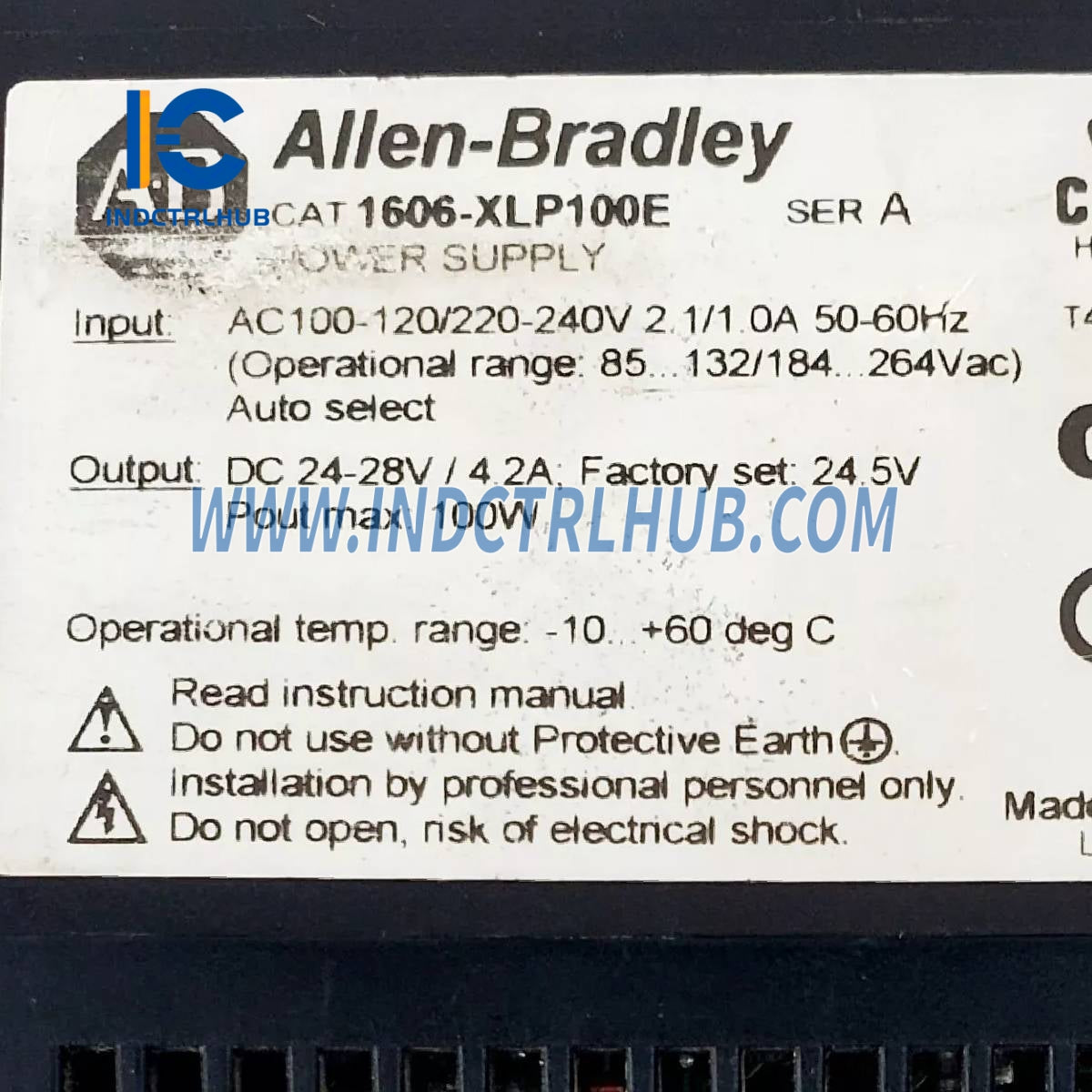

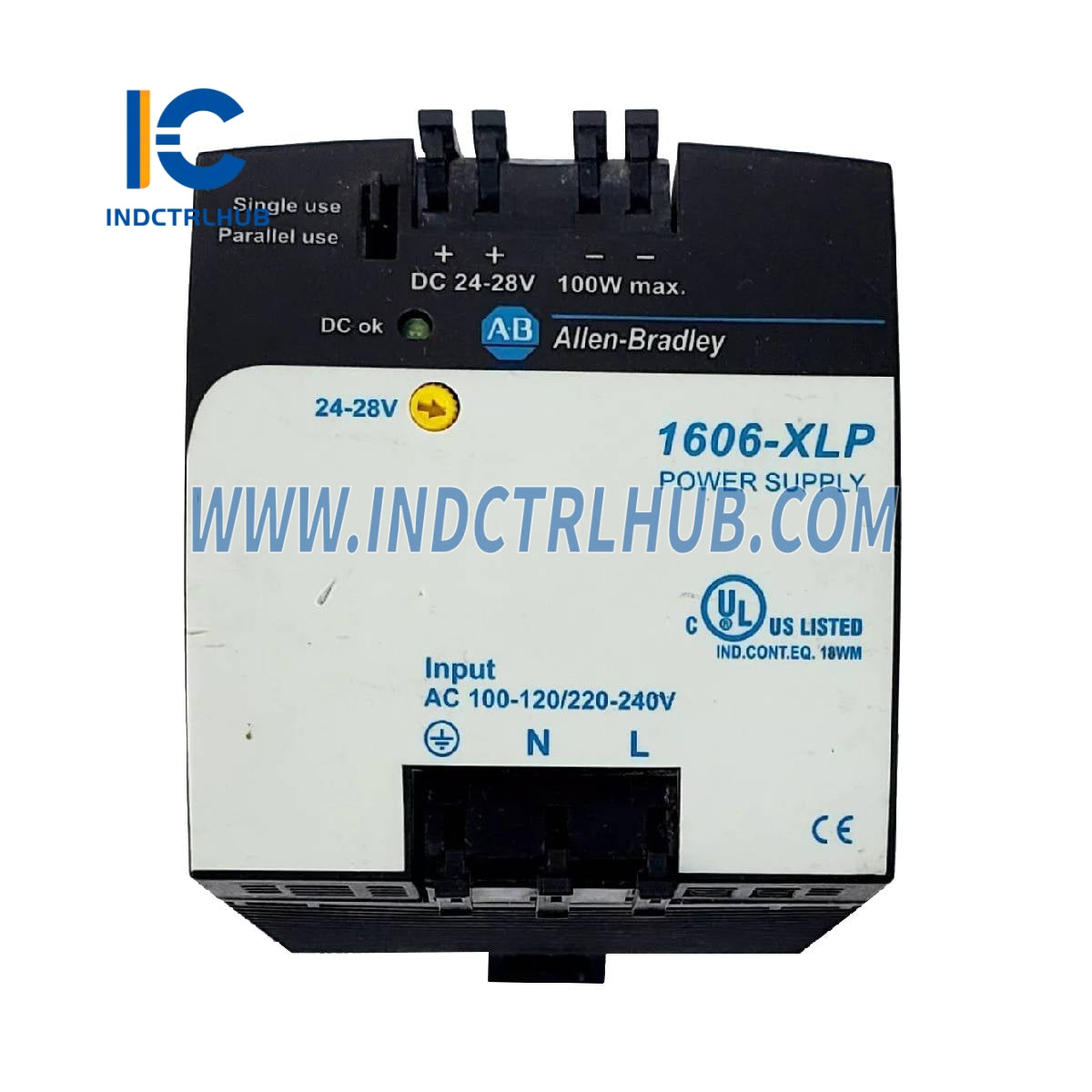

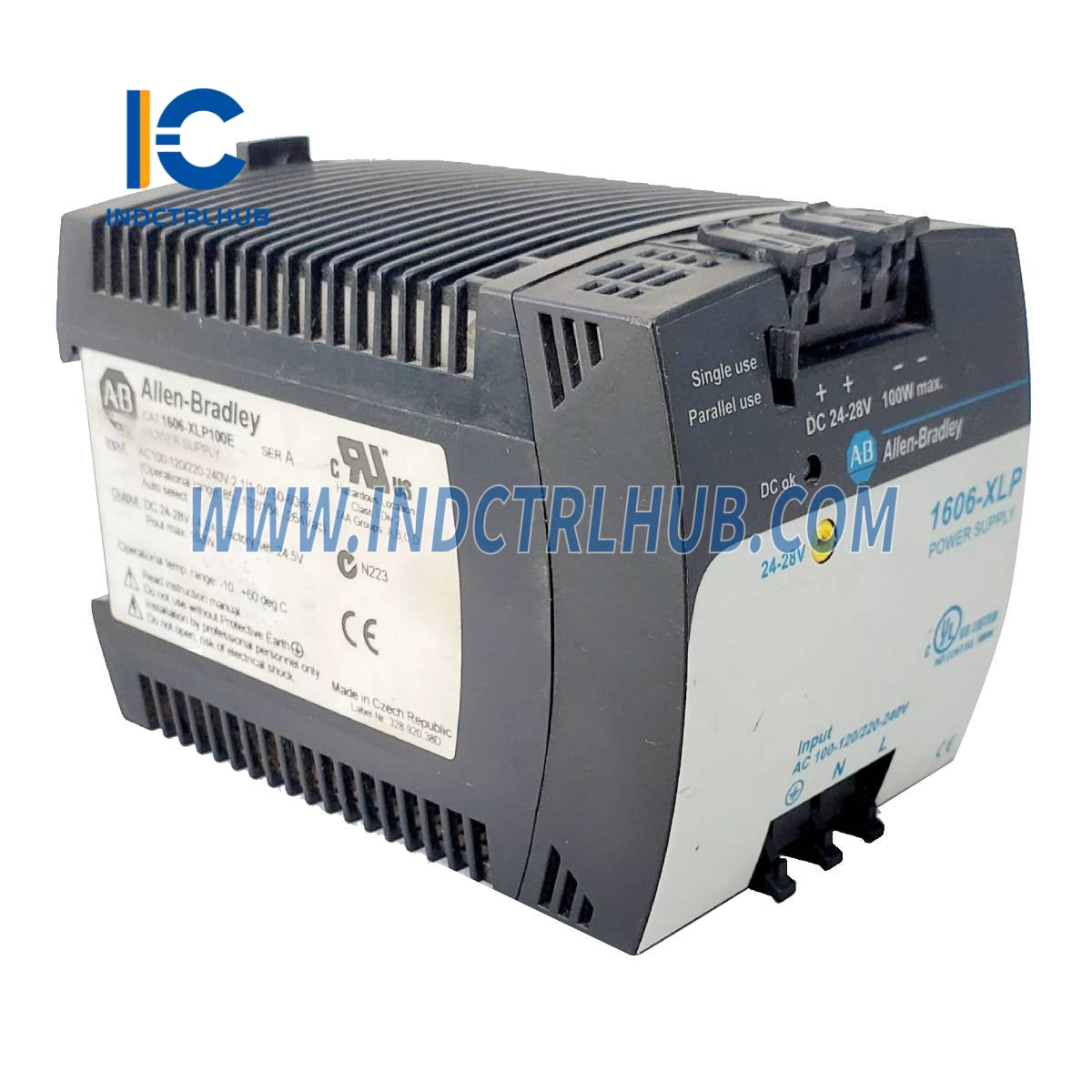

Product Description
General Information
|
Attribute |
Details |
|---|---|
|
Manufacturer |
Allen-Bradley |
|
Model/Part Number |
1606-XLP100E |
|
Description |
Power Supply Module |
Technical Specifications
Input Specifications
|
Parameter |
Value |
|---|---|
|
Input Voltage |
AC 100…120/220…240V (Auto Select), 47…63 Hz |
|
Input Voltage Range |
AC 85…132V / AC 184…264V, DC 220…375V |
|
Input Current |
<2.1A (@ AC 100V input, 100W output) <1A (@ AC 220V input, 100W output) |
|
External Fusing |
Internal fuse (not accessible), no additional protection required |
|
Transient Immunity |
VDE 0160 / W2 (750V/1.3 ms) over the entire load range |
|
Hold-Up Time |
>40 ms (@ AC 230V, 24.5V / 4.2A) >20 ms (@ AC 196V, 24.5V / 4.2A) >20 ms (@ AC 100V, 24.5V / 4.2A) |
Efficiency & Reliability
|
Parameter |
Value |
|---|---|
|
Efficiency |
~90% (@ AC 230V, 24.5V / 4.2A) |
|
Power Losses |
~11.4W (@ AC 230V, 24.5V / 4.2A) |
|
MTBF (Mean Time Between Failures) |
~500,000 hours (Siemens SN 29500 standard) |
|
Factory Testing |
Burn-in at full load, 100% functional test |
Physical & Mechanical Specifications
|
Parameter |
Value |
|---|---|
|
Housing |
Robust plastic with fine ventilation grid (IP20) |
|
Dimensions (W x H x D) |
73mm x 75mm x 103mm (+ DIN rail) Depth including terminals: 98mm (+ DIN rail) |
|
Weight |
360g |
|
Mounting |
DIN rail (TS35/7.5 or TS35/15) |
|
Cooling |
Natural convection (no fan required) |
|
Terminal Type |
Spring clamp terminals |
|
Wire Size |
Stranded: 28…12 AWG (0.3…2.5 mm²) Solid: 28…12 AWG (0.3…4 mm²) |
Output Specifications
|
Parameter |
Value |
|---|---|
|
Output Voltage |
DC 24…28V (adjustable via front panel) |
|
Voltage Regulation |
<1% (Single Use Mode) <3% (Parallel Use Mode) |
|
Ripple/Noise |
<50mVpp (20 MHz bandwidth) |
|
Overvoltage Protection |
<36V |
|
Rated Continuous Load |
Up to 4.2A @ 24.5V Up to 3.6A @ 28V |
|
Overload Behavior |
No shutdown, supports up to 1.9x rated current |
|
Protection Features |
Short-circuit, overload, open-circuit protection |
|
Parallel Operation |
Supported (selectable via jumper) |
|
Power Back Immunity |
35V |
|
Operating Indicator |
Green LED |
Environmental Specifications
|
Parameter |
Value |
|---|---|
|
Operating Temperature |
-10°C to +70°C (derating may apply) |
|
Storage Temperature |
-25°C to +85°C |
|
Humidity |
Max. 95% (non-condensing) |
|
Electromagnetic Emissions (EME) |
EN 50081-1 / EN 50081-2 (Class B) |
|
Electromagnetic Immunity (EMI) |
EN 61000-6-2 / EN 55024 |
|
Power Factor Correction |
EN 61000-3-2 |
