Product Description
__ Product Details
|
Manufacturer |
Allen-Bradley |
|---|---|
|
Model/Part Number |

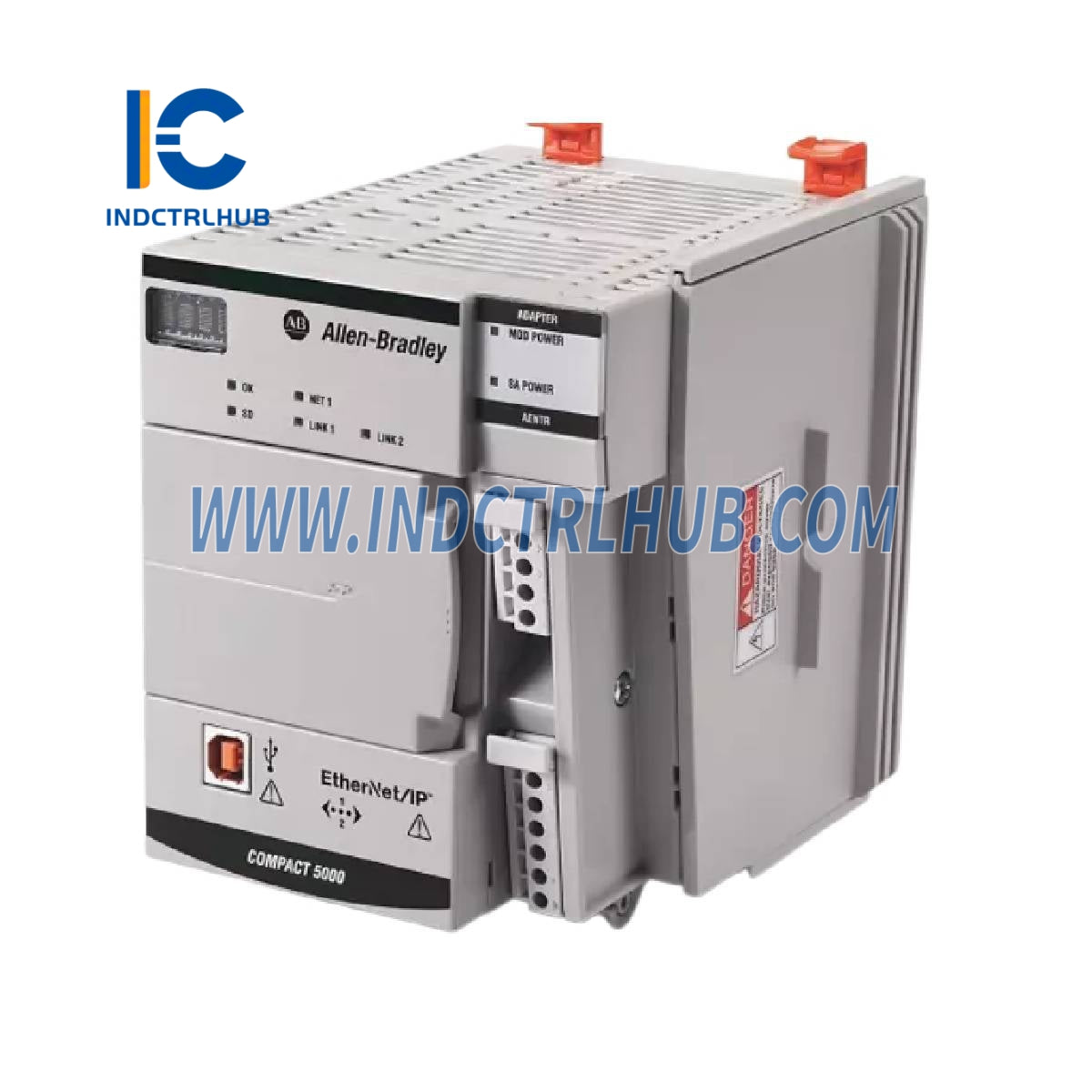

5069-L320ERS2K |
|
Description |
Compact GuardLogix 5380 SIL 2 Controller |
_
_
__ Technical Specifications
|
Attribute |
Specification |
|---|---|
|
User Memory |
3 MB |
|
Safety Memory |
1.5 MB |
|
Optional Nonvolatile Memory |
1784-SD1 (1 GB)__1784-SD2 (2 GB)_(ships with controller)__1784-SDHC8 (8 GB)__1784-SDHC32 (32 GB)__9509-CMSDCD4 (4 GB CmCard SD) |
|
Local I/O Modules, Max |
31 |
|
Power Cycles |
80,000 |
_
_
__ Power Specifications
|
Parameter |
Value |
|---|---|
|
MOD Power Voltage Range |
18_32V DC SELV/PELV |
|
MOD Power Current, Max |
475 mA |
|
MOD Power Inrush |
1200 mA for 125 ms |
|
MOD Power Passthrough Voltage |
18_32V DC @ 4.525 A |
|
MOD Power Current Rating |
5 A (Do not exceed 5 A at MOD Power RTB) |
|
SA Power Voltage Range |
0_32V DC SELV/PELV |
|
SA Power Current, Max |
10 mA |
|
SA Power Passthrough Voltage |
0_32V DC @ 9.99 A |
|
SA Power Current Rating |
10 A (Do not exceed 10 A at SA Power RTB) |
|
Power Dissipation, Max |
9.0 W |
|
Thermal Dissipation, Max |
30.9 BTU/hr |
_
_
__ Isolation Voltages
|
Path |
Isolation Type |
Rating |
|---|---|---|
|
SA and MOD Power to Backplane |
Basic |
300V |
|
SA to MOD Power |
Basic |
300V |
|
Ethernet to Backplane |
Basic |
300V |
|
Ethernet to MOD Power |
Double |
300V |
|
Ethernet to SA Power |
Double |
300V |
|
Ethernet to USB |
Functional |
50V |
|
USB to Backplane |
Basic |
300V |
|
USB to MOD Power |
Double |
300V |
|
USB to SA Power |
Double |
300V |
|
Ethernet Ports |
No isolation |
_ |
|
Type Tested |
_ |
1500V AC for 60 seconds |
_
_
__ Physical & Mechanical
|
Parameter |
Value |
|---|---|
|
Weight (approx.) |
0.768 kg (1.693 lb) |
|
Dimensions (H x W x D) |
143.97 x 98.10 x 136.81 mm (5.67 x 3.86 x 5.39 in) |
|
Mounting |
DIN rail (horizontal only), EN50022 - 35 x 7.5 mm |
|
Enclosure Type |
None (open-style) |
|
Temperature Code |
T4 (North American & UKEX/ATEX) |
_
_
__ Terminal Block & Wiring
|
Component |
Details |
|---|---|
|
RTB Kits (Ordered Separately) |
5069-RTB64-SCREW (RTB6 + RTB4 screw type)__5069-RTB64-SPRING (RTB6 + RTB4 spring type) |
|
Torque (Screw Types) |
0.4 N_m (3.5 lb_in) |
|
Wire Size (Screw Type) |
0.5_1.5 mm² (22_16 AWG), 3.5 mm max diameter incl. insulation |
|
Wire Size (Spring Type) |
0.5_1.5 mm² (22_16 AWG), 2.9 mm max diameter incl. insulation |
|
Insulation Stripping Length |
12 mm (screw), 10 mm (spring) |
|
Wire Categories |
Category 1 (power), Category 2 (Ethernet), Category 3 (USB) |
|
Ethernet Installation |
Per IEC 61918 & IEC 61784-5-2 standards |
