Product Description
Product Details
Manufacturer: Allen-Bradley
Model/Part Number: 1440-TPS02-01RB

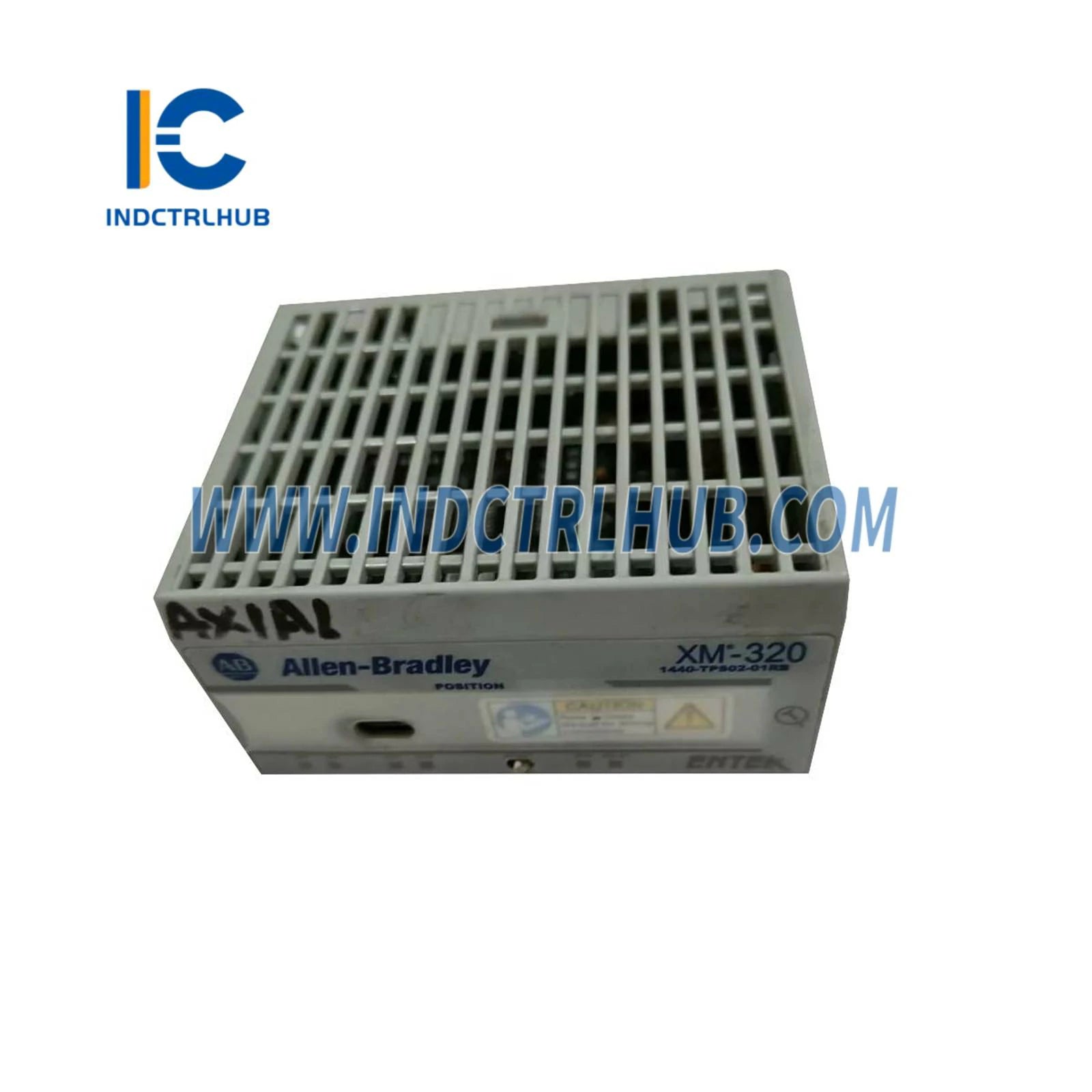

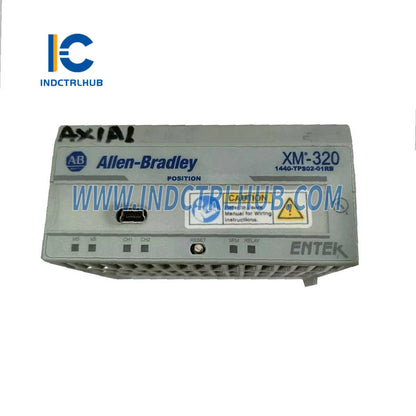

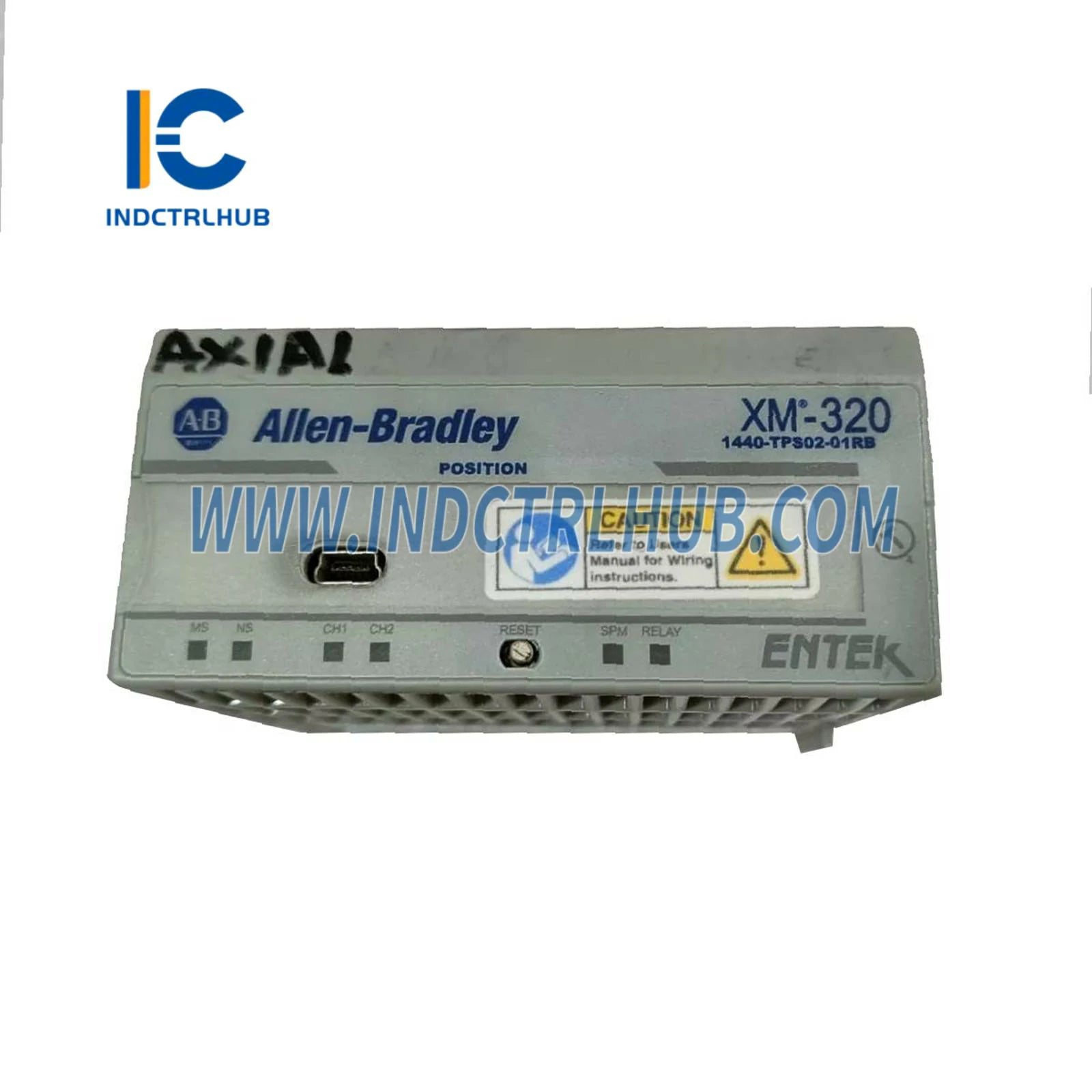

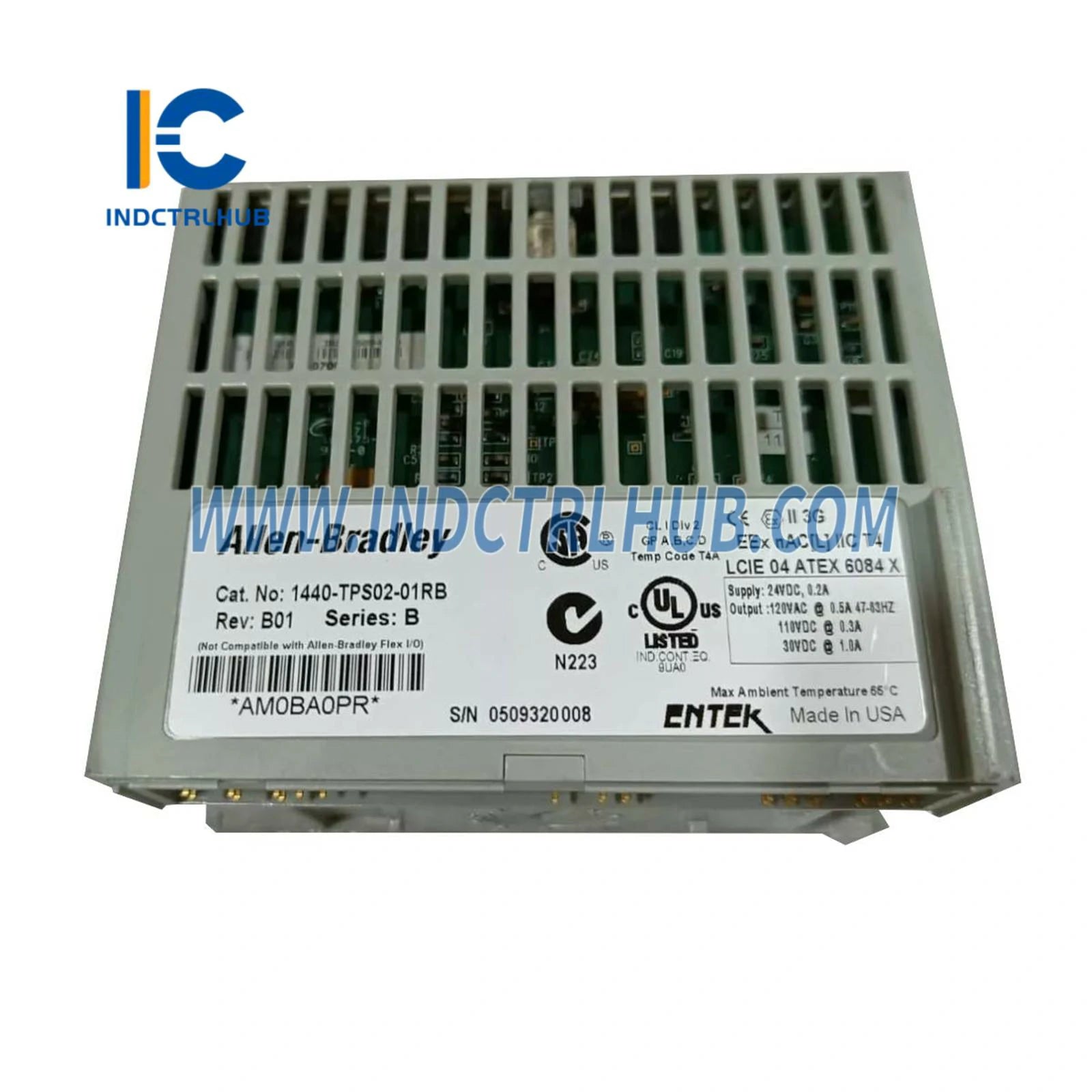

Description: XM-320 Position Module
XM-320 Position Module Overview
The XM-320 Position Module measures turbine supervisory position measurements, including:
• Axial position (thrust)
• Valve position
• Differential expansion
• Case expansion
Technical Specifications
Inputs
|
Parameter |
Specification |
|---|---|
|
Channels |
Two |
|
Supported Signals |
Eddy current transducer signals, Linear Variable Differential Transformer (LVDT), Voltage signals from any position measurement sensor |
|
Transducer Power |
Isolated 24V (configurable as +24V or -24V) |
|
Voltage Range |
Selectable in software between -24V to +24V |
|
Sensitivity |
User configurable via software |
|
Input Impedance |
> 100 kΩ |
Outputs
|
Parameter |
Specification |
|---|---|
|
4…20mA Outputs |
Two isolated outputs, 600Ω max load |
|
Buffered Outputs |
Two outputs (one per channel) |
Power Requirements
|
Parameter |
Specification |
|---|---|
|
Module Power |
24V DC |
|
Current Consumption |
Max: 200 mA Typical: 165 mA |
|
Heat Production |
Max: 5.28 W (18 BTU/hr) Typical: 3.96 W (13.5 BTU/hr) |
|
Transducer Power |
Isolated 24V DC (user configurable with wiring) |
Environmental Specifications
|
Parameter |
Specification |
|---|---|
|
Operating Temperature |
-20 to +65°C (-4 to +149°F) |
|
Storage Temperature |
-40 to +85°C (-40 to +185°F) |
|
Relative Humidity |
95% non-condensing |
|
Conformal Coating |
All printed circuit boards conformally coated per IPC-A-610C |
Physical Specifications
|
Parameter |
Specification |
|---|---|
|
Dimensions (H x W x D) |
97 x 94 x 94 mm (3.8 x 3.7 x 3.7 in.) |
|
Terminal Screw Torque |
7 lb-in (0.6 Nm) |
