Product Description
Product Details

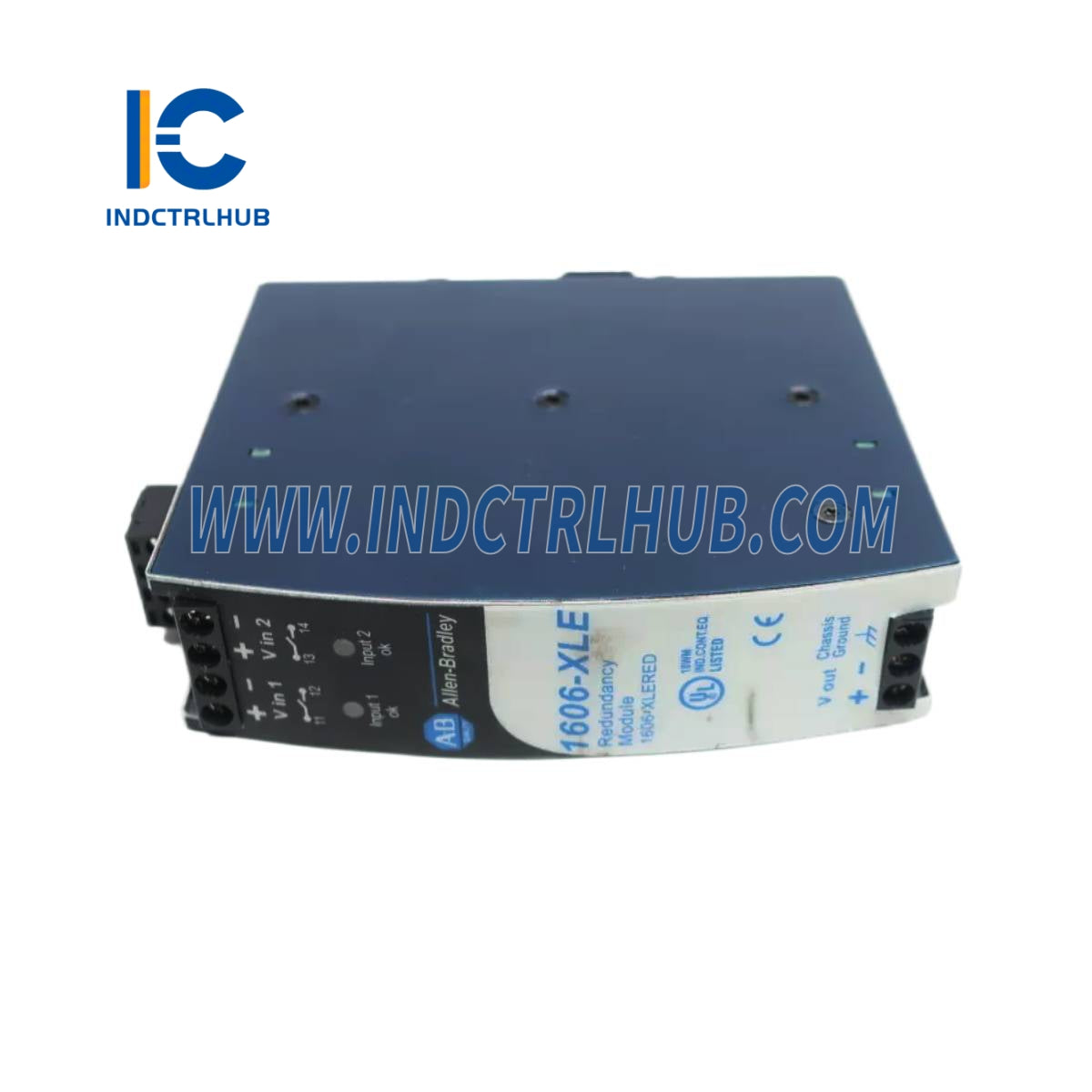

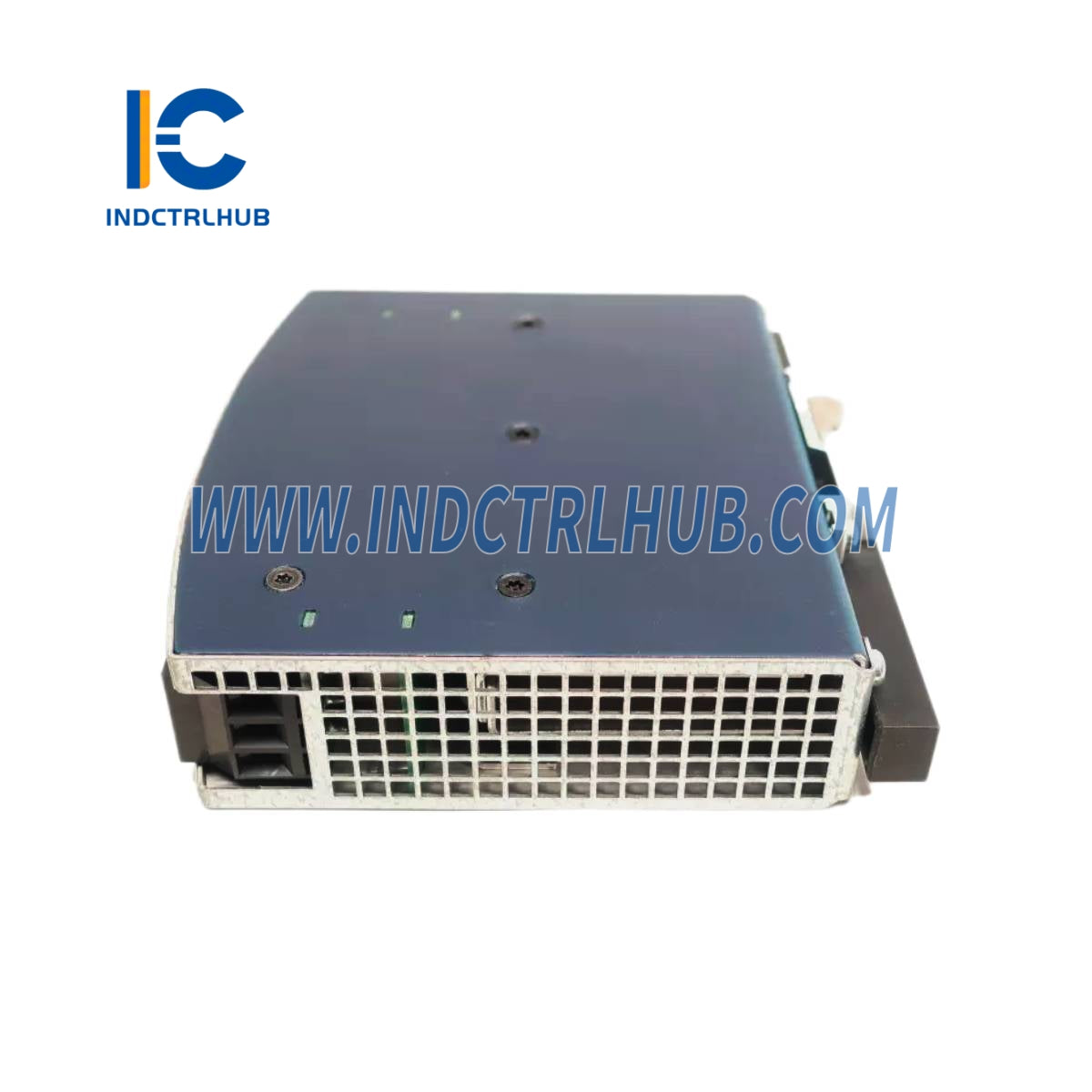

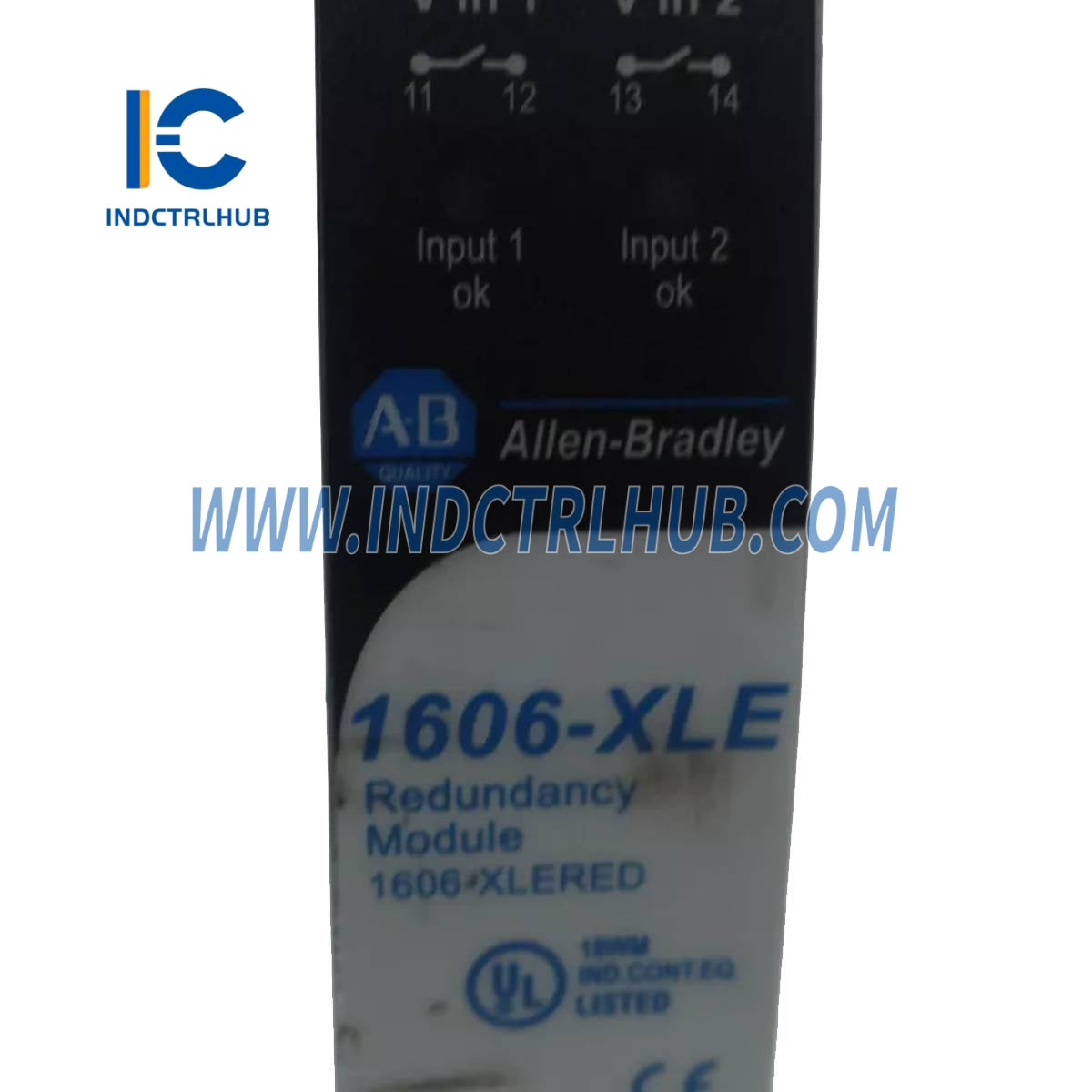

Manufacturer: Allen-Bradley
Model/Part Number: 1606-XLERED
Description: Redundancy Module Power Supply
Technical Data
Input & Output Specifications
|
Feature |
Details |
|---|---|
|
Input Voltage (Nominal) |
DC 24-48V ±25% |
|
Input Voltage Range |
18-60V DC |
|
Output Current (Normal Mode) |
20A |
|
Overload / Short-Circuit Current |
Max. 25A |
|
Input Current (1+1 Redundancy Mode) |
2x 12.5A |
|
Input Current (N+1 Redundancy Mode) |
2x 10A |
|
Peak Input Current (Per Input) |
Max. 150A for 10ms |
|
Reverse Current (Per Input) |
Max. 2mA |
|
Decoupling Element |
Diode |
|
Voltage Drop (Input to Output) |
Typically 850mV |
|
Power Losses (Full Load) |
Typically 18W |
|
Power Losses (No Load) |
Typically 1W |
Environmental Specifications
|
Feature |
Details |
|---|---|
|
Operational Temperature Range |
-40°C to +70°C |
|
Output Derating (60°C to 70°C) |
0.5A/°C |
|
Storage Temperature Range |
-40°C to +85°C |
|
Humidity |
5 - 95% r.H. (IEC 60068-2-30) |
|
Vibration Resistance |
2g (IEC 60068-2-6) |
|
Shock Resistance |
30g (6ms), 20g (11ms) (IEC 60068-2-27) |
Protection & Safety
|
Feature |
Details |
|---|---|
|
Degree of Protection |
IP20 (EN 60529) |
|
Class of Protection |
III (IEC 61140) |
|
Over-Temperature Protection (OTP) |
No |
|
Reverse Input Polarity Protection |
Yes |
|
Penetration Protection |
Max. 3.5mm |
|
Return Voltage Resistance |
Max. 200V DC |
|
Isolation Against Housing |
Min. 500V AC, 5MΩ |
Connection & Mounting
|
Feature |
Details |
|---|---|
|
Quick-Connect Spring-Clamp Terminals |
Yes |
|
Screw Terminals |
Yes |
|
Dimensions (W x H x D) |
32 x 124 x 117 mm |
|
Weight |
Max. 350g (0.77lb) |
