Product Description
Product Details

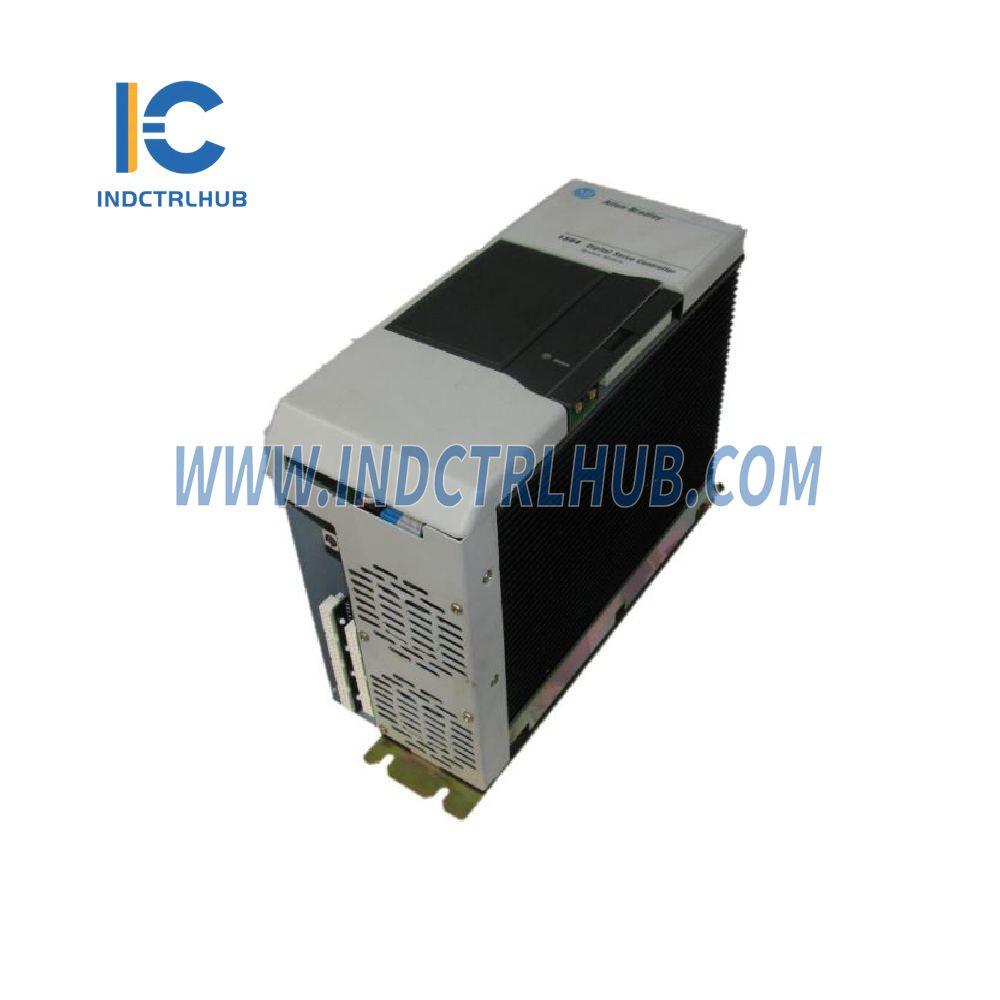

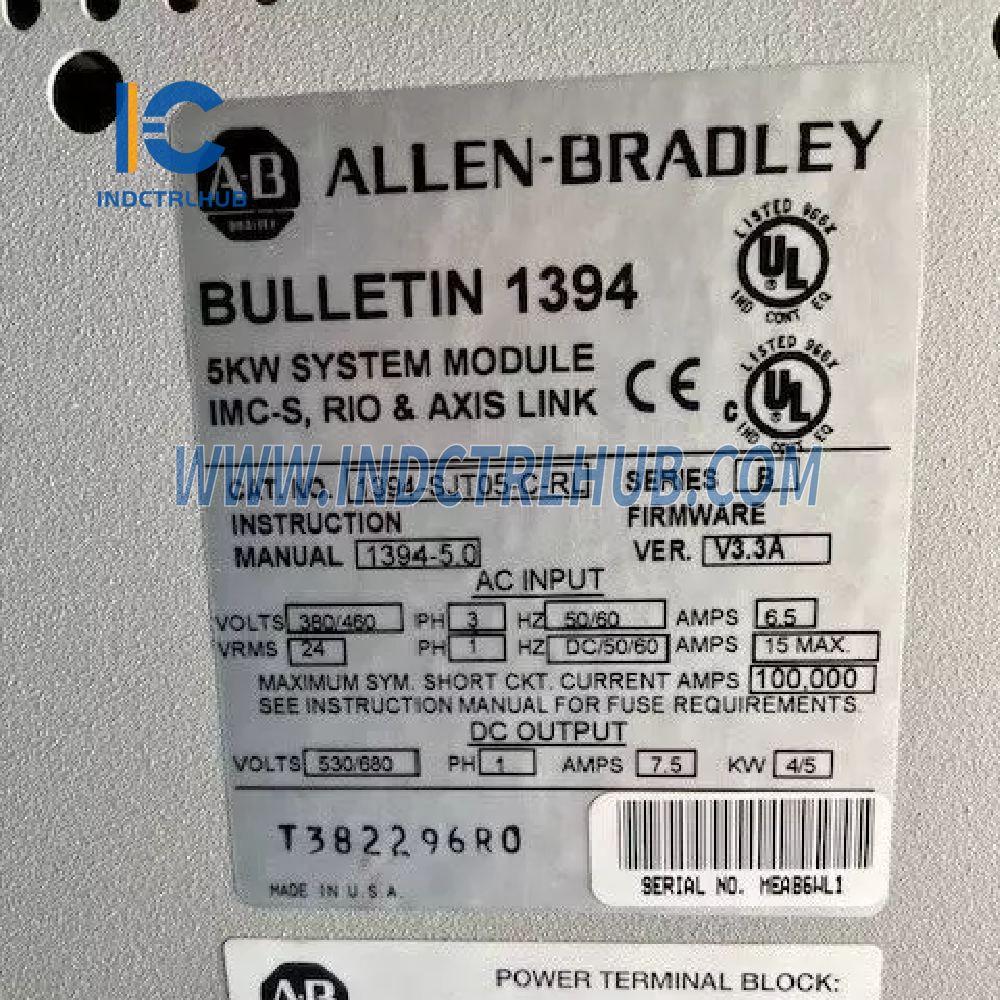

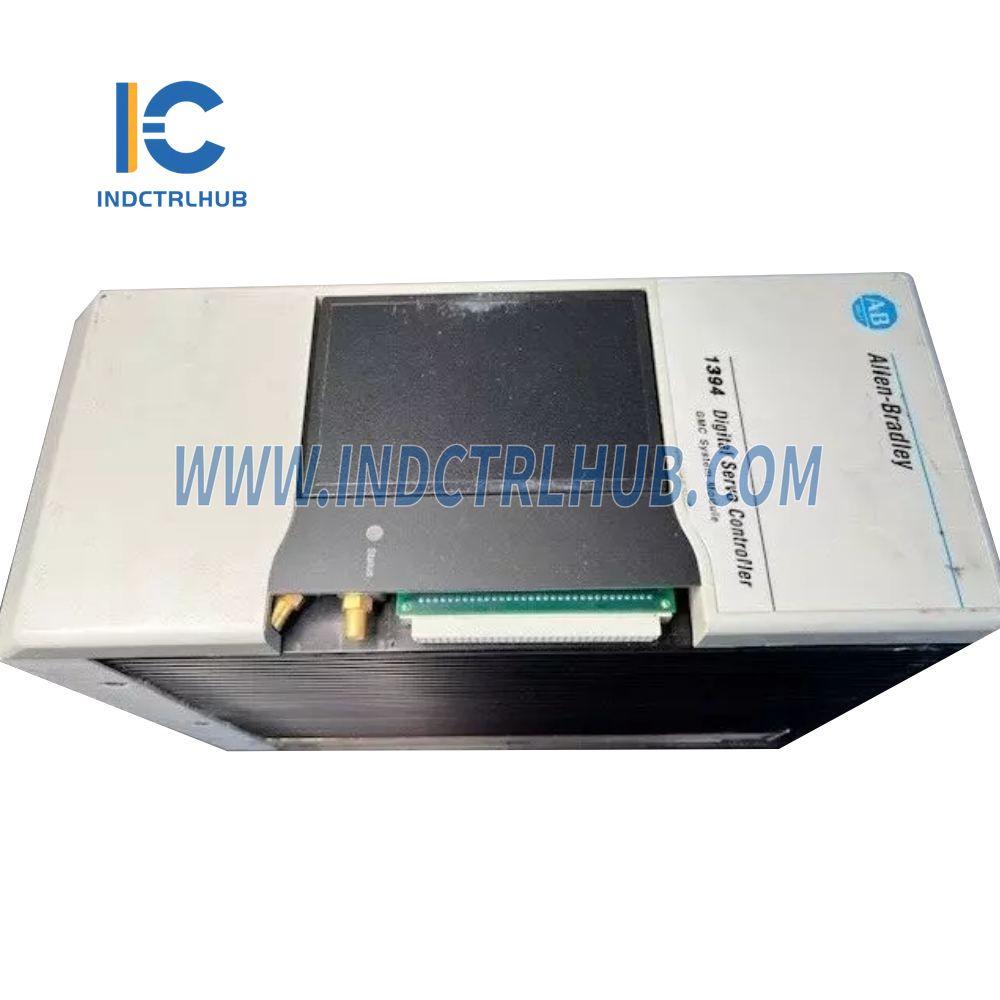

- Manufacturer: Allen-Bradley
- Model/Part Number: 1394-SJT05-C-RL
- Description: System Module Power
Specifications
| Item | Description |
|---|---|
| Rated AC Input Voltage | 324…528V ac, 50/60 Hz 3-phase |
| AC Input Current (Arms) | 6.5 A |
| Peak Inrush Current (Series A and B) | 975 A |
| Peak Inrush Current (Series C and D) | 8 A |
| Line Loss Ride Through | 20 ms |
| Nominal Bus Output Voltage | 530/680V dc |
| Continuous Power Output | 4/5 kW |
| Peak Power Output | 28 kW |
| Efficiency | 99% |
| Weight | 10.68 kg (23.5 lb) |
| Continuous Current Output (Adc) | 7.36 A |
| Intermittent Current Output (Adc) | 15.0 A |
| Capacitance | 220 µF |
| Inductance | 1000 µH |
| Internal Shunt Resistor | 200 W continuous, 40,000 W peak (two second maximum on time) |
System Power Dissipation Specifications
| Usage as % of Rated Power Output | Power Dissipation (Watts) |
|---|---|
| 20% | 66 |
| 40% | 70 |
| 60% | 73 |
| 80% | 77 |
| 100% | 80 |
