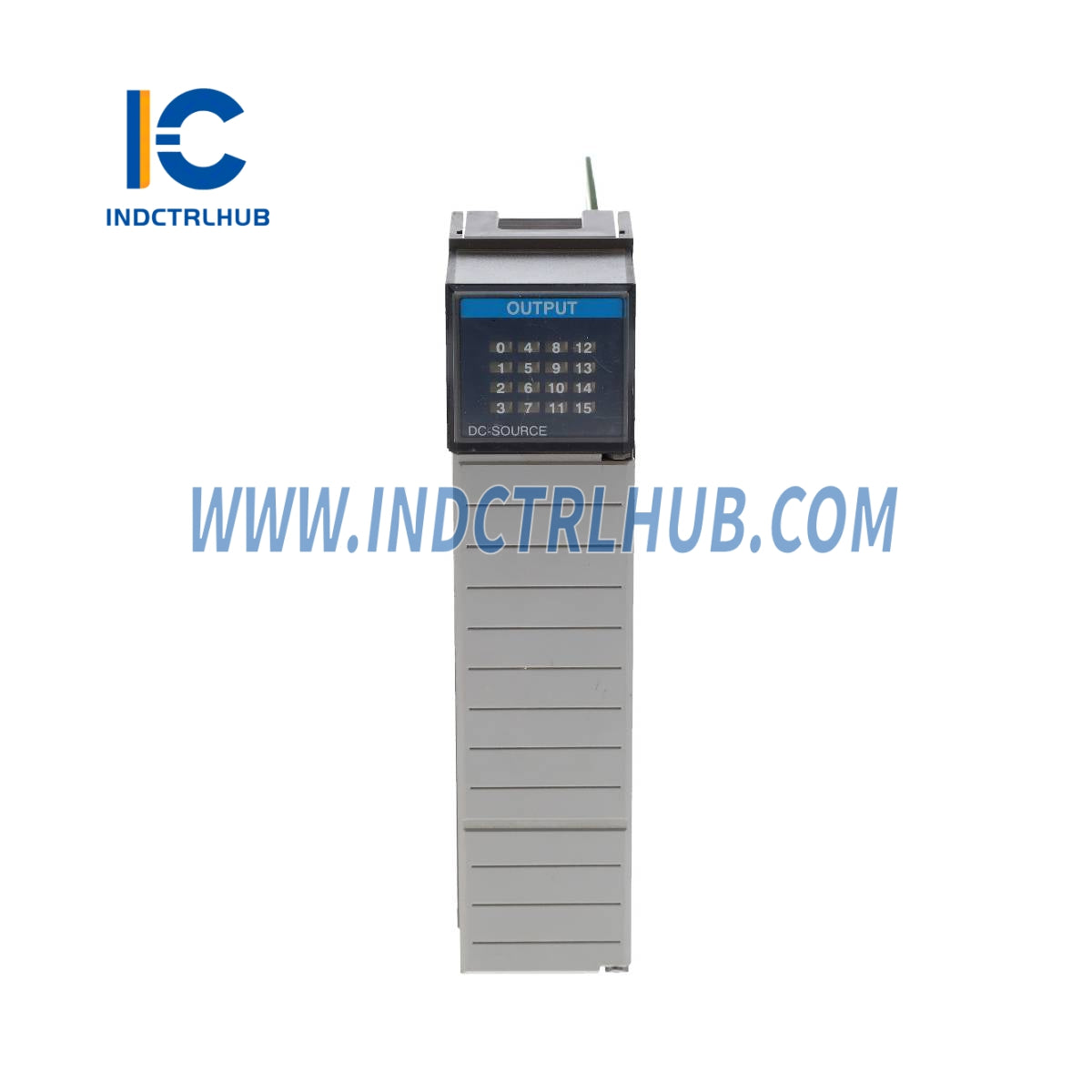

Product Description
🔹 General Information
|
Manufacturer |
Allen-Bradley |
|---|---|
|
Model/Part Number |
1746-OB16 |
|
Description |
16-Point 24V DC Source Output Module |
🔹 Electrical Specifications
|
Attribute |
Specification |
|---|---|
|
Voltage Category |
24V DC Signal Output |
|
Number of Outputs |
16 |
|
Points per Common |
16 |
|
Operating Voltage Range |
10V to 30V DC (Source) |
|
Backplane Current Consumption (5V DC) |
0.280 A |
|
Backplane Current Consumption (24V DC) |
0.0 A |
|
Signal Delay (Max. Resistive Load) |
On: 0.1 ms Off: 1.0 ms |
|
Off-State Leakage (Max.) |
1 mA |
|
Load Current (Min.) |
1 mA |
