Product Description
General Information
|
Parameter |
Value |
|---|---|
|
Manufacturer |
Allen-Bradley |
|
Model/Part Number |
1440-SDM02-01RA |
|
Description |

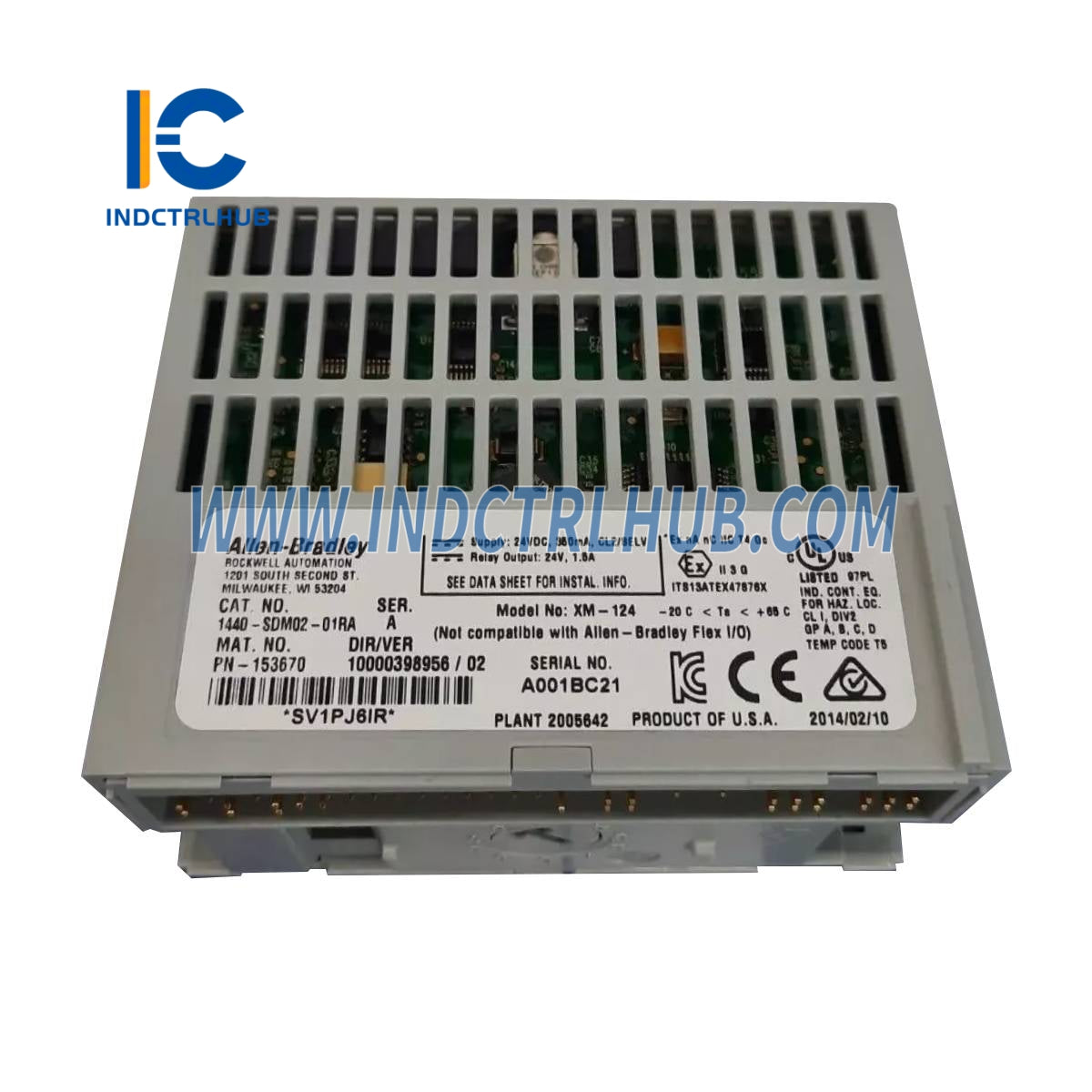

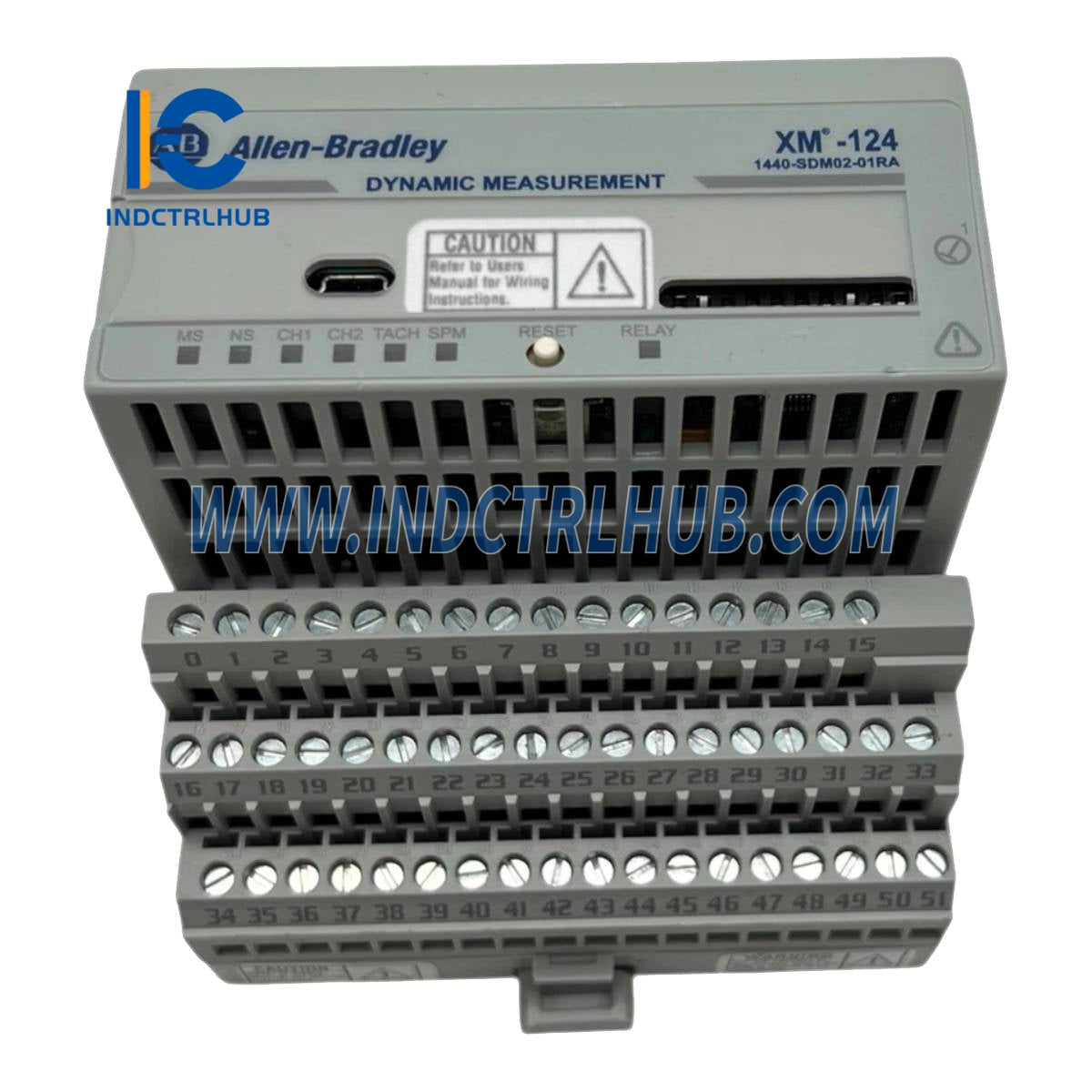

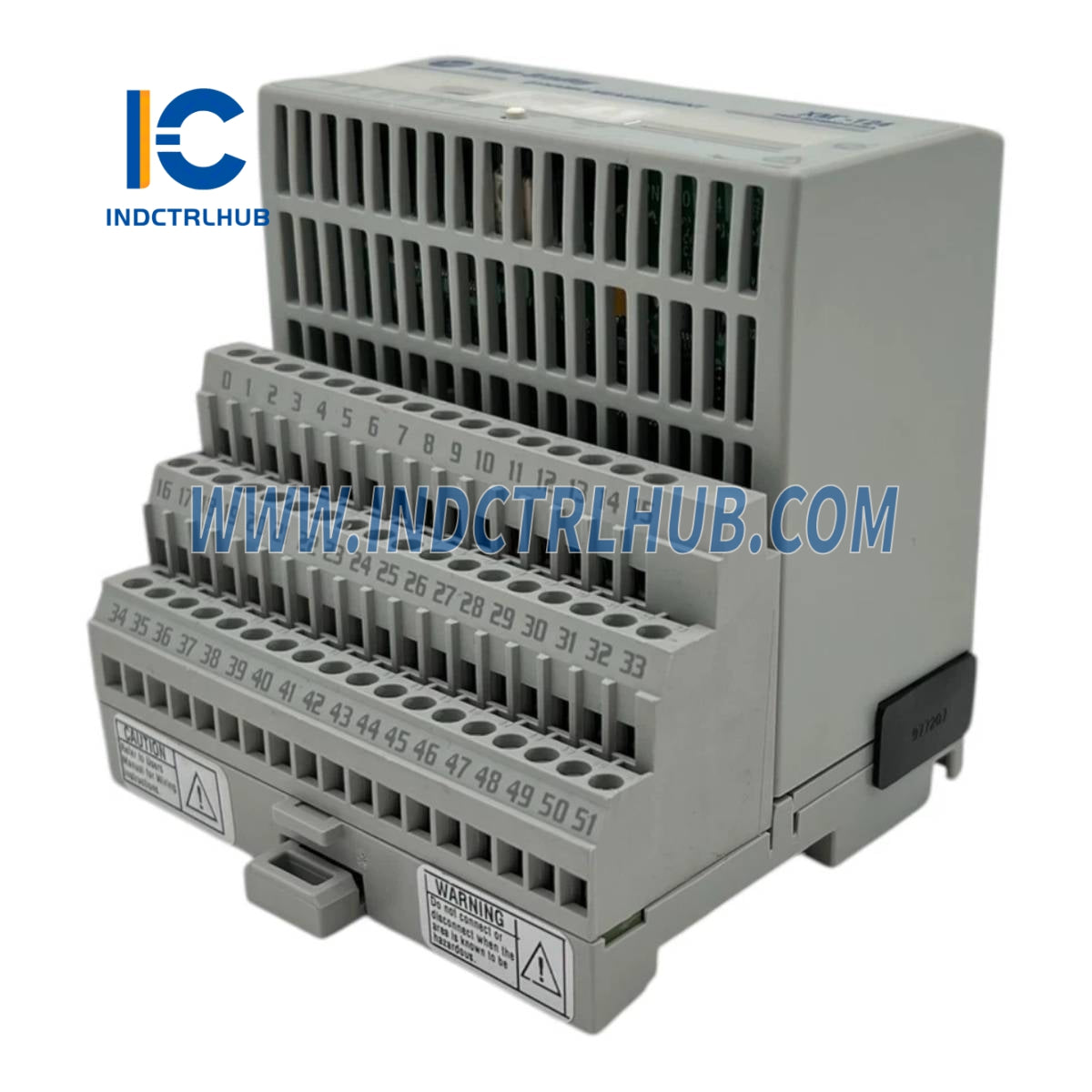

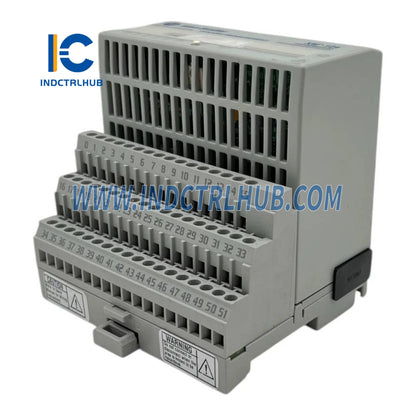

XM-124 Standard Dynamic Measurement Module |
Technical Specifications
Inputs
|
Parameter |
Value |
|---|---|
|
Dynamic Channel Inputs |
Eddy current transducer signals, Accelerometer signals, Voltage signals (velocity or pressure transducers) |
|
Transducer Power |
Constant voltage: 24V DC, -24V DC, 40 mA Constant current: 4.5 mA ± 30% / -20% from 24V DC (IEPE) None (voltage input) Tachometer: Powered, constant voltage, or configured as voltage input |
|
Voltage Range |
-20…0V DC, -10…10V DC, 0…20V DC |
|
Input Impedance |
> 100 kΩ |
|
Sensitivity |
Up to 15% from nominal |
Electromagnetic Compliance (EMC)
|
Standard |
Specification |
|---|---|
|
ESD Immunity (IEC 61000-4-2) |
6 kV contact discharges, 8 kV air discharges |
|
Radiated RF Immunity (IEC 61000-4-3) |
10V/m (1 kHz sine-wave 80% AM, 80…2000 MHz) 10V/m (200 Hz 50% pulse 100% AM at 900 MHz & 1890 MHz) 3V/m (1 kHz sine-wave 80% AM, 2000…2700 MHz) |
|
EFT/B Immunity (IEC 61000-4-4) |
±3 kV at 5 kHz on power, signal, and DeviceNet ports |
|
Surge Transient Immunity (IEC 61000-4-5) |
±1 kV line-line (DM) & ±2 kV line-earth (CM) on power and relay ports ±2 kV line-earth (CM) on shielded signal and DeviceNet ports |
|
Conducted RF Immunity (IEC 61000-4-6) |
10V rms (1 kHz sine-wave 80% AM, 150 kHz…80 MHz) |
Physical Characteristics
|
Parameter |
Value |
|---|---|
|
Terminal Base |
1440-TB-A (XM-940) Series C |
|
Dimensions (H x W x D) |
97 x 94 x 94 mm (3.8 x 3.7 x 3.7 in.) |
|
Weight |
Module: 0.172 kg (0.38 lb) Terminal Base: 0.172 kg (0.38 lb) |
|
Enclosure Type Rating |
None (Open-style) |
