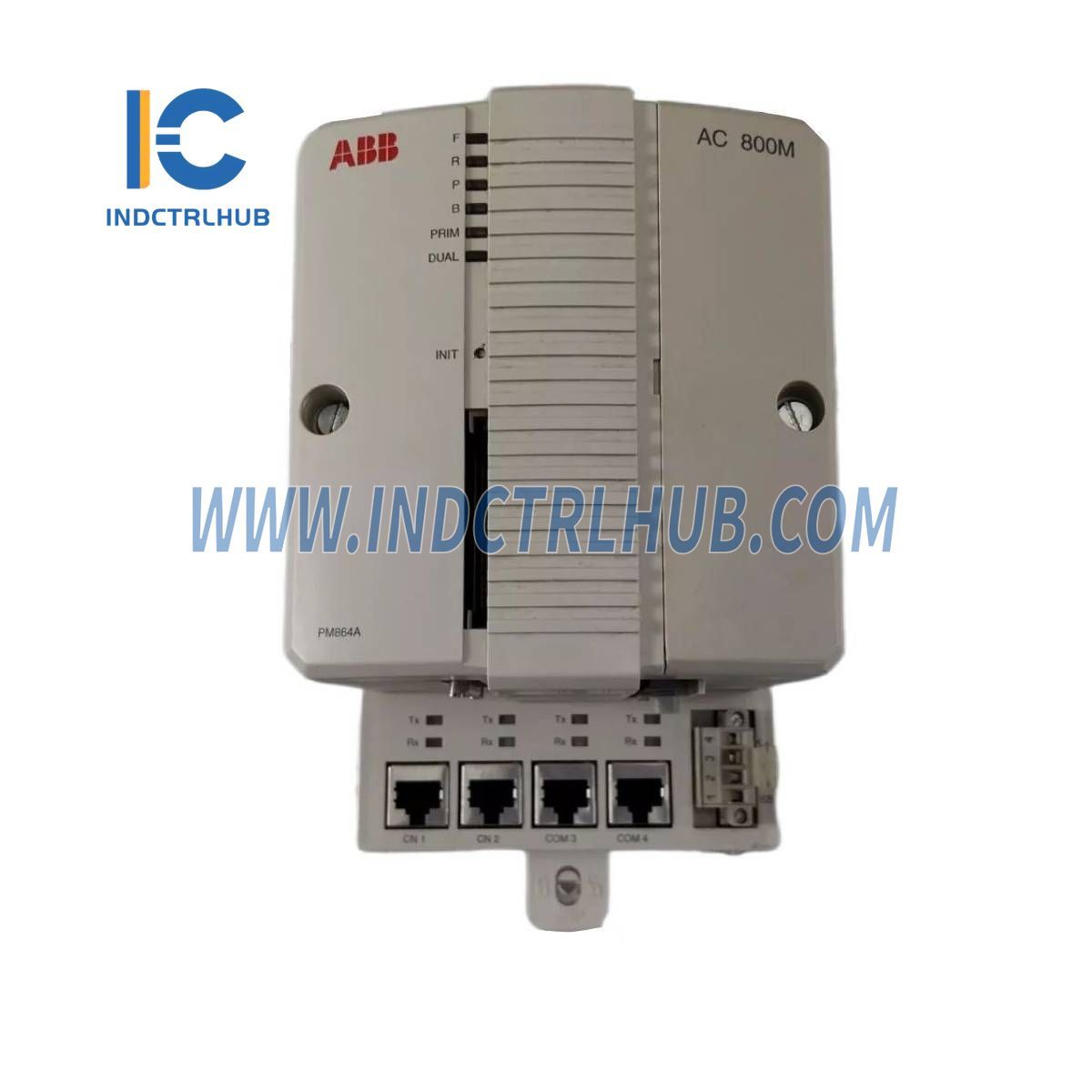

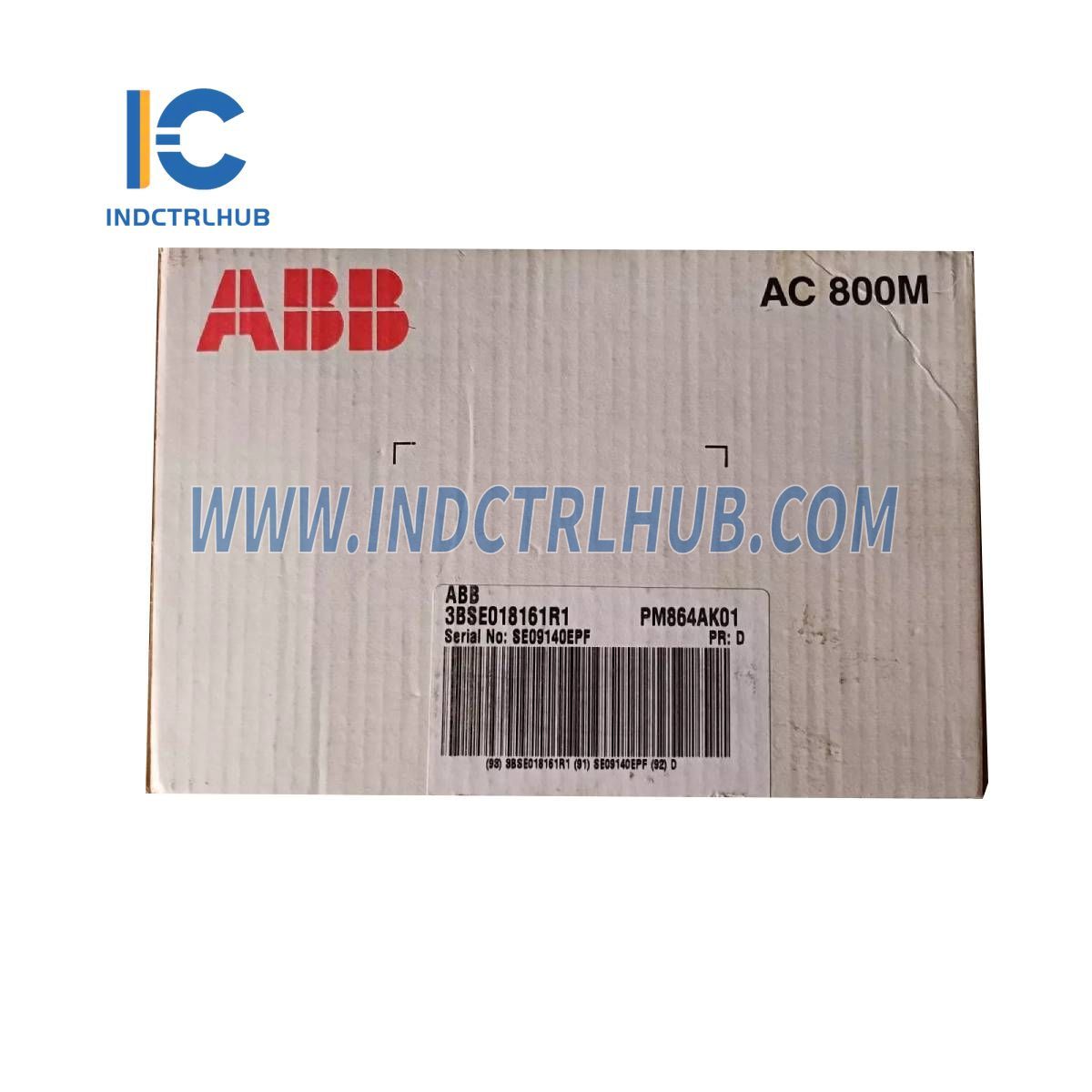

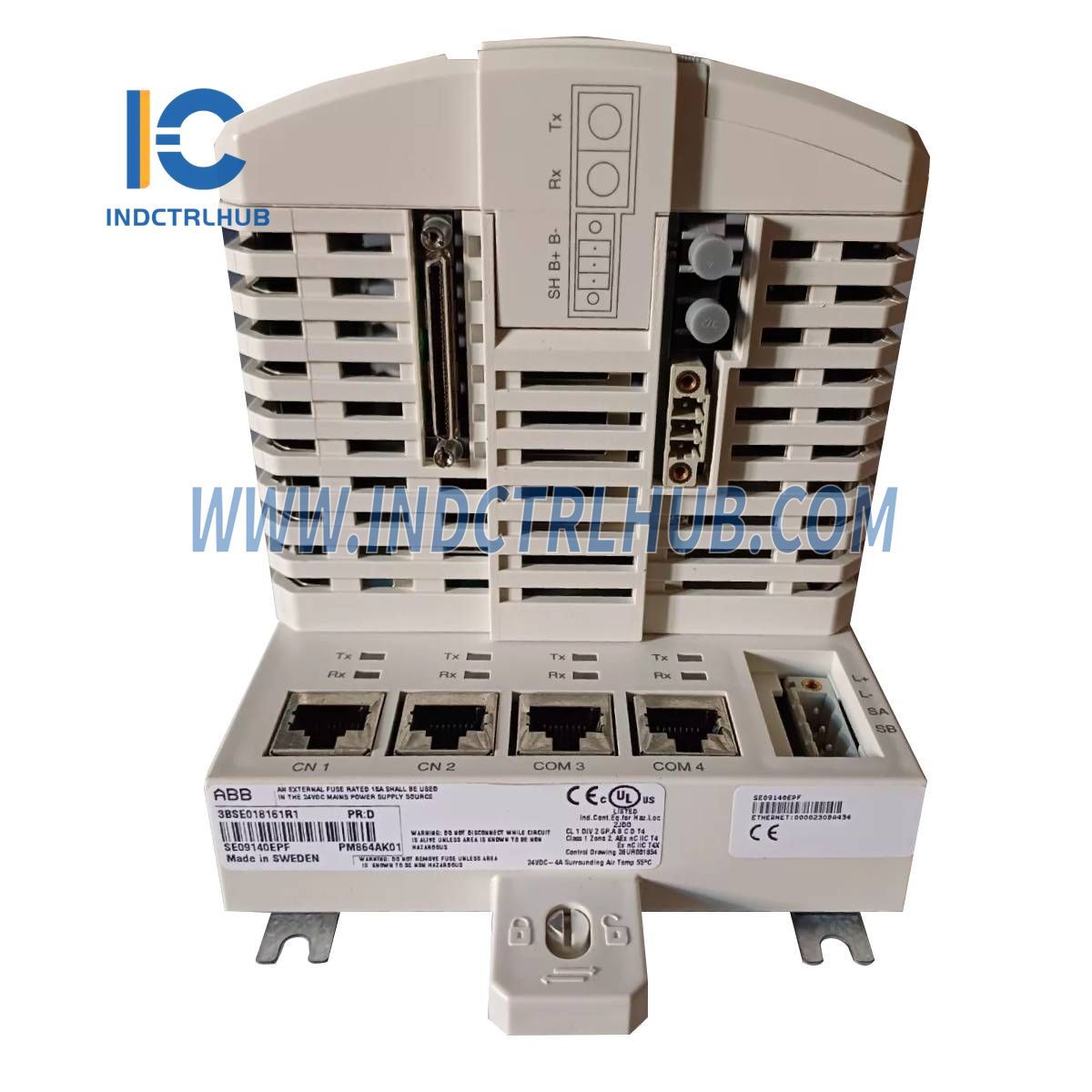

3BSE018161R1 | ABB PM864AK01 Processor Unit Kit
3BSE018161R1 | ABB PM864AK01 Processor Unit Kit
Manufacturer: ABB
Product No.: 3BSE018161R
Condition:1000 in stock
Product Type: Processor Unit Kit
Product Origin: Switzerland
Payment: T/T, Western Union
Weight: 1100g
Shipping port: Xiamen
Warranty: 12 months
- 24/7 Support
- 30-Day Returns
- Fast Shipping
Product Overview
The ABB PM864AK01 3BSE018161R1 Processor Unit Kit is a compact and reliable processing solution designed for ABB__ industrial control systems, such as the 800xA platform, serving as a central unit for automation tasks. This kit includes a PM864 CPU, TP830 Baseplate, ModuleBus and CEX-bus terminators (TB807, TB850), an RCU-Link terminator (TB852), a memory backup battery (4943013-6), and a 4-position power plug (3BSC840088R4). With dimensions of 99 x 108 x 112.5 mm and a net weight of 1.1 kg (2.43 lb), it is a non-RoHS 2 compliant spare part intended for repair, reuse, or upgrades of systems installed before July 22, 2017, requiring Control Software version 3.2/10 or later. For new installations, ABB recommends the PM866AK01. Manufactured as a standard-order item, it meets WEEE standards and includes a lithium battery classified under UN3091-PI969 for transport.
Technical Information
| Parameter | Specifications |
|---|---|
| Manufacturer | ABB |
| Model/Part Number | PM864AK01 3BSE018161R1 |
| Description | Processor Unit Kit |
| Product ID | 3BSE018161R1 (corrected from 3BSE018150R1 per prompt) |
| ABB Type Designation | PM864K01 |
| Catalog Description | PM864K01 Processor Unit Kit |
| Product Type | Central_Unit |
| Components Included | - PM864 CPU - TP830 Baseplate (width = 115 mm) - TB850 CEX-bus Terminator - TB807 ModuleBus Terminator - TB852 RCU-Link Terminator - Battery for memory backup (4943013-6) - 4-pos Power Plug (3BSC840088R4) |
| RoHS Compliance | Not compliant with EU Directive 2011/65/EU (RoHS 2) |
| Usage Note | Spare part for systems pre-July 22, 2017; for repair, reuse, or upgrades only. For new installations, use PM866AK01. |
| Software Compatibility | Control Software version 3.2/10 or later (replaces PM864AK01; no application changes needed) |
| Customs Tariff Number | 85389091 |
| Product Net Depth / Length | 112.5 mm (4.43 in) |
| Product Net Height | 108 mm (4.25 in) |
| Product Net Width | 99 mm (3.90 in) |
| Product Net Weight | 1.1 kg (2.43 lb) |
| Gross Weight | 1.1 kg (2.43 lb) |
| Made To Order | No |
| Minimum Order Quantity | 1 piece |
| Order Multiple | 1 piece |
| Dangerous Goods UN Classification | Class 9: Miscellaneous Dangerous Substances and Articles |
| Dangerous Goods UN Number | UN3091-PI969 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Number of Batteries | 1 |
| Battery Chemical Composition | Lithium |
| Battery Type | Portable |
| Battery Weight | 9 g (0.009 kg, 0.02 lb) |
