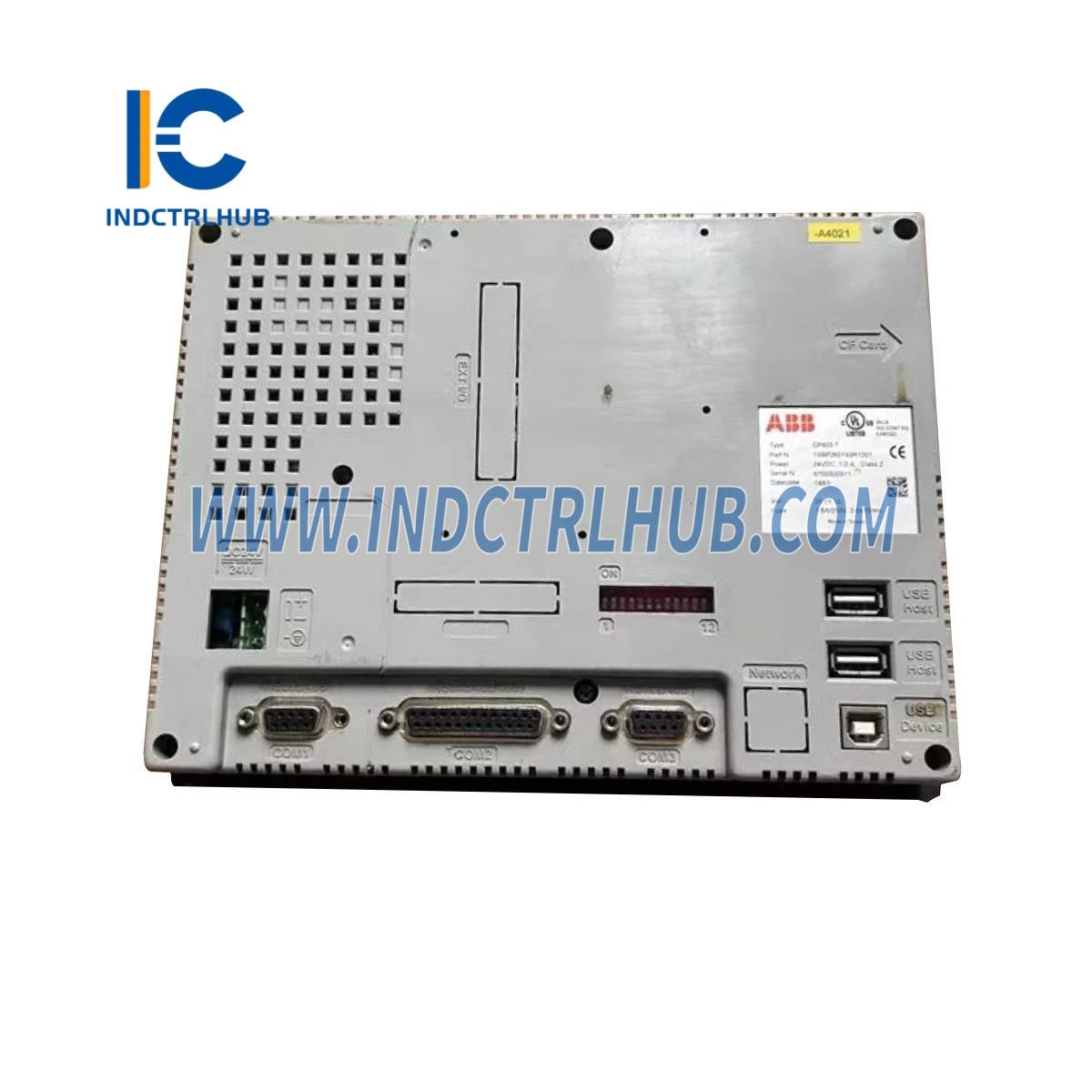

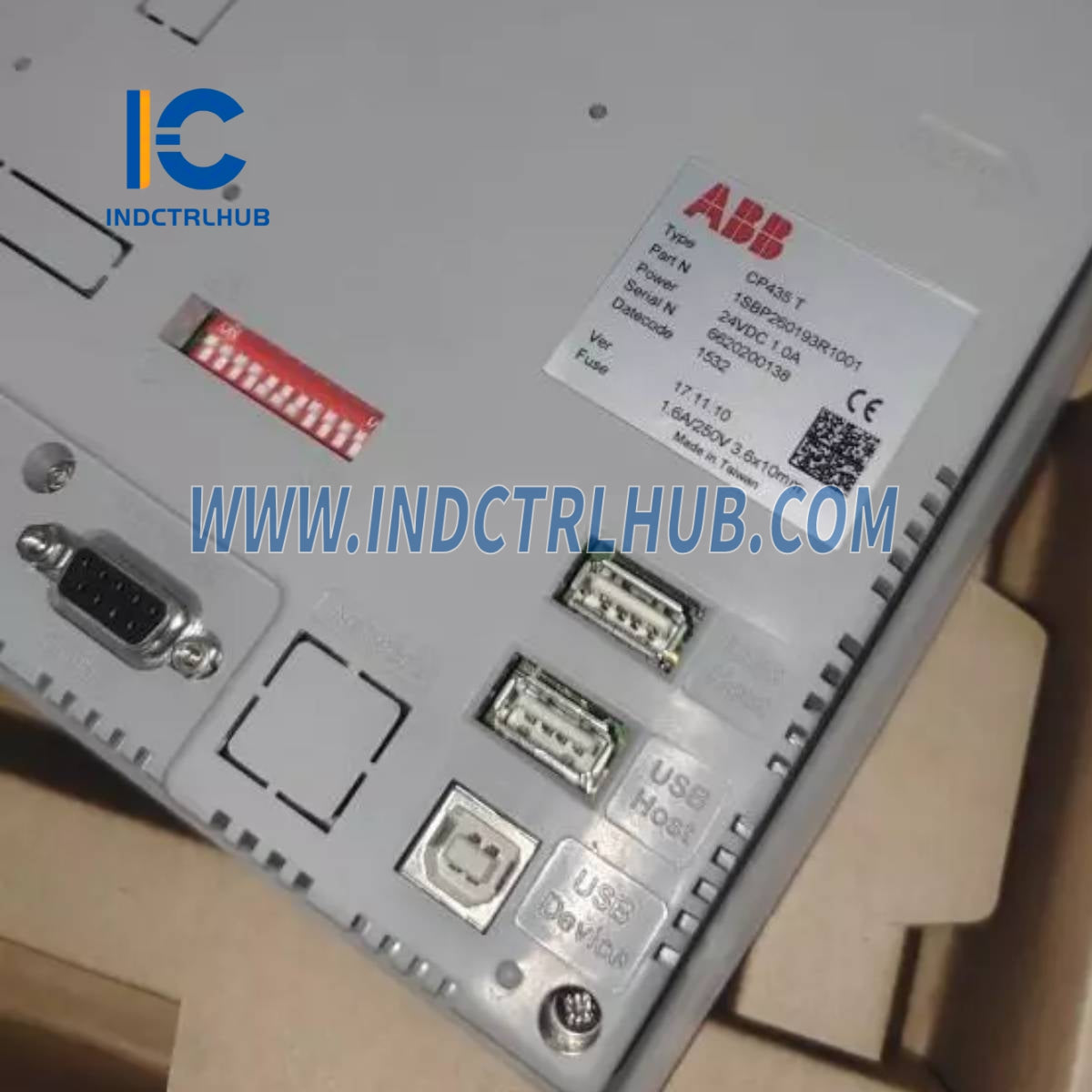

Product Description
General Information
|
Parameter |
Value |
|---|---|
|
Manufacturer |
ABB |
|
Model/Part Number |
CP435T |
|
Product ID |
1SBP260193R1001 |
|
ABB Type Designation |
CP435T |
|
Catalog Description |
CP430 BP-ETH Control Panel 5.7” STN Touch |
|
Long Description |

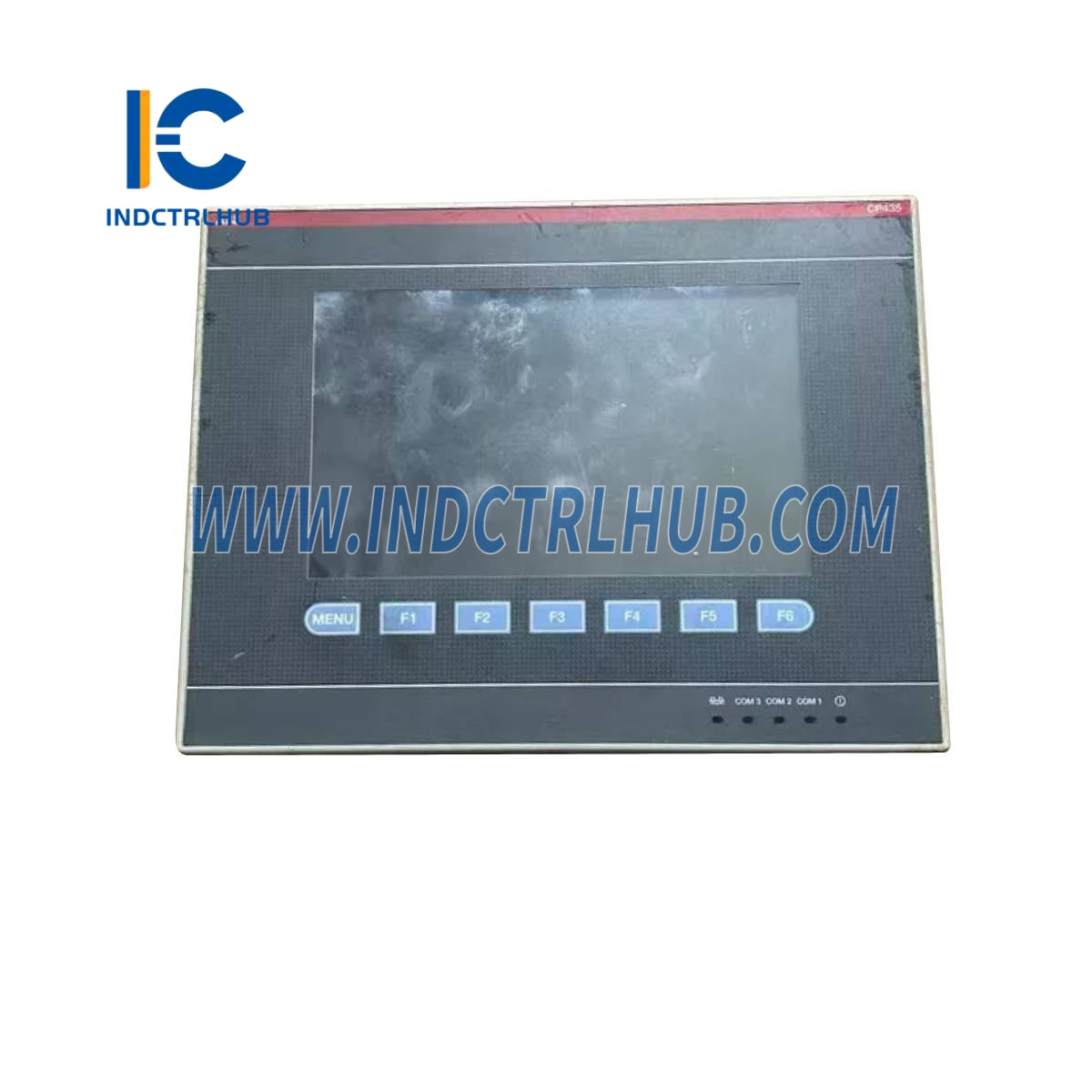

CP435T Control Panel with 1 menu, 6 defined keys, 7” TFT Touch Screen, 64K Colors |
|
Product Type |
PLC-CP400 |
Technical Information
|
Parameter |
Value |
|---|---|
|
Display Type |
TFT Touch + Keys |
|
Screen Size |
7 inches (16:9 wide screen) |
|
Screen Resolution |
800 x 480 pixels |
|
Screen Color |
64K Colors |
|
Screen Type |
TFT color, CCFL backlight, touch screen |
|
Number of Function Keys |
6 |
|
Number of LEDs |
0 |
|
Number of Display Lines |
60 |
|
Number of Characters Per Line |
100 |
|
Security |
Password protection with 9 user levels |
|
Operating Mode |
Offline / Online |
|
Real-time Clock |
Yes |
|
Software Function |
Alarm management, recipe management, trends, macro & ladder, sub-screen |
|
Programming Software |
CP400 Soft |
Memory & Storage
|
Parameter |
Value |
|---|---|
|
Memory Size (User Data) |
512 kB RAM |
|
Memory Size (User Program) |
8 MB ROM |
Communication & Interfaces
|
Parameter |
Value |
|---|---|
|
Communication Speed |
4.8 … 187.5 kBd |
|
Communication Interface |
No |
|
Fieldbus Interface Type |
Modbus RTU, AC500, Modbus ASCII, others (contact ABB) |
|
Serial Port 1 Type |
RS232/RS485 |
|
Serial Port 2 Type |
RS232/RS422/RS485 |
|
Profibus |
No |
|
USB Port 1 Type |
2 Host Ver. 2.0 |
|
USB Port 2 Type |
1 Device Ver. 2.0 |
Power & Environmental Specifications
|
Parameter |
Value |
|---|---|
|
Power Supply |
24 V DC |
|
Supply Voltage Range |
20.4 … 27.6 V DC |
|
Power Consumption |
20 VA |
|
Service Life |
50,000 hours |
|
Ambient Air Temperature (Operation) |
0 … +50 °C |
|
Ambient Air Temperature (Storage) |
-10 … +60 °C |
Mechanical & Mounting Information
|
Parameter |
Value |
|---|---|
|
Mounting Type |
Front face |
|
Mounting Position |
0 to 135° |
|
Mounting on DIN Rail |
No |
|
Short-Circuit Protective Devices |
gG Type Fuses Integrated |
Dimensions & Weight
|
Parameter |
Value |
|---|---|
|
Product Net Depth / Length |
47 mm |
|
Product Net Height |
176 mm |
|
Product Net Width |
231 mm |
|
Product Net Weight |
0.86 kg |
|
Gross Weight |
1.31 kg |
|
Viewing Area Height |
92.4 mm |
|
Viewing Area Length |
153.7 mm |
Certifications & Compliance
|
Parameter |
Value |
|---|---|
|
CE Declaration |
CP435T, T-ETH |
|
UL Certificate |
NRAQ.E240320 |
|
cUL Certificate |
1SAA960000-1709 |
|
RoHS Information |
Compliant |
|
WEEE Category |
5. Small Equipment (No External Dimension More Than 50 cm) |
|
WEEE B2C / B2B |
Business to Business |
Ordering Information
|
Parameter |
Value |
|---|---|
|
Country of Origin |
Taiwan (Chinese Taipei) / Germany |
|
Customs Tariff Number |
85371091 |
|
CN8 Code |
85371091 |
|
Invoice Description |
CP430 BP-ETH Control Panel 5.7” STN Touch |
|
Minimum Order Quantity |
1 piece |
|
Selling Unit of Measure |
Piece |
|
Made To Order |
No |
|
Quote Only |
No |
Stock Availability
|
Location |
Status |
|---|---|
|
Menden, Germany |
Stocked |
|
Bairro Santo Antonio, Brazil |
Stocked |
