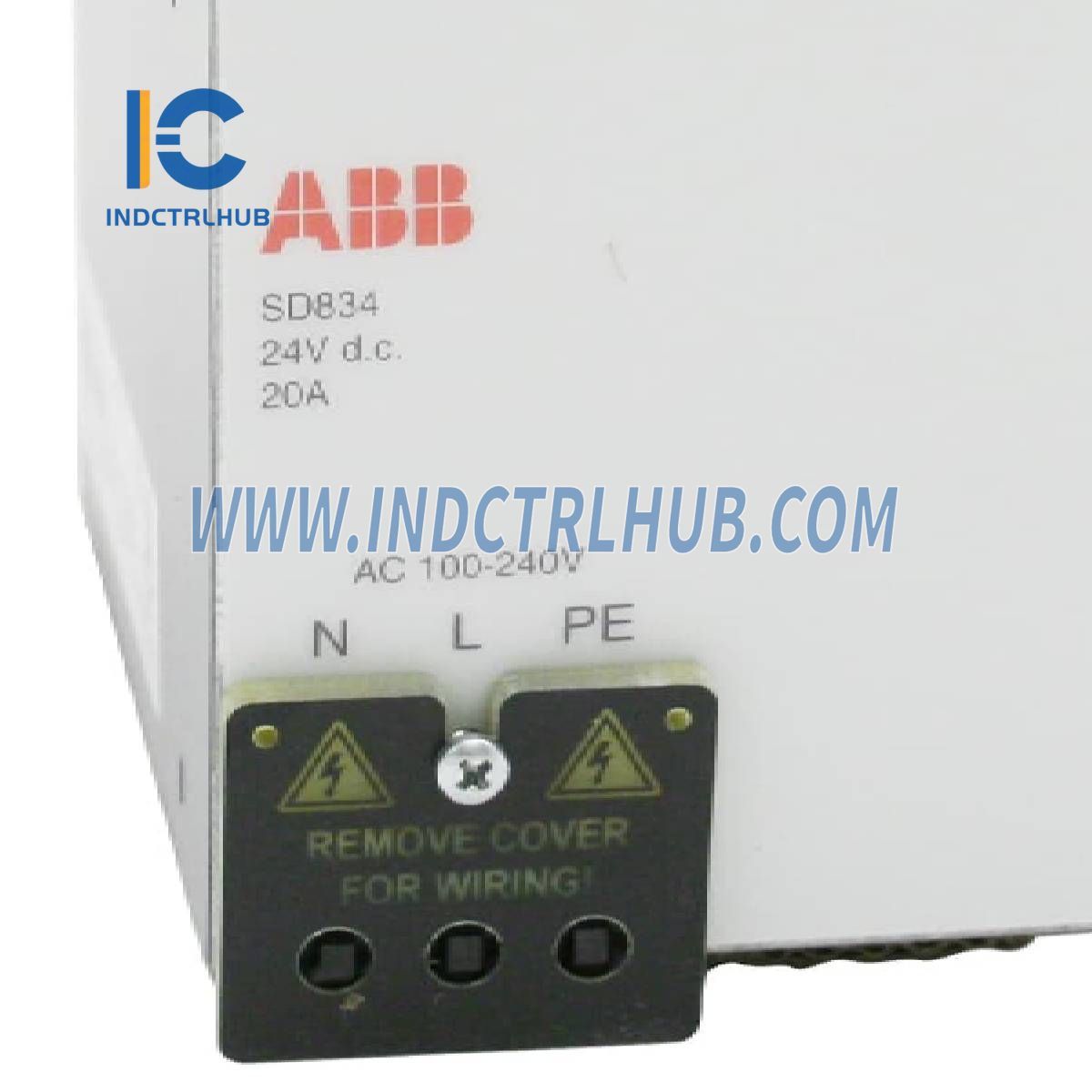

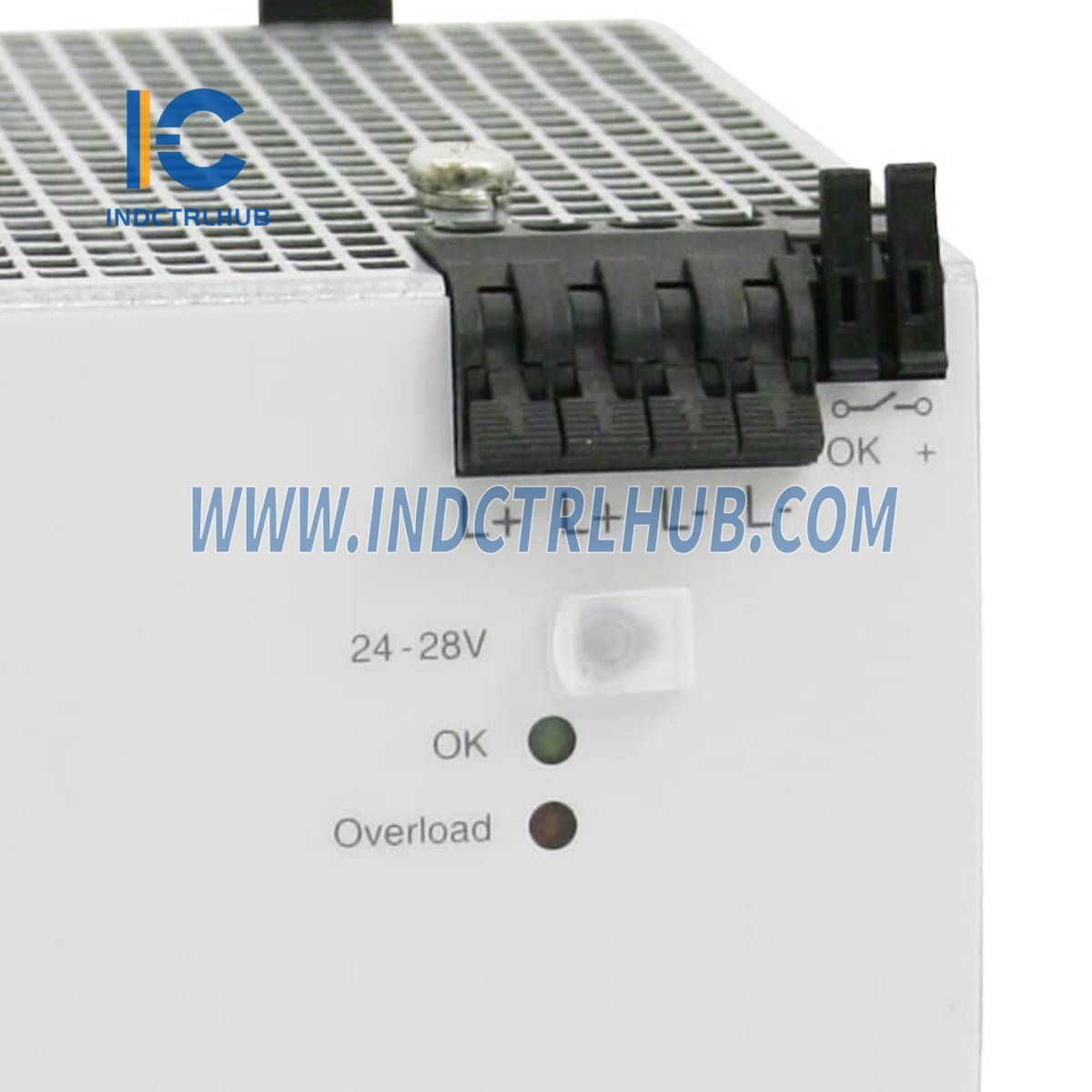

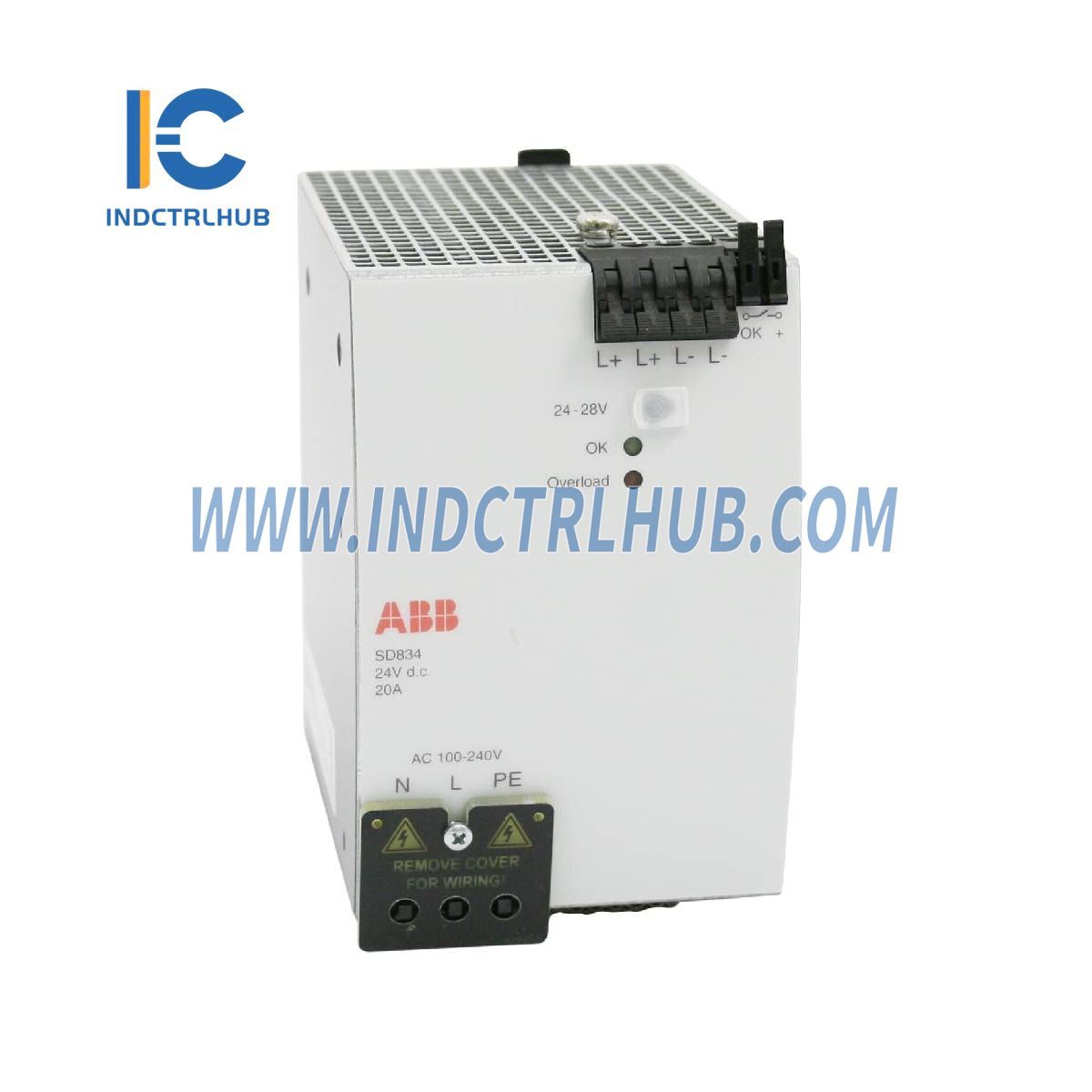

3BSC610067R1 | ABB SD834 Power Supply

3BSC610067R1 | ABB SD834 Power Supply

  • Manufacturer: ABB

  • Product No.: 3BSC610067R1

  • Condition:1000 in stock

  • Product Type: Power Supply

  • Product Origin: USA

  • Payment: T/T, Western Union

  • Weight: 1350g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Support
  • 30-Day Returns
  • Fast Shipping

Product Details

  • Manufacturer: ABB
  • Model/Part Number: SD834 (3BSC610067R1)
  • Description: Power Supply (20A)

General Information

Attribute Details
Product ID 3BSC610067R1
ABB Type Designation SD834
Catalog Description SD834 Power Supply, 20A
Long Description Input AC 100-240 V or DC 110-150 V. Output DC 24 V, 20A. If redundant power application is required, connect to SS8XX voting unit. DIN rail mounted. G2 compliant.
Product Type Power Supply

Technical Specifications

Attribute Details
Input Voltage AC 100-240 V or DC 110-150 V
Output Voltage DC 24 V
Output Current 20A
Mounting Type DIN rail mounted
Compliance G2 compliant

Dimensions & Weight

Attribute Details
Depth / Length 127 mm
Height 124 mm
Width 82 mm
Net Weight 1.35 kg

Ordering & Compliance

Attribute Details
HS Code 850440 – Electrical transformers, static converters (e.g., rectifiers), and inductors – Static converters
Customs Tariff Number 85044083
RoHS Status Compliant with EU Directive 2011/65/EU
WEEE Category 5. Small Equipment (No External Dimension More Than 50 cm)
SCIP Reference 5e692a6d-19ab-43e1-8fd6-a9698f889fb3 (China)
