3BSE081637R1 | ABB PM866AK02 Processor Module
3BSE081637R1 | ABB PM866AK02 Processor Module
Manufacturer: ABB
Product No.: 3BSE081637R1
Condition:1000 in stock
Product Type: Processor Module
Product Origin: Sweden
Payment: T/T, Western Union
Weight: 2700g
Shipping port: Xiamen
Warranty: 12 months
- 24/7 Support
- 30-Day Returns
- Fast Shipping
General Information
| Field | Details |
|---|---|
| Article Number | 3BSE081637R1 (PM866AK02) |
| Redundancy | Yes |
| High Integrity | No |
| Clock Frequency | 133 MHz |
| Performance | 0.09 ms |
| Memory | 64 MB (51.389 MB available for application) |
| Flash Memory for Storage | Yes |

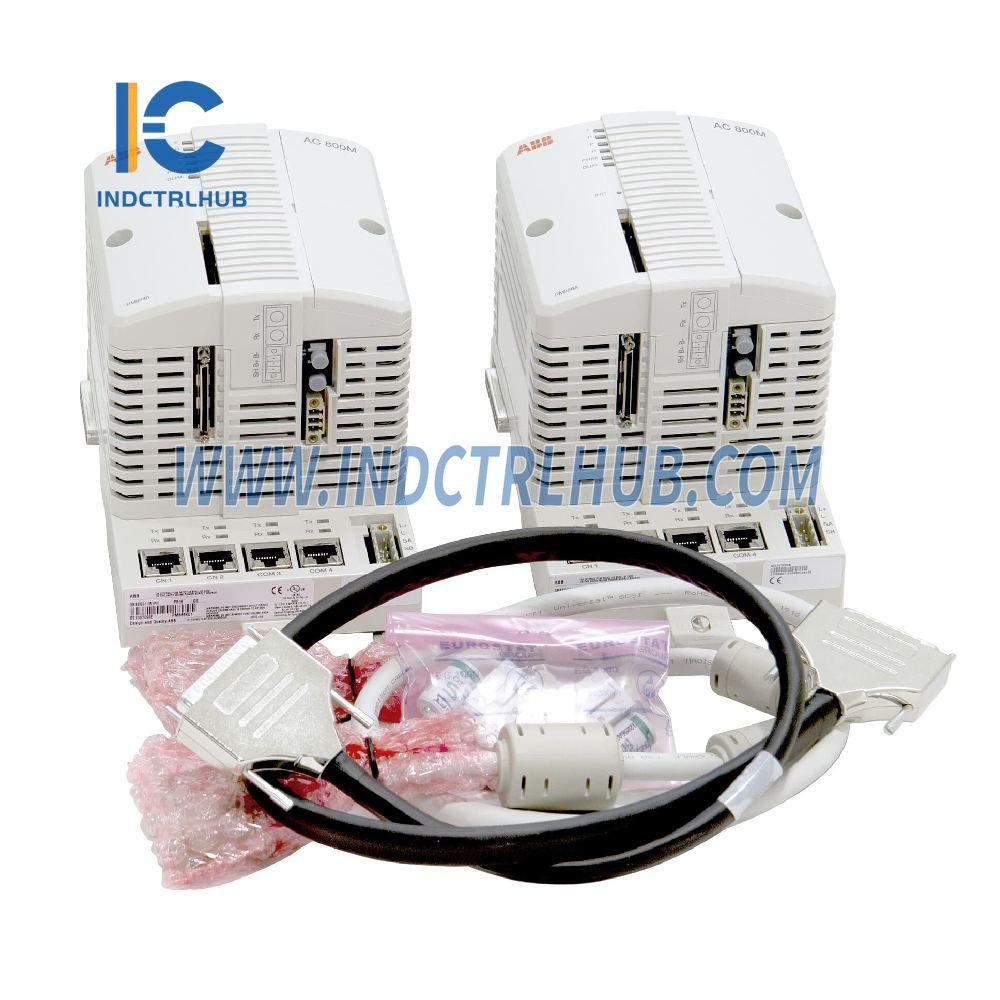

Package Includes
| Item | Quantity |
|---|---|
| PM866A, CPU | 2 pcs |
| TP830, Baseplate (Width = 115 mm) | 2 pcs |
| TB807, ModuleBus Terminator | 2 pcs |
| TK850, CEX-bus Expansion Cable | 1 pc |
| TK851, RCU-Link Cable | 1 pc |
| Battery for Memory Backup (4943013-6) | 2 pcs (1 for each CPU) |
Features and Benefits
- ISA Secure certified.
- Reliability and simple fault diagnosis procedures.
- Modular design for step-by-step expansion.
- IP20 protection without the need for enclosures.
- Configurable with 800xA Control Builder.
- Full EMC certification.
- Sectioned CEX-Bus using BC810 / BC820.
- Standards-based hardware for communication (Ethernet, PROFIBUS DP, etc.).
- Built-in redundant Ethernet communication ports.
Detailed Data
| Field | Details |
|---|---|
| Processor Type | MPC866 |
| Switch Over Time in Redundant Configurations | Max 10 ms |
| Number of Applications per Controller | 32 |
| Number of Programs per Application | 64 |
| Number of Diagrams per Application | 128 |
| Number of Tasks per Controller | 32 |
| Number of Different Cycle Times | 32 |
| Cycle Time per Application Program | Down to 1 ms |
| Flash PROM for Firmware Storage | 4 MB |
| Power Supply | 24 V DC (19.2-30 V DC) |
| Power Consumption | 210 mA (typ) / 360 mA (max) |
| Power Dissipation | 5.1 W (8.6 W max) |
| Redundant Power Supply Status Input | Yes |
| Built-in Backup Battery | Lithium, 3.6 V |
Communication
| Field | Details |
|---|---|
| Ethernet Channels | 2 |
| Ethernet Interface | Ethernet (IEEE 802.3), 10 Mbit/s, RJ-45 |
| Control Network Protocol | MMS (Manufacturing Message Service) and IAC |
| Recommended Control Network Backbone | 100 Mbit/s switched Ethernet |
| RS-232C Interfaces | 2 ports (COM3 for general use, COM4 for configuration tools) |
Environment and Certification
Operating temperature: +5 to +55 °C (+41 to +131 °F). Storage temperature: -40 to +70 °C (-40 to +158 °F). Pollution degree: Degree 2 according to IEC/EN 61131-2. Corrosion protection: G3 compliant to ISA 71.04. Relative humidity: 5 to 95%, non-condensing. Protection class: IP20 (EN 60529, IEC 529). Altitude: 2000 m (IEC/EN 61131-2). CE Mark: Yes. Environmental compliance: EN 50581:2012 (RoHS), DIRECTIVE/2012/19/EU (WEEE).
Dimensions and Weight
| Field | Details |
|---|---|
| Width | 119 mm (4.7 in.) |
| Height | 186 mm (7.3 in.) |
| Depth | 135 mm (5.3 in.) |
| Weight (including base) | K01: 1200 g (2.6 lbs), K02: 2700 g (5.95 lbs) |
