Product Description
General Information
|
Parameter |
Value |
|---|---|
|
Manufacturer |
ABB |
|
Model/Part Number |
RF620 |
|
Product ID |
3BHT100011R1 |
|
Description |

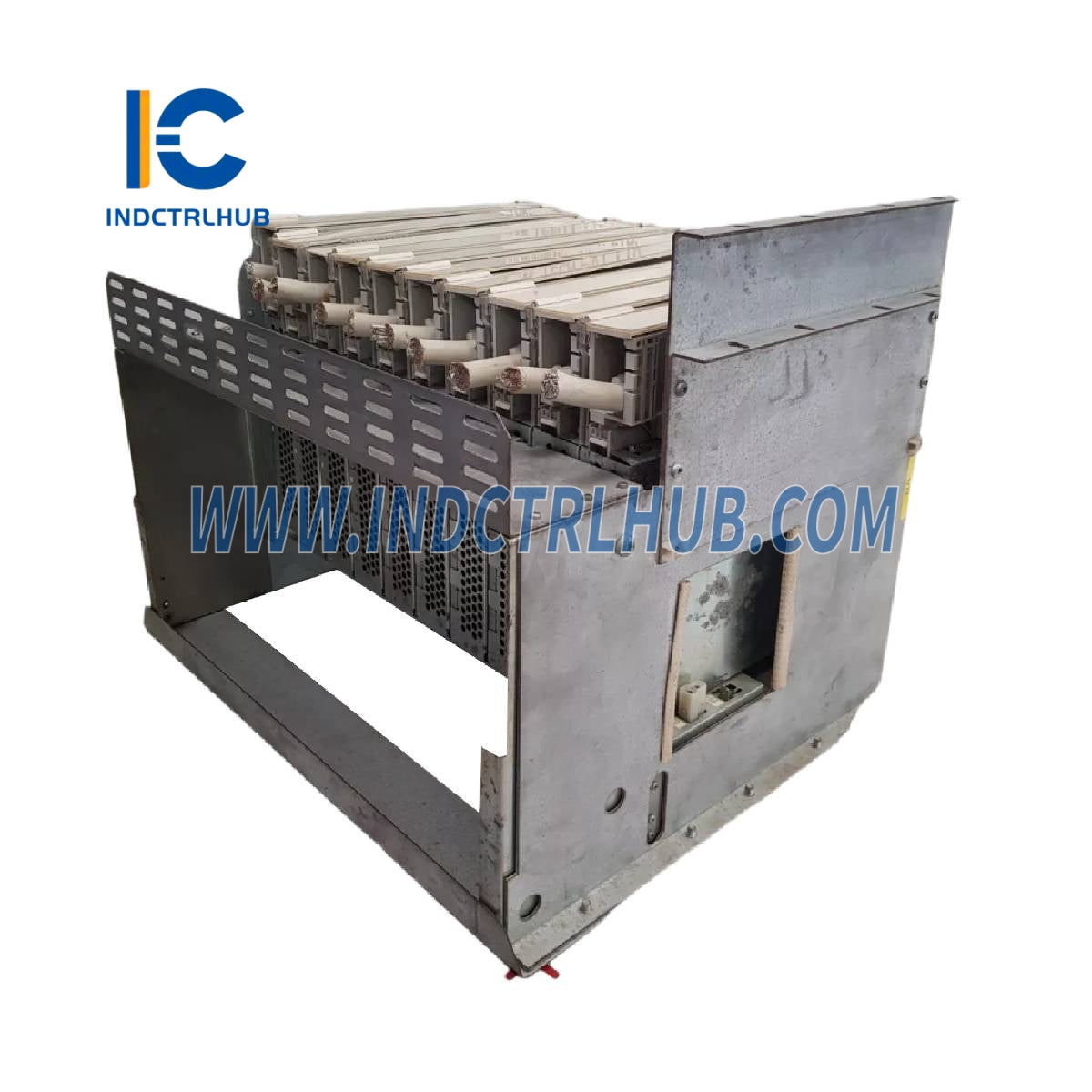

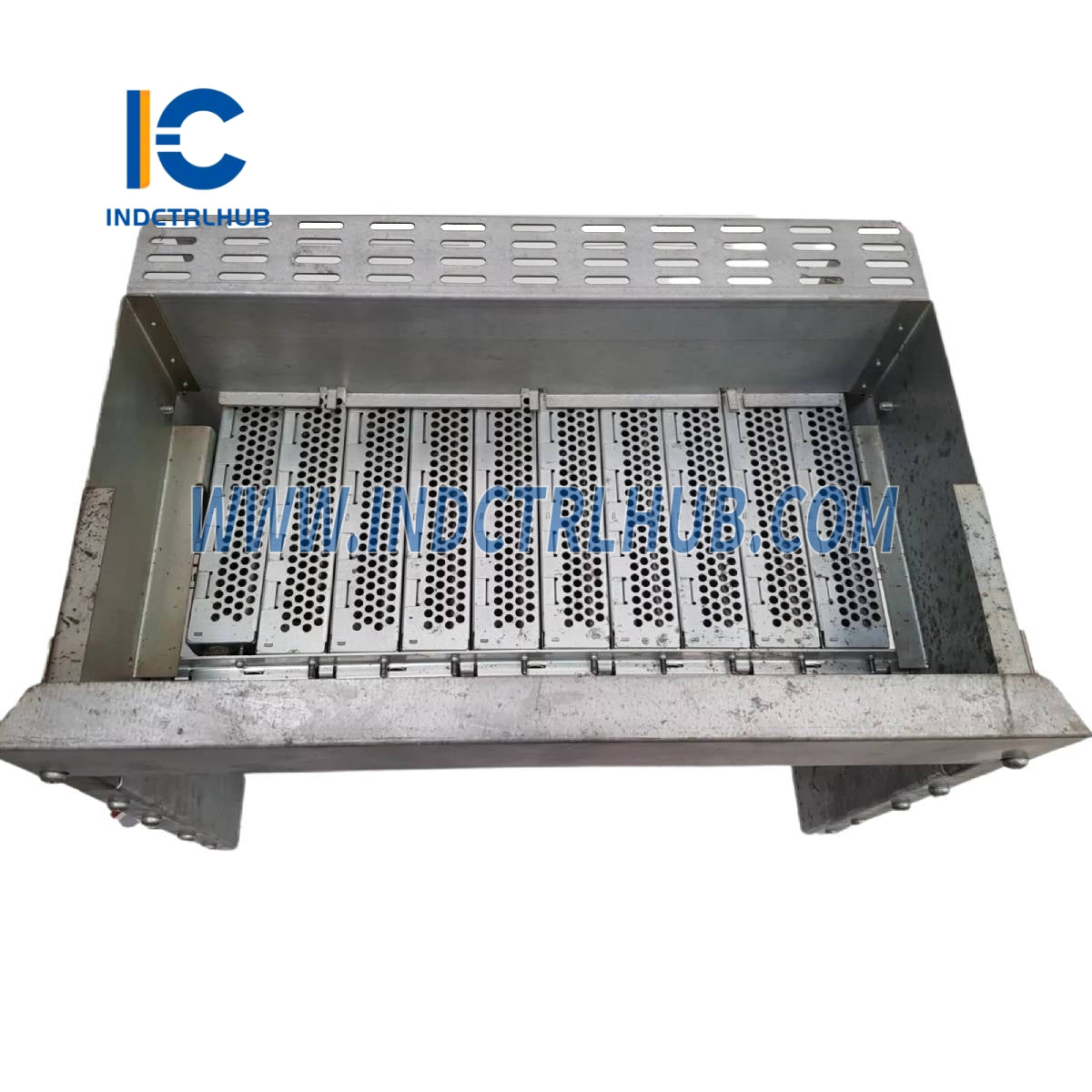

RF620 Extension Backplane 10 Slots |
|
Medium Description |
RF620 Extension Backplane 10 Slots |
|
Product Type |
Central Unit |
Ordering Information
|
Parameter |
Value |
|---|---|
|
HS Code |
853890 - Parts suitable for use solely or principally with the apparatus of heading 85.35, 85.36, or 85.37 |
|
Customs Tariff Number |
85389091 |
Technical Information
|
Parameter |
Value |
|---|---|
|
Function |
RF620 Extension Backplane with 10 Slots |
|
Compliance |
Exempted from the scope of 2011/65/EU (RoHS) as provided in Article 2(4)(c), (e), (f), and (j) |
|
Reference Document |
3BSE088609 – EU DECLARATION OF CONFORMITY - ABB Advant Master Process Control System |
Dimensions & Weight
|
Parameter |
Value |
|---|---|
|
Product Net Depth / Length |
472.5 mm |
|
Product Net Height |
85.5 mm |
|
Product Net Width |
252 mm |
|
Product Net Weight |
2.975 kg |
Environmental & Compliance
|
Parameter |
Value |
|---|---|
|
RoHS Compliance |
Following EU Directive 2011/65/EU |
|
WEEE Category |
5. Small Equipment (No External Dimension More Than 50 cm) |
|
Number of Batteries |
0 |
|
SCIP |
No SVHC Present (Sweden) |
Products & Applications
• Control System Products → Assembly Parts → AC 100 Assembly Parts → AC 100 - Equipment Frames → RF620 Base Backplanes → RF620 Base Backplane
• Control Systems → Advant OCS with Master SW → Controllers → Advant Controller 160 → Advant Controller 160 Version 2.2 → Control System Accessories
Parts & Services
• Control Systems → Advant OCS with Master SW → Controllers → Advant Controller 110 → Central Units
• Control Systems → Advant OCS with Master SW → Controllers → MasterPiece 90 → Central Units
