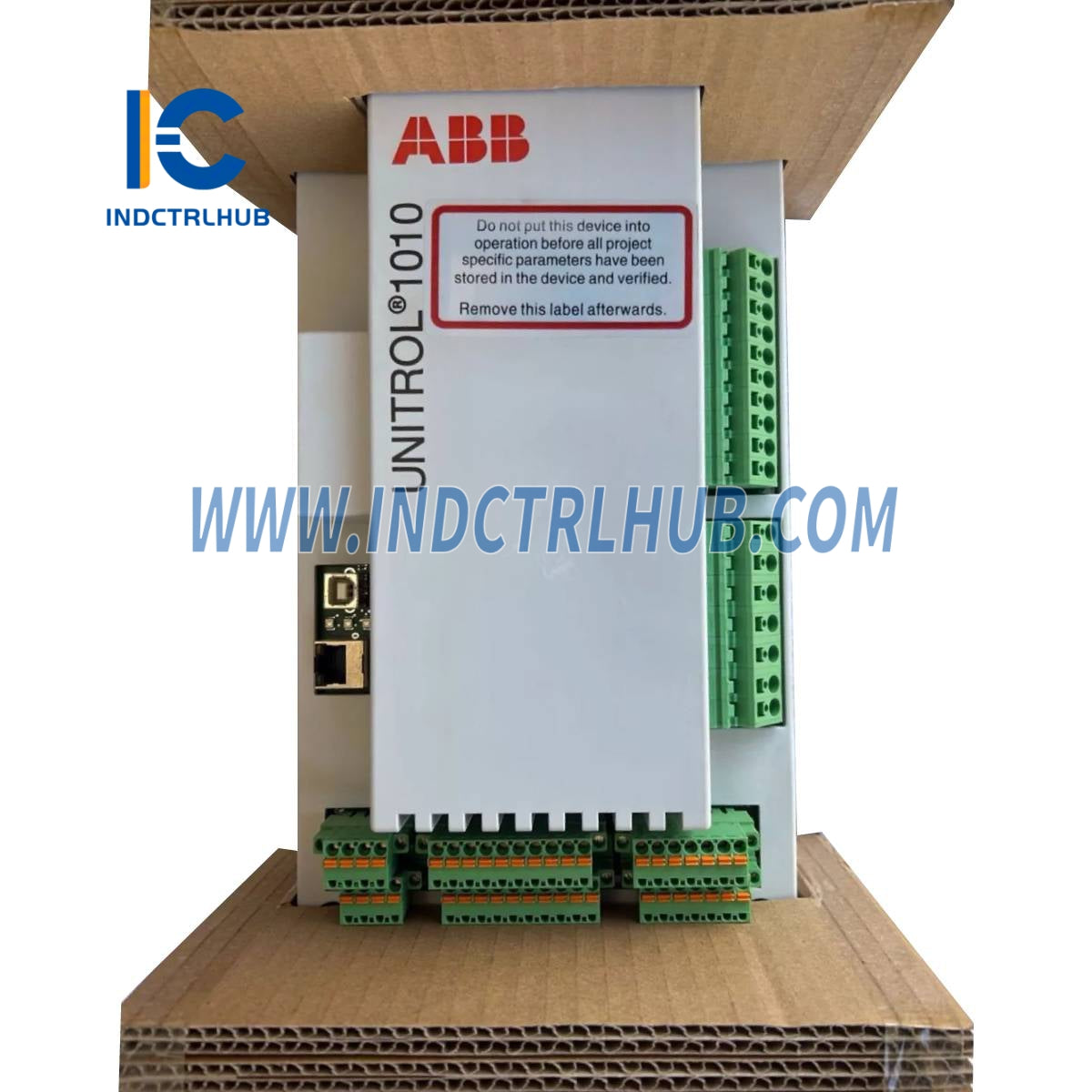

3BHE035301R1002 | ABB UNITROL1010 Automatic Voltage Regulator
3BHE035301R1002 | ABB UNITROL1010 Automatic Voltage Regulator
Manufacturer: ABB
Product No.: 3BHE035301R1002
Condition:1000 in stock
Product Type: Automatic Voltage Regulator
Product Origin: Switzerland
Payment: T/T, Western Union
Weight: 2000g
Shipping port: Xiamen
Warranty: 12 months
- 24/7 Support
- 30-Day Returns
- Fast Shipping
Product Overview
The ABB UNITROL 1010 3BHE035301R1002 is an Automatic Voltage Regulator (AVR) from the UNITROL 1000 series, designed for indirect excitation systems in small to medium synchronous generators and industrial machines. Manufactured by ABB, this compact yet powerful device ensures stable voltage control by leveraging advanced microprocessor technology and IGBT semiconductors. It is widely used in industries such as power generation, marine systems, and emergency power applications, providing reliable performance across a wide range of temperature and vibration conditions. The UNITROL 1010 is fully certified to DNV and UL standards, making it a trusted choice for maintaining consistent power output.
Technical Specifications
The UNITROL 1010 3BHE035301R1002 has the following specifications based on standard characteristics from ABB__ UNITROL 1000 series documentation:
| Item | Specification |
|---|---|
| Model/Part Number | UNITROL 1010 3BHE035301R1002 |
| Manufacturer | ABB |
| Description | Automatic Voltage Regulator (AVR) |
| Series | UNITROL 1000 |
| Input Voltage | PMG or auxiliary winding powered, 3-phase sensing |
| Output Current | Up to 10 A DC (continuous operation) |
| Power Supply | 100-240 V AC or 24-250 V DC |
| Operating Temperature | -40°C to 70°C (-40°F to 158°F) |
| Weight | Approximately 2 kg (4.4 lbs) |
Additional Details
The UNITROL 1010 3BHE035301R1002 includes the following additional information based on its standard use and documentation:
| Category | Details |
|---|---|
| Function | Regulates voltage for synchronous generators/machines |
| Mounting | Panel-mounted or integrated into excitation system |
| Connectivity | Ethernet, USB, Modbus TCP, tension spring terminals |
| Features | Dual-channel support, load sharing, diode monitoring, auto-synchronizing |
| Certifications | DNV, UL, IEC 60255 |
