Product Description
Product Details

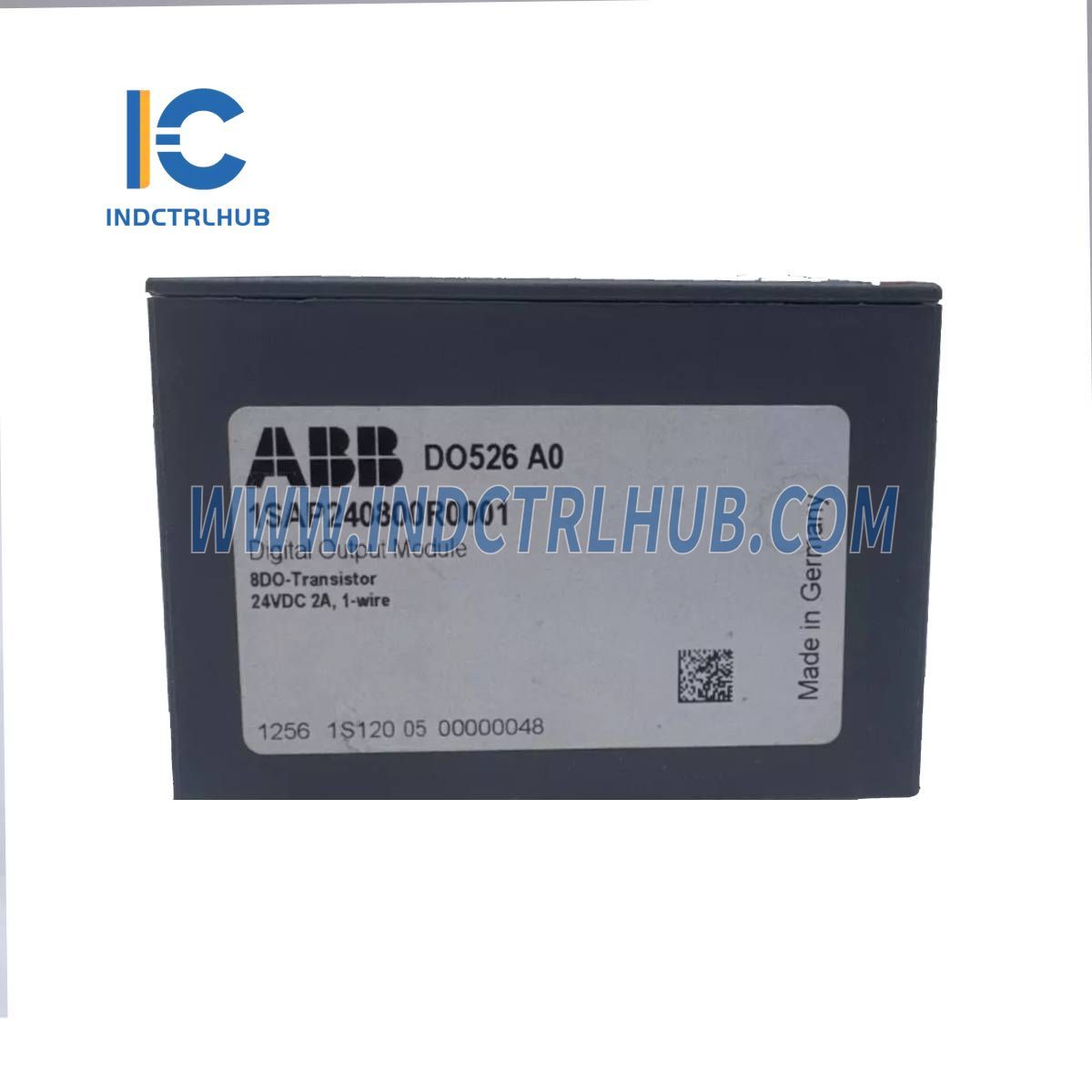

- Manufacturer: ABB
- Model/Part Number: DO526 (1SAP240800R0001)
- Description: Digital Output Module (8 DO: 24VDC, 2A)
General Information
| Attribute | Details |
|---|---|
| Product ID | 1SAP240800R0001 |
| ABB Type Designation | DO526 |
| EAN | 4013614515224 |
| Catalog Description | Digital output module. 8 DO: 24VDC, 2A |
| Long Description | DO526: S500 Digital Output Module. 8 DO: 24VDC, 2A, 1-wire |
| Product Type | Distributed Automation I/Os |
Ordering Information
| Attribute | Details |
|---|---|
| CN8 Code | 85389091 |
| Invoice Description | Digital Output Module. 8 DO: 24VDC, 2A (DO526) |
| Made To Order | No |
| Minimum Order Quantity | 1 piece |
| Order Multiple | 1 piece |
| Selling Unit of Measure | Piece |
Dimensions
| Attribute | Details |
|---|---|
| Product Net Weight | 0.132 kg |
| Product Net Depth / Length | 62 mm |
| Product Net Height | 76 mm |
| Product Net Width | 67.5 mm |
| Gross Weight | 0.156 kg |
| Package Level 1 Dimensions (L x W x H) | 84 mm × 71 mm × 72 mm |
| Package Level 1 Units | 1 carton |
Technical Specifications
| Attribute | Details |
|---|---|
| Function | 8 Digital Outputs, 24VDC, 2A |
| Number of Digital Outputs | 8 |
| Number of Digital Configurable I/Os | 0 |
| Output Type | Transistor |
| Output Voltage Type | DC |
| Output Current | 2A |
| Output Voltage Range | 20.4 – 28.8V |
| Degree of Protection | IP20 |
| Supply Voltage | 20.4 – 28.8V DC |
Environmental & Compliance
| Attribute | Details |
|---|---|
| SCIP Number | 9b83d8b2-1926-4fe7-ae77-0f449a983ffe (Germany) |
| WEEE Compliance | Business to Business (B2B) |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
