Product Description
Product Details
|
Manufacturer |
ABB |
|---|---|
|
Model/Part Number |
3BDH000396R0005 (CI 741F) |
|
Description |

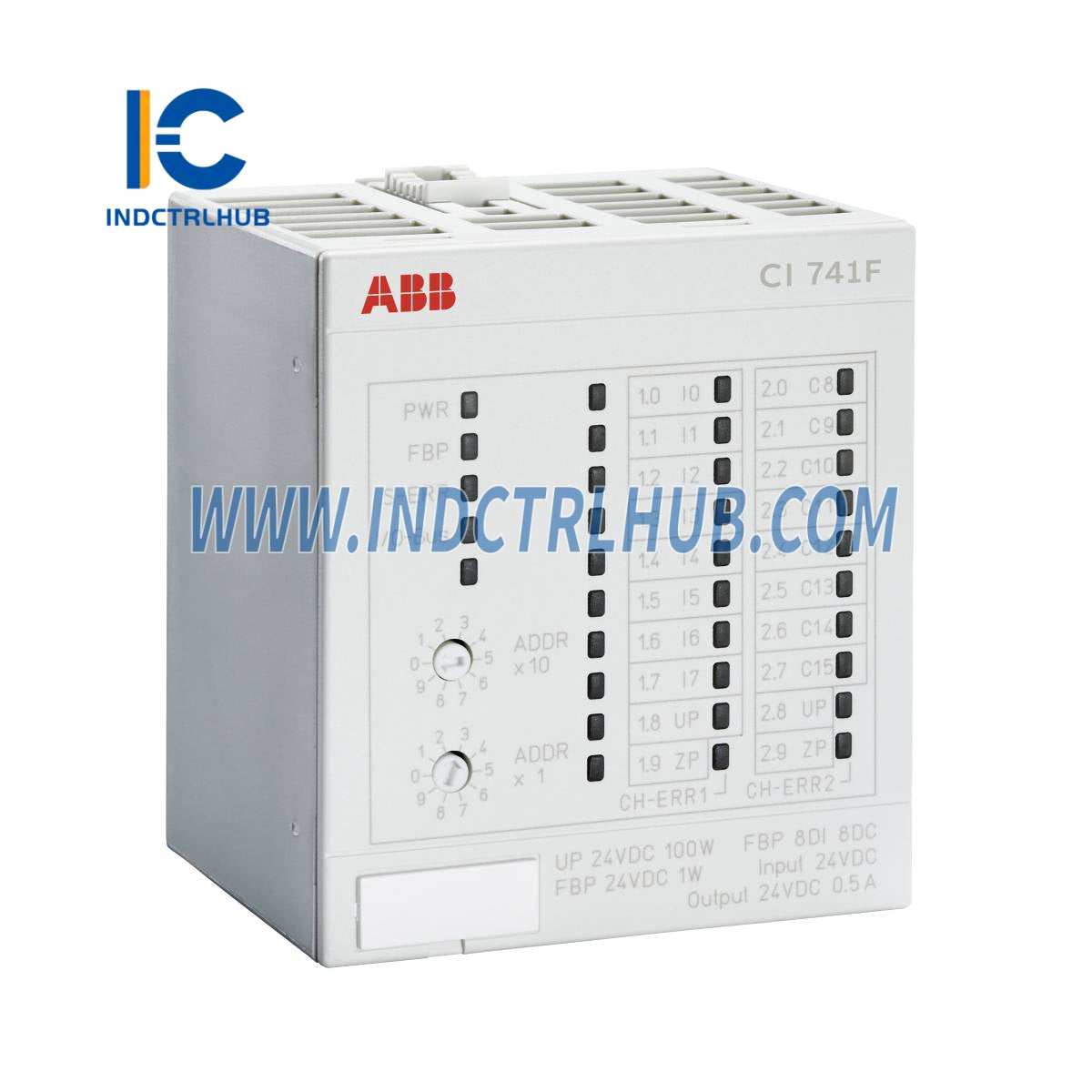

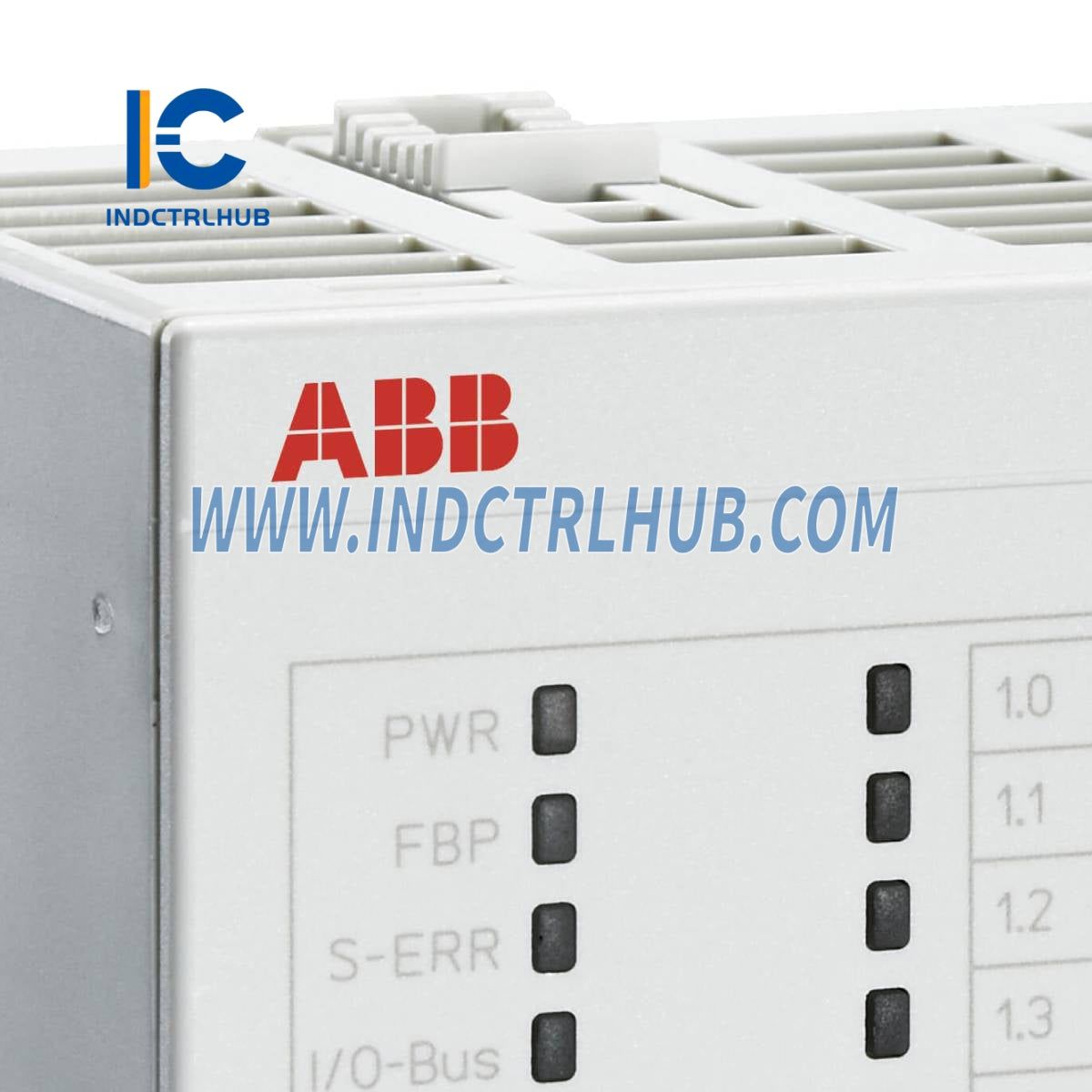

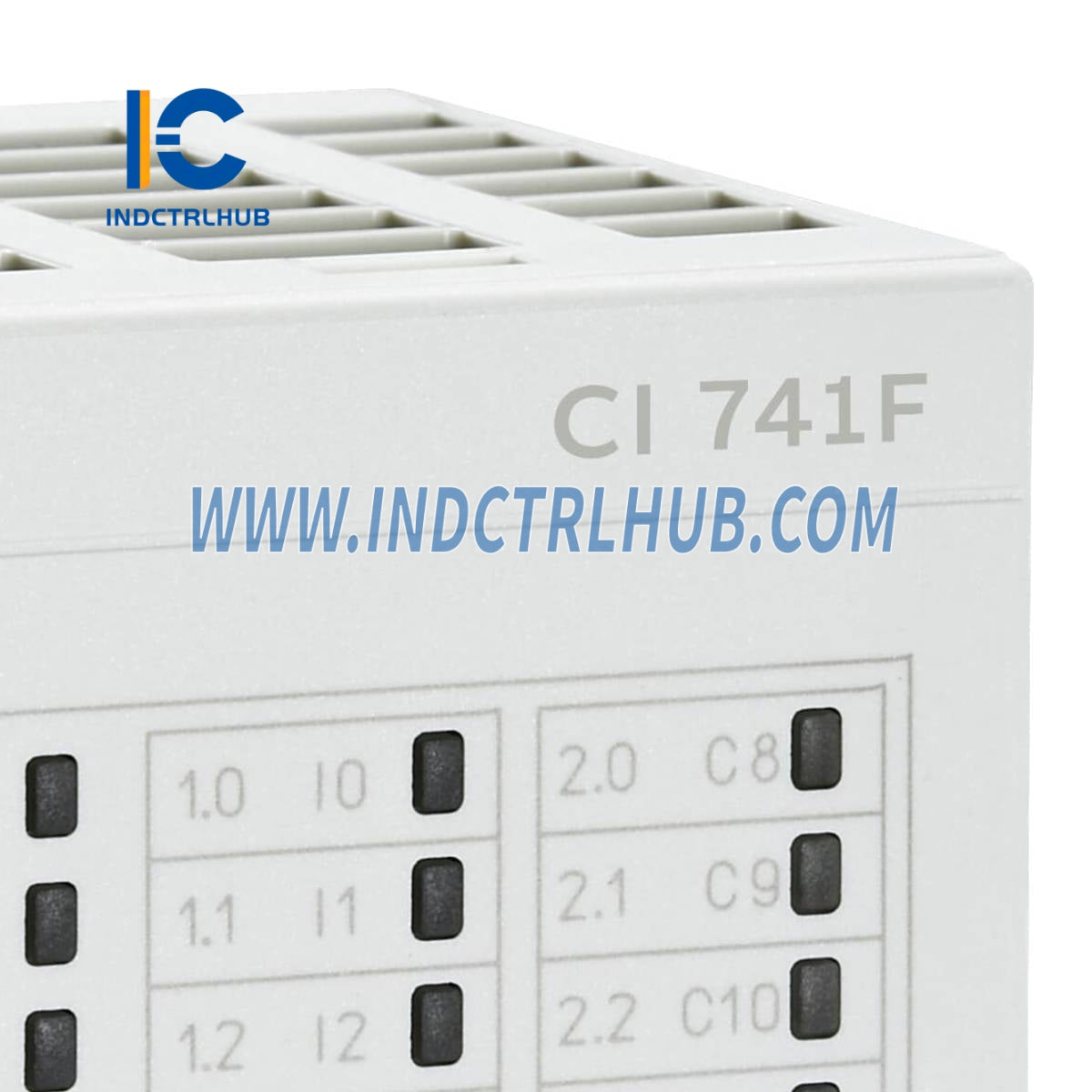

CI 741F PROFIBUS Interface Module |
General Information
|
Parameter |
Value |
|---|---|
|
Product ID |
3BDH000396R0005 |
|
ABB Type Designation |
CI 741F |
|
EAN |
4013614503436 |
|
Catalog Description |
CI 741F PROFIBUS Interface Module |
|
Long Description |
The CI 741F PROFIBUS interface module is used as a communication interface for PROFIBUS communication. The bus is connected via a Sub-D connector on the TU 709F / TU 710F terminal block. It also includes analog input and output, as well as digital input and output channels. It features 4 configurable analog input channels, 2 configurable analog output channels, 8 digital input channels (24 VDC), and 8 digital output channels (24 VDC, 0.5 A). |
Additional Information
|
Parameter |
Value |
|---|---|
|
Medium Description |
PROFIBUS Slave communication interface for S700 I/O |
|
Product Type |
Communication Module |
|
Interface |
1 x Interface (Sub-D plug) for PROFIBUS DP |
|
Digital Inputs |
8 DI: 24 VDC |
|
Digital Outputs |
8 DO: 24 VDC / 0.5 A |
|
Analog Inputs |
4 AI: ±10 V, 0/4-20 mA, 24 VDC, RTD |
|
Analog Outputs |
2 AO: ±10 V, 0/4-20 mA, 24 VDC |
|
Resolution |
12 Bit + sign, 2-wire |
|
Compatible Terminal Units |
TU 709F / TU 710F |
Ordering Information
|
Parameter |
Value |
|---|---|
|
HS Code |
851762 |
|
Customs Tariff Number |
85176200 |
Dimensions
|
Parameter |
Value |
|---|---|
|
Product Net Depth / Length |
76 mm |
|
Product Net Height |
54 mm |
|
Product Net Width |
68 mm |
|
Product Net Weight |
0.15 kg |
Technical Specifications
|
Parameter |
Value |
|---|---|
|
Channel Type |
DX |
|
Number of Input Channels |
12 |
|
Number of Output Channels |
10 |
Environmental Information
|
Parameter |
Value |
|---|---|
|
RoHS Status |
Following EU Directive 2011/65/EU and Amendment 2015/863 (July 22, 2019) |
|
WEEE Category |
5. Small Equipment (No External Dimension More Than 50 cm) |
|
Number of Batteries |
0 |
|
SCIP Code |
6de272d3-43ec-467c-9057-1ebeffb0809e (Germany) |
Product Category
Products › Control System Products › Control & Communication › AC 700F › AC 700F - Communication Modules › CI 741F PROFIBUS Interface Module
