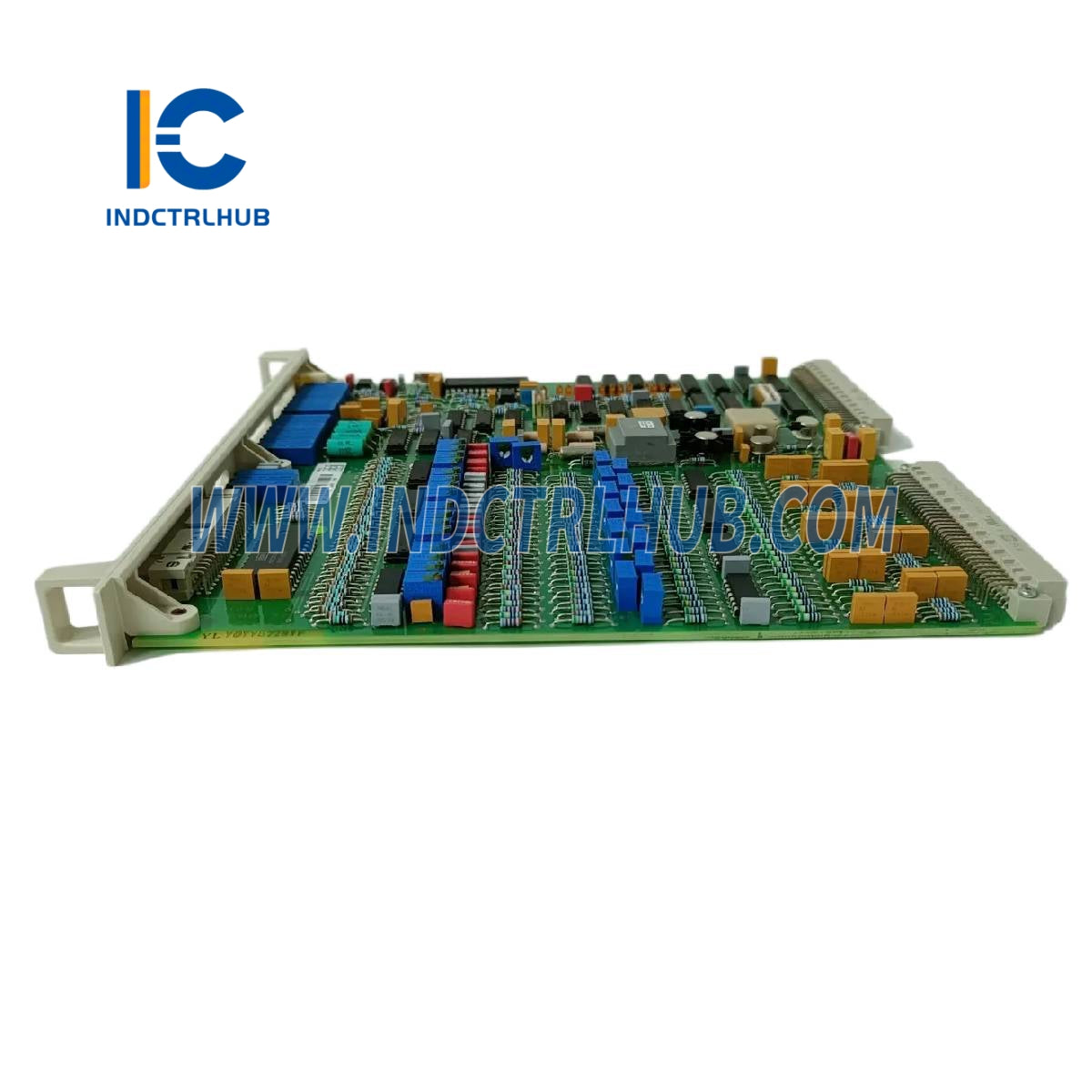

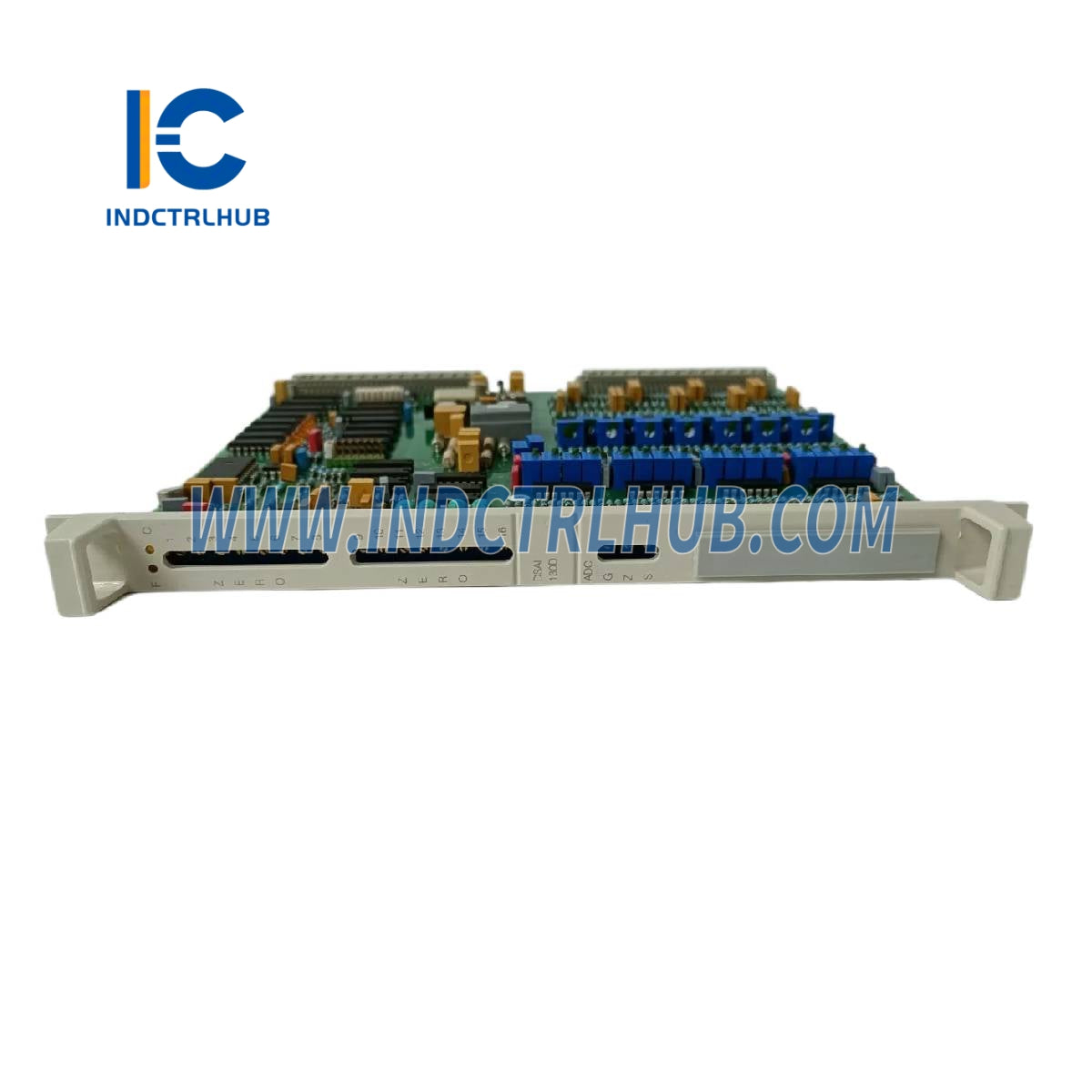

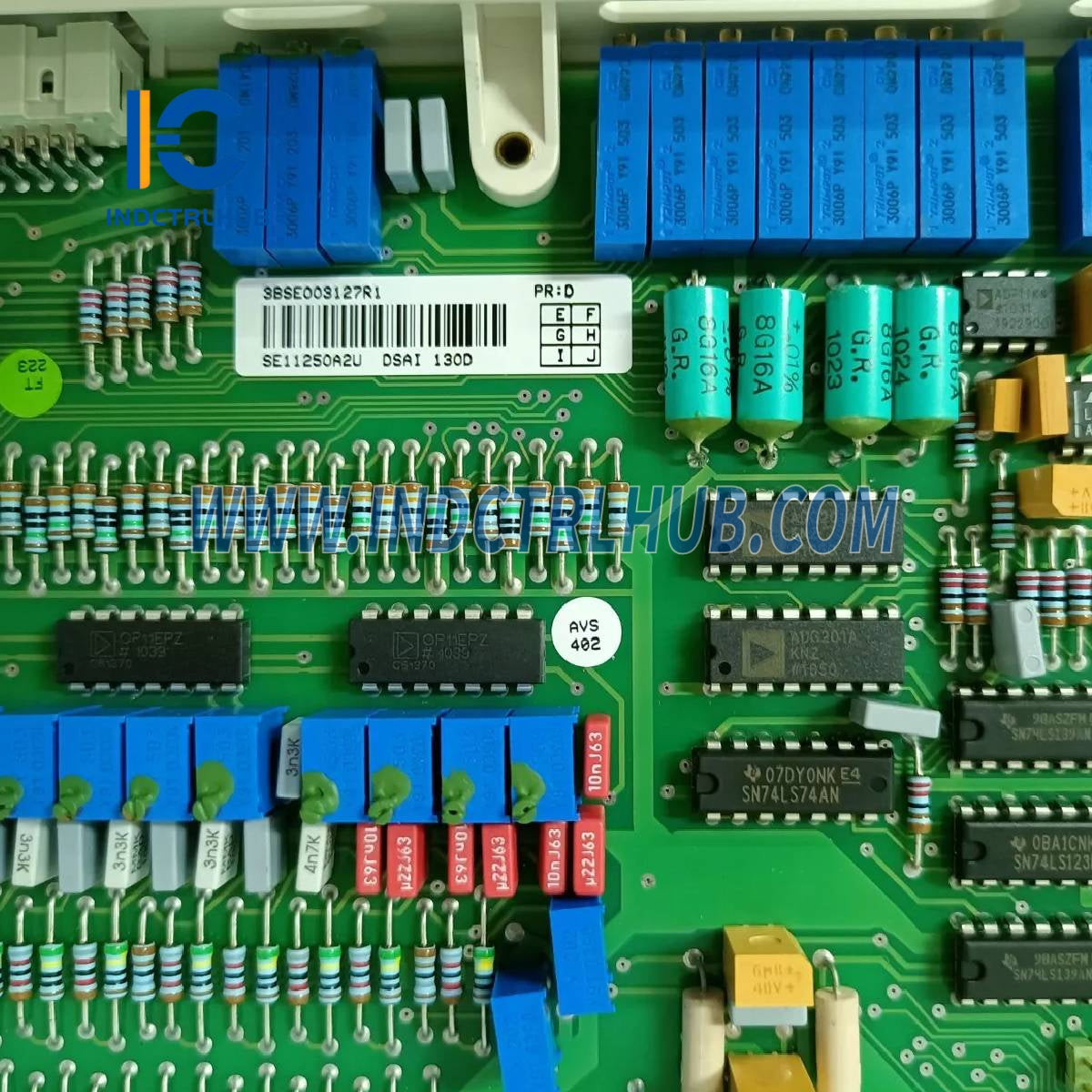

3BSE003127R1 | ABB DSAI130D Analog Input Board
3BSE003127R1 | ABB DSAI130D Analog Input Board
Manufacturer: ABB
Product No.: 3BSE003127R1
Condition:1000 in stock
Product Type: Analog Input Board
Product Origin: Switzerland
Payment: T/T, Western Union
Weight: 475g
Shipping port: Xiamen
Warranty: 12 months
- 24/7 Support
- 30-Day Returns
- Fast Shipping
General Information
|
Parameter |
Value |
|---|---|
|
Manufacturer |
ABB |
|
Product ID |
3BSE003127R1 |
|
ABB Type Designation |
DSAI 130D |
|
Catalog Description |
DSAI 130D Analog Input Board, 16 channels, 12-bit resolution |
|
Long Description |
Analog Input Board with 16 inputs, 4 sets of filter times, 12-bit resolution, differential input, ±10V, ±10mA, 0.03% accuracy, conversion time 20ms, cutoff frequency options: 10Hz, 30Hz, 100Hz, 300Hz |
|
Medium Description |
Analog Input Board |
|
Product Type |
Control System Accessory |
|
RoHS Compliance |
Exempt from 2011/65/EU under Article 2(4)(c), (e), (f), (j) |
_
Technical Specifications
|
Parameter |
Value |
|---|---|
|
Number of Inputs |
16 |
|
Resolution |
12-bit |
|
Input Type |
Differential |
|
Input Voltage Range |
±10V |
|
Input Current Range |
±10mA |
|
Accuracy |
0.03% |
|
Conversion Time |
20 ms |
|
Cutoff Frequency Options |
10Hz, 30Hz, 100Hz, 300Hz |
_
Ordering Information
|
Parameter |
Value |
|---|---|
|
HS Code |
853890 _ Parts for electrical apparatus (85.35, 85.36, 85.37) |
|
Customs Tariff Number |
85389091 |
_
Dimensions & Weight
|
Parameter |
Value |
|---|---|
|
Product Net Depth / Length |
365 mm |
|
Product Net Height |
20 mm |
|
Product Net Width |
261 mm |
|
Product Net Weight |
0.475 kg |
_
Environmental Information
|
Parameter |
Value |
|---|---|
|
RoHS Compliance |
Following EU Directive 2011/65/EU |
|
WEEE Category |
5. Small Equipment (No External Dimension More Than 50 cm) |
|
Number of Batteries |
0 |
|
SCIP |
713fdda1-59f8-4106-97bc-48a44475d0da (Sweden) |
_
Product Categories
__Products _ Control System Products _ I/O Products _ S100 I/O _ S100 I/O Modules _ DSAI 130D Analog Inputs _ DSAI 130D Analog Input
Parts & Services Categories
__Control Systems _ 800xA _ I/Os _ S100 I/O _ I/O Modules
__Control Systems _ Advant OCS with Master SW _ Controllers _ MasterPiece 200/200/1 _ I/O Modules
__Control Systems _ Advant OCS with MOD 300 SW _ I/Os _ S100 I/O _ I/O Modules
__Control Systems _ Compact Product Suite _ I/Os _ S100 I/O _ I/O Modules
