Product Description
Product Overview

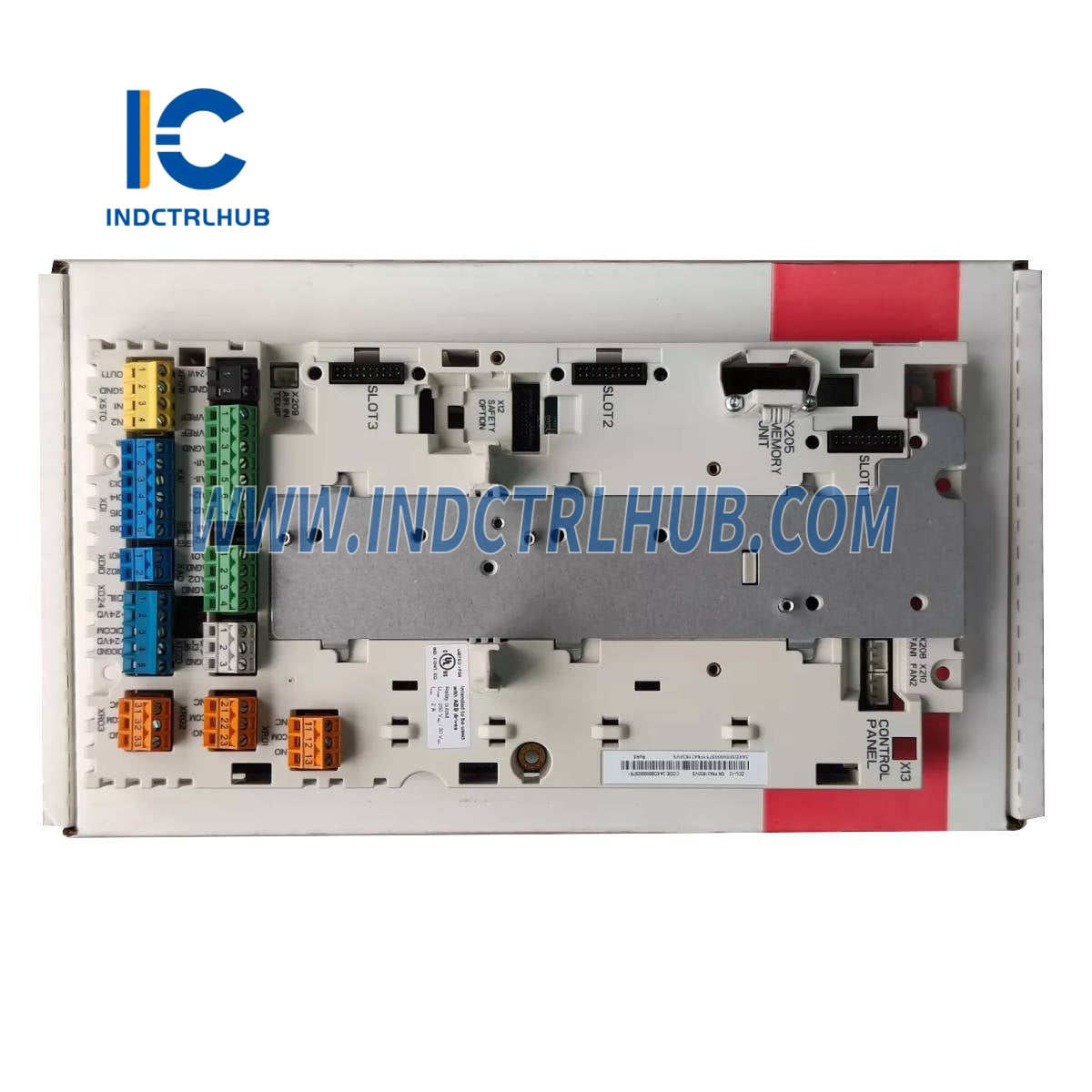

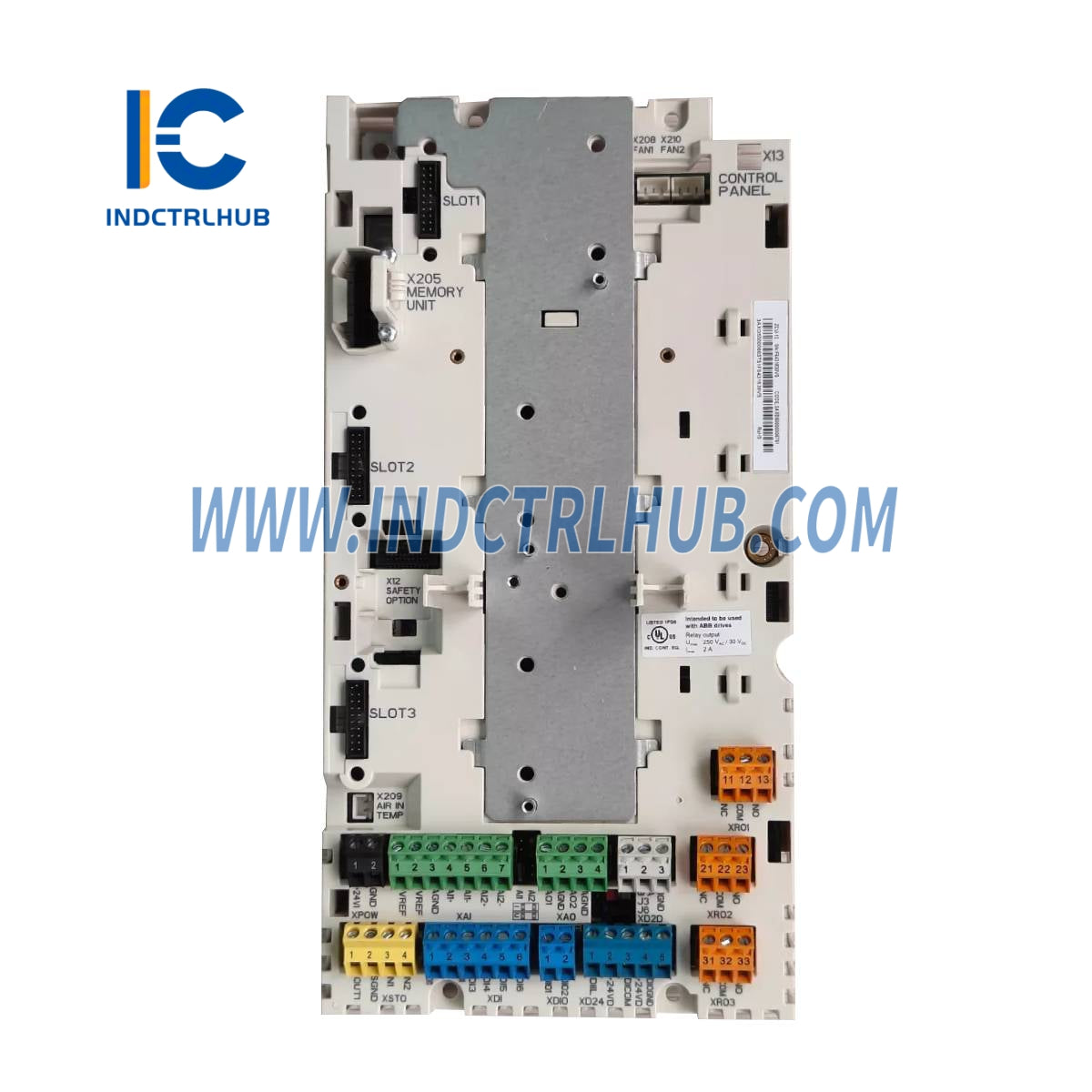

The ABB BCU-12 3AXD50000005751 is a Control Unit designed for use with ABB’s ACS880 multidrive systems, a family of variable speed drives (VSDs) for controlling AC motors. Manufactured by ABB, this module serves as the central control hub for managing inverter and converter operations, ensuring precise motor control and system diagnostics. It is widely used in industrial applications such as material handling, conveyor systems, pumps, fans, and machine tools, where reliable and efficient drive performance is critical. The BCU-12 integrates advanced features like fiber optic communication and data acquisition, making it a key component in ABB’s drive solutions.
Technical Specifications
The BCU-12 3AXD50000005751 has the following specifications based on supplier data and ABB’s ACS880 control unit documentation:
| Item | Specification |
|---|---|
| Model/Part Number | BCU-12 3AXD50000005751 |
| Manufacturer | ABB |
| Description | Control Unit |
| Series | ACS880 Multidrive |
| Power Supply | 24 V DC (external input) |
| Digital Inputs | 6 (configurable) |
| Digital Outputs | 3 relay outputs (250 V AC / 30 V DC, 2 A max) |
| Analog Inputs | 2 (configurable, 0-10 V or 4-20 mA) |
| Analog Outputs | 1 (configurable, 0-20 mA) |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Weight | Approximately 1.13 kg (2.5 lbs) |
Additional Details
The BCU-12 3AXD50000005751 includes the following additional information based on its standard use and documentation:
| Category | Details |
|---|---|
| Function | Controls ACS880 multidrive systems, manages motor operations |
| Mounting | DIN rail or panel-mounted |
| Connectivity | Fiber optic links (2 channels), SD card slot, Ethernet option |
| Features | Data logging, fault tracing, real-time clock, 7-segment display |
| Certifications | Designed for industrial standards (e.g., CE, UL) |
