Product Description
Product Details

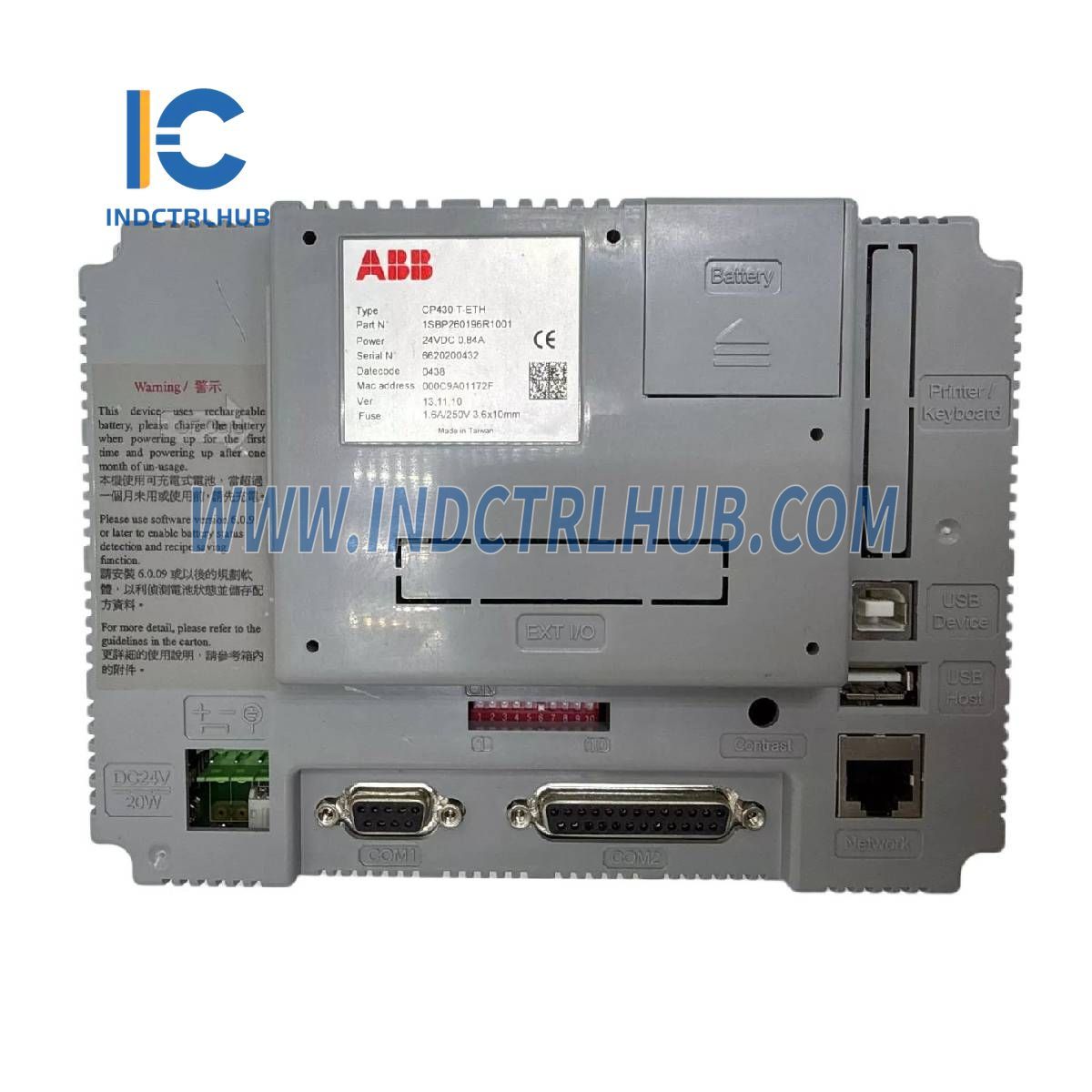

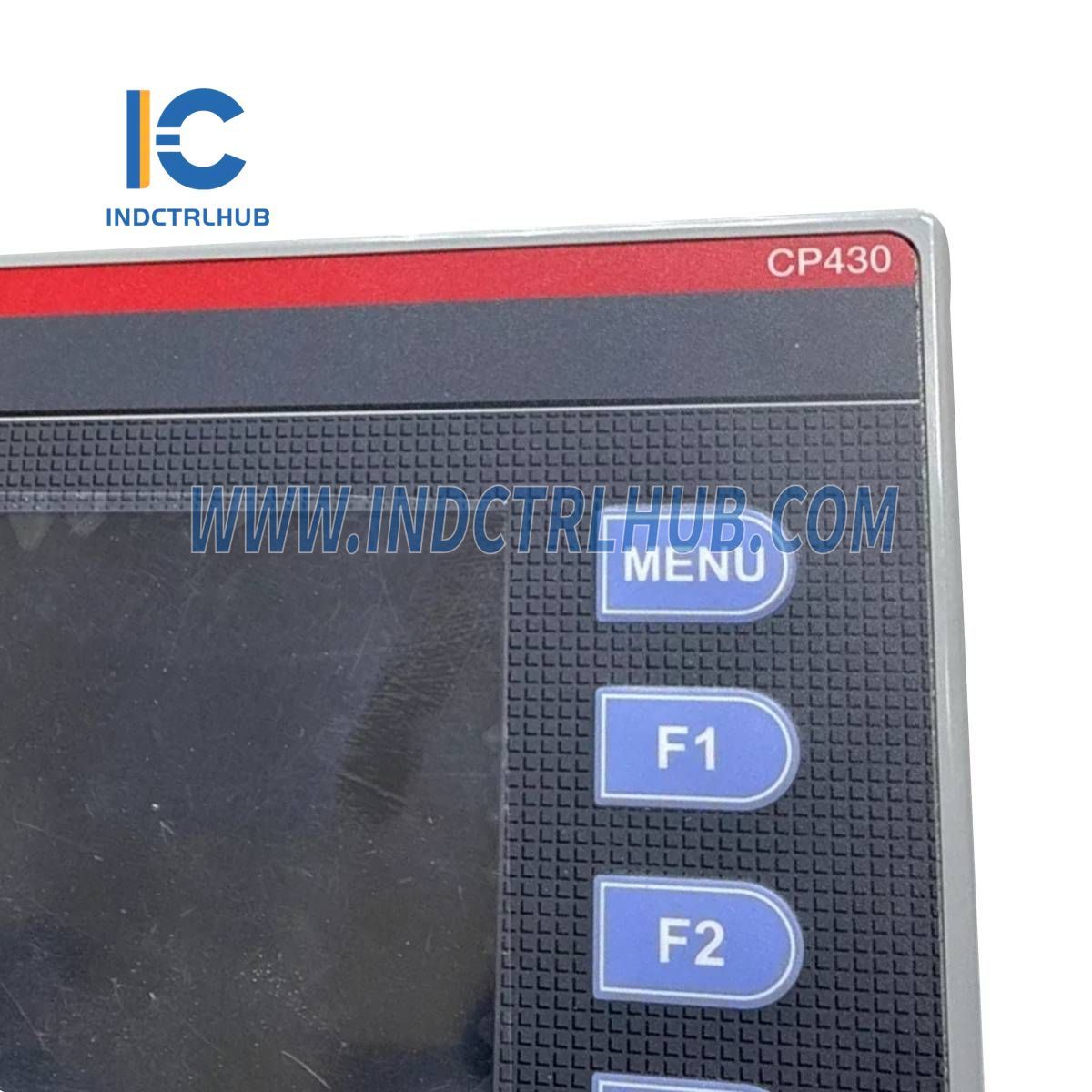

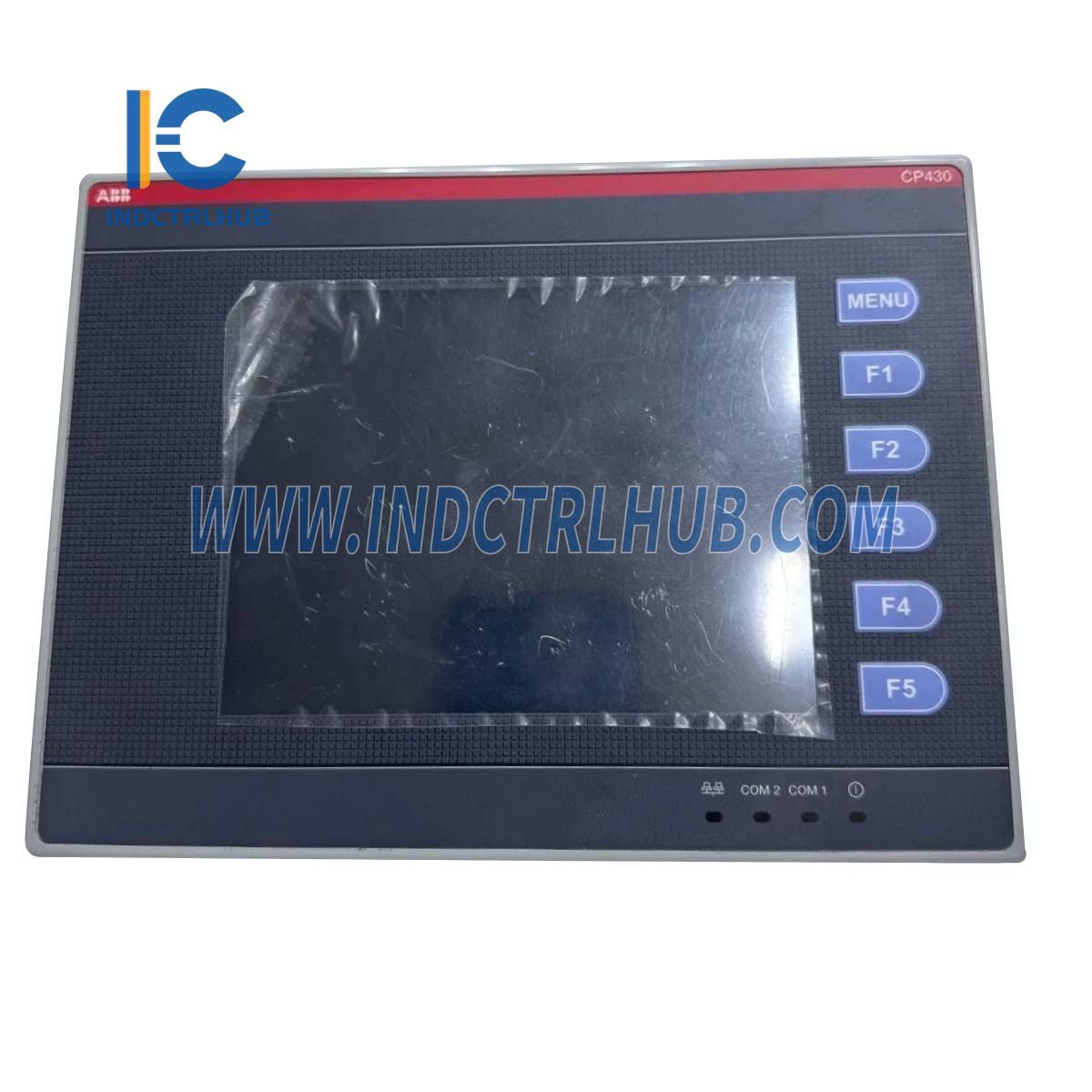

- Manufacturer: ABB
- Model/Part Number: CP430T-ETH (1SBP260196R1001)
- Description: Panel Membrane Keypad
General Information
| Attribute | Details |
|---|---|
| Extended Product Type | CP430T-ETH |
| Product ID | 1SBP260196R1001 |
| ABB Type Designation | CP430T-ETH |
| EAN | 3471522601964 |
| Catalog Description | CP430T-ETH: CP400, control panel with 1 menu + 5 definable keys, 5.7" TFT touchscreen, 64K colors, Ethernet |
| Long Description | CP430T-ETH Control Panel, 1 menu, 5 defined keys, 5.7" TFT touchscreen, 64K colors, Ethernet |
| Product Name | Control Panel |
| Mounting Type | Front face |
| Mounting Position | 0 to 135° |
| Supply Voltage | 24 V DC |
| Power Consumption | 20 VA |
| Service Life | 60,000 hours |
| Operating Mode | Off-line / On-line |
| Security | Password protection with 9 user levels |
| Real-time Clock | Yes |
Display & Input Features
| Attribute | Details |
|---|---|
| Screen Type | TFT color, CCFL backlight, touchscreen |
| Screen Size | 5.7" (4:3 aspect ratio) |
| Screen Resolution | 320 x 240 pixels |
| Screen Colors | 64K |
| Viewing Area (Height x Length) | 88.4 mm x 117.2 mm |
| Number of Display Lines | 30 |
| Number of Characters Per Line | 40 |
| Number of Function Keys | 5 |
| Number of LEDs | 0 |
Communication & Interfaces
| Attribute | Details |
|---|---|
| Communication Interface | Ethernet |
| Communication Speed | 4.8 – 187.5 kBd |
| Serial Port 1 Type | RS232/RS485 |
| Serial Port 2 Type | RS232/RS422/RS485 |
| USB Port 1 Type | Host, version 2.0 |
| USB Port 2 Type | Device, version 2.0 |
| Fieldbus Interface Type | Modbus RTU, AC500 Modbus ASCII, others available |
| Profibus Support | No |
Memory & Software
| Attribute | Details |
|---|---|
| Memory Size (User Data) | 512 KB RAM |
| Memory Size (User Program) | 4000 KB ROM |
| Programming Software | CP400 Soft |
| Software Functions | Alarm management, recipe management, trends, macro & ladder, sub-screen |
Environmental & Certification
| Attribute | Details |
|---|---|
| Operating Temperature | 0 to +50°C |
| Storage Temperature | -10 to +60°C |
| Battery Type | Portable |
| Battery Weight | 0.0037 kg |
| Contains Hg (Mercury) | <0.001% |
| Contains Cd (Cadmium) | <0.002% |
| cUL Certificate | 1SAA960000-1709 |
| Declaration of Conformity - CE | 1SBD240515C1000 |
| RoHS Information | 1SBD340002R0202 |
| UL Certificate | NRAQ.E240320 |
Weight & Packaging
| Attribute | Details |
|---|---|
| Net Weight | 0.86 kg |
| Customs Tariff Number | 85381000 |
