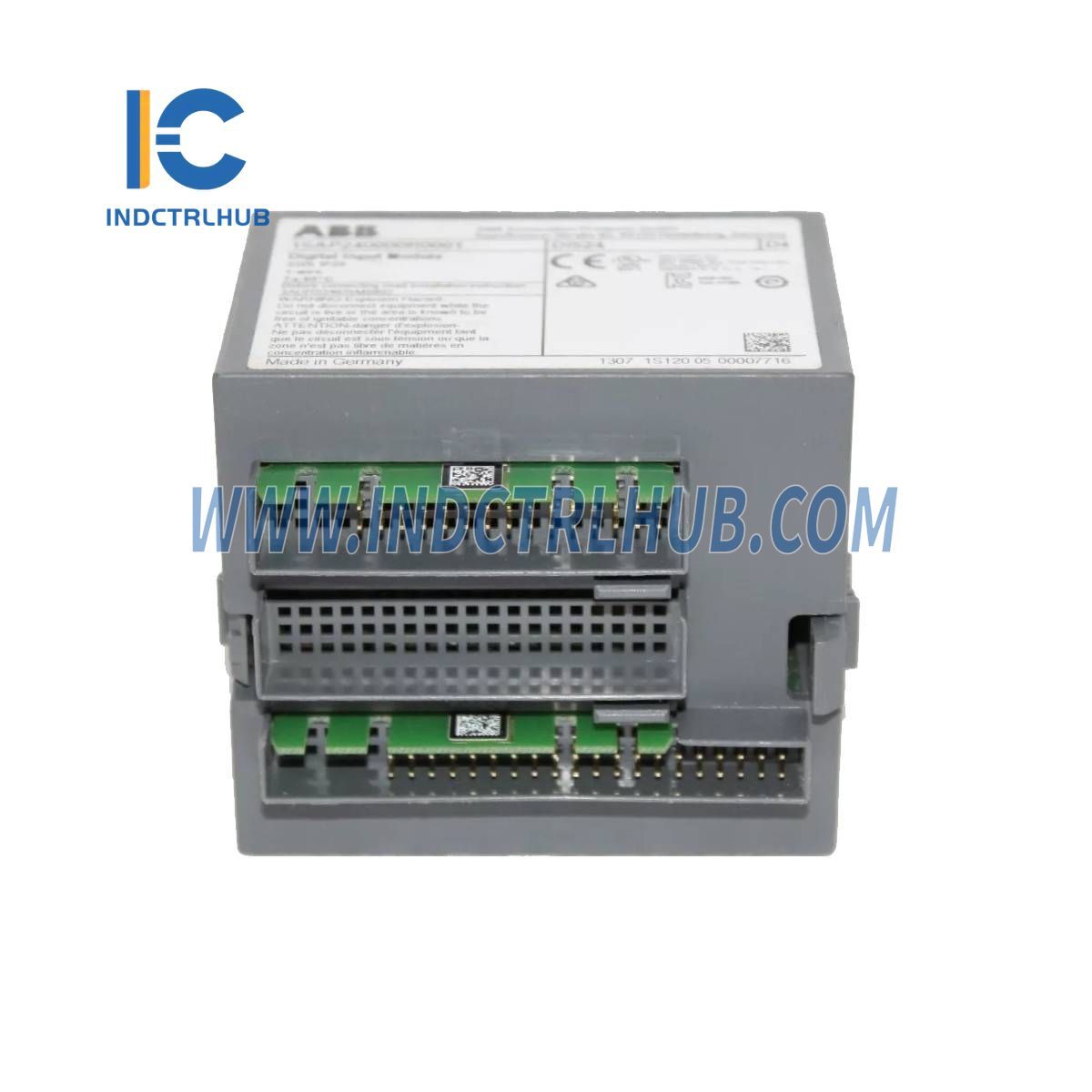

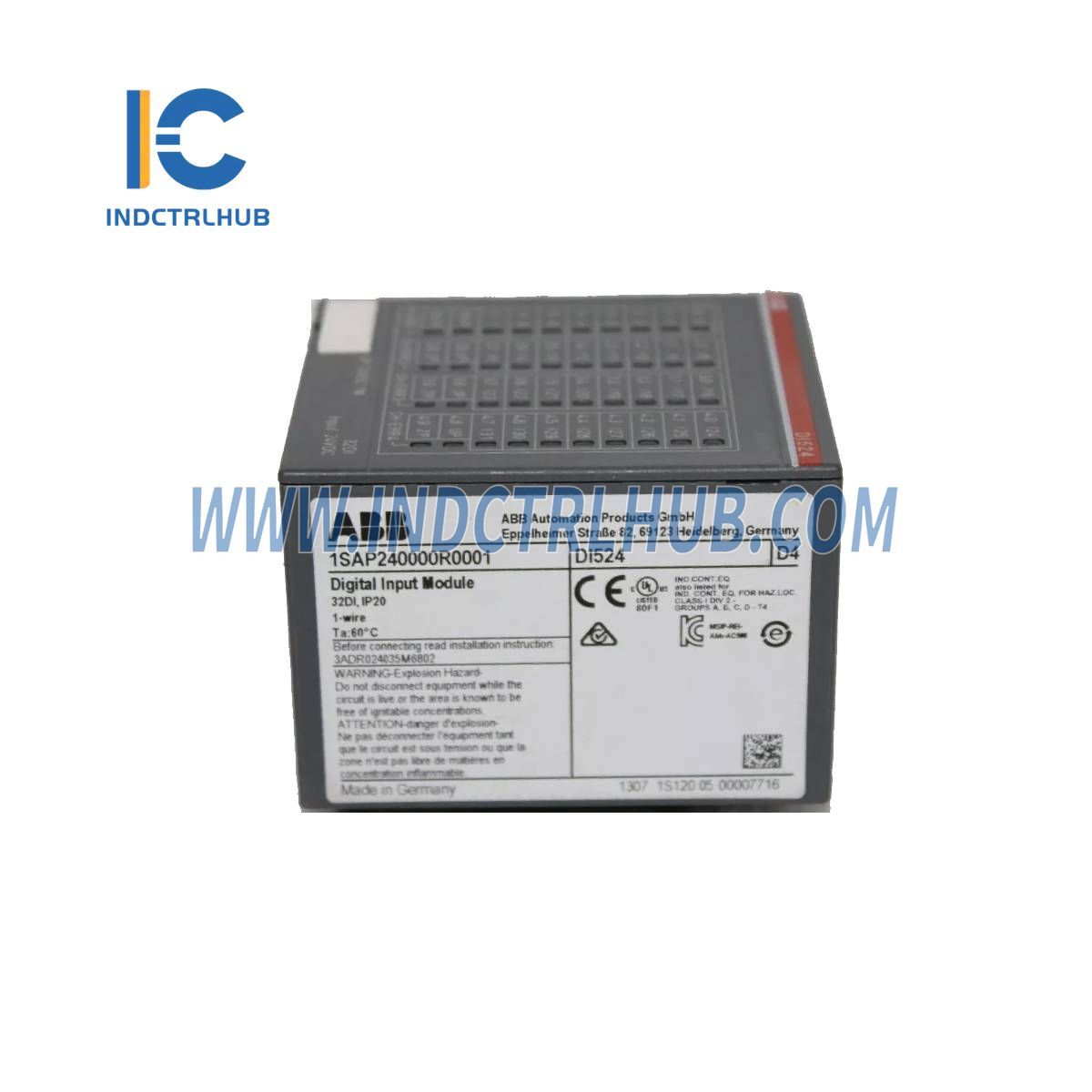

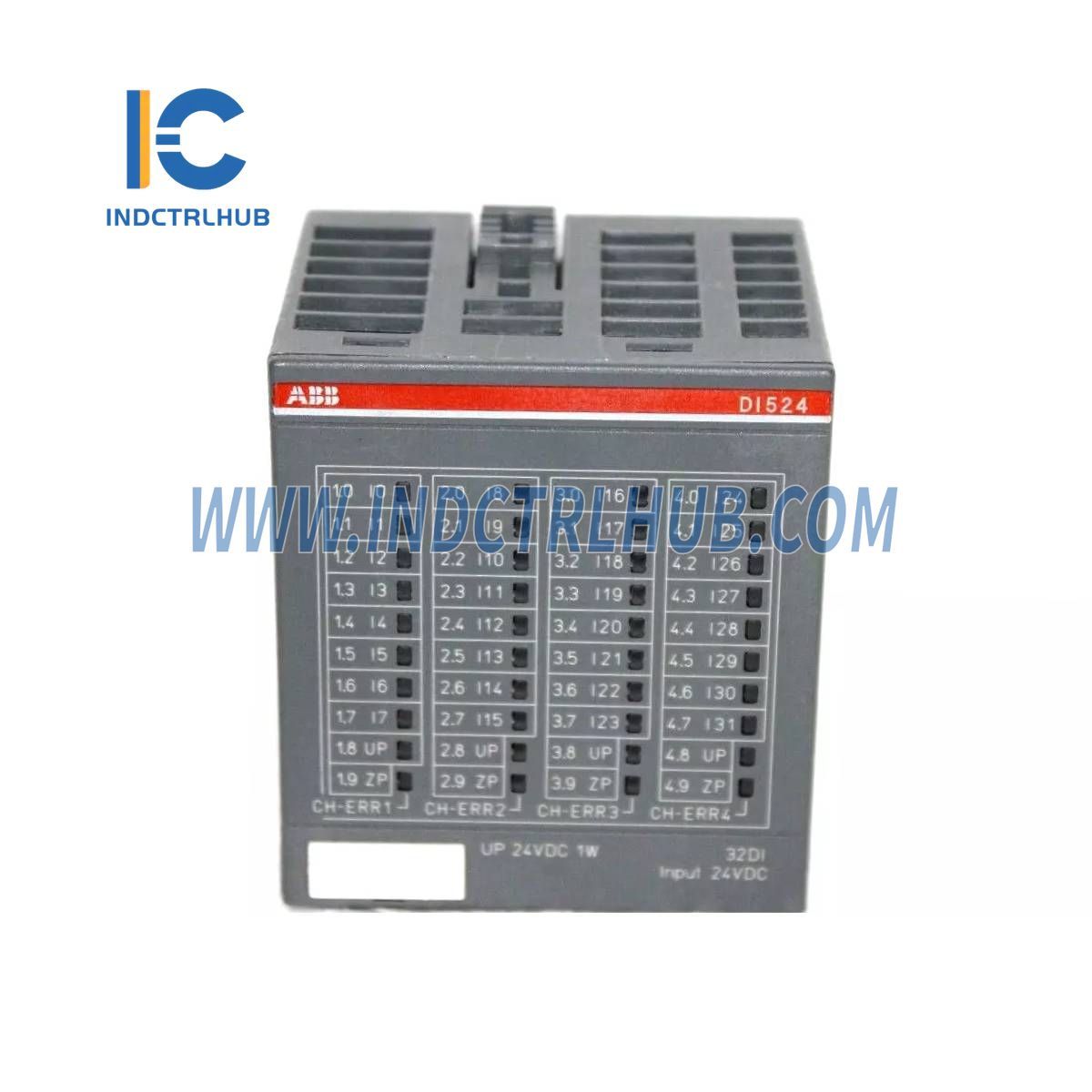

Product Description
Product Details
| Manufacturer | ABB |
|---|---|
| Model/Part Number | DI524 |
| Product ID | 1SAP240000R0001 |
| Catalog Description | Digital Input Module, 32 DI: 24VDC (DI524) |
| Product Name | Distributed Automation I/Os |
| Product Main Type | DI524 |
| Function | 32 DI: 24VDC |
| Degree of Protection | IP20 |
| Supply Voltage | 20.4 … 28.8 V DC |
Ordering Information
| CN8 Code | 85389091 |
|---|---|
| Invoice Description | Digital Input Module, 32 DI: 24VDC (DI524) |
| Made To Order | No |
| Minimum Order Quantity | 1 piece |
| Order Multiple | 1 piece |
| Selling Unit of Measure | Piece |
Weight & Dimensions
| Specification | Value |
|---|---|
| Product Net Weight | 0.1 kg |
| Gross Weight | 0.124 kg |
| Product Net Depth / Length | 62 mm |
| Product Net Height | 76 mm |
| Product Net Width | 67.5 mm |
| Package Level 1 Depth / Length | 84 mm |
| Package Level 1 Height | 72 mm |
| Package Level 1 Width | 71 mm |
| Package Level 1 Units | 1 carton |
Technical Specifications
| Specification | Value |
|---|---|
| Number of Digital Inputs | 32 |
| Number of Digital Configurable I/Os | 0 |
| Input Voltage Type | DC |
| Input Current | 5 mA |
| Maximum Input Voltage | 0 ... 30 V |
| Delay Time (τ) | 0.1 … 32 ms |
External Classifications & Standards
| eClass | 27-24-22-04 |
|---|---|
| ETIM 8 / 9 / 10 | EC001419 - PLC digital I/O-module |
| UNSPSC | 32151705 |
Environmental Information
| SCIP | 4c0d2eb2-95de-4c2f-8a8e-3c148ea4248f Germany (DE) |
|---|---|
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Business |
Applicable Products
| Category | Product Line |
|---|---|
| Products | PLC Automation → Programmable Logic Controllers (PLCs) → AC500 → S500 I/O modules |
