Product Description
Product Details

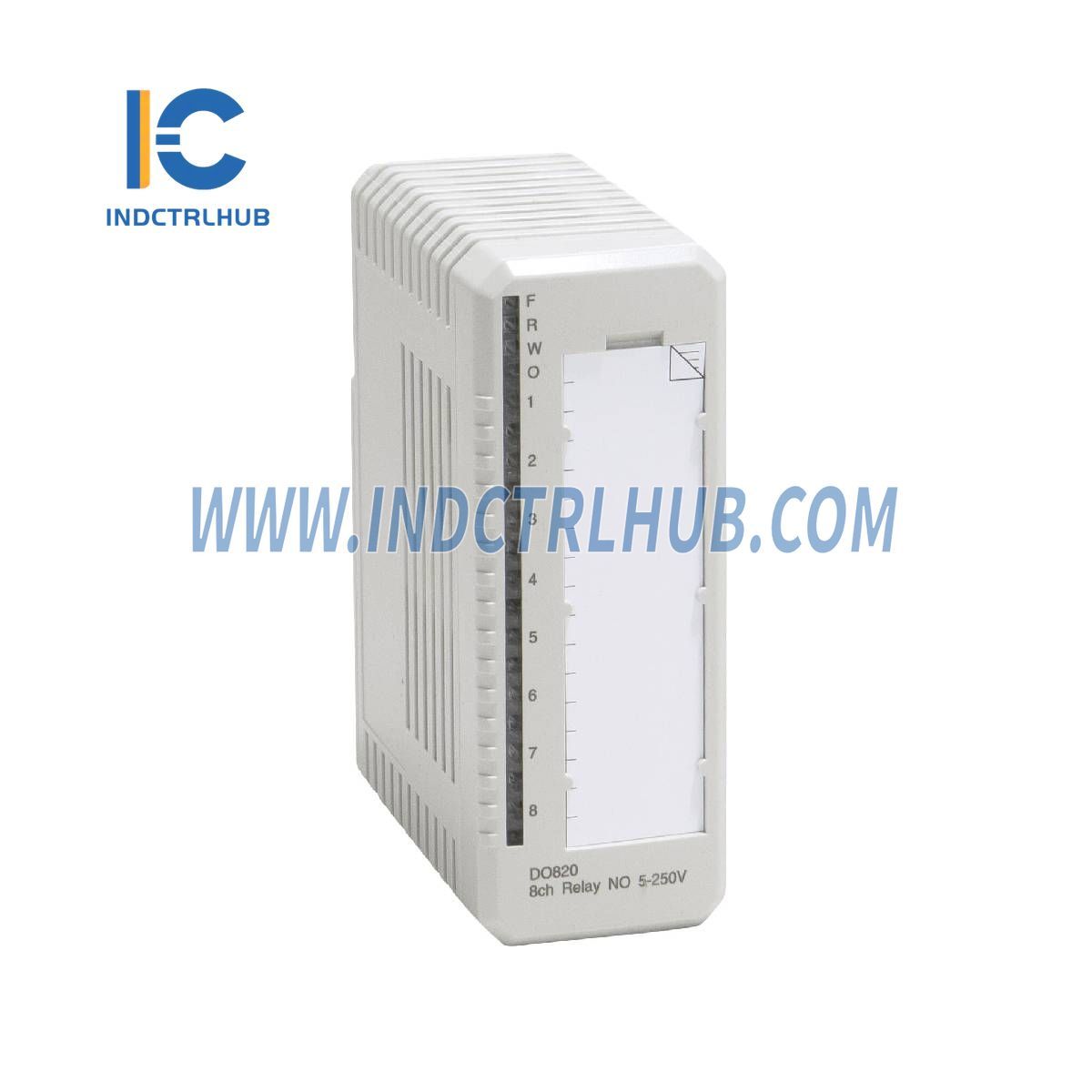

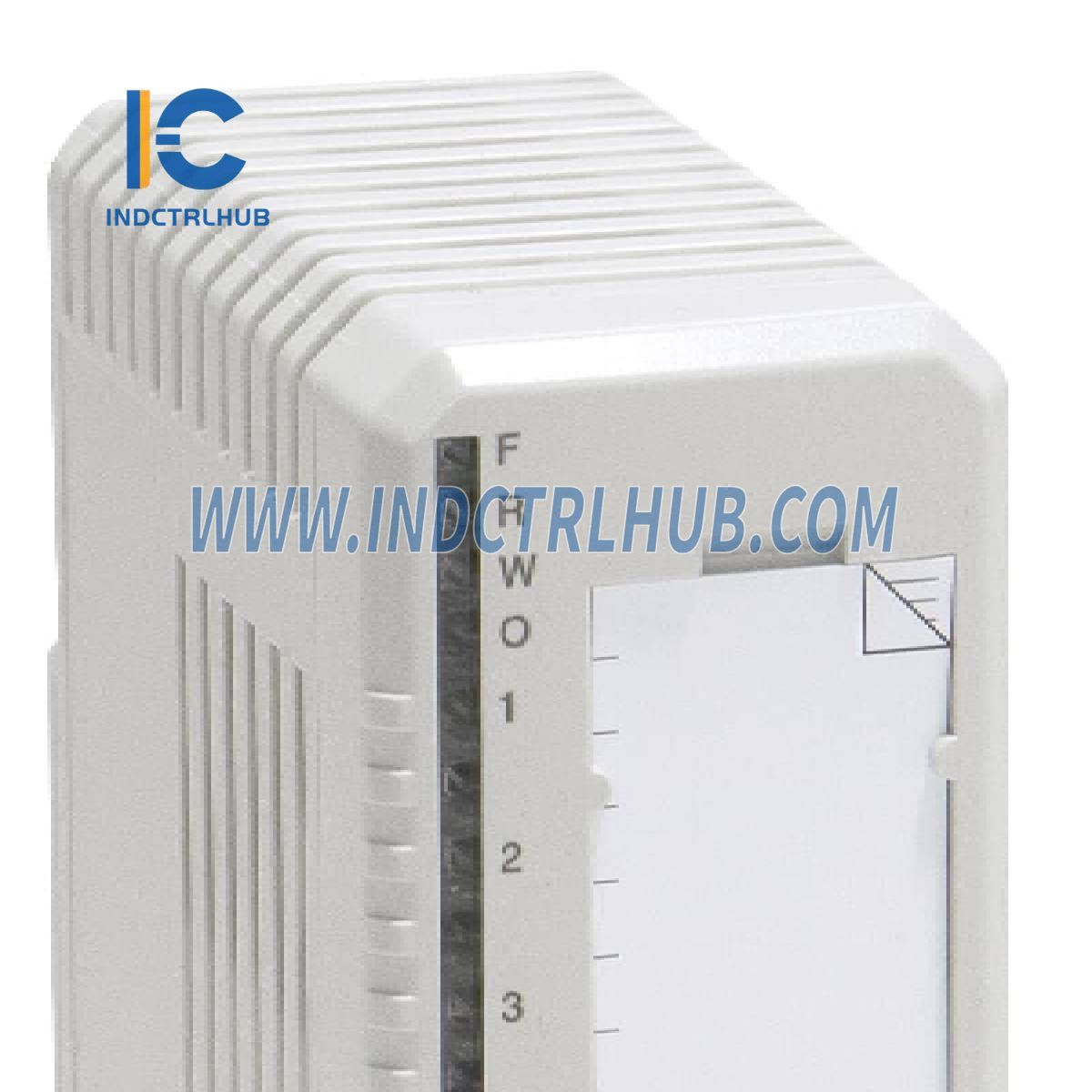

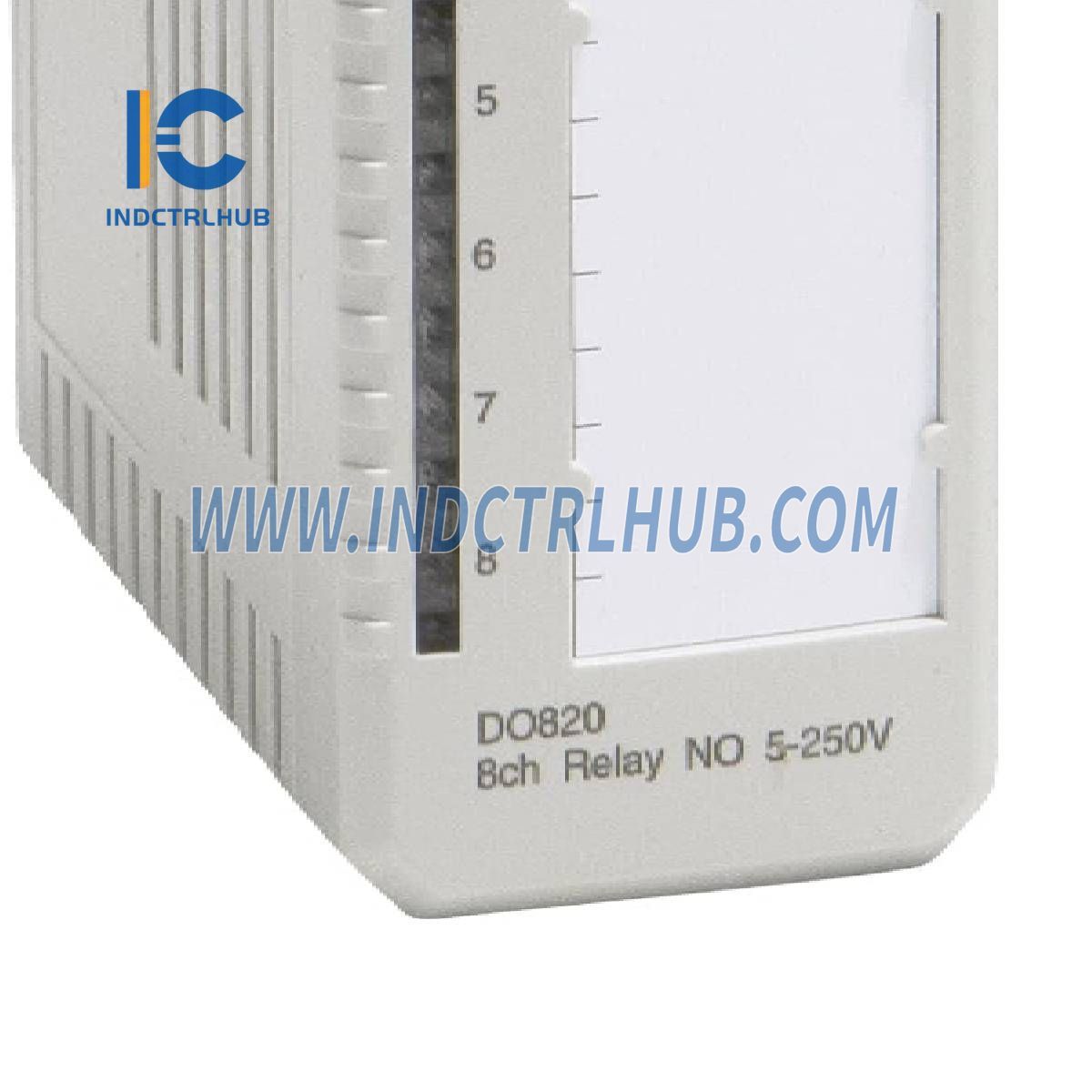

- Manufacturer: ABB
- Model/Part Number: 3BSE008514R1
- Description: DO820 Digital Output Relay (8 Channels)
General Information
| Attribute | Details |
|---|---|
| Product ID | 3BSE008514R1 |
| ABB Type Designation | DO820 |
| Catalog Description | DO820 Digital Output Relay 8 ch |
| Long Description | 24-230V AC/DC, 3A, cos phi > 0.4, DC 42W. Individually galvanic isolated channels. |
| Compatible Module Termination Units | TU811, TU813, TU831, TU836, TU837, TU851 |
| Product Type | I/O Module |
Ordering Information
| Attribute | Details |
|---|---|
| HS Code | 85389099 |
| Customs Tariff Number | 85389099 |
Dimensions & Weight
| Attribute | Details |
|---|---|
| Product Net Depth / Length | 102 mm |
| Product Net Height | 119 mm |
| Product Net Width | 45 mm |
| Product Net Weight | 0.3 kg |
Technical Specifications
| Attribute | Details |
|---|---|
| Channel Type | DO (Digital Output) |
| Number of Output Channels | 8 |
| Voltage | 24-230V AC/DC |
| Current Rating | 3A |
| Power | DC 42W |
| Isolation | Individually Galvanic Isolated Channels |
Environmental Compliance
| Attribute | Details |
|---|---|
| RoHS Status | Compliant with EU Directive 2011/65/EU |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| SCIP Code | 34b9d698-c231-40bd-b377-faa45bcee434 (Estonia) |
| Number of Batteries | 0 |
