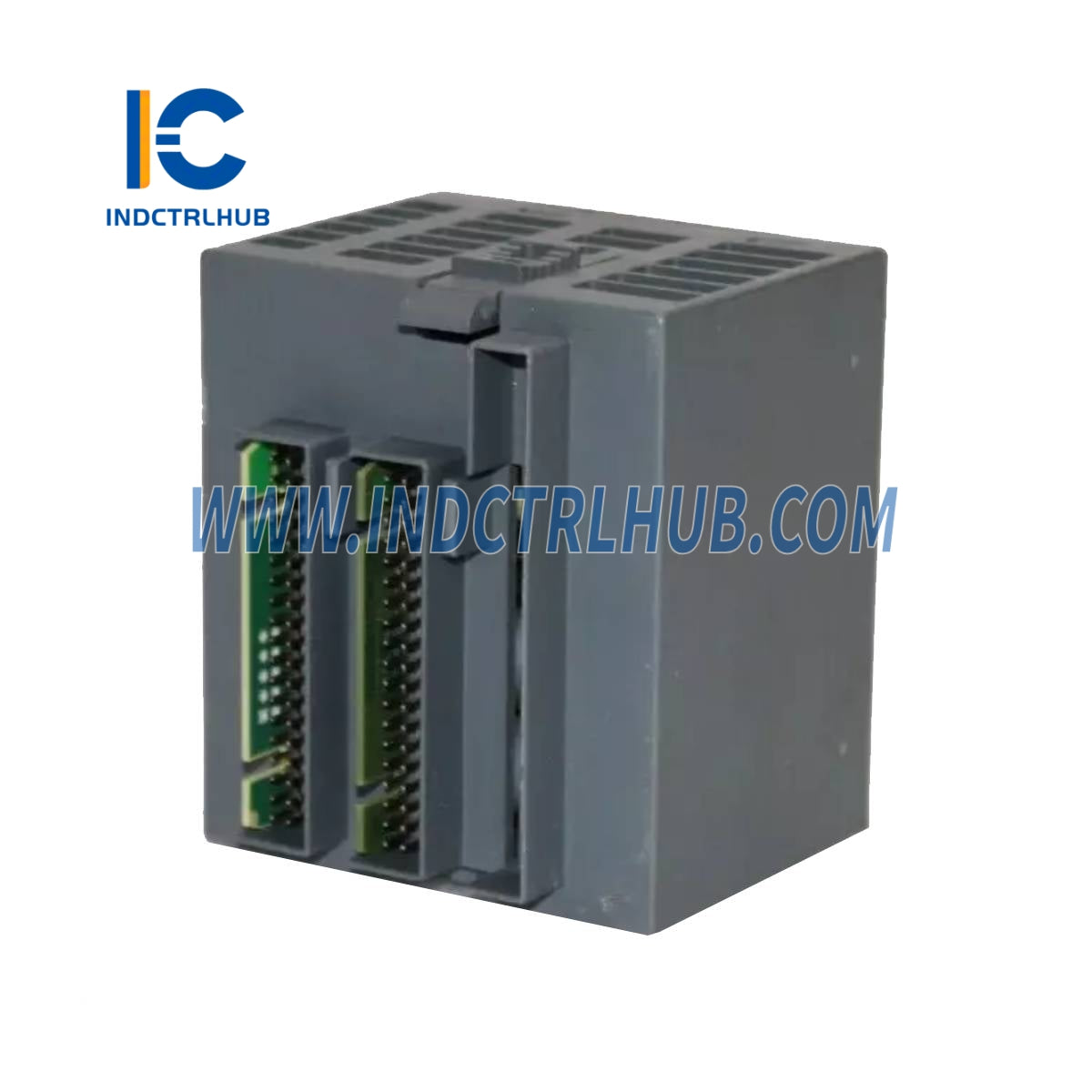

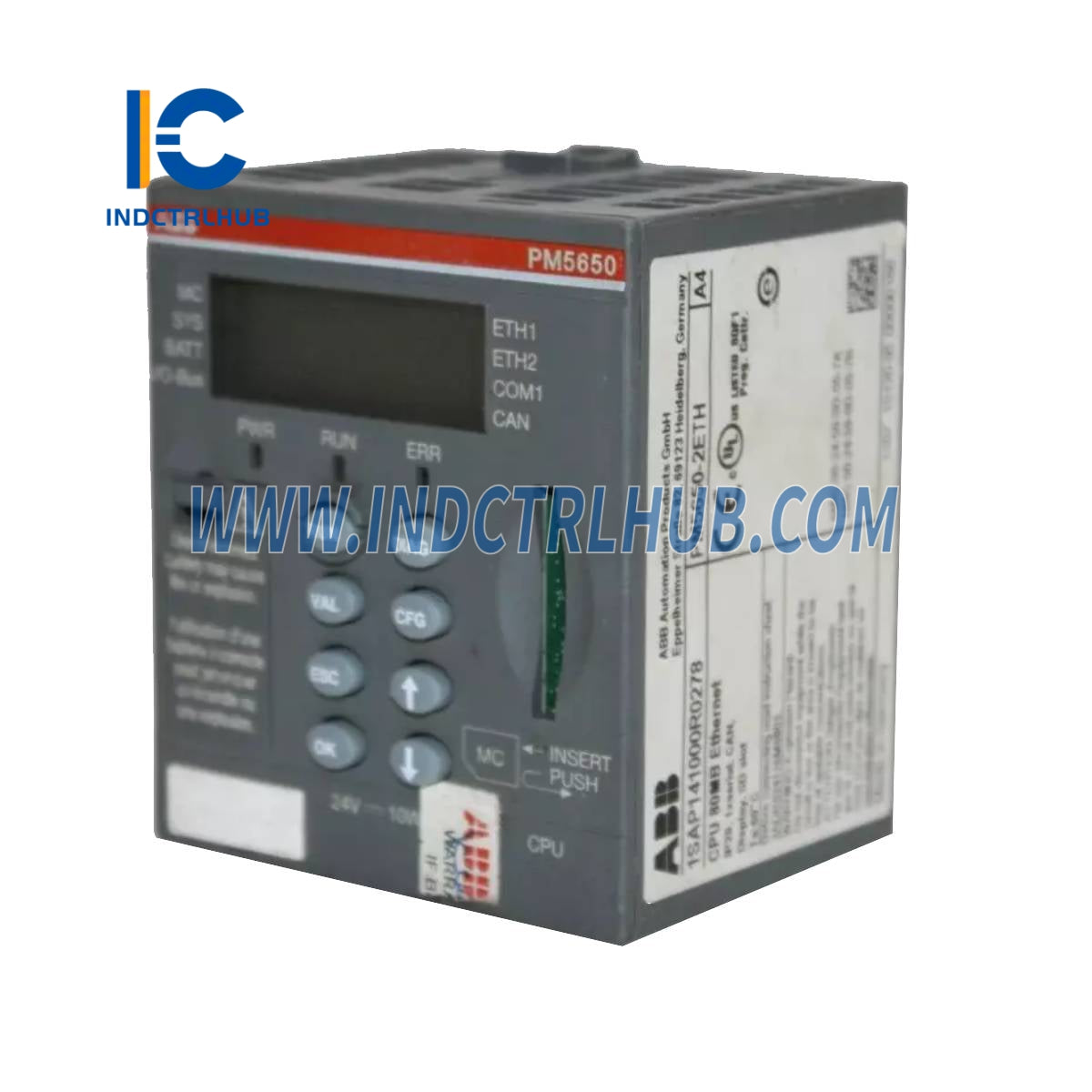

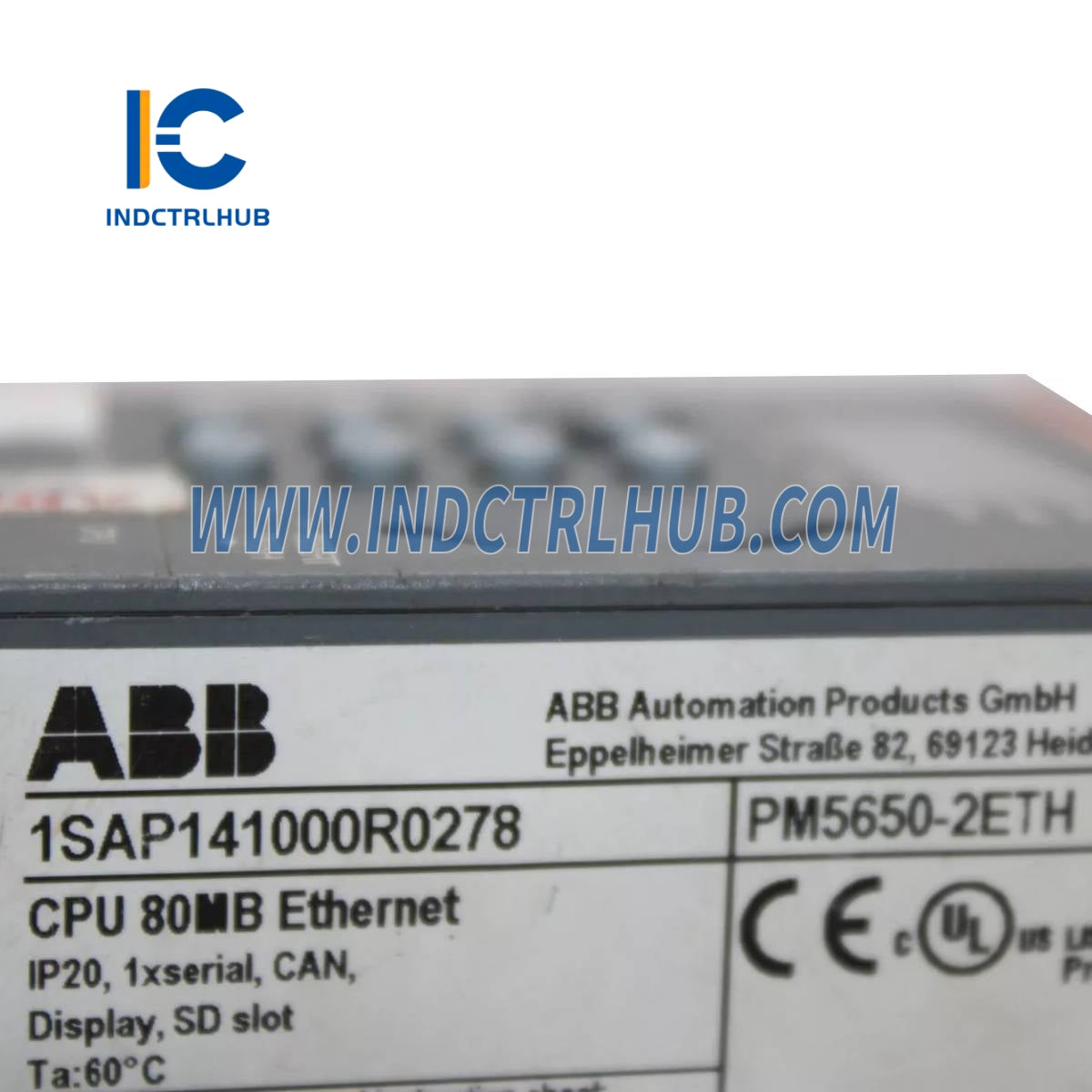

1SAP141000R0278 | ABB PM5650-2ETH Processor module

1SAP141000R0278 | ABB PM5650-2ETH Processor module

  • Manufacturer: ABB

  • Product No.: 1SAP141000R0278

  • Condition:1000 in stock

  • Product Type: Processor module

  • Product Origin: Switzerland

  • Payment: T/T, Western Union

  • Weight: 158g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Support
  • 30-Day Returns
  • Fast Shipping

General Information

Parameter

Value

Manufacturer

ABB

Extended Product Type

PM5650-2ETH

Product ID

1SAP141000R0278

ABB Type Designation

PM5650-2ETH

EAN

4013614509018

Catalog Description

Processor module. Memory 80MB. Interfaces: 2 Ethernet, RS232/485, CAN. Display (PM5650-2ETH)

Long Description

PM5650-2ETH: AC500 Processor module. Memory 80MB. Interfaces: 2 Ethernet, RS232/485, CAN. Display.






Ordering Information

Parameter

Value

CN8

85389091

Invoice Description

Processor module. Memory 80MB. Interfaces: 2 Ethernet, RS232/485, CAN. Display (PM5650-2ETH)

Made to Order

No

Minimum Order Quantity

1 piece

Order Multiple

1 piece

Selling Unit of Measure

Piece






Dimensions

Parameter

Value

Product Net Weight

0.133 kg

Product Net Depth / Length

62 mm

Product Net Height

76 mm

Product Net Width

67.5 mm

Gross Weight

0.158 kg

Package Level 1 Depth / Length

84 mm

Package Level 1 Height

72 mm

Package Level 1 Width

71 mm

Package Level 1 Units

1 carton






Technical Specifications

Parameter

Value

Function

Memory 80MB. Interfaces: 2 Ethernet, RS232/485, CAN. Display

Number of Hardware Interfaces

Industrial Ethernet 2, Other 2

Memory Size

369256 kB

Memory Type User Data

RAM

Controller Processing Time

0.00001 ms

Degree of Protection

IP20

Rated Voltage (Ur)

24 V DC

Supply Voltage

20.4 … 28.8 V DC

Number of Digital Configurable I/Os

0






Additional Information

Parameter

Value

Product Main Type

PM5650

Product Name

Distributed Automation PLCs






External Classifications and Standards

Parameter

Value

eClass

27-24-22-07

ETIM 8

EC000236 - PLC CPU-module

ETIM 9

EC000236 - PLC CPU-module

ETIM 10

EC000236 - PLC CPU-module

UNSPSC

32151705






Environmental Specifications

Parameter

Value

SCIP

47ba549e-de3e-49d2-a9b0-bc53bb670ab9 Germany

WEEE B2C / B2B

Business To Business

WEEE Category

5. Small Equipment (No External Dimension More Than 50 cm)






Products

Category

Value

Products

PLC Automation › Programmable Logic Controllers PLCs › AC500 › CPUs
