Product Description
General Information
|
Parameter |
Value |
|---|---|
|
Manufacturer |
ABB |
|
Model/Part Number |

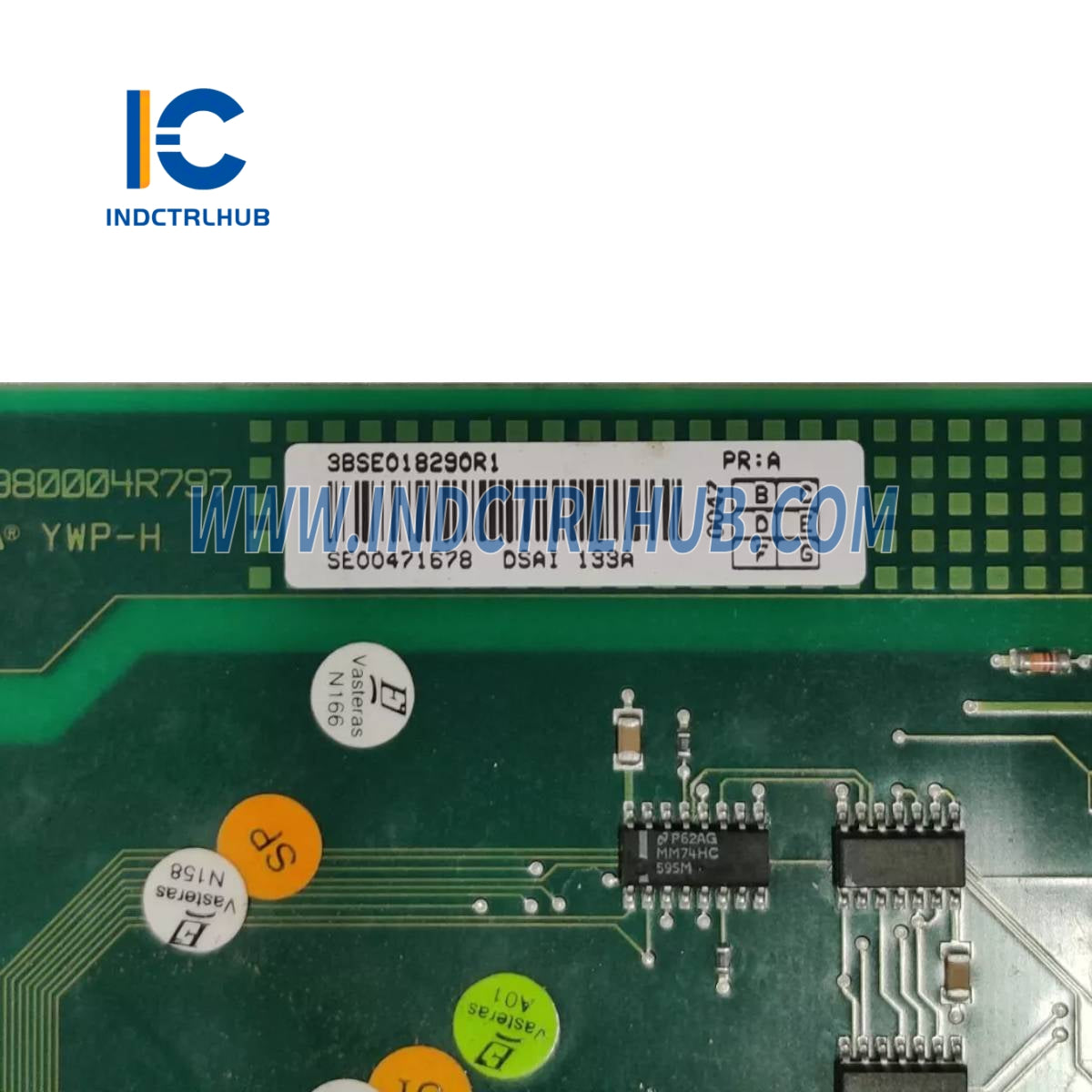

DSAI 133A (3BSE018290R1) |
|
ABB Type Designation |
DSAI 133A |
|
Catalog Description |

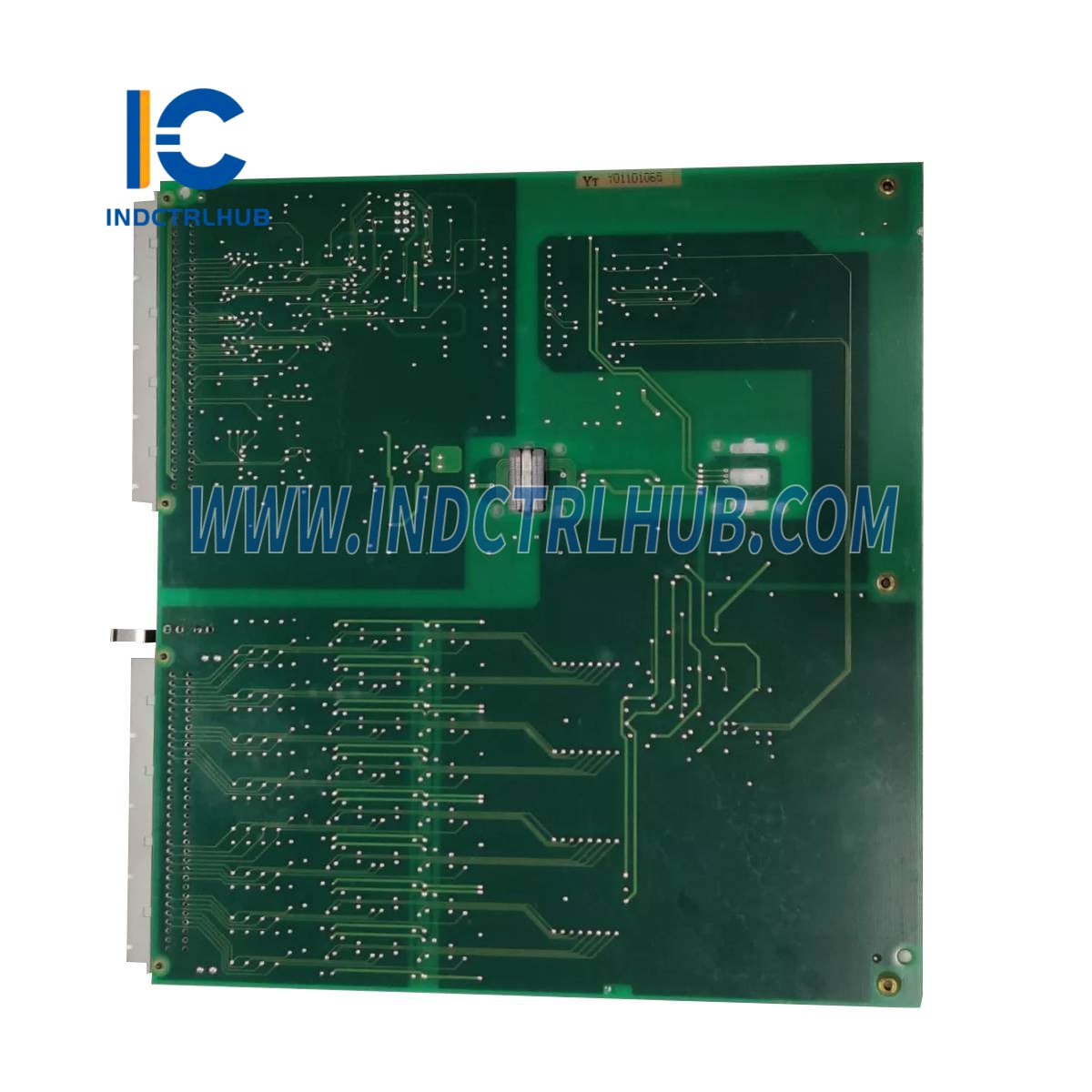

DSAI 133A Analog Input Board 32 Channels |
|
Long Description |
Analog Input Board 32 Ch |
|
Product Type |
I/O Module |
|
Medium Description |
DSAI 133A Analog Input Board 32 Channels |
Technical Information
|
Parameter |
Value |
|---|---|
|
Function |
Analog Input Board, 32 channels |
|
RoHS Status |
Exempt from 2011/65/EU (RoHS) under Article 2(4)(c), (e), (f), and (j) |
|
Compliance Reference |
3BSE088609 – EU DECLARATION OF CONFORMITY (ABB Advant Master Process Control System) |
Ordering Information
|
Parameter |
Value |
|---|---|
|
HS Code |
853890 (Parts suitable for use solely or principally with the apparatus of heading 85.35, 85.36, or 85.37 - Other) |
|
Customs Tariff Number |
85389091 |
Dimensions & Weight
|
Parameter |
Value |
|---|---|
|
Product Net Depth / Length |
324 mm |
|
Product Net Height |
22.5 mm |
|
Product Net Width |
225 mm |
|
Product Net Weight |
0.29 kg |
Environmental Specifications
|
Parameter |
Value |
|---|---|
|
RoHS Status |
Not RoHS Compliant |
|
WEEE Category |
5 (Small Equipment - No External Dimension More Than 50 cm) |
|
Number of Batteries |
0 |
|
SCIP Reference |
316d997c-2873-44db-b2fb-de0ac8719e42 (Sweden) |
Applicable Products & Systems
|
Parameter |
Value |
|---|---|
|
Control System Products |
I/O Products → S100 I/O → S100 I/O Modules → DSAI 133A Analog Inputs → DSAI 133A Analog Input |
|
Control Systems |
Advant OCS with Master SW → Controllers → Advant Controller 450 (Version 2.3) → I/O Modules |
|
Additional Systems |
- Advant OCS with MOD 300 SW → Controllers → AC460 → I/O Modules - 800xA → I/Os → S100 I/O → I/O Modules - Advant OCS with Master SW → Controllers → MasterPiece 200 and 200/1 → I/O Modules - Advant OCS with Master SW → I/Os → S100 I/O → I/O Modules - Advant OCS with MOD 300 SW → I/Os → S100 I/O → I/O Modules - Compact Product Suite → I/Os → S100 I/O → I/O Modules |
