Product Description
General Information
|
Parameter |
Value |
|---|---|
|
Manufacturer |
ABB |
|
Extended Product Type |
PM5630-2ETH |
|
Product ID |
1SAP131000R0278 |
|
ABB Type Designation |
PM5630-2ETH |
|
EAN |
4013614508998 |
|
Catalog Description |
Processor module with 8MB memory, 2 Ethernet, RS232/485, CAN, and display |
|
Long Description |

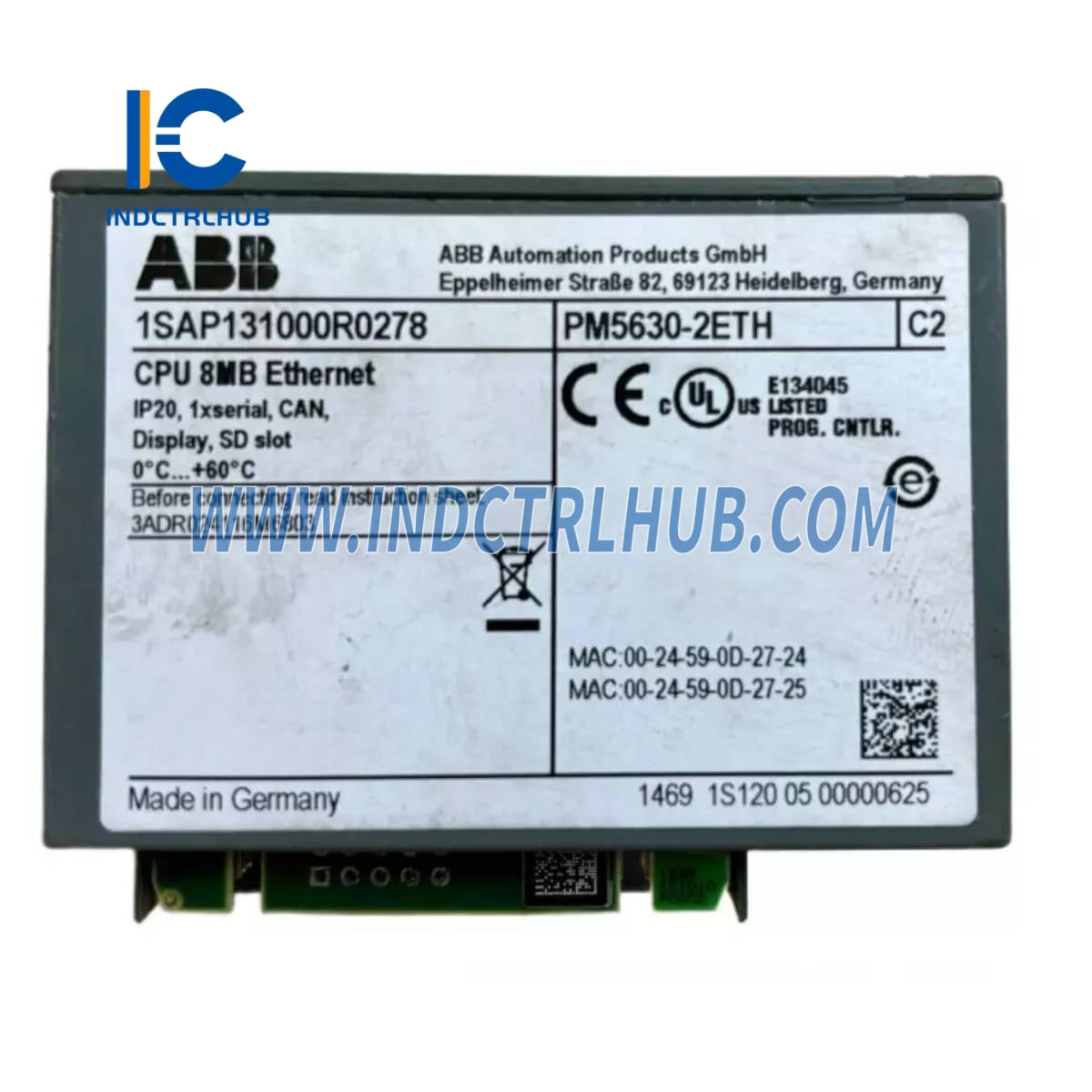

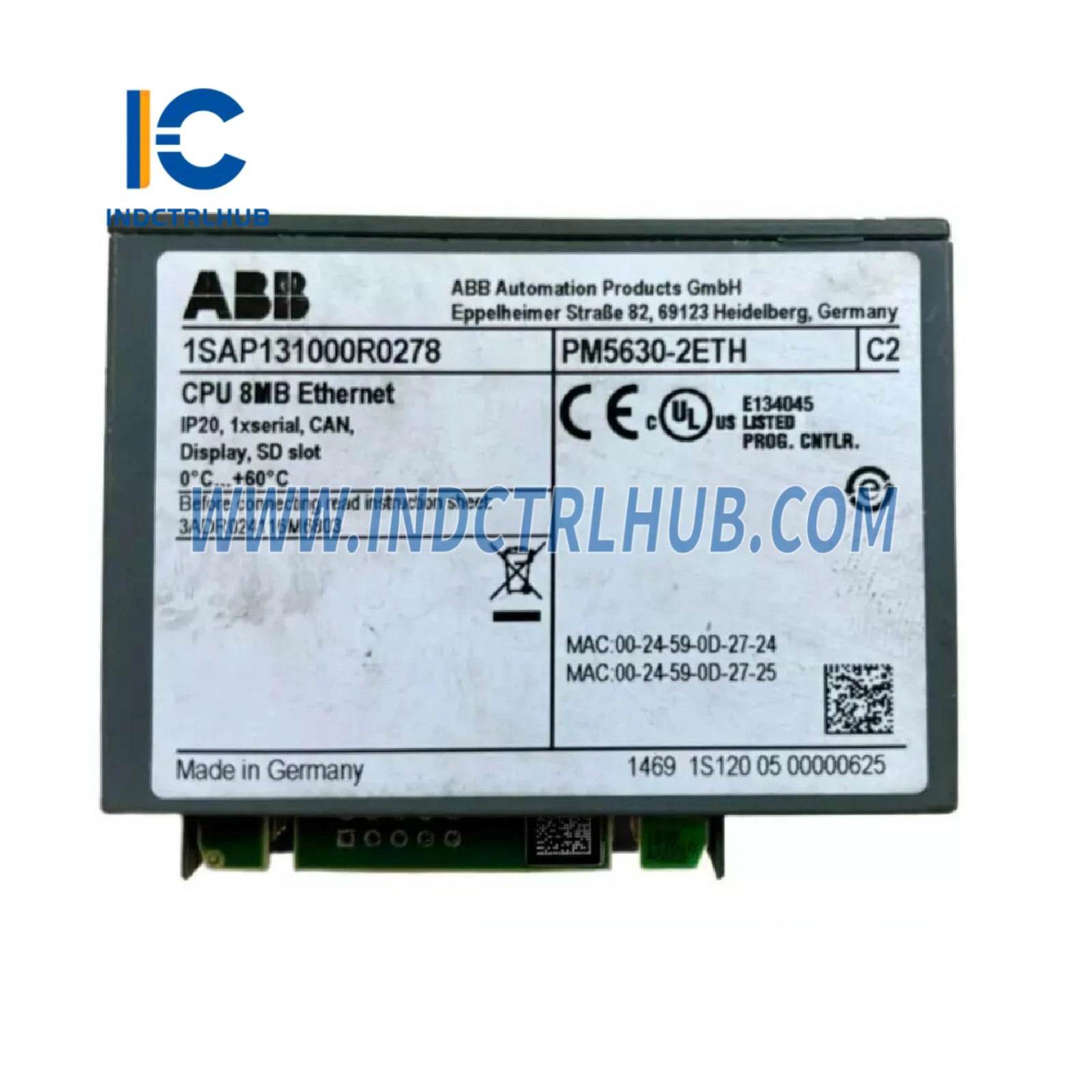

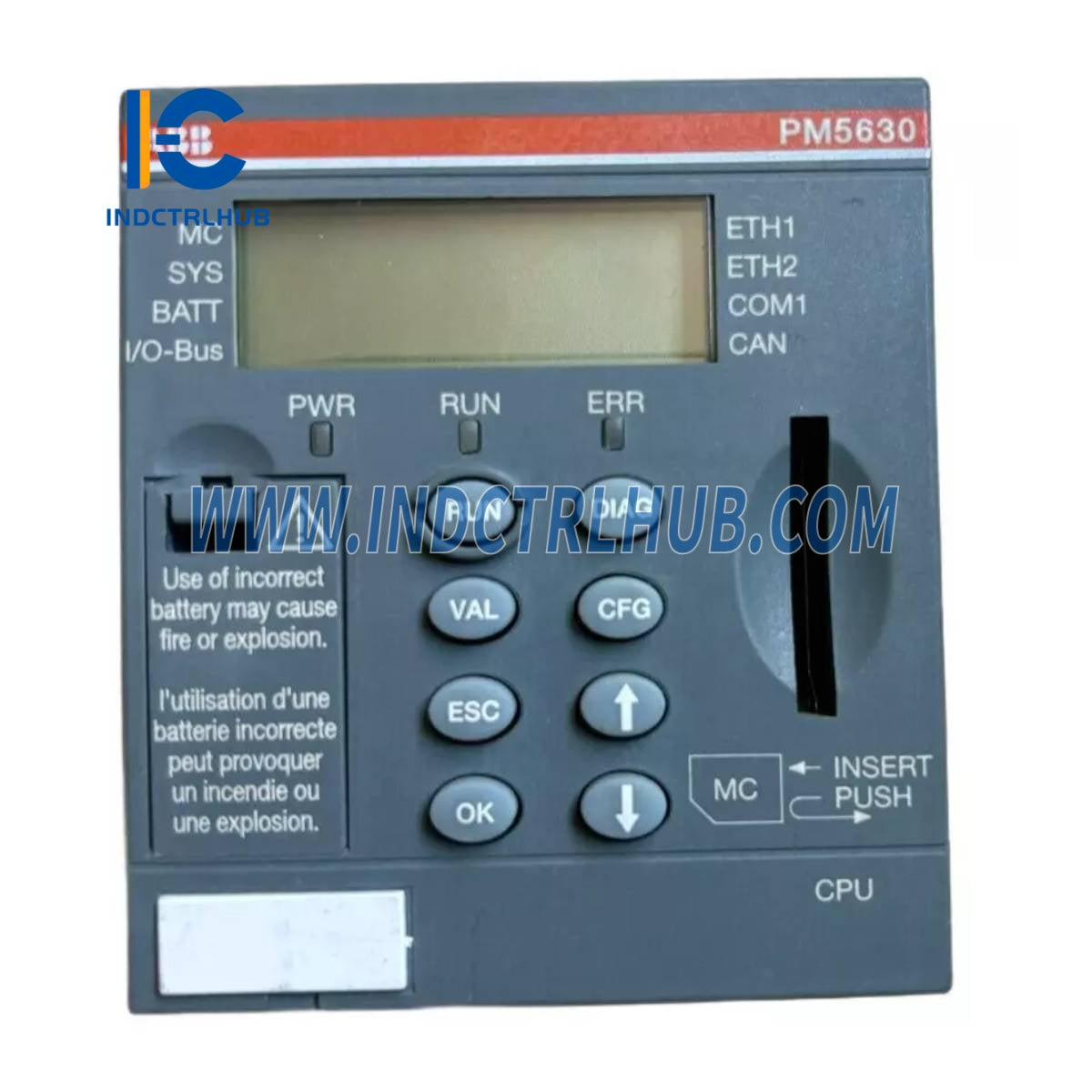

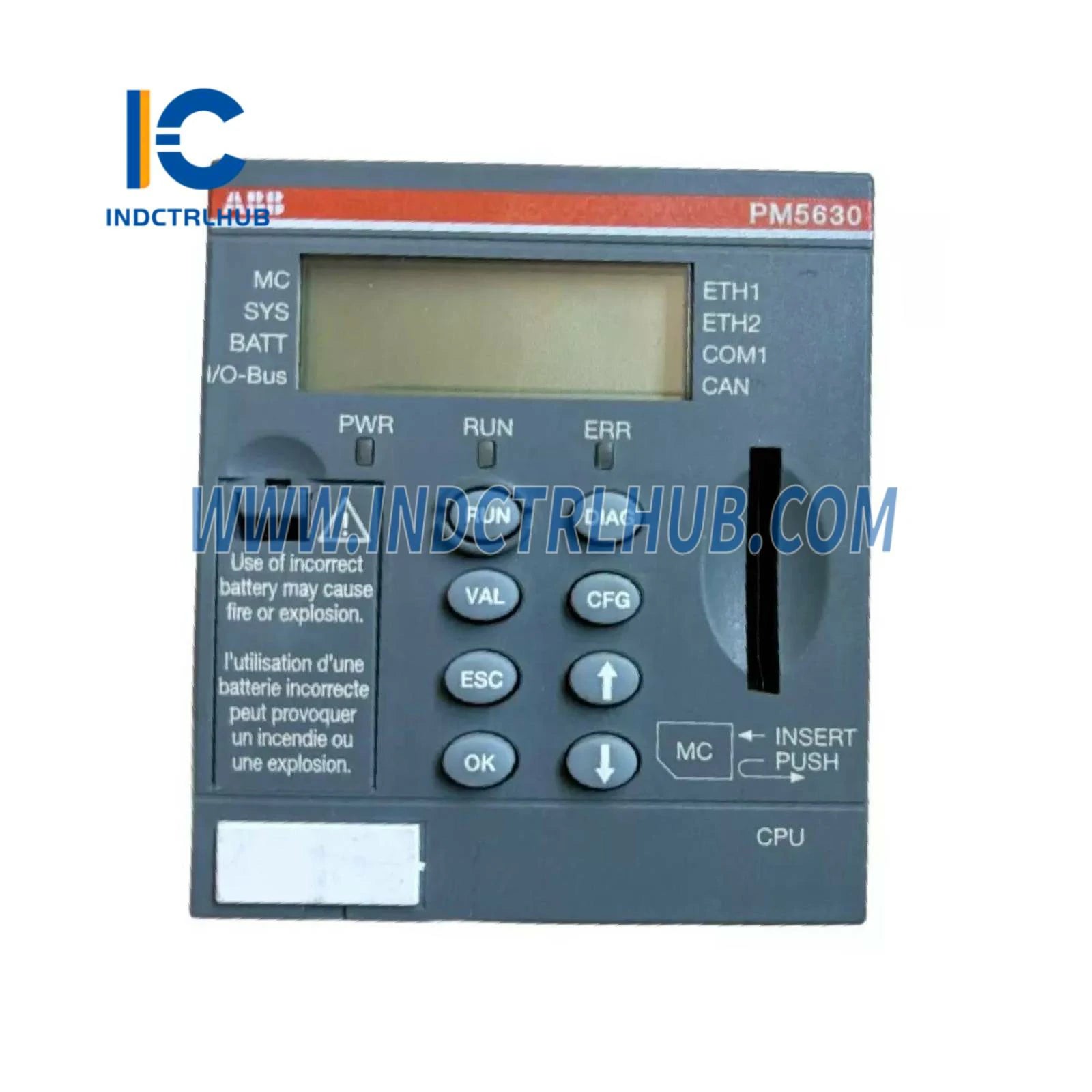

AC500 Processor module with 8MB memory, interfaces including 2 Ethernet, RS232/485, CAN, and display |
|
Product Main Type |
PM5630 |
|
Product Name |
Distributed Automation PLCs |
Ordering Information
|
Parameter |
Value |
|---|---|
|
CN8 Code |
85389091 |
|
Invoice Description |
Processor module with 8MB memory, 2 Ethernet, RS232/485, CAN, and display |
|
Made To Order |
No |
|
Minimum Order Quantity |
1 piece |
|
Order Multiple |
1 piece |
|
Selling Unit of Measure |
piece |
Dimensions & Weight
|
Parameter |
Value |
|---|---|
|
Product Net Depth / Length |
62 mm |
|
Product Net Height |
76 mm |
|
Product Net Width |
67.5 mm |
|
Product Net Weight |
0.133 kg |
|
Gross Weight |
0.157 kg |
|
Package Level 1 Depth / Length |
84 mm |
|
Package Level 1 Height |
72 mm |
|
Package Level 1 Width |
71 mm |
|
Package Level 1 Units |
1 carton |
Technical Specifications
|
Parameter |
Value |
|---|---|
|
Function |
8MB Memory, 2 Ethernet, RS232/485, CAN, Display |
|
Number of Hardware Interfaces |
|
|
- Industrial Ethernet |
2 |
|
- Other Interfaces |
2 |
|
- Parallel Ports |
0 |
|
- RS-232 |
0 |
|
- RS-422 |
0 |
|
- RS-485 |
0 |
|
- Serial TTY |
0 |
|
- USB |
0 |
|
- Wireless |
0 |
|
Memory Size |
39,256 kB |
|
Memory Type User Data |
RAM |
|
Controller Processing Time |
0.00002 ms |
|
Number of Digital Configurable I/Os |
0 |
|
Degree of Protection |
IP20 |
|
Rated Voltage (Ur) |
24 V DC |
|
Supply Voltage |
20.4 – 28.8 V DC |
External Classifications & Standards
|
Parameter |
Value |
|---|---|
|
eClass |
27-24-22-07 |
|
ETIM 8 |
EC000236 - PLC CPU-module |
|
ETIM 9 |
EC000236 - PLC CPU-module |
|
ETIM 10 |
EC000236 - PLC CPU-module |
|
UNSPSC |
32151705 |
Environmental Information
|
Parameter |
Value |
|---|---|
|
SCIP Reference |
a56d49ca-ab4e-436a-8781-4b9e968efb44 (Germany) |
|
WEEE B2C / B2B |
Business To Business |
|
WEEE Category |
5. Small Equipment (No External Dimension More Than 50 cm) |
Product Classification
|
Category |
Details |
|---|---|
|
Products |
PLC Automation → Programmable Logic Controllers (PLCs) → AC500 → CPUs |
