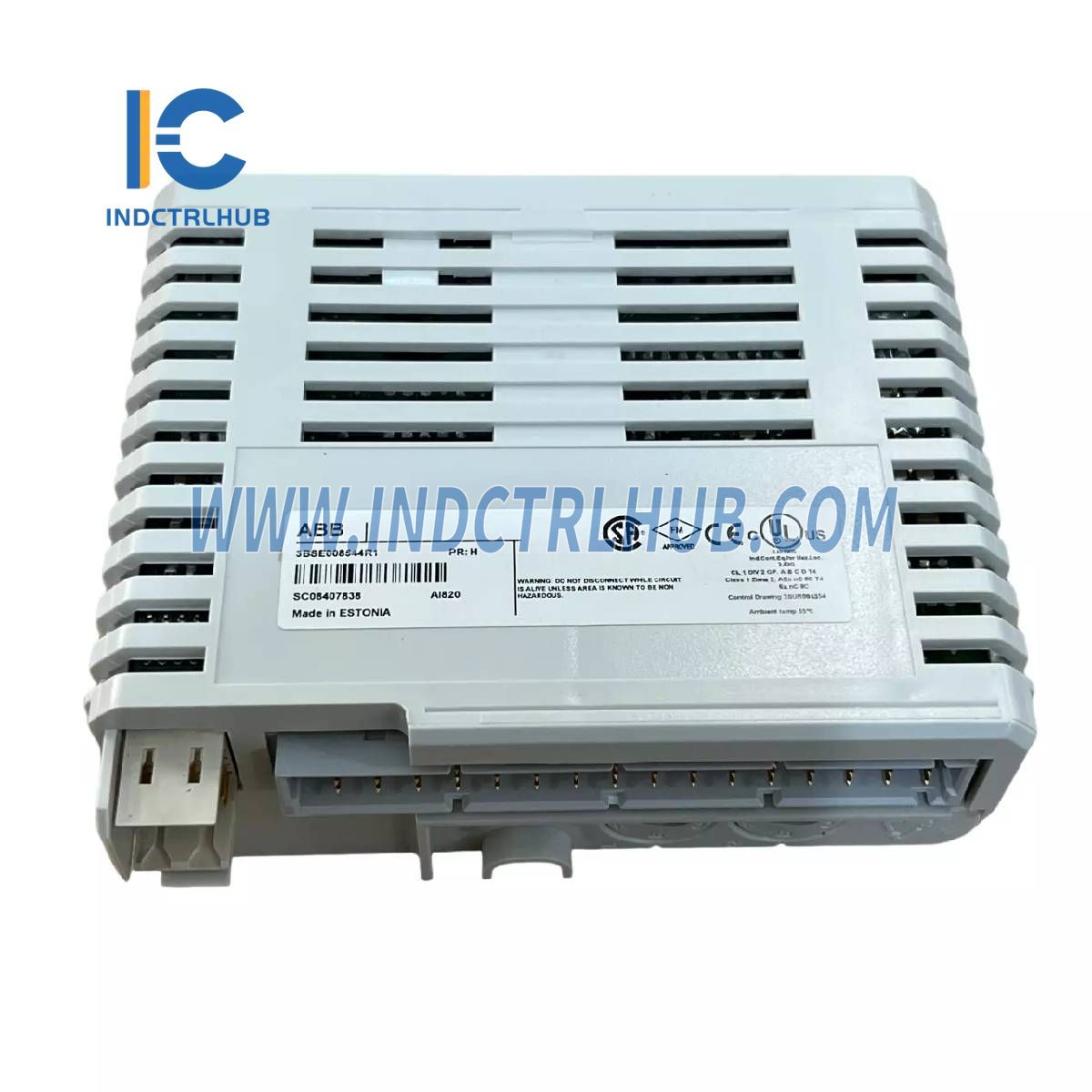

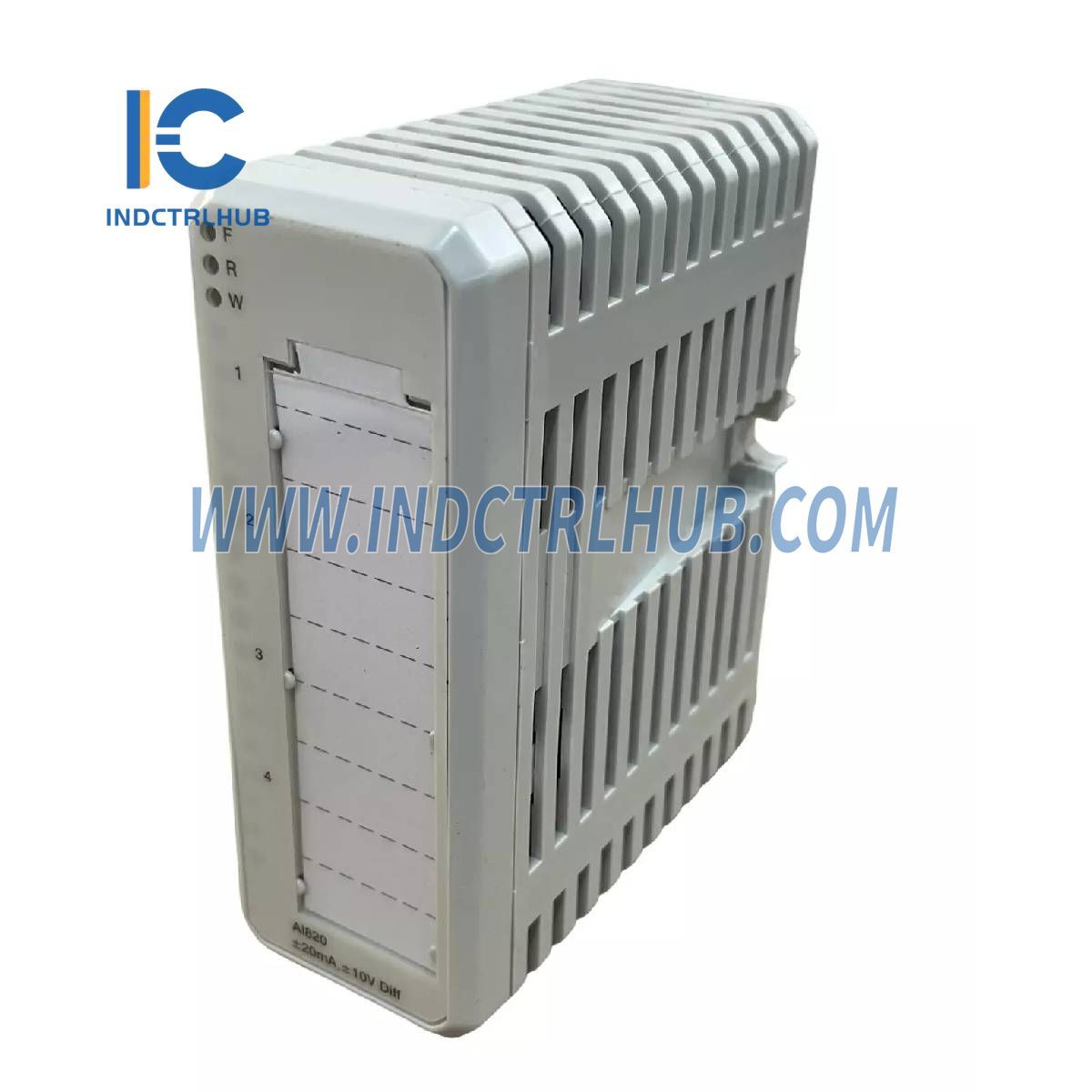

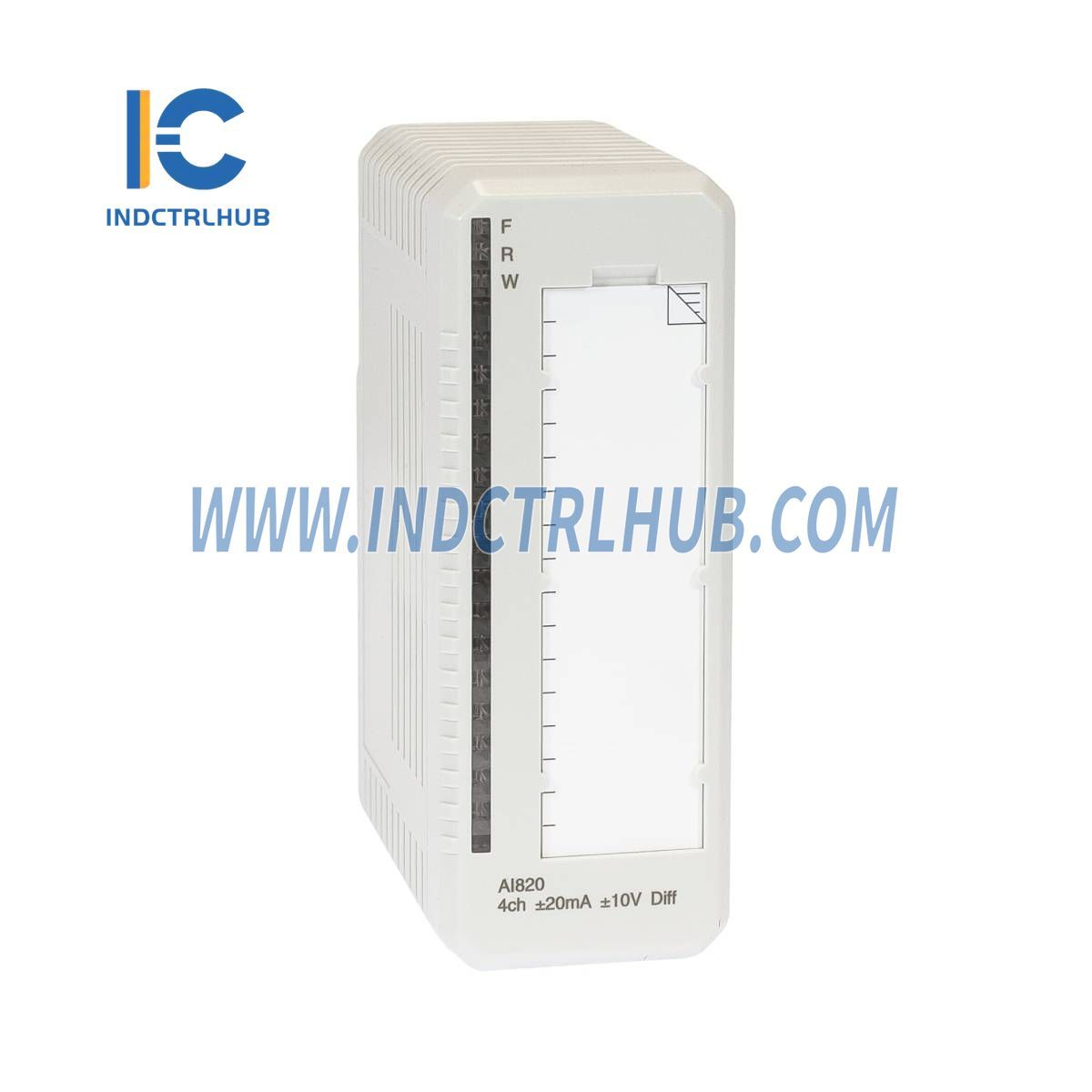

3BSE008544R1 | ABB AI820 Analog Input 4 ch
3BSE008544R1 | ABB AI820 Analog Input 4 ch
Manufacturer: ABB
Product No.: 3BSE008544R1
Condition:1000 in stock
Product Type: Analog Input 4 ch
Product Origin: USA
Payment: T/T, Western Union
Weight: 300g
Shipping port: Xiamen
Warranty: 12 months
- 24/7 Support
- 30-Day Returns
- Fast Shipping
Product Details
- Manufacturer: ABB
- Model/Part Number: AI820 (3BSE008544R1)
- Description: Analog Input Module (4 channels)
General Information
| Attribute | Details |
|---|---|
| Product ID | 3BSE008544R1 |
| ABB Type Designation | AI820 |
| Catalog Description | AI820 Analog Input 4 ch |
| Long Description | ±20mA, 0(4)...20mA, ±10V, ±5V, 0(1)...5V, diff., 50V CMV, Rin(current) 250 Ohms, 14-bit + sign. Individually galvanic isolated channels. Use with Module Termination Unit TU810, TU812, TU814, TU830, TU833. |
| Product Type | I/O Module |
| Medium Description | Same as long description |
| Technical Information | Same as long description |
Ordering & Logistics
| Attribute | Details |
|---|---|
| HS Code | 853890 |
| Customs Tariff Number | 85389099 |
Dimensions & Weight
| Attribute | Details |
|---|---|
| Product Net Depth / Length | 102 mm |
| Product Net Height | 119 mm |
| Product Net Width | 45 mm |
| Product Net Weight | 0.3 kg |
Technical Specifications
| Attribute | Details |
|---|---|
| Channel Type | Analog Input (AI) |
| Number of Input Channels | 4 |
| Number of Output Channels | 0 |
Environmental Compliance
| Attribute | Details |
|---|---|
| RoHS Status | Following EU Directive 2011/65/EU |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Number of Batteries | 0 |
| SCIP | f5d96b38-7473-417c-b99c-5e9db17bb24d (Estonia) |
