Product Description
Mahsulot tafsilotlari
|
Ishlab chiqaruvchi |
Yokogawa |
|---|---|
|
Model/Part raqami |
F3AD08-6R |
|
Tavsif |

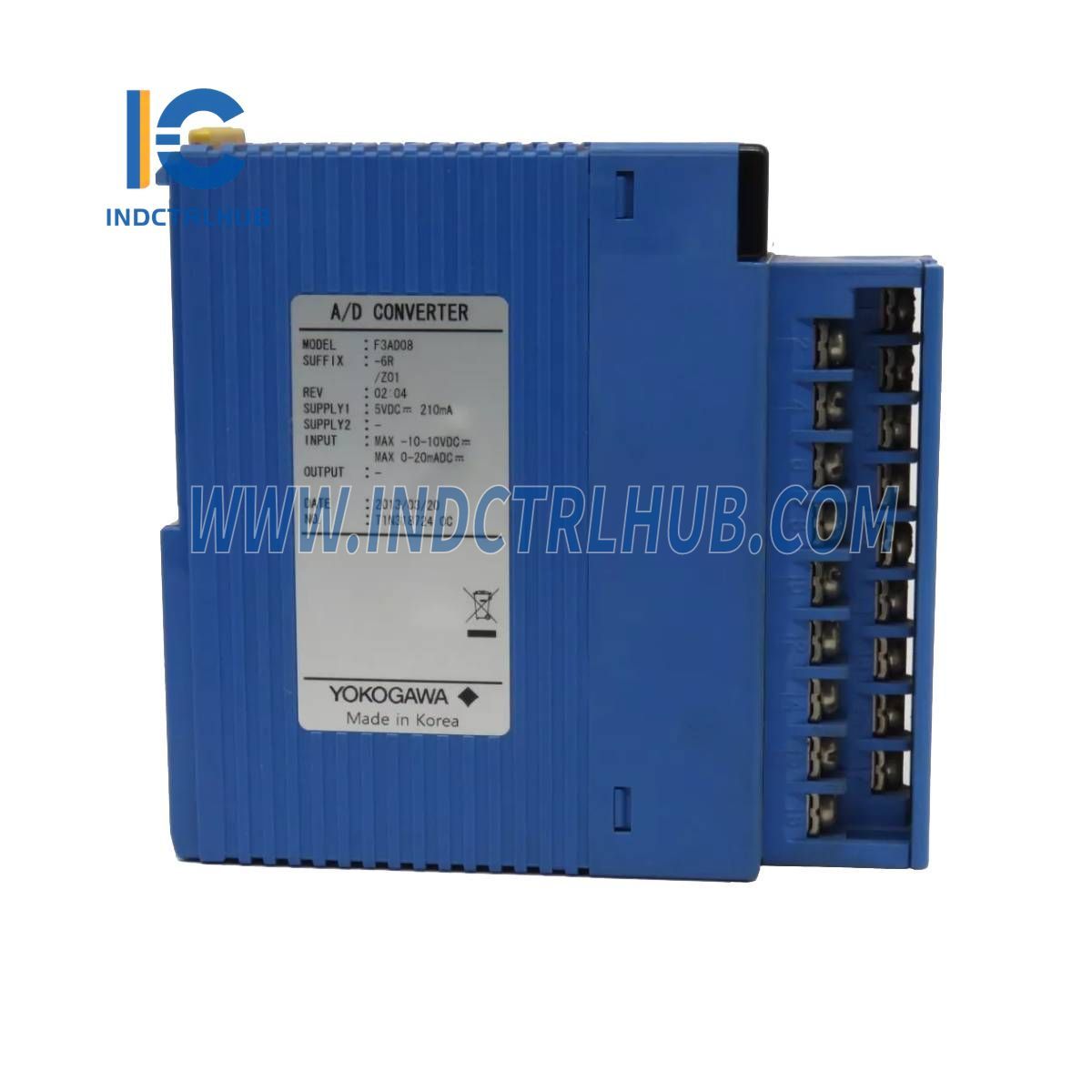

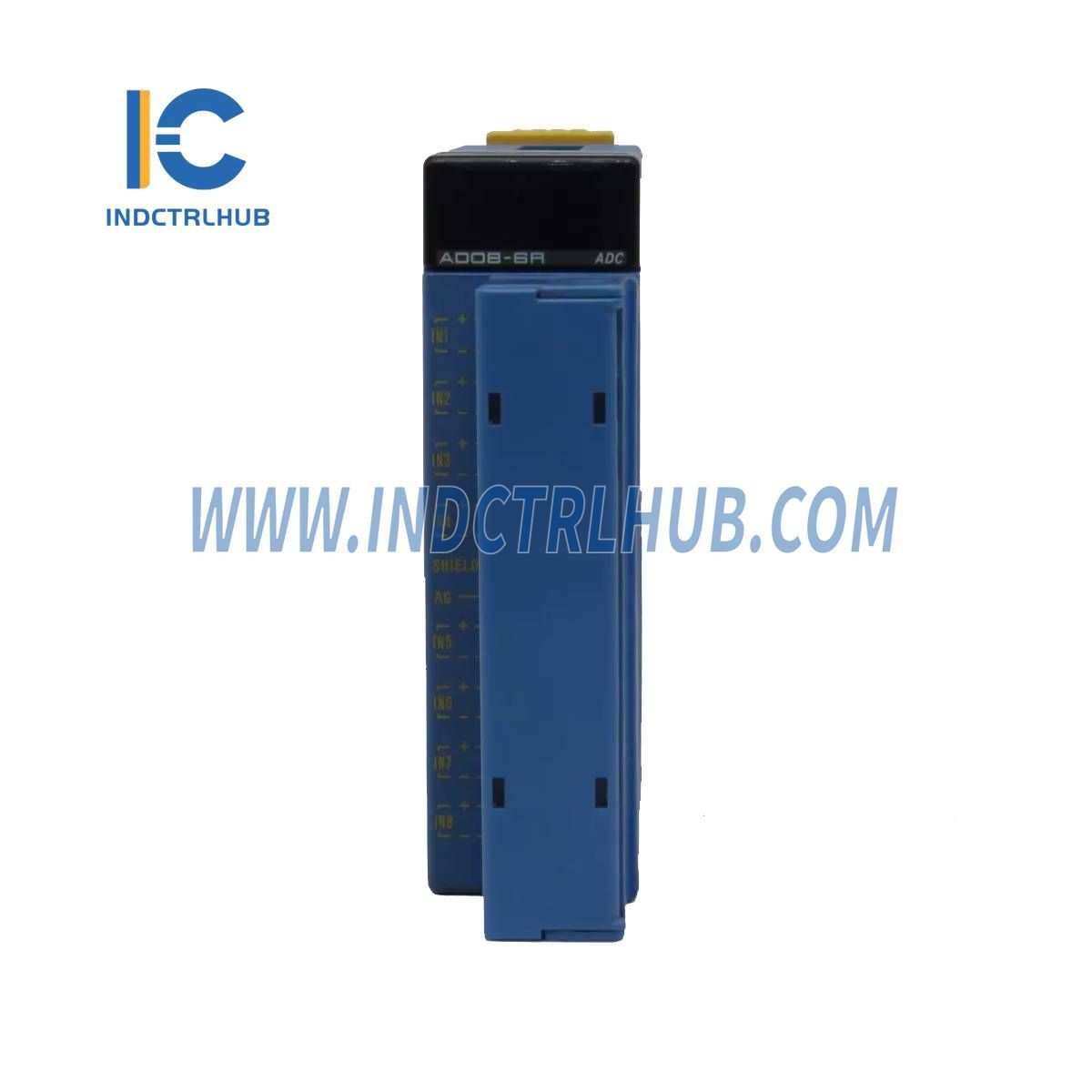

Yuoqori aniqlikdagi analog kirish moduli |
Texnik xususiyatlar
|
Element |
F3AD08-6R |
|---|---|
|
Kirishlar soni |
8 ta differensial kirish |
|
Absolyut maksimal reyting |
±18 V DC yoki ±25 mA DC maksimal |
|
Kirish signal diapazoni |
Kuchlanish signali yoki tok signali |
|
Qo'llab-quvvatlanadigan kuchlanish signallari |
0 dan 5 V DC, 1 dan 5 V DC, -10 dan 10 V DC, 0 dan 10 V DC |
|
Qo'llab-quvvatlanadigan j current signallari |
0 dan 20mA DC, 4 dan 20mA DC |
|
Konvertatsiya sikli |
Tanlanadigan: 50μs/100μs/250μs/500μs/1ms/16.6ms/20ms/100ms × (kirishlar soni) |
|
Ruxsat etilgan umumiy rejim kuchlanishi |
±6 V DC maksimal (0 dan 5 V DC, 1 dan 5 V DC, 0 dan 20mA DC, 4 dan 20mA DC), ±1 V DC maksimal (-10 dan 10 V DC, 0 dan 10 V DC) |
|
Izolyatsiya usuli |
Fotokopler izolyatsiyasi (kirish terminallari va ichki sxema o'rtasida) |
|
Bardoshli Kuchlanish |
Bir daqiqa davomida 500 V DC |
|
Kirish qarshiligi |
Kuchlanish kirishi uchun kamida 1MΩ, j current kirishi uchun 250Ω |
|
Maksimal aniqlik |
0.4 mV (voltage signallari uchun), 1.6 μA (j current signallari uchun) |
|
Umumiy aniqlik |
23±2ºC da ±0.1% (to'liq diapazon), 0 dan 55ºC gacha ±0.2% (to'liq diapazon) |
|
Masshtablash |
-30,000 dan 30,000 gacha yuqori/past chegaralar sozlanishi mumkin |
|
Ofset |
-5,000 dan 5,000 gacha sozlanishi mumkin |
|
Filtr variantlari |
Birinchi darajali kechikish filtri yoki har bir kanal uchun alohida sozlanadigan harakatlanuvchi o'rtacha hisoblash |
|
Ma'lumotlarni ushlab turish funksiyasi |
Cho'qqi va botqoqlik qiymatlarini yozishni qo'llab-quvvatlaydi |
|
O'z-o'zini diagnostika |
Ishlash vaqtida apparat o'z-o'zini diagnostikasi |
|
Ortiqcha diapazon kirishini aniqlash |
Ha |
|
Joriy iste'moli |
210 mA (5 V DC) |
|
Tashqi ulanish |
18 nuqtali terminal bloki, M3.5 vintlar |
|
Tashqi o'lchamlar |
28.9 (K) × 100 (B) × 106.1 (Q) mm |
|
Og'irlik |
200 g |
