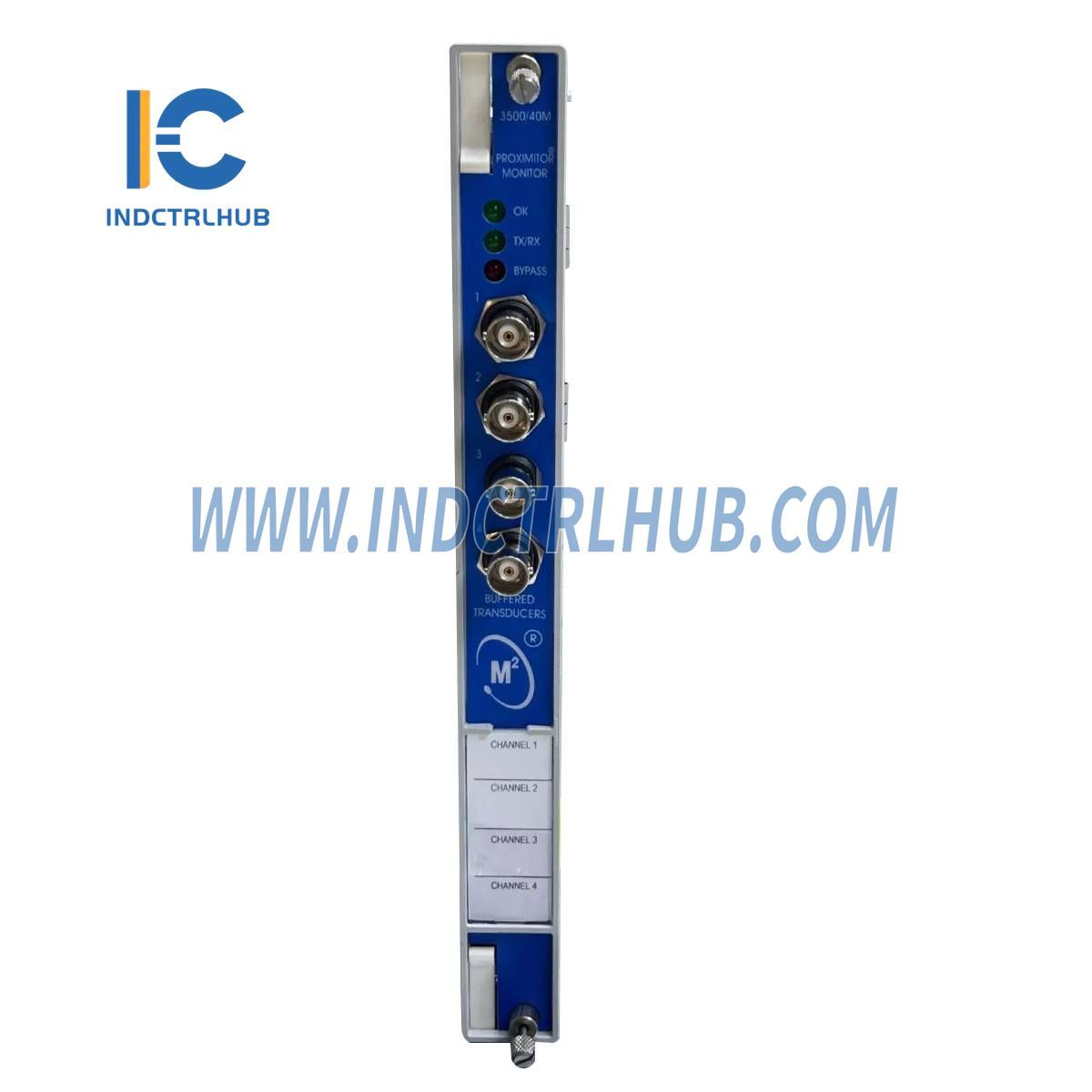

Bently Nevada 3500/40M 176449-01+125680-01 Proximitor Monitor

Bently Nevada 3500/40M 176449-01+125680-01 Proximitor Monitor

  • Manufacturer: Bently Nevada

  • Product No.: 3500/40M 176449-01

  • Condition:Omborda 1000 ta mavjud

  • Product Type: Proksimitor monitori

  • Product Origin: USA

  • Payment: T/T, Western Union

  • Weight: 910g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Qo'llab-quvvatlash
  • 30-Kunlik Qaytarishlar
  • Tez yetkazib berish

Mahsulot Tafsilotlari

  • Ishlab chiqaruvchi: Bently Nevada
  • Seriya: 3500/40M
  • Model/Part raqami: 3500/40M, 176449-01, 125680-01
  • Model turi: Proximitor Monitor
  • Zaxira qismlar:

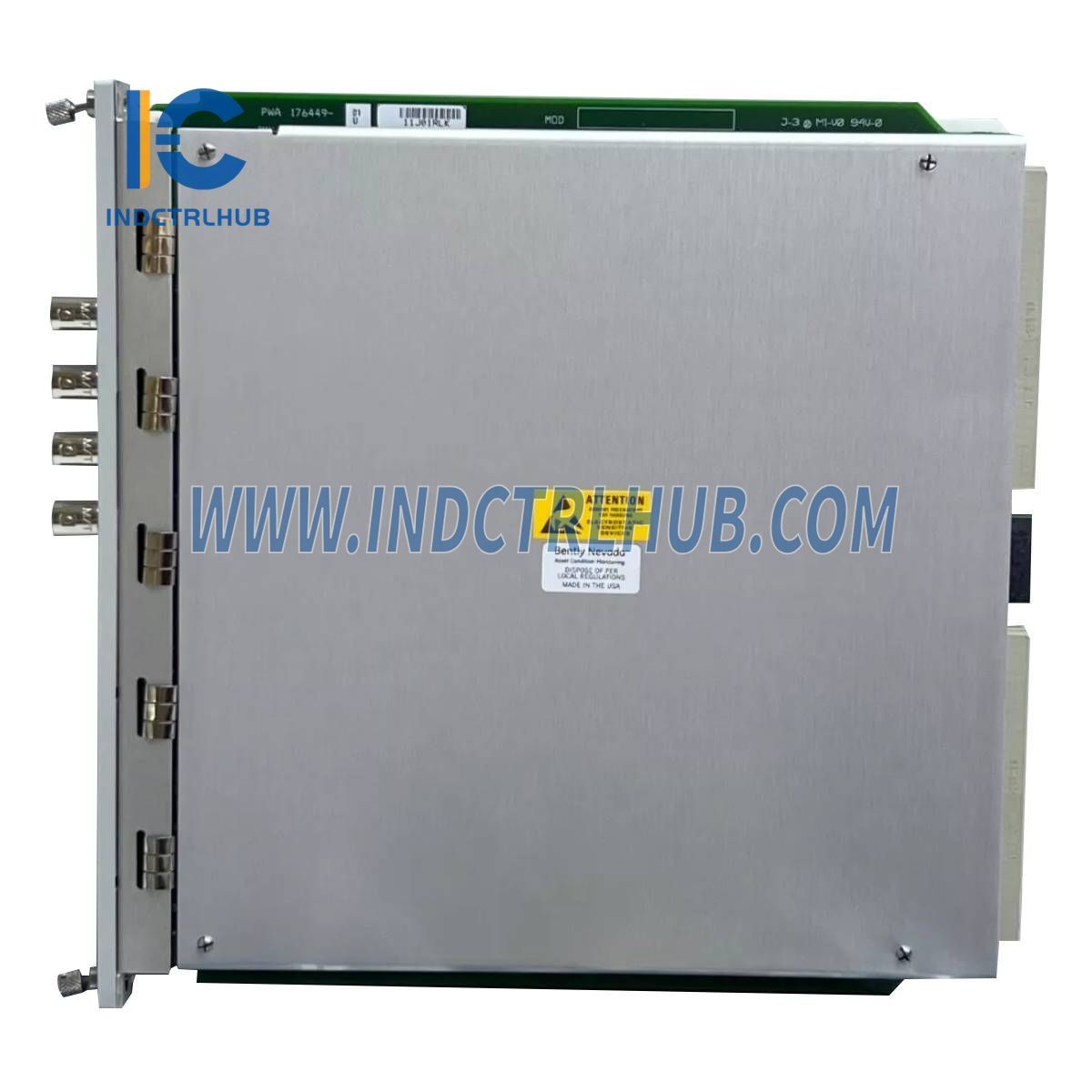

    • 176449-01: 3500/40M Proximitor Monitor

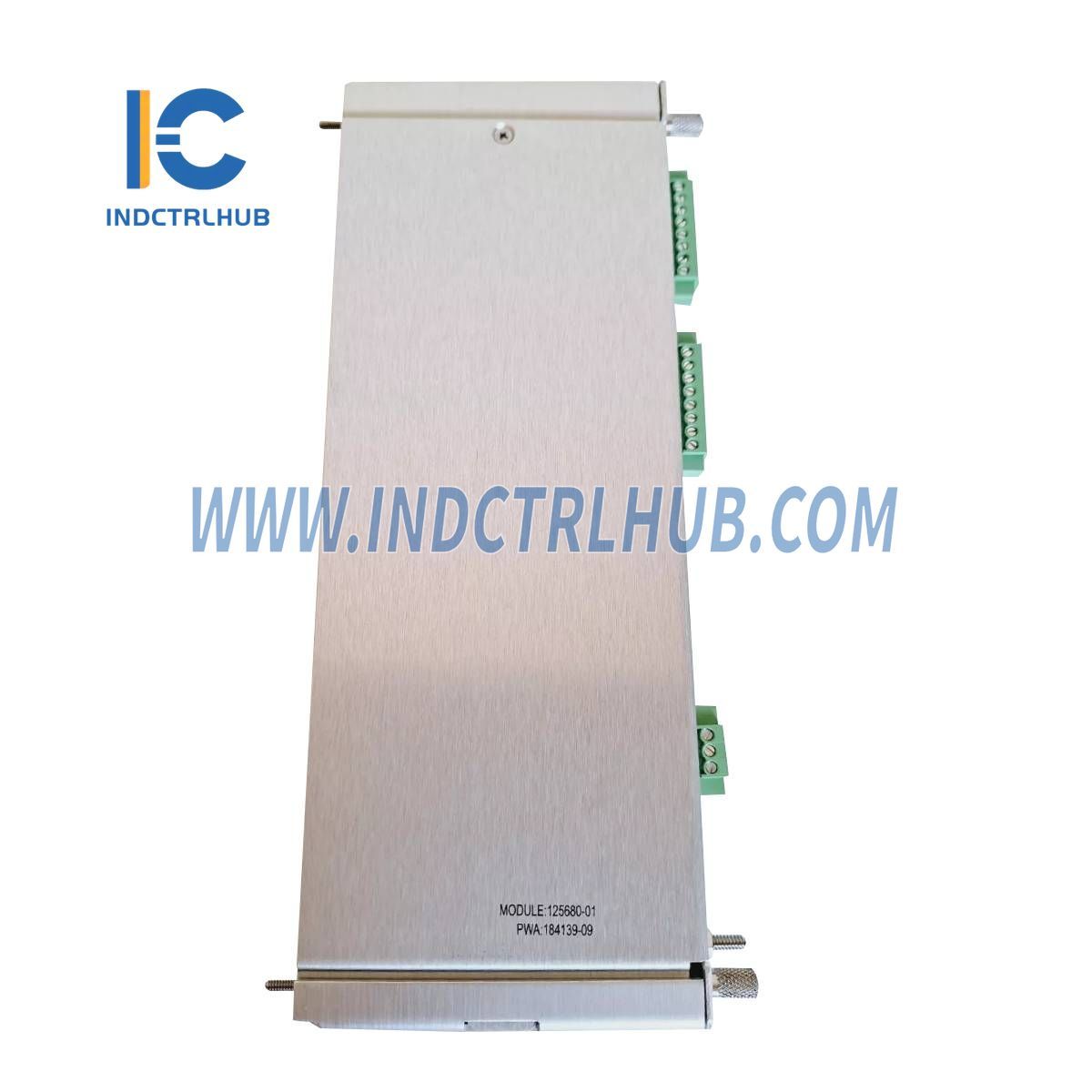

    • 125680-01: Ichki terminatsiyali Proximitor I/O moduli

Tavsif

3500/40M Proximitor Monitor - Bently Nevada yaqinlik transduserlaridan kirishni qabul qilish uchun mo‘ljallangan to‘rt kanalli monitor. U signallarni sharoitga keltirib, tebranish va pozitsiya o‘lchovlarini taqdim etadi, so‘ngra sharoitga keltirilgan signallarni foydalanuvchi tomonidan dasturlashtirilgan signalizatsiyalar bilan solishtiradi. Ushbu monitor ko‘p qirrali bo‘lib, har bir kanal 3500 Rack Configuration Software yordamida turli funksiyalarni bajarish uchun dasturlanishi mumkin, masalan:

  • Radial tebranish
  • Itarish
  • Eksantriklik
  • Differensial kengaytma
  • REBAM (Rotor bar tebranishini monitoring qilish)

Texnik xususiyatlar

  • Kirishlar:

    • Signal: 1 dan 4 gacha yaqinlik transduseri signallarini qabul qiladi.
    • Quvvat iste'moli: 7.7 Vatt, odatiy.
    • Kirish qarshiligi:
      • Standart I/O: 10 k_ (Proximitor va tezlanish kirishlari).

  • Sezuvchanlik:

    • Radial tebranish: 3.94 mV/μm (100 mV/mil) yoki 7.87 mV/μm (200 mV/mil)
    • Itarish: 3.94 mV/μm (100 mV/mil) yoki 7.87 mV/μm (200 mV/mil)
    • Eksentriklik: 3.94 mV/μm (100 mV/mil) yoki 7.87 mV/μm (200 mV/mil)
    • Diferensial kengayish: 0.394 mV/μm (10 mV/mil) yoki 0.787 mV/μm (20 mV/mil)
    • REBAM: 40 mV/μm (1000 mV/mil) yoki 80 mV/μm (2000 mV/mil)

Atrof-muhit chegaralari

  • Ishlash harorati:
    • Ichki/Tashqi Tugatishli I/O Modul bilan: -30°C dan +65°C gacha (-22°F dan +150°F gacha).
    • Ichki To'siqli I/O Modul bilan (Ichki Tugatish): 0°C dan +65°C gacha (32°F dan +150°F gacha).
  • Saqlash Harorati: -40°C dan +85°C gacha (-40°F dan +185°F gacha).
  • Namlik: 95%, kondensatsiyasiz.

Jismoniy xususiyatlar

  • Monitor Moduli (Asosiy Platalar):

    • O'lchamlari: 241.3 mm x 24.4 mm x 241.8 mm (9.50 in x 0.96 in x 9.52 in)
    • Og'irligi: 0.91 kg (2.0 lb)

  • I/O Modullari (to'siqsiz):

    • O'lchamlari: 241.3 mm x 24.4 mm x 99.1 mm (9.50 in x 0.96 in x 3.90 in)
    • Og'irligi: 0.20 kg (0.44 lb)

  • I/O Modullari (to'siq bilan):

    • O'lchamlari: 241.3 mm x 24.4 mm x 163.1 mm (9.50 in x 0.96 in x 6.42 in)
    • Og'irligi: 0.46 kg (1.01 lb)

Buyurtma Ma'lumotlari

  • Proximitor Monitori:
    • 3500/40M-AA-BB
    A: I/O Modul Turi
    • 01: Ichki Tugatish bilan Proximitor I/O Moduli
    • 02: Tashqi Tugatishlar bilan Proximitor I/O Moduli
    • 03: Ichki To'siqlar va Ichki Tugatishlar bilan Proximitor I/O Moduli
    B: Xavfli Hudud Tasdiqlash Varianti
    • 00: Yo'q
    • 01: cNRTLus (1-sinf, 2-bo'lim)
    • 02: ATEX/IECEx/CSA (1-sinf, 2-zona)
