Product Description
Mahsulot tafsilotlari

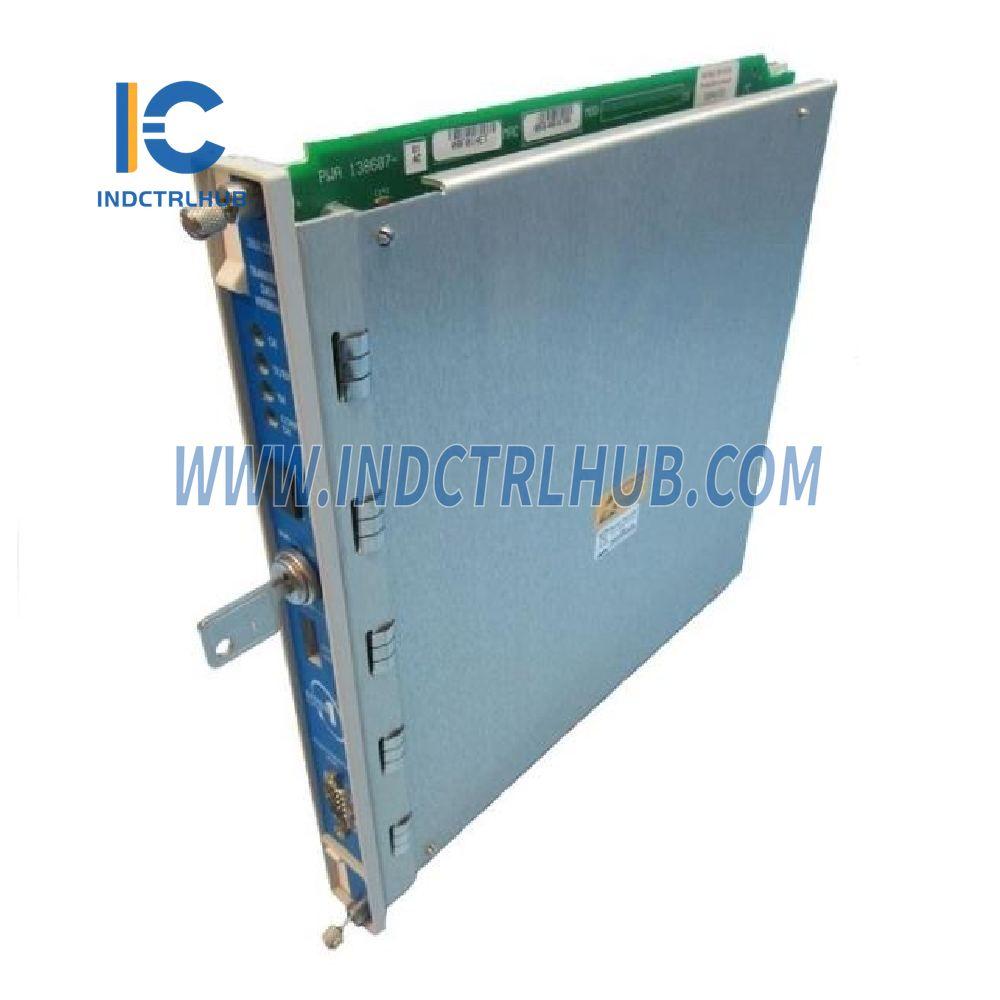

- Ishlab chiqaruvchi: Bently Nevada
- Model/Partiya raqami: 3500/22-01-01-01
- Tavsif: TDI Modul va I/O
Texnik xususiyatlar
I/O Modul Signal Common Terminali
- TDI I/O Modulining ikkala versiyasida ham Signal Commonni shkaf uchun yagona nuqtali Instrument Groundga ulash uchun 2-pinli ulagich mavjud.
- Bu bajarilgach, Power Input Module (PIM) yonidagi tanlov kaliti "HP" deb belgilangan o'q yo'nalishida surilishi kerak, shunda Signal Common korpus (xavfsizlik) yeridan ajratiladi.
Atrof-muhit chegaralari
| Xususiyat | Tafsilotlar |
|---|---|
| Ishlash harorati | -30°C dan +65°C gacha (-22°F dan +149°F gacha) |
| Saqlash Harorati | -40°C dan +85°C gacha (-40°F dan +185°F gacha) |
| Namlik | 95%, kondensatsiyasiz |
| Batareya muddati | Quvvatlangan TDI: 38 yil @ 50°C (122°F) Quvvatlanmagan TDI: 12 yil @ 50°C (122°F) |
Jismoniy
| Xususiyat | Tafsilotlar |
|---|---|
| TDI Moduli o'lchamlari | 241.3 mm x 24.4 mm x 241.8 mm (9.50 in x 0.96 in x 9.52 in) |
| Ogʻirligi | 0.91 kg (2.0 lbs) TDI Moduli va Kiritish/Chiqish |
| Kiritish/Chiqish Modullari o'lchamlari | 241.3 mm x 24.4 mm x 99.1 mm (9.50 in x 0.96 in x 3.90 in) |
| Ogʻirligi | 0.20 kg (0.44 lbs) |
| Rack uchun joy talablari |
TDI Moduli: 1 to'liq balandlikdagi old slot Kiritish/Chiqish Modullari: 1 to'liq balandlikdagi orqa slot |
Buyurtma ma'lumotlari
| Xususiyat | Tafsilotlar |
|---|---|
| A: Vaqtinchalik Ma'lumotlar Interfeysi Turi | 01: Standart (standart monitoring ilovalari uchun foydalaniladi) |
| B: Kiritish/Chiqish Moduli Turi | 01: 10Base-T/100Base-TX Ethernet 02: 100Base-FX (Optik tolali) Ethernet 03: 10Base-T/100Base-TX Ethernet oltin qoplamali OK Relay kontaktlari bilan 04: 100Base-FX (tolali optik) Ethernet oltin qoplamali OK Relay kontaktlari bilan |
| C: Agentlik Tasdiqlashi | 00: Yo'q 01: CSA/NRTL/C (1-sinf, 2-bo'linma) 02: Ko'p (CSA, ATEX, IECEx) |
