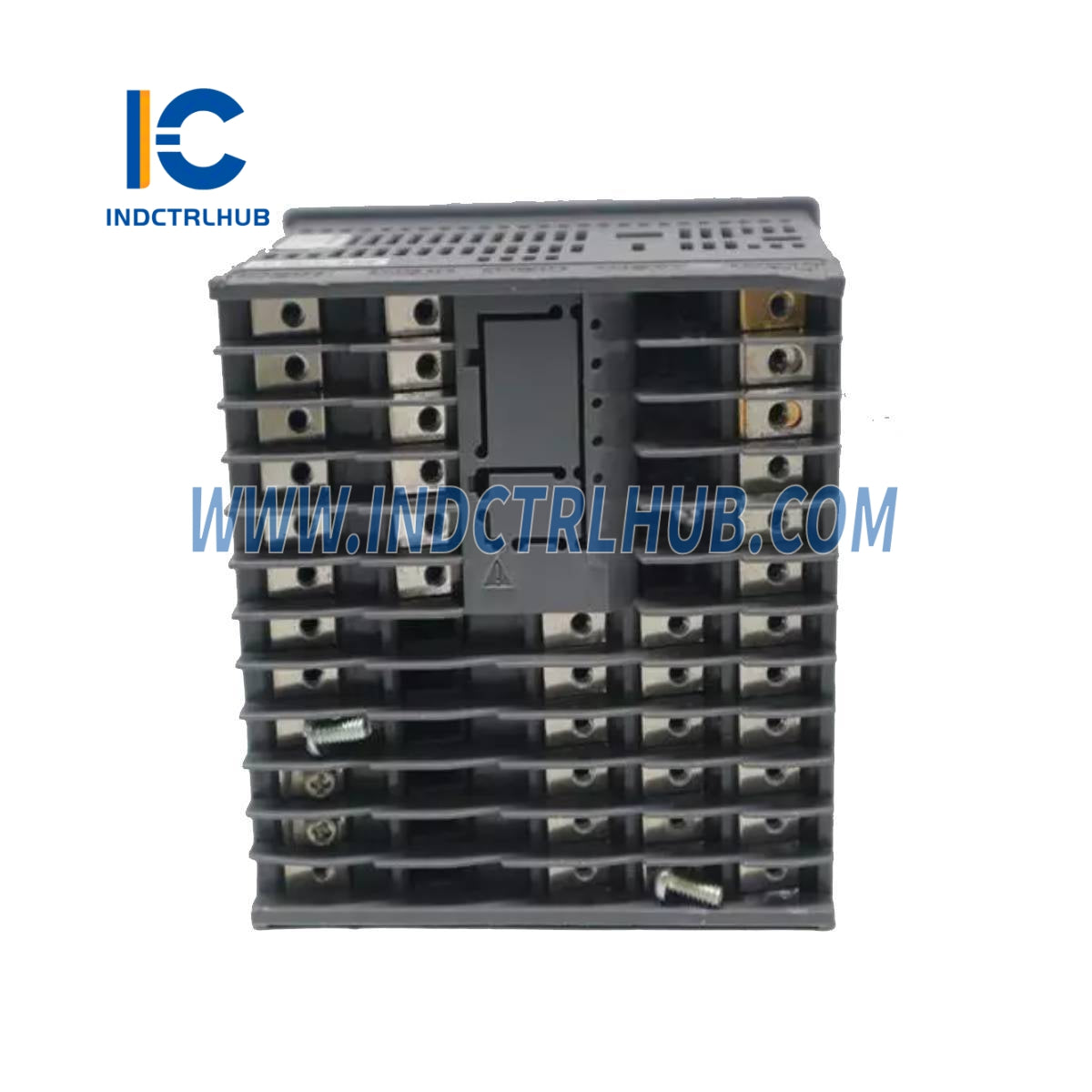

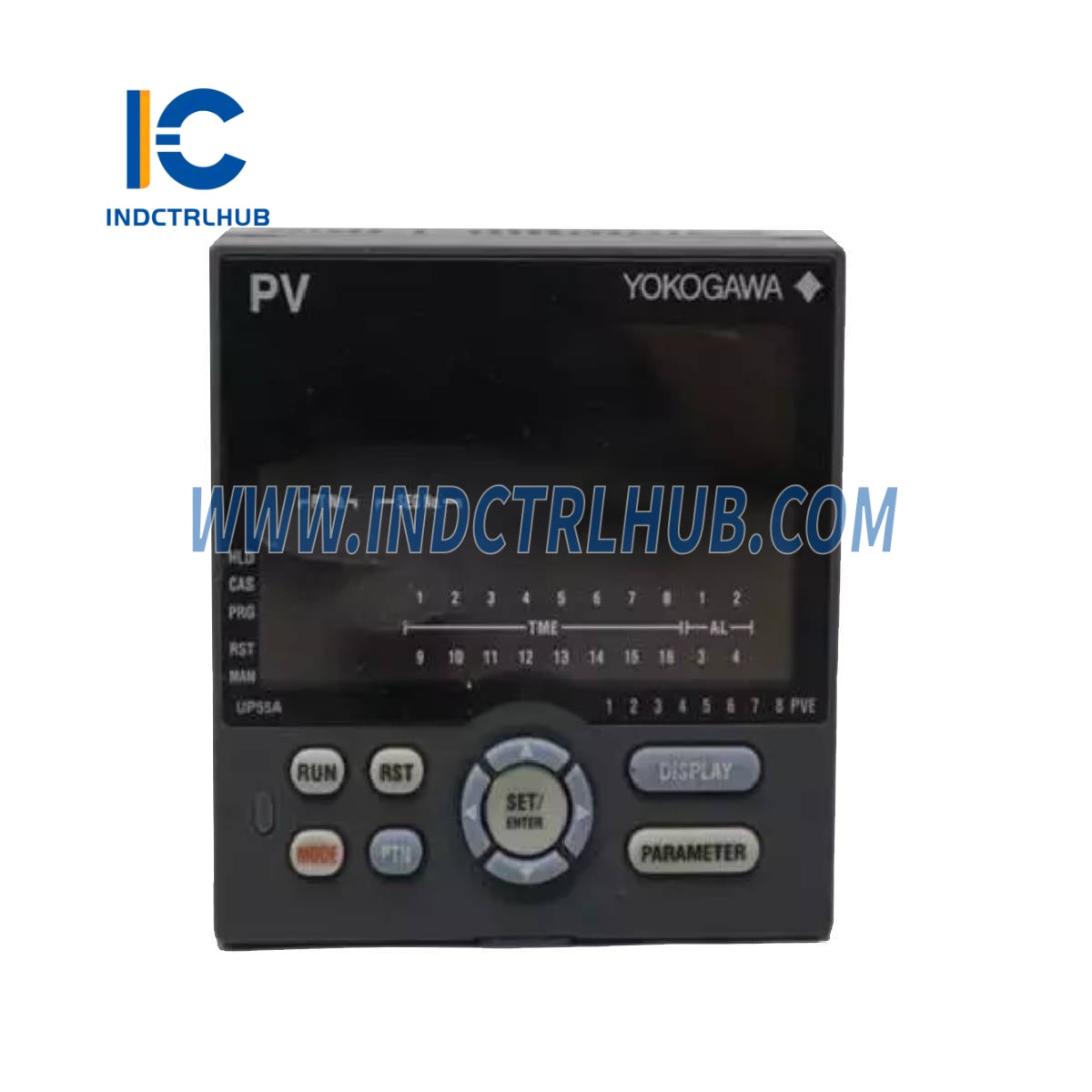

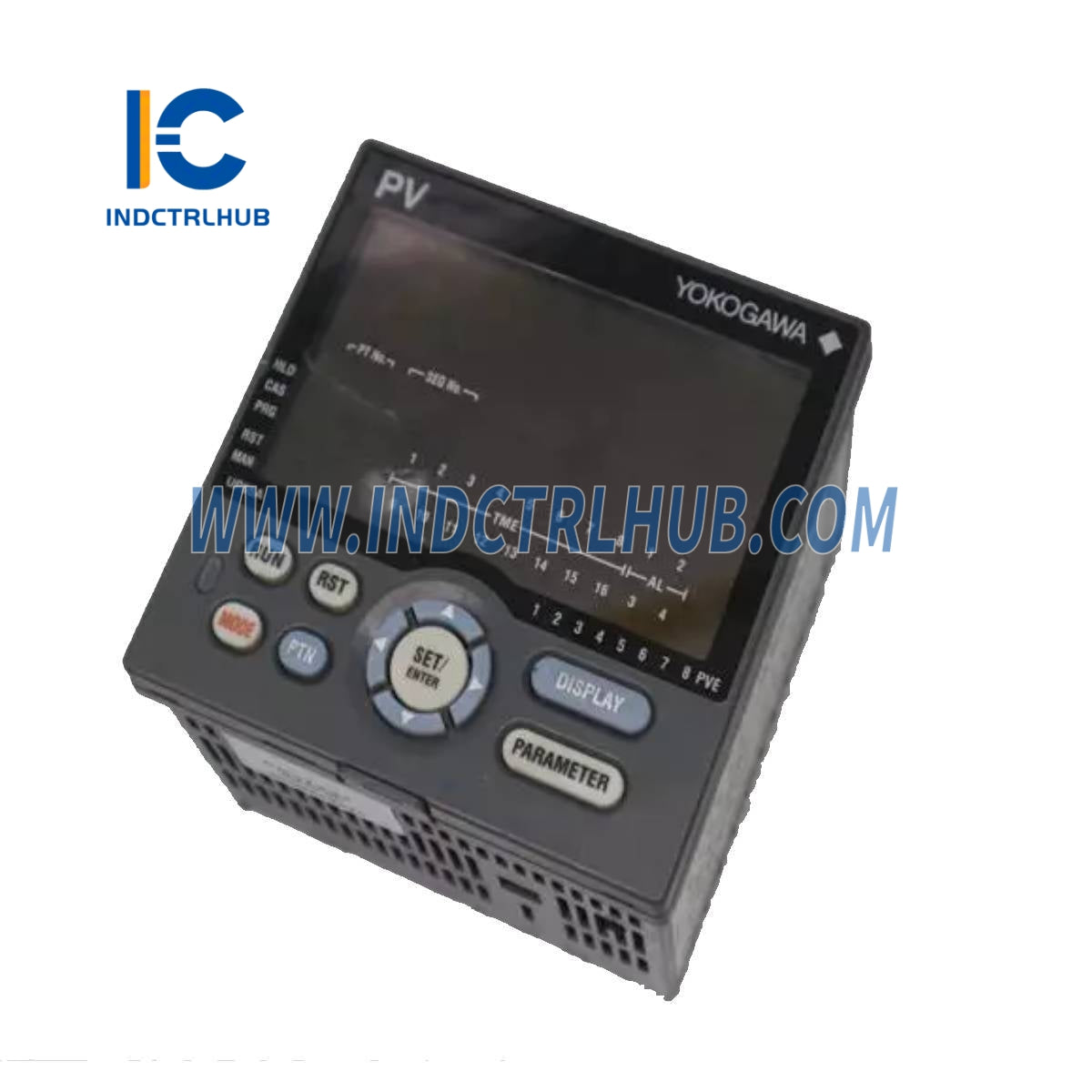

Yokogawa UP55A-201-11-00/AP Program Controller
Yokogawa UP55A-201-11-00/AP Program Controller
Manufacturer: Yokogawa
Product No.: UP55A-201-11-00/AP
Condition:1000 in stock
Product Type: Program Controller
Product Origin: Japan
Payment: T/T, Western Union
Weight: 500g
Shipping port: Xiamen
Warranty: 12 months
- 24/7 Support
- 30-Day Returns
- Fast Shipping
Product Overview
| Category | Details |
|---|---|
| Manufacturer | Yokogawa |
| Model/Part Number | UP55A-201-11-00/AP |
| Description | Program Controller (1/4 DIN size) designed for precise heating and cooling control in industrial processes, featuring up to 99 program patterns and 600 segments with the /AP option, suitable for standalone use or integration into Distributed Control Systems |
| Key Features | 30 program patterns (99 with /AP option), heating/cooling control, 8 PV events, 16 time events, 8 alarms, ladder sequence function, enhanced pattern capacity (/AP), color LCD display, PID control |
Technical Specifications
| Specification | Details |
|---|---|
| Model | UP55A-201-11-00/AP |
| Product Type | Program Controller |
| Series | UTAdvanced |
| Program Patterns | Up to 30 (standard), 99 with /AP option |
| Segments per Pattern | Up to 99 (standard), 600 total with /AP option |
| Input Types | Thermocouple, RTD, DC voltage/current (configurable) |
| Output Types | Relay, voltage pulse, current (heating/cooling configuration) |
| Power Supply | 100-240 VAC or 24 VAC/DC |
| Operating Temperature | -10°C to 50°C (14°F to 122°F) |
| Weight | Approx. 0.5 kg (1.1 lbs) |
External Connection Options
| Connection Type | Details |
|---|---|
| Supported Connections | Terminal blocks for I/O, optional RS-485 or Ethernet for DCS integration |
Functional Features
| Feature | Details |
|---|---|
| Control Functions | PID control (heating/cooling), ON/OFF control, program pattern execution |
| Monitoring | Simultaneous monitoring of 8 PV events, 16 time events, 8 alarms |
| Ladder Sequence | Built-in function for custom logic programming |
| Enhanced Capacity | /AP option increases patterns to 99 and total segments to 600 |
Model and Configuration
| Category | Details |
|---|---|
| Base Model | UP55A |
| Configuration | 201: Heating/cooling type, 11: Additional outputs/communication, 00: No additional options, /AP: Enhanced pattern option |
