Product Description
Product Details
|
Manufacturer |
Yokogawa |
|---|---|
|
Model/Part Number |
NFCP501-W15 |
|
Description |

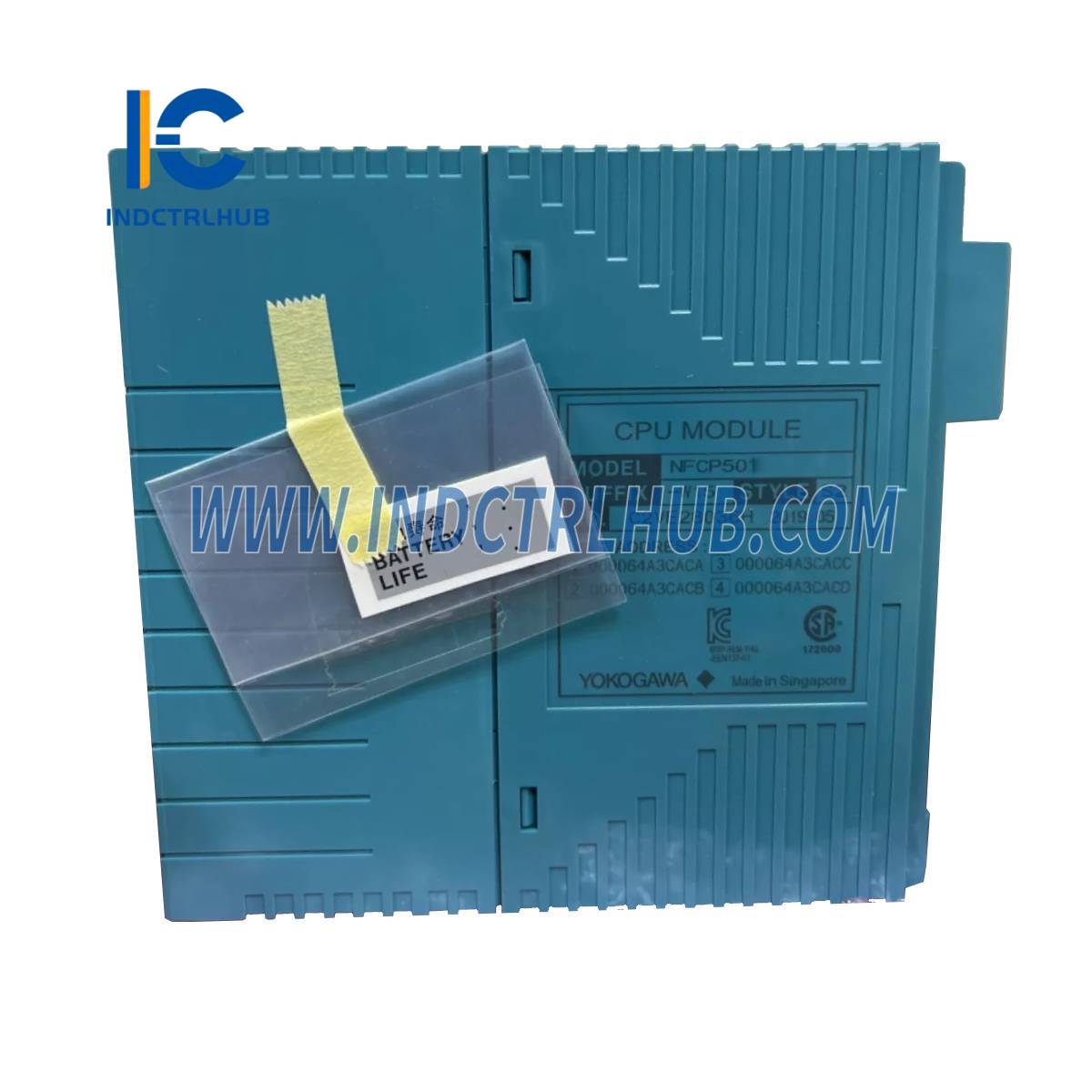

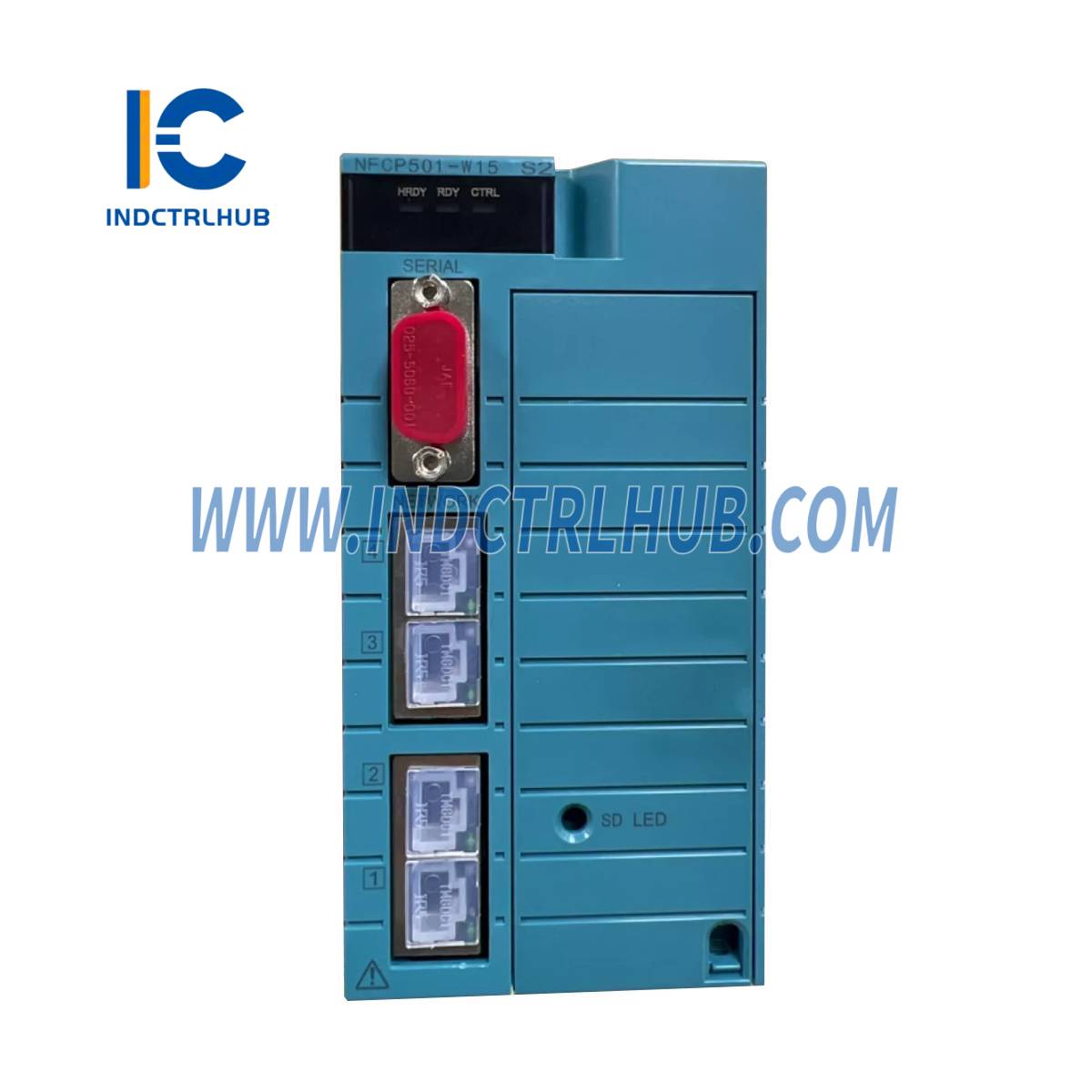

CPU Module for FCN (Field Control Node) |
General Specifications
|
Parameter |
NFCP501 |
|---|---|
|
Processor |
Atom E3815 1.46 GHz |
|
Main Memory |
256 MB with ECC |
|
Static RAM |
2 MB with ECC, backed up by battery |
|
Secondary Memory |
1 GB on-board flash memory |
|
External Media |
SD card slot (SDHC 4 to 32GB, Class 10) |
|
Serial Port |
1 x RS-232-C port (D-sub 9 pins, male) |
|
Communication Method |
Full/Half duplex (software settings) |
|
Synchronization |
Asynchronous |
|
Baud Rate (Serial Port) |
0.3, 1.2, 2.4, 4.8, 9.6, 14.4, 19.2, 28.8, 38.4, 57.6, or 115.2 kbps |
|
Network Interface |
2 x Ethernet ports (RJ45 modular jacks) |
|
Baud Rate (Ethernet) |
1000, 100, 10 Mbps (1000BASE-T, 100BASE-TX, 10BASE-T) |
|
I/O Interface |
SB bus (duplex) |
|
RAS Features |
Watchdog timer, temperature monitor, etc. |
|
Battery |
1000 mAh graphite fluoride lithium battery |
|
Display |
3 LEDs (CPU status), 2 LEDs (Ethernet status), 1 LED (SD card), 1 LED (EXEC) |
|
Switches |
RESET switch, SHUT DOWN switch, FUNC switch, EXEC switch |
|
Protection |
CPU cover with wire lock hole |
Power Supply
|
Parameter |
Specification |
|---|---|
|
Supply Voltage |
5 V DC ±5% |
|
Current Consumption |
Max. 1200 mA |
|
Duplex Configuration |
Possible |
Physical Characteristics
|
Parameter |
Specification |
|---|---|
|
Weight |
0.9 kg |
|
Dimensions (W x H x D) |
65.8 x 130 x 149.3 mm |
|
Occupying Slots |
2 |
Model and Suffix Codes
|
Model |
Description |
|---|---|
|
NFCP501 |
CPU module for FCN (with 2 Ethernet ports) |
Suffix Codes
|
Code |
Description |
|---|---|
|
-S |
With standard functions |
|
-W |
With extended functions |
|
0 |
Standard type |
|
1 |
With Extended Temperature range option |
|
5 |
Basic type with no explosion protection |
|
6 |
With ISA Standard G3 option, no explosion protection |
|
E |
Basic type with explosion protection |
|
F |
With ISA Standard G3 option and explosion protection |
