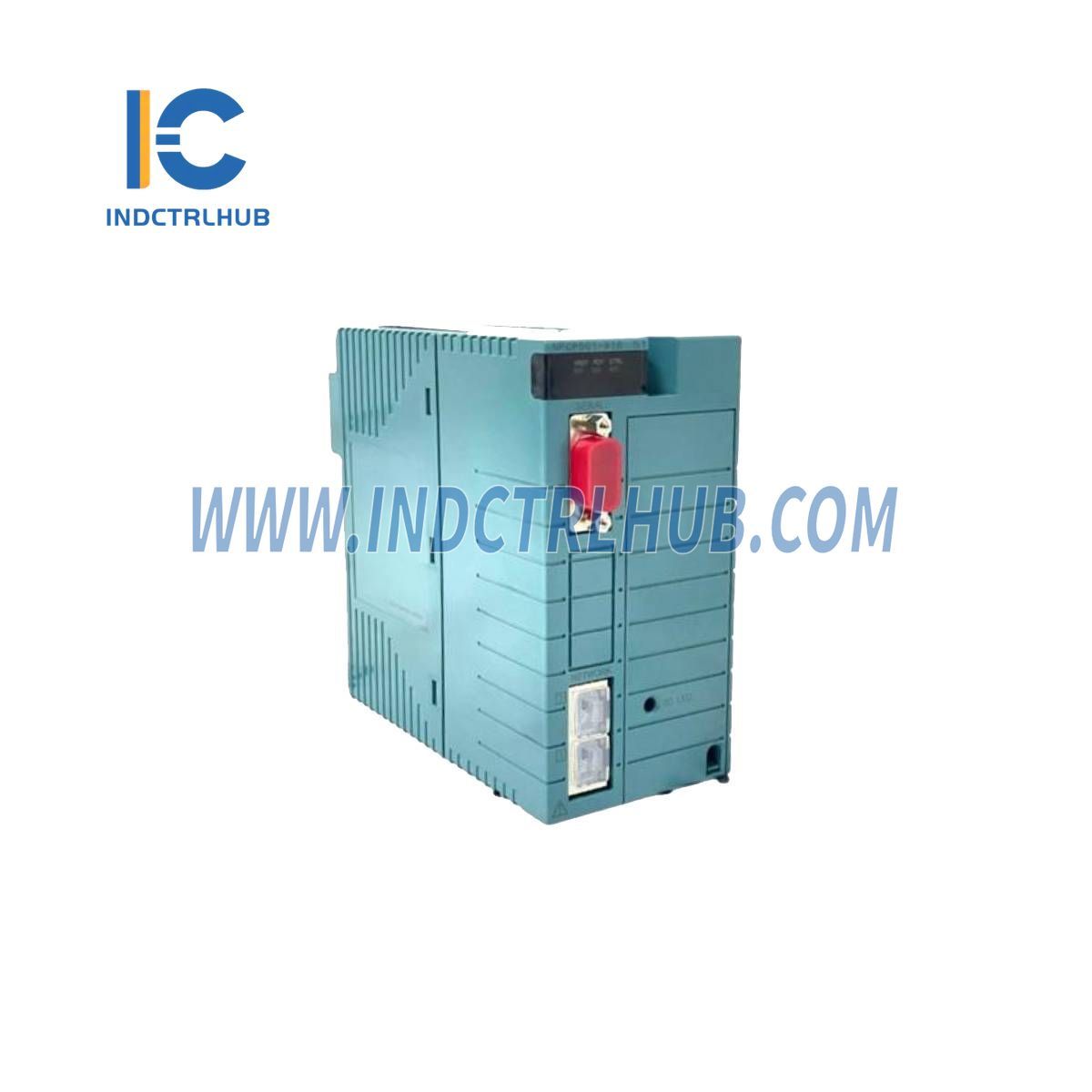

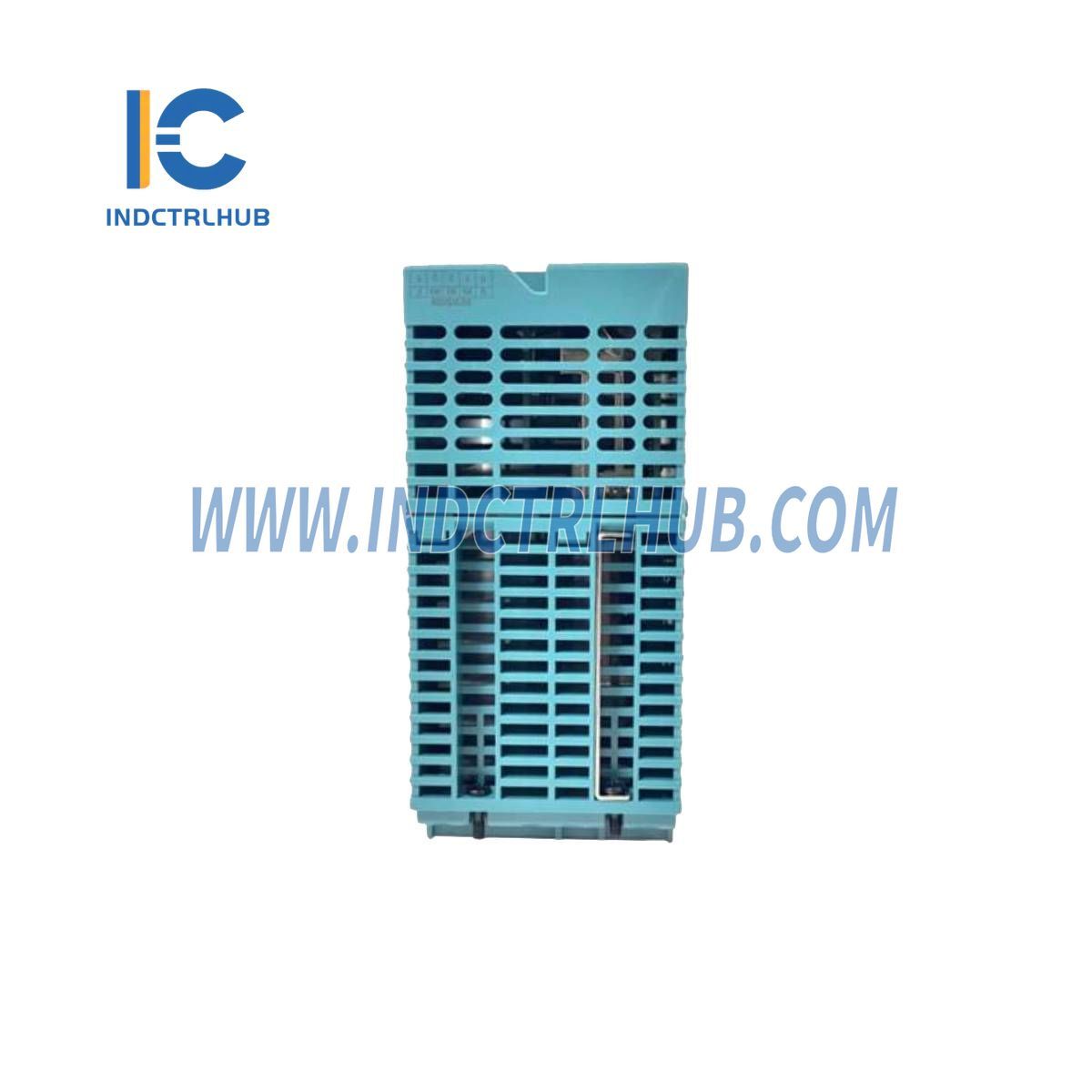

YOKOGAWA NFCP501-W05/S01 CPU module for FCN
YOKOGAWA NFCP501-W05/S01 CPU module for FCN
Manufacturer: YOKOGAWA
Product No.: NFCP501-W05/S01
Condition:1000 in stock
Product Type: CPU module for FCN
Product Origin: JAPAN
Payment: T/T, Western Union
Weight: 900g
Shipping port: Xiamen
Warranty: 12 months
- 24/7 Support
- 30-Day Returns
- Fast Shipping
Product Details
| Manufacturer | YOKOGAWA |
|---|---|
| Model/Part Number | NFCP501-W05/S01 |
| Model Type | CPU Module for FCN (with 2 Ethernet ports) |
General Overview
The NFCP501/NFCP502 CPU Module is designed for FCN (Field Control Node) applications. This module provides real-time control and monitoring capabilities. The suffix codes define the function and configuration variations available.
Model and Suffix Codes
| Description | Suffix Codes |
|---|---|
| NFCP501: CPU Module for FCN with 2 Ethernet ports | -S: Standard functions, -W: Extended functions |
| NFCP502: CPU Module for FCN with 4 Ethernet ports | 0: Standard type, 1: With extended temperature range option |
| 5: Basic type with no explosion protection | |
| 6: With ISA Standard G3 option and no explosion protection | |
| E: Basic type with explosion protection | |
| F: With ISA Standard G3 option and explosion protection |
Specifications
CPU
| Model | NFCP501 | NFCP502 |
|---|---|---|
| Processor | Atom E3815, 1.46 GHz | Atom E3815, 1.46 GHz |
Memory
| Memory Type | Specification |
|---|---|
| Main Memory | 256 MB with ECC |
| Static RAM | 2 MB with ECC, battery-backed |
| Secondary Memory | 1 GB on-board flash memory |
| External Media | SD card, 1 slot (SDHC, 4–32 GB, Class 10) |
Serial Port
| Type | Specification |
|---|---|
| RS-232-C | 1 port, D-sub 9 pins, male |
| Communication Method | Full/Half duplex (software settings) |
| Synchronization | Asynchronous |
| Baud Rate | 0.3, 1.2, 2.4, 4.8, 9.6, 14.4, 19.2, 28.8, 38.4, 57.6, 115.2 kbps |
Network Interface
| Feature | Specification |
|---|---|
| Ethernet Ports | 2 (NFCP501) or 4 (NFCP502), RJ45 modular jacks |
| Baud Rate | 1000, 100, 10 Mbps (1000BASE-T, 100BASE-TX, 10BASE-T) |
I/O Interface
| Feature | Specification |
|---|---|
| I/O Interface | SB bus (duplex) |
RAS Features
- Watchdog Timer
- Temperature Monitor
Battery
| Type | Specification |
|---|---|
| Battery | 1000 mAh graphite fluoride lithium |
Display
| LED Indicators | Specification |
|---|---|
| CPU Status LEDs | 3 LEDs |
| Ethernet Status LEDs | 2 LEDs |
| SD LED | 1 LED |
| EXEC LED | 1 LED |
Switches
- RESET, SHUTDOWN, FUNC, EXEC
Protection
- CPU cover with a hole for wire lock
Power Supply
| Feature | Specification |
|---|---|
| Supply Voltage | 5 V DC ±5% |
| Current Consumption | Max. 1200 mA (NFCP501), Max. 1700 mA (NFCP502) |
Duplex Configuration
| Feature | Specification |
|---|---|
| Duplex Configuration | Possible |
Physical Dimensions
| Dimension | Specification |
|---|---|
| Size | 65.8 x 130 x 149.3 mm |
| Weight | 0.9 kg |
| Slot Occupied | 2 slots |
