Product Description
Product Overview
| Category | Details |
|---|---|
| Manufacturer | Yokogawa (Yokogawa Electric Corporation) |

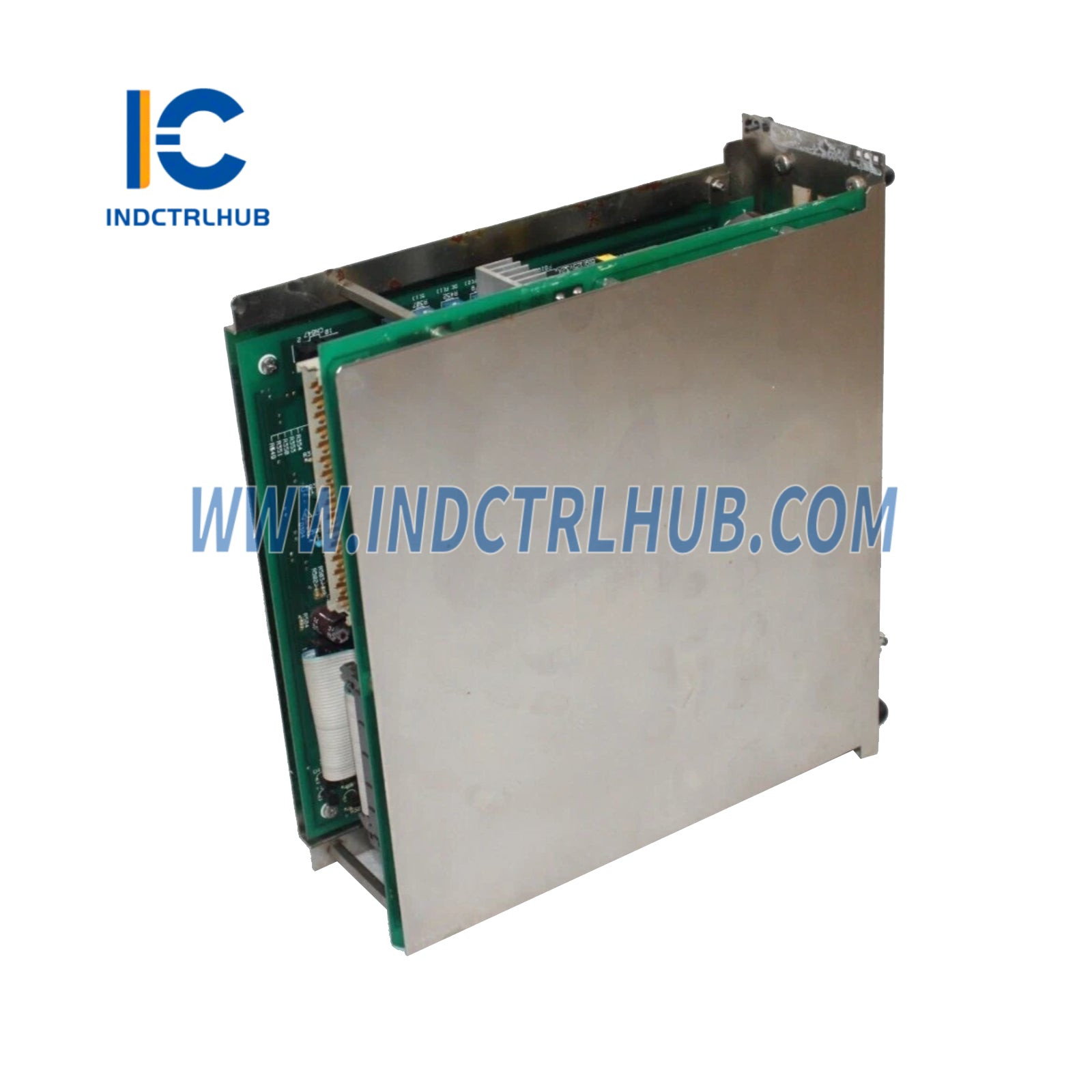

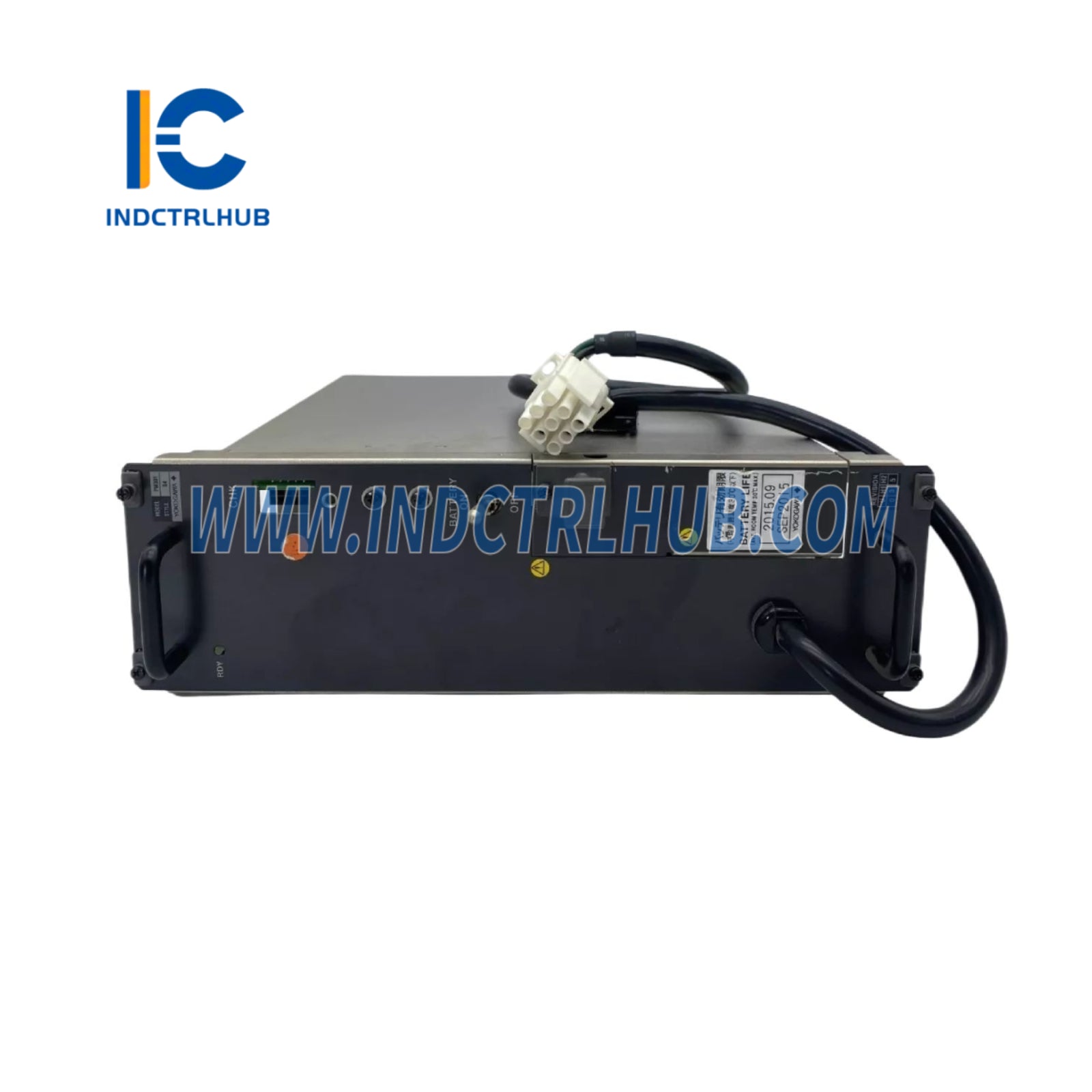

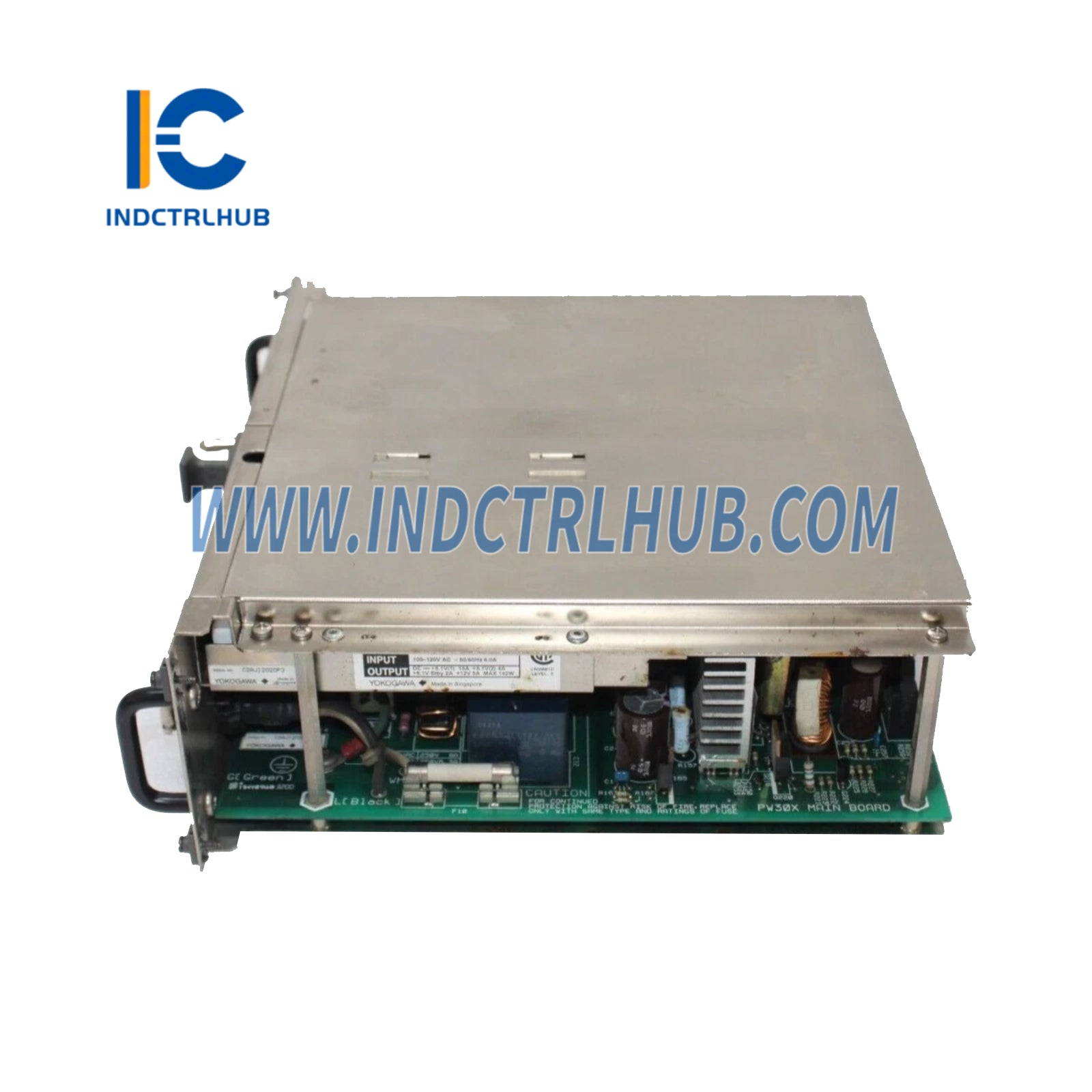

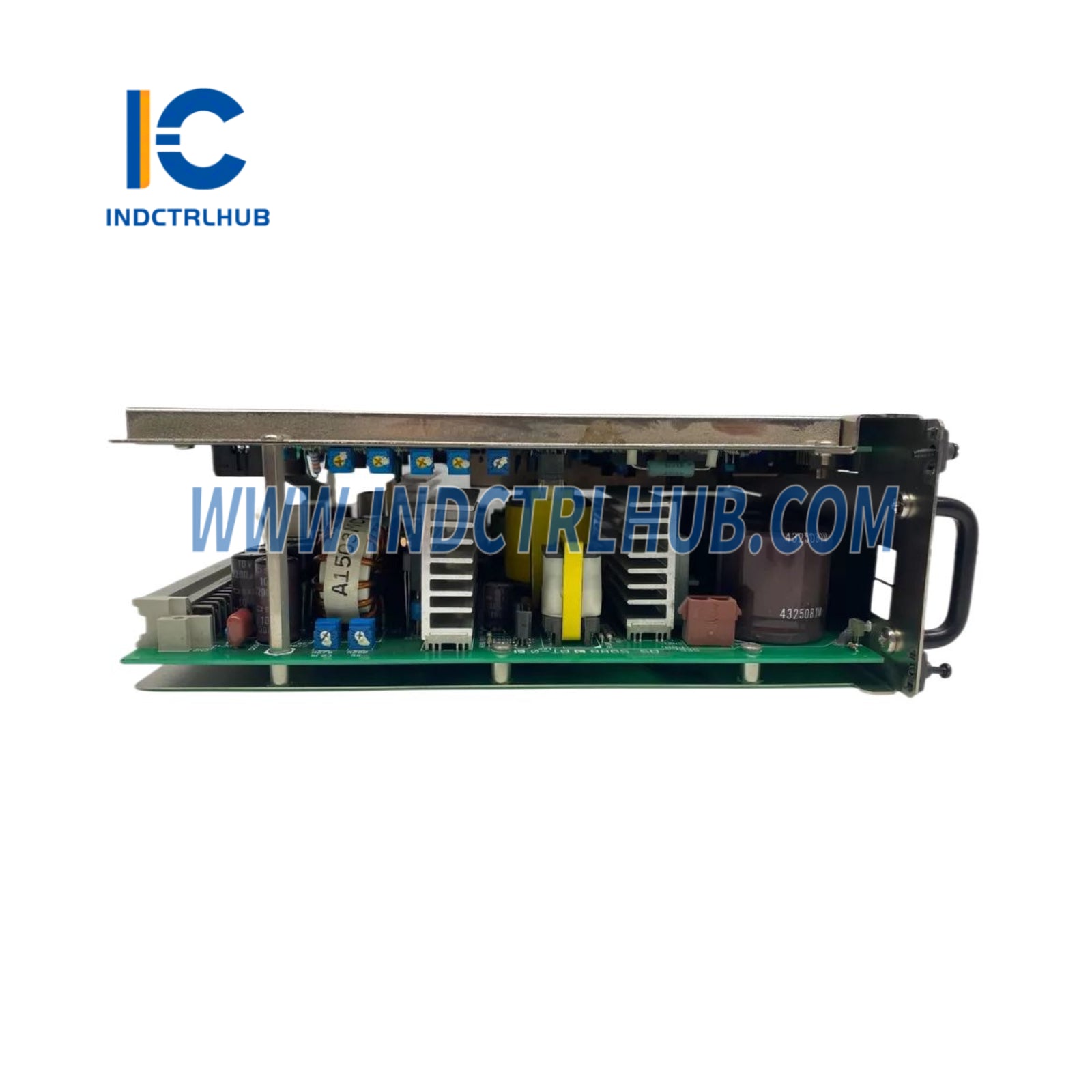

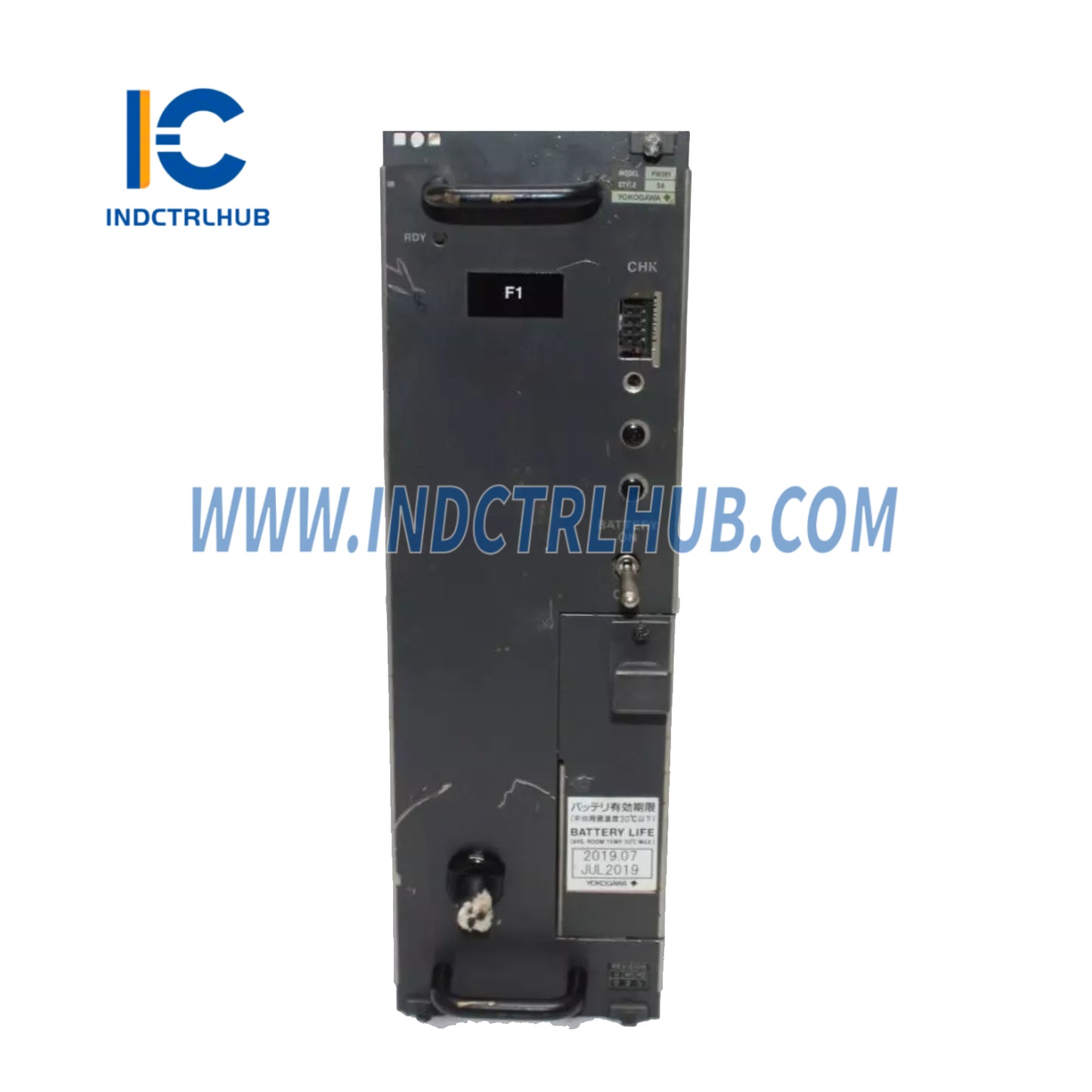

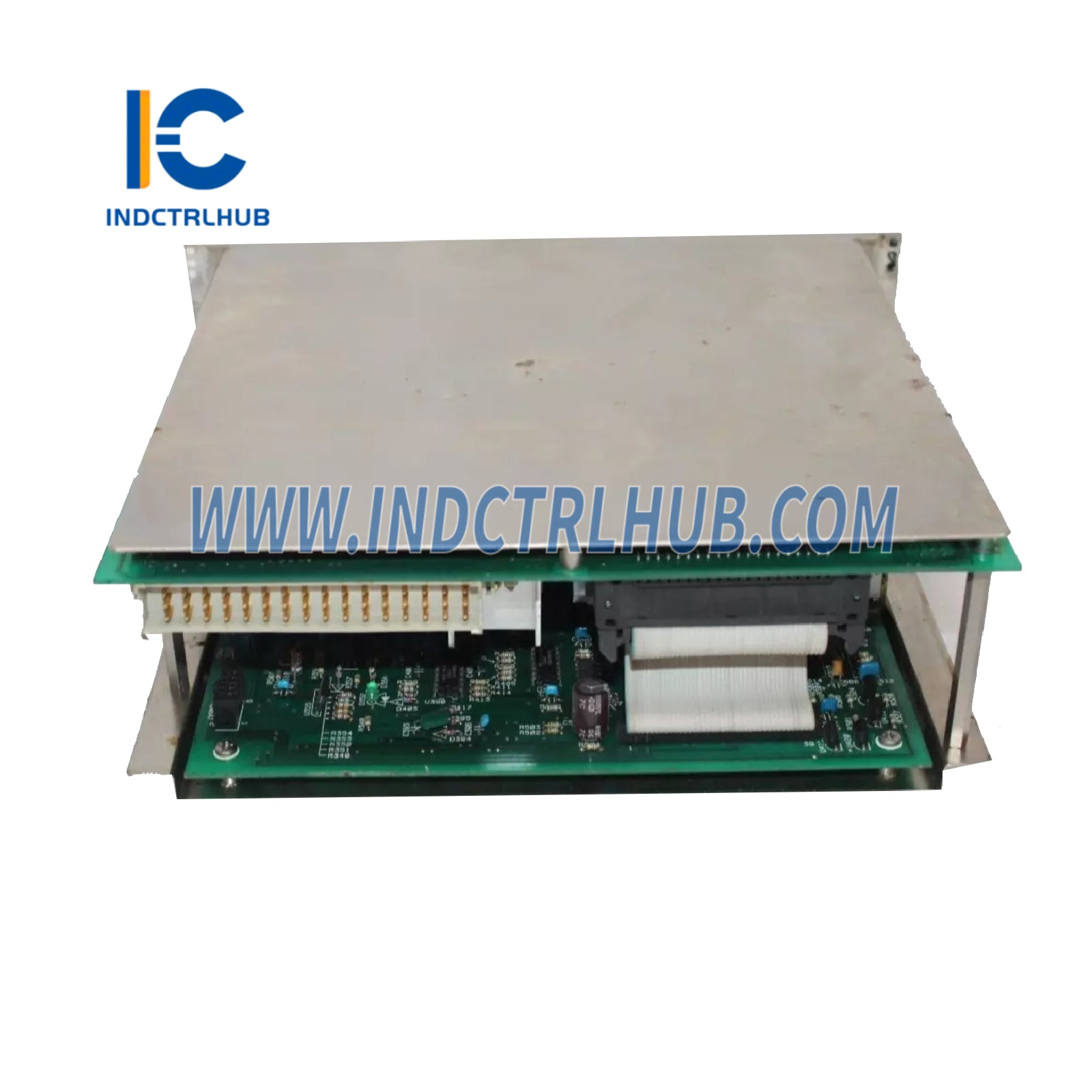

| Model/Part Number | CSL/PW301 |
| Description | Power Supply Module designed to provide stable and reliable power to Yokogawa CENTUM series Distributed Control Systems (DCS), ensuring continuous operation of critical control equipment |
| Key Features | Modular design, high reliability, wide input voltage range, supports CENTUM DCS integration |
Technical Specifications
| Specification | Details |
|---|---|
| Model | CSL/PW301 |
| Product Type | Power Supply Module |
| Input Voltage | 100-240 VAC, 50/60 Hz |
| Output Voltage | 24 VDC |
| Power Capacity | Typically 30-50 W (exact value depends on configuration) |
| Operating Temperature | 0°C to 55°C (32°F to 131°F) |
| Weight | Approx. 1.0 kg (2.2 lbs) |
External Connection Options
| Connection Type | Details |
|---|---|
| Supported Connections | Interfaces with CENTUM DCS Field Control Station (FCS) via internal power bus; connects to AC mains via standard terminals |
Functional Features
| Feature | Details |
|---|---|
| Power Delivery | Supplies regulated DC power to FCS components, including CPU and I/O modules |
| Reliability | Ensures stable operation of DCS equipment under varying conditions |
| Maintenance | Modular design allows for easy installation and replacement |
Model and Configuration
| Category | Details |
|---|---|
| Base Model | CSL/PW301 (Power Supply Module for CENTUM DCS) |
| Configuration | Standard configuration for CENTUM series FCS; no additional suffix options specified |
